Jbt102 Portable Woodboard Edge Banding Machine Price
Qingdao Zhongding Machinery Co., Ltd.- Function：Gluing, Edge Banding, Scraping
- Type：Linear Edge Banding Machine
- Edging thickness：0.3-3.0 mm
- Automatic Grade：Portable
- Panel Feeding Speed：5 M,Min
- Certification：CE, ISO
Base Info
- Model NO.：JBT102
- Panel Thinkness：10-60mm
- Min.length panel：100mm
- Min.width panel：50mm
- Manufacturing Principles：Glue Tank Underneath
- Customized：Customized
- Transport Package：Wood Carton
- Specification：465*430*515mm
- Trademark：ZhongDing
- Origin：China
- HS Code：8465940000
- Production Capacity：200 Set,Month
Description
Basic Info.
Model NO. JBT102 Panel Thinkness 10-60mm Min.length panel 100mm Min.width panel 50mm Manufacturing Principles Glue Tank Underneath Customized Customized Transport Package Wood Carton Specification 465*430*515mm Trademark ZhongDing Origin China HS Code 8465940000 Production Capacity 200 Set/MonthProduct Description
JBT102 Portable WoodBoard Edge Banding Machine Price
Product Description

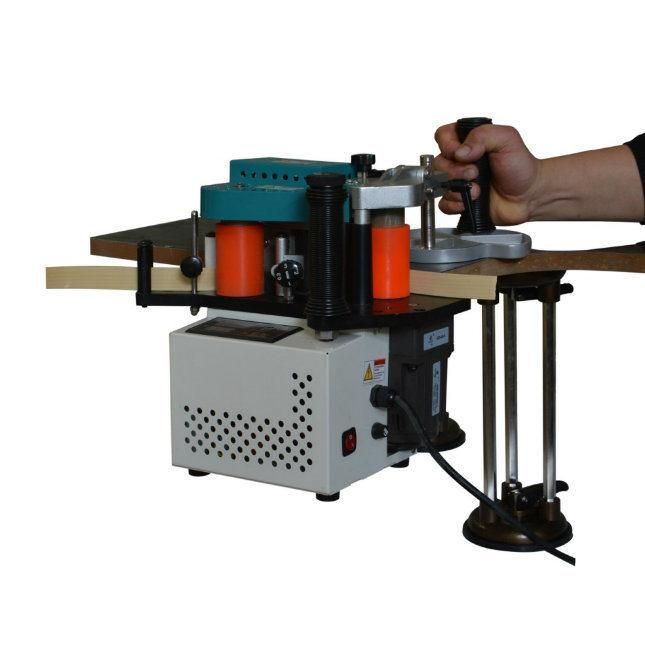

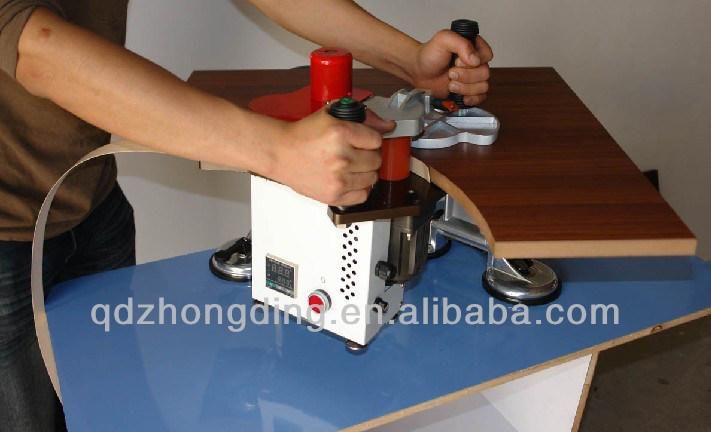

The perfect solution for edge banding of all sizes ! The edge bander can be used for large sized wooden boards and half-finished wooden products. The board can be fixed in place while the hand-held edge bander proceeds.It can also be used for small sized wooden boards while the machine is fixed onto a conveyor belt or table with stand. The process of edge banding is the same for normal sized loads.
Advantages
1, Flexible and is suitable to any work place, both for furniture manufacturing , the carpentry and woodworking industry.
2, Suitable for DIY works allowing high reliability of the equipment at a low cost, compact, lightweight, high quality.

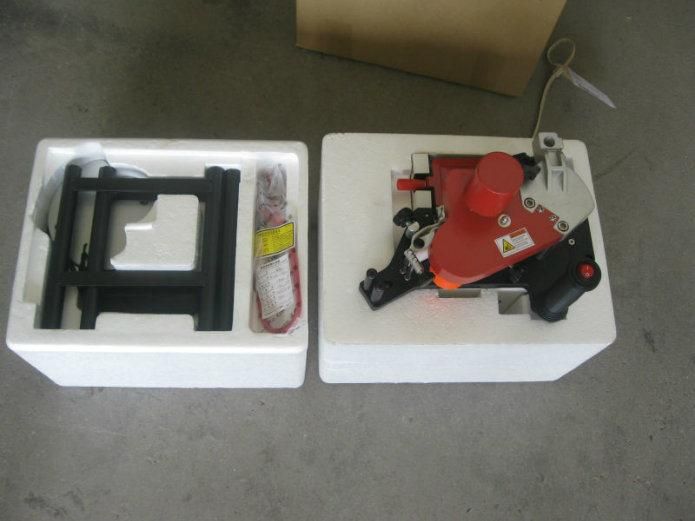

3, Full set of accessories ,enable easier operation and perfect edge banding result.
Technical specifications:
| Type | JBT80 | JBT90 |
| Min edge diameter | 40 mm | 40 mm |
| Feeding speed | 5 m/min | 0.5-3.5 m/min |
| Banding thickness | 0.3-3.0 mm | 0.3-3.0 mm |
| Banding width | 10-45 mm | 10-45 mm |
| Operating temperature | 120-170ºC | 120-170ºC |
| Motor power | 15 w | 15 w |
| Total power | 765 w | 765 w |
| Glue pot volume | 270 ml | 270 ml |
| Weight | 9.5 kgs | 9.5 kgs |
| Machine size | 380*330*380 mm | 380*330*380 mm |
| Independent packing size | 380*300*420 mm | 380*300*420 mm |
| Whole package size | 465*430*515 mm | 465*430*515 mm |
| 0-45°Tilting | no | no |
| Double Surface Gluing | no | no |
Qingdao Zhongding Machinery Co., Ltd is a leading company of specializing in manufacturing and exporting woodworking machine, and we are able to offer professional woodworking machines to customers. Our company has professional technology, full range of testing lines and pipelining, and four professional production lines of woodworking machine. It is located by the beachside of the Yellow sea, which is a place of strong competitive power, beautiful natural environment, and easy traffic of air, land and sea transportation.
Our products mainly include Precise Panel Saw, Edge Banding Machine, Multiple Drilling Machine, Press Machine etc., which have been exported to lots of countries and regions, such as Europe, Russia, Southeast Asia, Middle East, North America, and Australia.
We have established complete sales system. Our company takes the principle of quality first and customer foremost and we are strict with quality control. Meanwhile, we develop and manufacture new products positively, and provide perfect pre-sale and after-sale services. At the same time, our company has got ISO9001 international system certificate and CE security certificate.
Qingdao Zhongding Machinery is looking forward to establish long-term strategic cooperation relationship with you and offer you high quality products and perfect service system

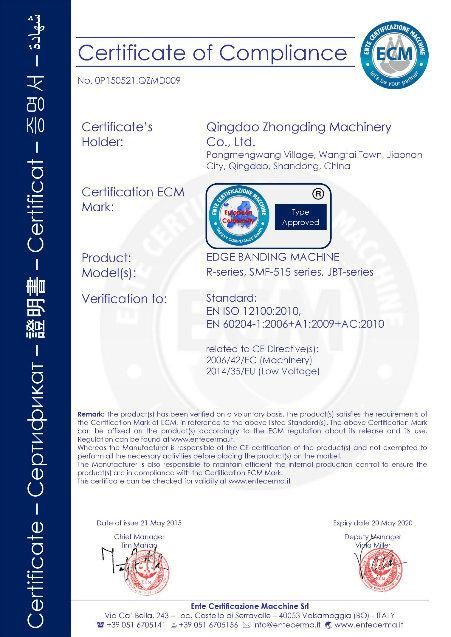

CE Certificate for Edge Bander
