• Model NO.：DW6090
• Machine Color：Can Be Customized
• Spindle Power：2.2kw Water Cooling
• Type：Engraving Router
• Spindle Layout：Vertical
• Spindle Number：Single-Spindle
• Feed Mode：Manual
• Controlling Mode：CNC
• Customized：Customized
• Transport Package：Playwood Box
• Specification：CE Compliance
• Trademark：DWIN
• Origin：Jinan, Shandong Province, China
• HS Code：8465990000
• Production Capacity：50 Sets Per Month

Basic Info.

Model NO. DW6090 Machine Color Can Be Customized Spindle Power 2.2kw Water Cooling Type Engraving Router Spindle Layout Vertical Spindle Number Single-Spindle Feed Mode Manual Controlling Mode CNC Customized Customized Transport Package Playwood Box Specification CE Compliance Trademark DWIN Origin Jinan, Shandong Province, China HS Code 8465990000 Production Capacity 50 Sets Per Month

Product Description

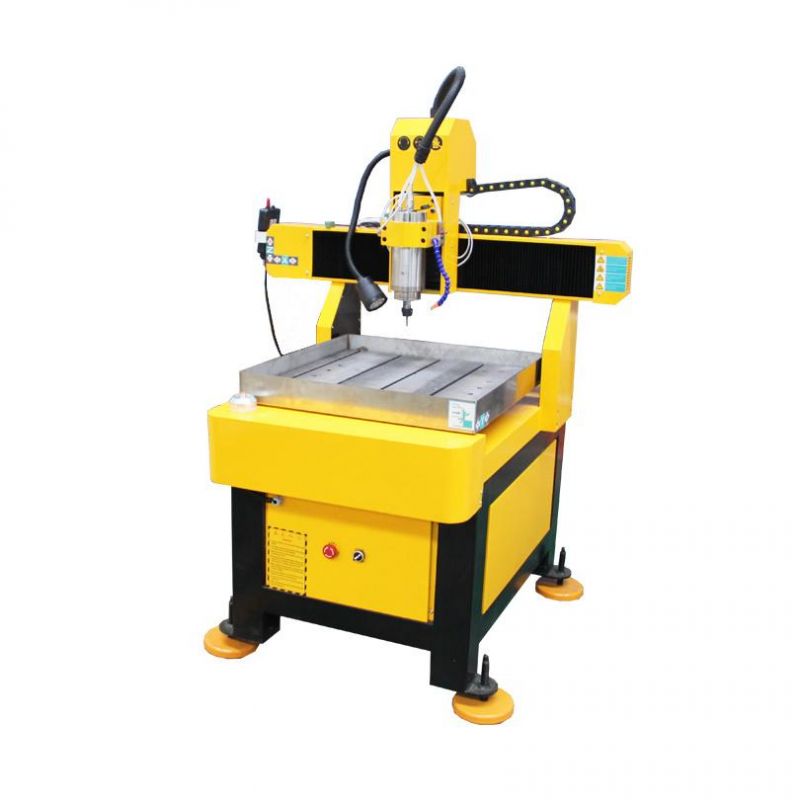

China Cheap CNC Engraving Cutting 3D Wood Router Machine
This cnc engraving cutting wood router machine, belongs to 6090 cnc router, attached with rotary so it has 4 axis , as cnc router, it can be used to engraving on round material and cylinder materials, the small design makes it very suitable for samll factory, and also suitable for mass production for large factory.

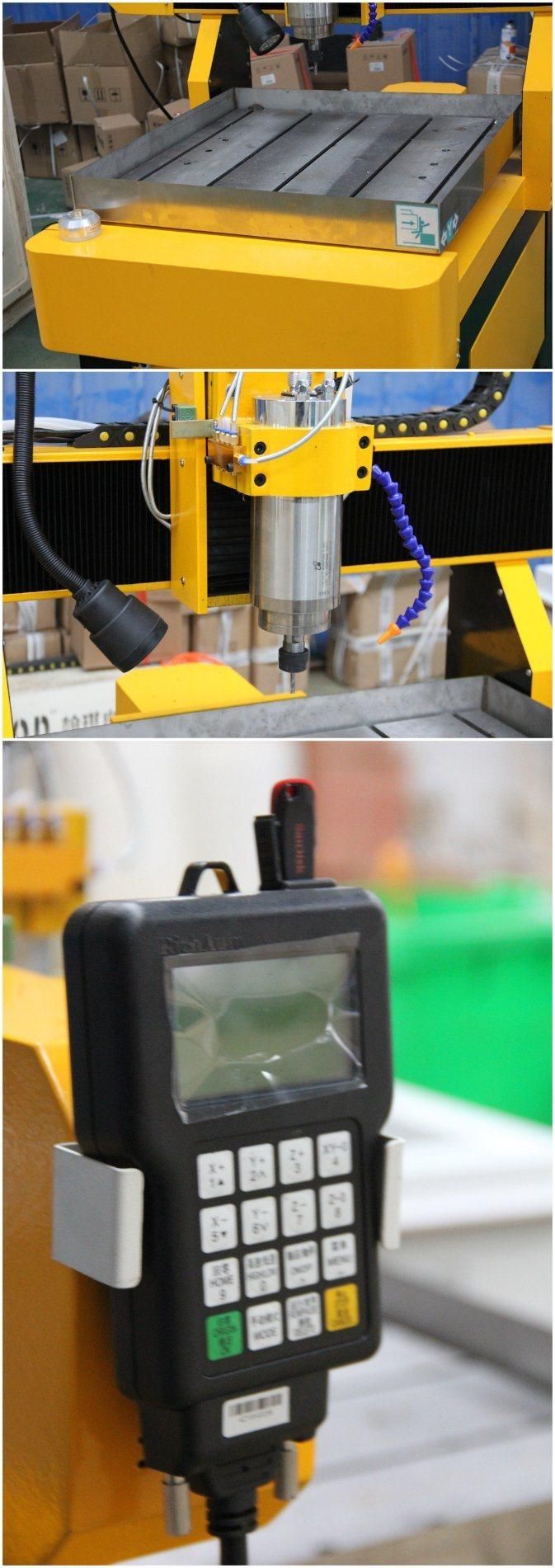

This machine use DSP handle to control the machine, easy to learn and easy to control, we also can customize the machine for you.

Features :
1. DW6090 CNC router is one high precision small CNC engraver with 2D& 3D CAD/
CAM machining capabilities.

2. It is the best choice for the Engraver,Sign maker,Panel maker and Educational
Institution.

3. The machine structures are designed with cast steel and  with Germany ball screws
transmission for x, y & z axes. It is small enough to fit into almost any work space.


Specifications:


	6090 cnc router
1	X,Y,Z Working Area	600x900x100mm
2	Table Size	1560X1050mm
3	X,Y,Z Traveling Positioning AccuraIT	±0.03/300mm
4	X,Y,Z repositioning Positioning AccuraIT	±0.02mm
5	Table Surface	T-slot Extrusions
6	Frame	Welding steed
7	X, Z Structure	Ball Screw
8	Y Structure	Hiwin Rail Linear Bearings and Ball Screw
9	Max. power Consumption	0.8Kw
10	Max. Rapid Travel Rate	8000mm/min
11	Max. Working Speed	6000mm/min
12	Spindle Power Motor	2.2Kw self cooling spindle
13	Spindle Speed	0-24000RPM
14	Drive Motors	Stepper system
15	Working Voltage	AC220V/50/60Hz
16	Command Language	G code
17	Operating System	DSP System  (Option:Mach3 PC Software)
18	Interface	USB
19	Flash Memory	128M(U Disk)
20	Collet	ER16
21	X,Y Resolution	<0.01mm
22	Software Compatibility	Type3 software, Ucancam software,  (Option: Artcam software)
23	Running Environment	Temperature: 0°C~45°C  Relative humidity: 30%~75%
24	Packing Size	1710 x 1250 x 1585mm
25	Net Weight	180KG
26	Gross Weight	272KG

If there is anything we can do for you, please feel free to contact, we will be more than pleased to help you.
