1325 CNC Router with Vacuum Table / 3D Wood Cutting Machine Router 4*8FT CNC Woodworking Carving Machine Router

Jinan Sea Eagle Cnc Machinery Co., Ltd.
  • After-sales Service：Yes
  • Warranty：2 Years
  • Condition：New
  • Certification：ISO, CE
  • CNC or Not：CNC
  • Voltage：220V or 380V, 410V

Base Info

  • Model NO.：1325
  • Spindle Type：Vertical Uniaxial Wood Router
  • Spindle Layout：Horizontal
  • Spindle Number：Single-Spindle
  • Feed Mode：Manual or Automatic
  • Customized：Customized
  • Color：Customized
  • Z Working Area：200mm
  • Working Accuracy：0.02mm
  • Spindle Power：3.0kw, 3.5kw, 4.5kw, 6.0kw..
  • Transport Package：Plywood Box
  • Specification：3200x2200x1800
  • Trademark：sea eagle
  • Origin：China Jinan
  • HS Code：84659900
  • Production Capacity：10000 Sets

Description




X*Y* Z  travel size1250*2500*210mmFeeding height210mmWorking Speed18000m/minRepositioning Accuracy<0.02mmSpindle Running Speed0-24000rpmMax working speed18m/minMax traverse speed 30mm/minMachine body and working tableSteel structure lathe bed, T-slot table of sectional materialWork holdingBy vacuum adsorption with 5.5kw pump

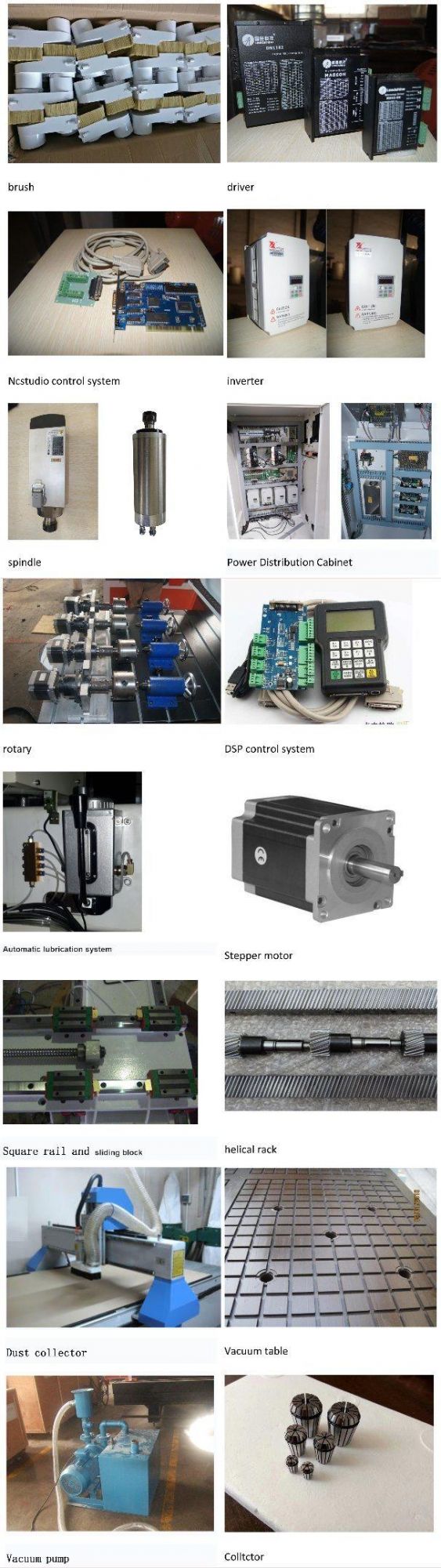

Transmission system      X HAWIN 25mm Square rail,helical rack and pinionY HAWIN 25mm Square rail,helical rack and pinionZ HAWIN 25mm square rail on Z,Germany Imported double-net ball screw
Spindle
 Power 6.0 KW  spindle Collet diameterØ3.175-Ø12.7mmDrive  system
 Servo motor,Control SystemNcstudio 53C or DSP control system Oiling systemAutomaticMachine weight2500kgWorking VoltageAC380V±30V, 50HZ Command CodeG Code, (*.nc*.mmg, *.u00,etc), *.engrunning environment temperature0 degree ~45 degreerelative humidity30~75%Working SoftwareWindows98/xp/7Compatible SoftwareType3/Artcam/UcancamV9/Castmate/corelerow/Autocad
1325 CNC Router with Vacuum Table / 3D Wood Cutting Machine Router 4*8FT CNC Woodworking Carving Machine Router

sample
1325 CNC Router with Vacuum Table / 3D Wood Cutting Machine Router 4*8FT CNC Woodworking Carving Machine Router

Pls sent your inquiry to me for details catalog and quotation.

my split model can save your lot of ship freight !
