Automatic Feeding Single Blade Rip Saw Wood Edge Trimming Straight Line Rip Saw
Shanghai Win Star Woodworking Machinery Co., Ltd.- Warranty：1 Years
- Type：Rip Saw
- Power Type：Electric
- Layout：Horizontal
- Controlling Mode：Automatic
- Automatic Grade：Automatic
Base Info
- Model NO.：VKJ163
- Precision：High Precision
- Certification：CE, ISO, FDA
- Customized：Customized
- Condition：New
- Color：Customized
- After-sales Service：12 Months
- Name：Single Rip Saw
- Model：Vkj163
- Saw Blade Diameter：355-455mm
- Spindle Speed：10-40m,Min
- Total Motor Power：9.37kw
- Max Sawing Thickness：120mm
- Min Sawing Length：120mm
- Weight：1950kg
- Feeding Motor Power：1.5kw
- Working Table：1800*985mm
- Main Motor Power：7.5kw
- Feeding Speed：10-30m,Min
- Max Cutting Width：500mm
- Spindle Diameter：50.8mm
- Lifting Motor：0.37kw
- Transport Package：Wooden Case
- Specification：2250*1680*1550mm
- Trademark：HiWinstar
- Origin：China
- Production Capacity：100set,Month
Description
1.Adjustment of saw shaft
According to the wood and quality requirements to be processed to choose a good saw blade, in the case of high precision, should choose the number of teeth more slices better, and according to the size of the blade diameter and sawing depth, the blade spindle Up and down to adjust.
Adjustment method: Loosen the screw nut and locking handle on the hand wheel on the rear of the spindle holder, the pulsating handwheel, the clockwise direction is raised, the counterclockwise direction is lowered, and the lowest point of the saw blade is not in contact with the track, Otherwise it will wear the saw blade, the height is adjusted, the hand wheel on the cap and lock the handle lock.
2.Adjust the pressure wheel seat
According to the thickness of the processing of wood, you can adjust the pressure wheel, loosen the pressure wheel seat lock the handle, shake the lift hand wheel, you can adjust the pressure wheel, clockwise for the rise, counterclockwise to decline, Until the roller can be lower than the wood about 2-2.5mm, and then press the wheel seat lock handle tightened to use.
3.Feeding speed adjustment
According to the wood processing accuracy and wood wood can adjust the speed of the feeding track (adjust the handle in the machine tool control box on the underside), and then release the locking handle, dial the adjustment handle, adjust the feeding speed, and then lock Tight handle
4.Use and regulation of lubricating oil pump
Lubricant pump main power supply starts when the pump oil, and then according to the set time and the amount of oil supply automatically stop the oil supply.

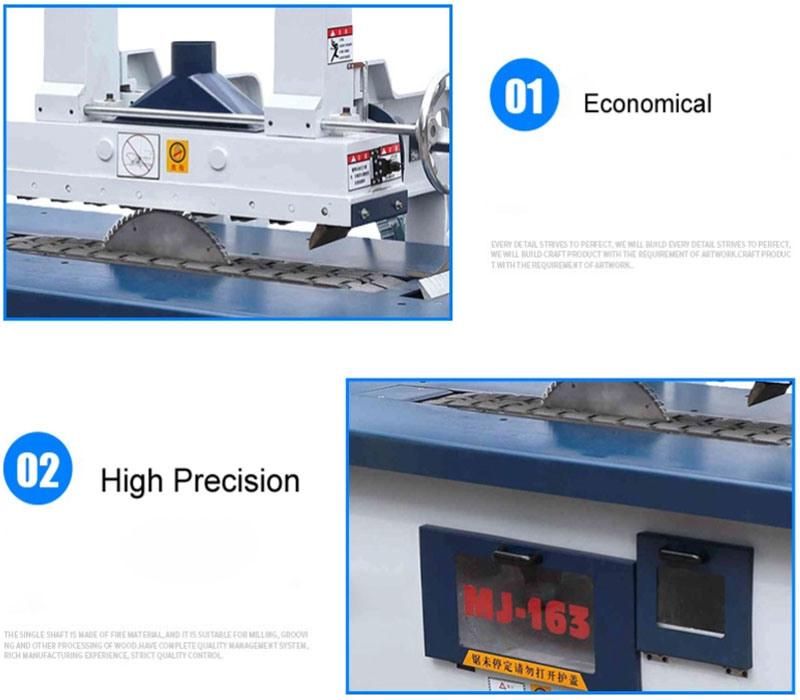

Detailed Description

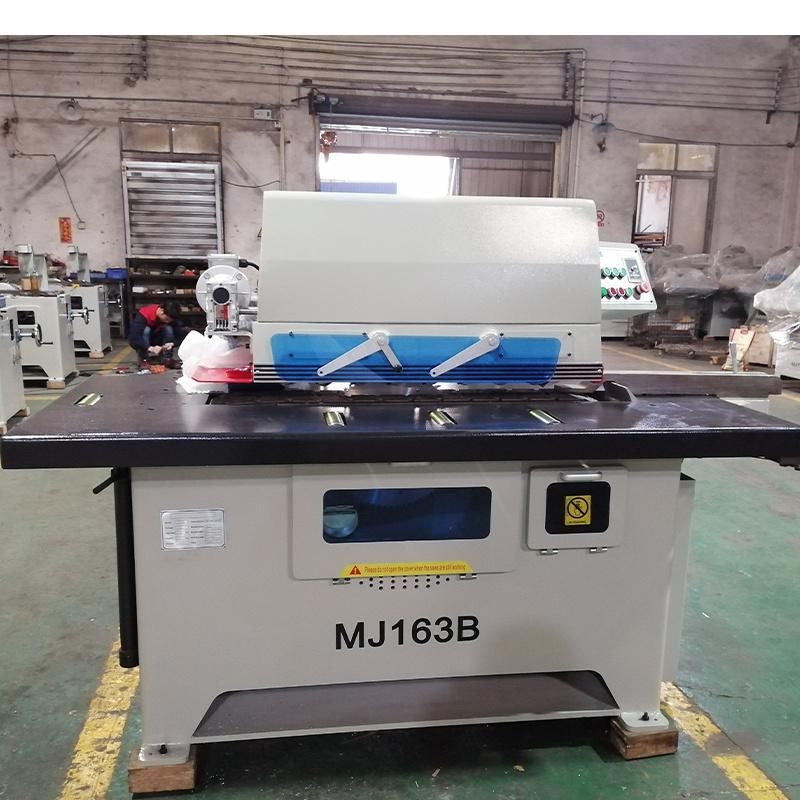

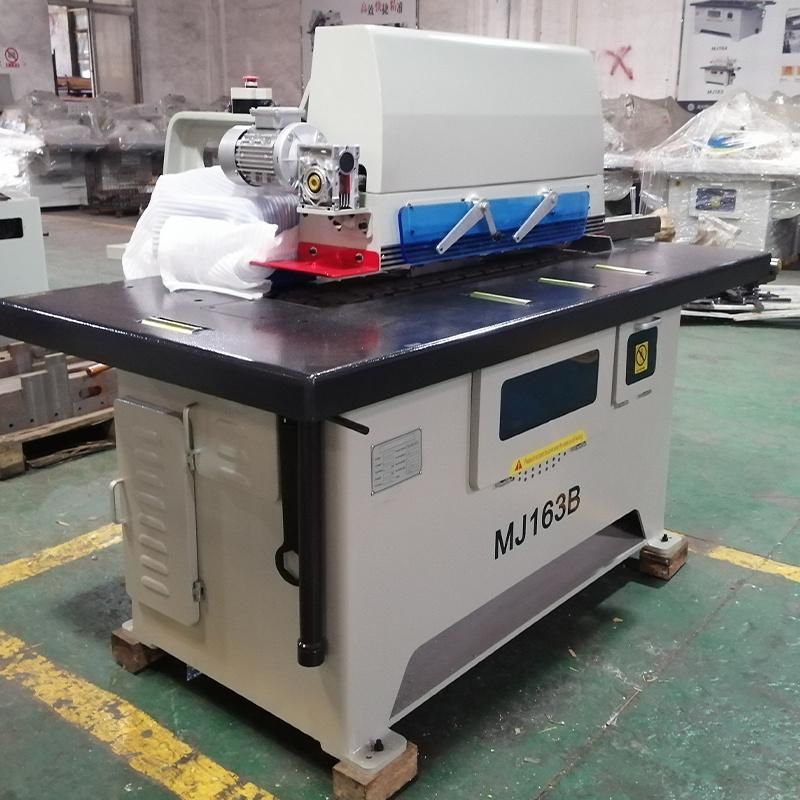

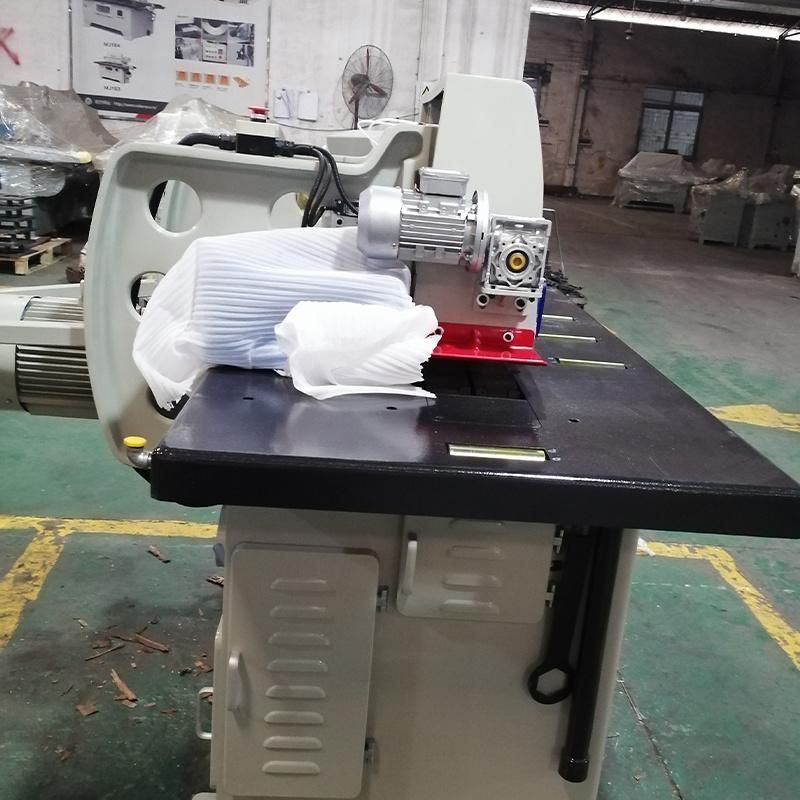

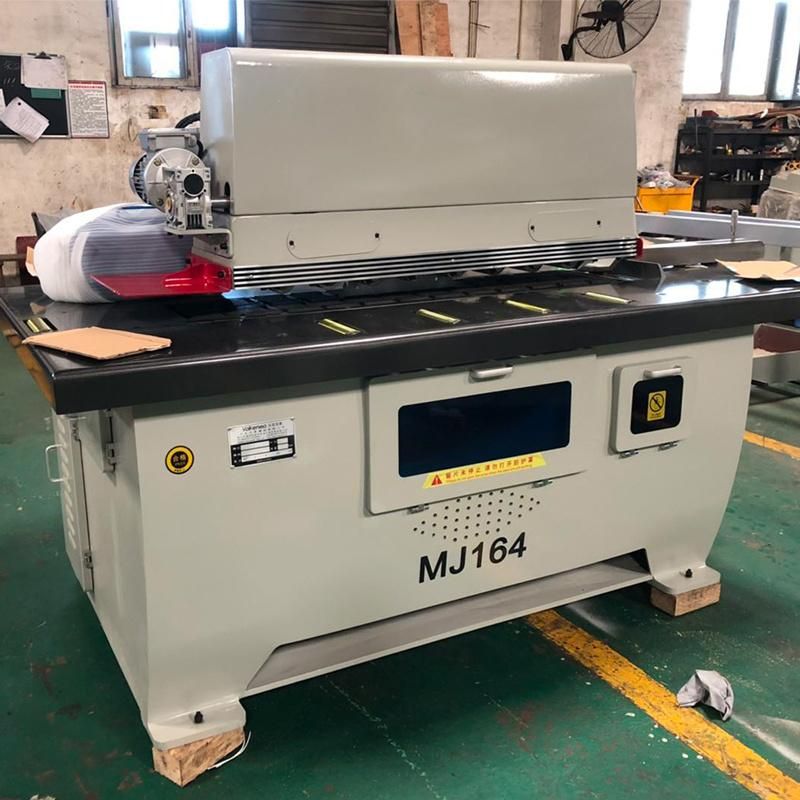

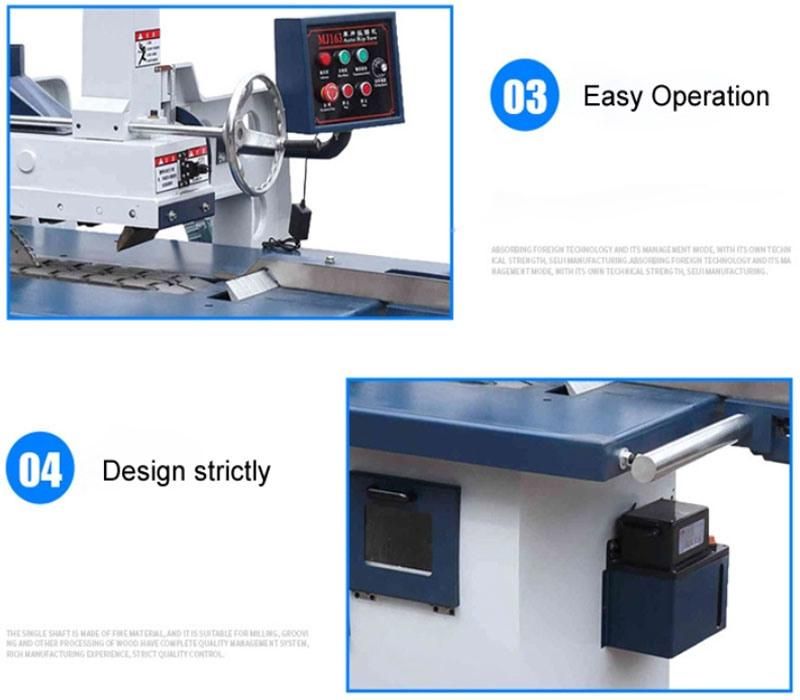

Detailed Pictures

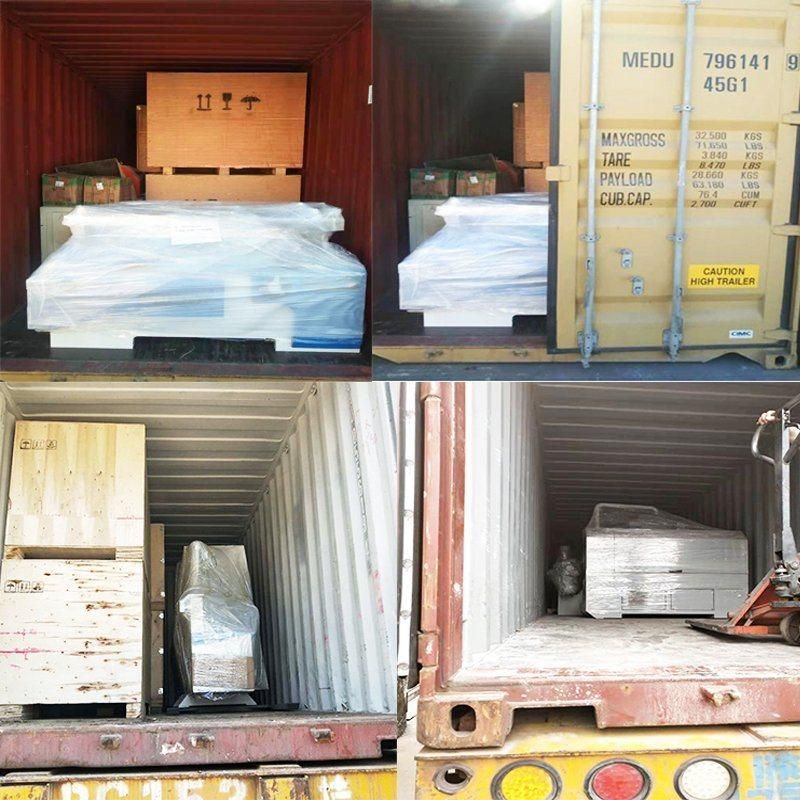

Packaging & Shipping

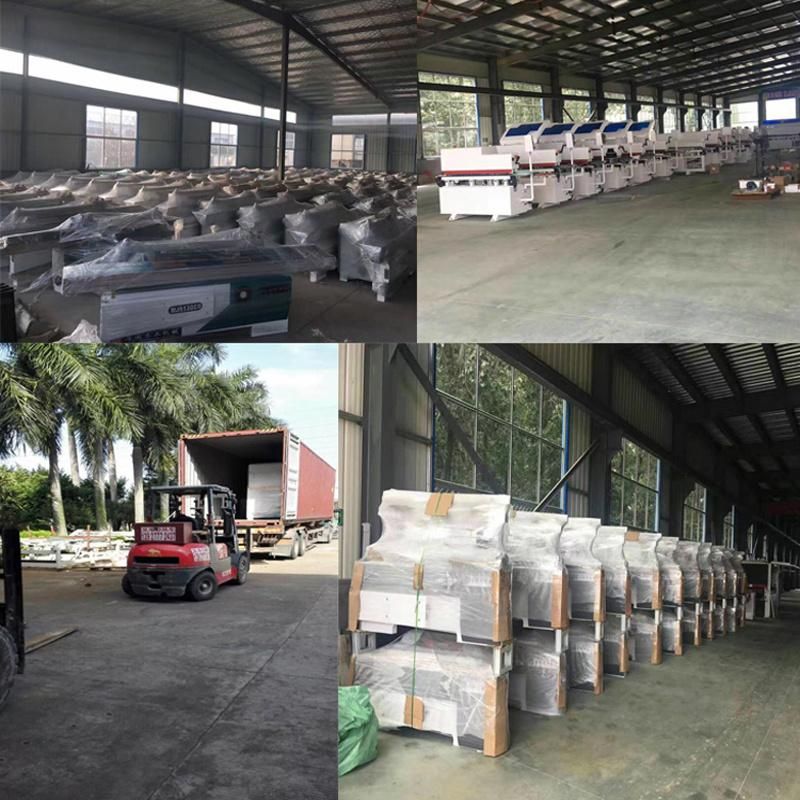

Company Information
FAQ
1,Can you offer good price with fine quality also?
Surely,if without quality,we cannot win long market.we will loose long-terms customers.Quality is our responsibility.we must produce and test machine well.Becasue we are always expecing long term business.Regarding the price.
we are not sure if it is lowest or highest,But we will be offering reasonble.We don't want heavy profits,we want a acceptable price to you,and we are expecting a bigger quantities of sales for different wood machines.
2,We will be protetcted if we are paying for orders?
Surely yes,we have been exported 1000000$ different wood machine every year,We received the payment,we should produce for you and ship to you without delay. It is honesty and reputy.We could understand that you paid,you want to see machines soon and use soon. and these years alibaba trade assurance you could rely on,you will be protected very well.
3,What's your warranty? can you do more service for us? we wish woud be protected after purchasing machine.
We are pleased to give life continious aftersales service. within 12 months, if spareparts broken,we will send you new for change. we would like to help to solve any troubles when you use machine at any time.and don't be worried,we will keep opening 24 hours for all customers problem or difficilaty. we must help to make solutions within 48 hours.
4,What's your production time? we want faster shipping time also.
Mostly machine we have in stock, some machine we produce need about 7-10days. make fast shipment always. shipping time depends on shipping company.
