• Model NO.：1516
• Setting Mode：Table
• Controlling Mode：CNC
• Power Source：Electric
• Processing Accessory：Chuck CNC Lathe
• Certification：CE
• After-sales Service：Lifetime
• Screw：PMI (Imported)
• Control System：Guangxingkai
• Rotary：Dia: 300mm, Length: 1500mm
• Transport Package：Plywood Case
• Specification：1516
• Trademark：GJH
• Origin：Shandong China
• HS Code：84659900
• Production Capacity：100 Sets Per Month

Basic Info.

Model NO. 1516 Setting Mode Table Controlling Mode CNC Power Source Electric Processing Accessory Chuck CNC Lathe Certification CE After-sales Service Lifetime Screw PMI (Imported) Control System Guangxingkai Rotary Dia: 300mm, Length: 1500mm Transport Package Plywood Case Specification 1516 Trademark GJH Origin Shandong China HS Code 84659900 Production Capacity 100 Sets Per Month

Product Description

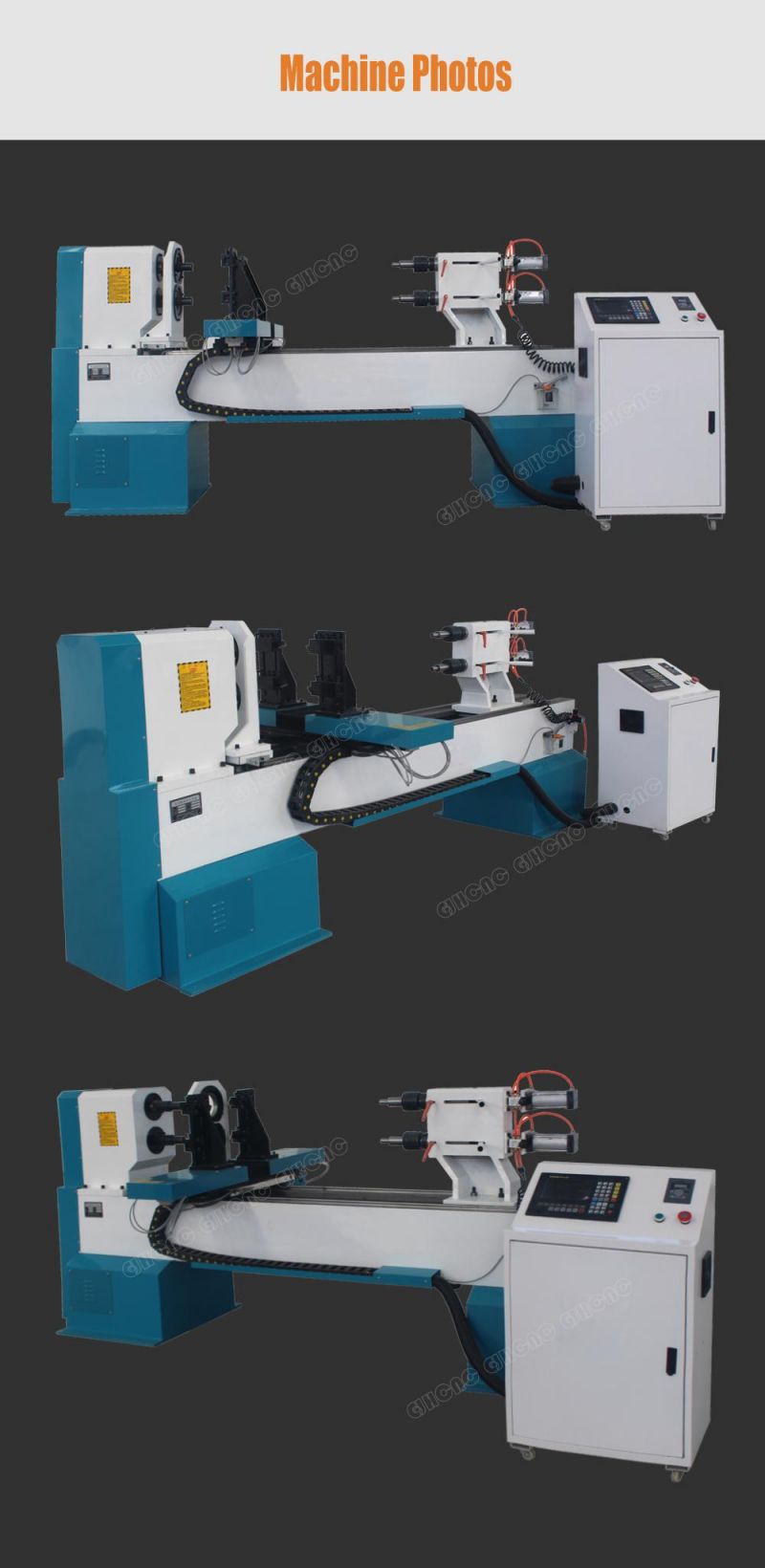

High quality and High precision 1516 Automatic CNC Wood Lathe machine
or table leg,stair post from professional cnc lathe machine manufacturer in China











Application

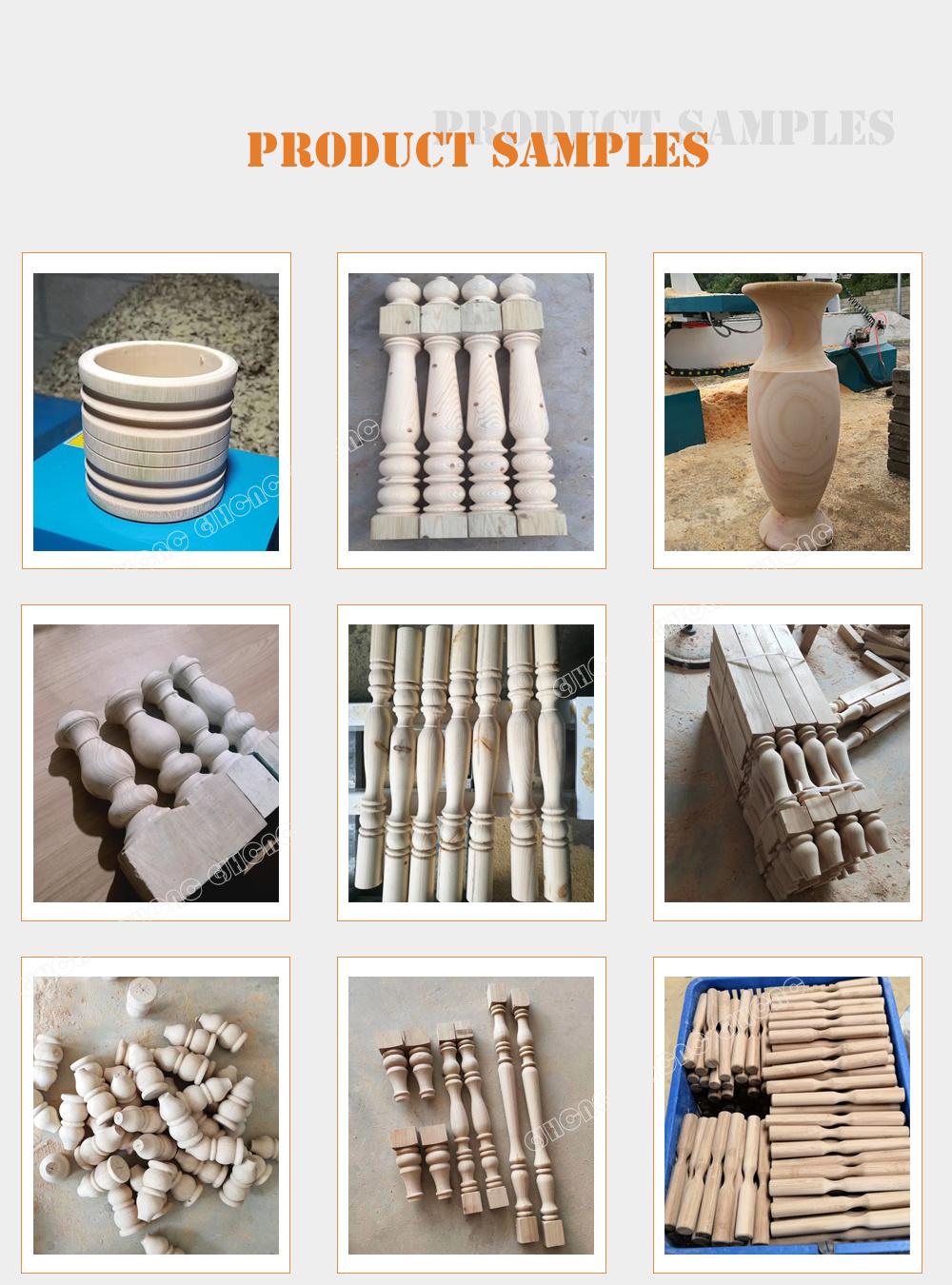

CNC wood lathe machine is applied to process all kinds of stair posts, curved round, vases, tables and chairs back, European stair posts, cylindrical, conical, curved, spherical, and other complex shapes of rotary wood products

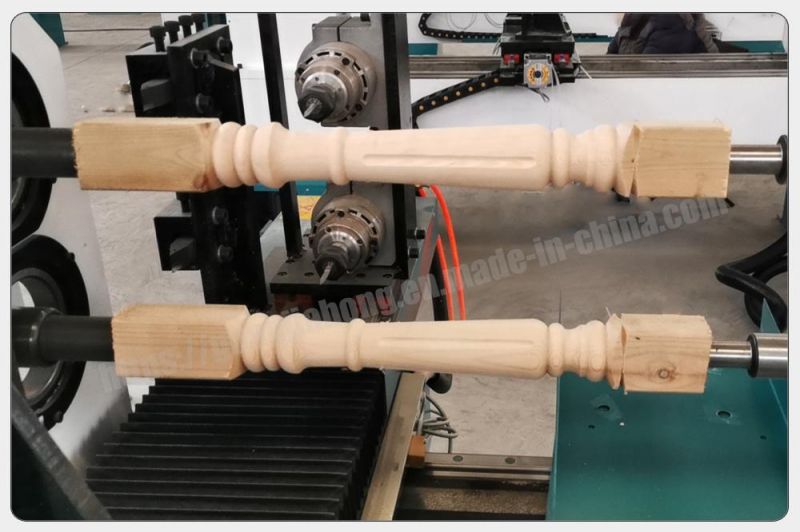

Various cylindrical work piece, tubular sharp and wood crafts, various staircase column, staircase balusters, table legs, sofa legs, bar stool legs,Roman column, washstand, wooden vase, baseball bat, chair arm posts and so on

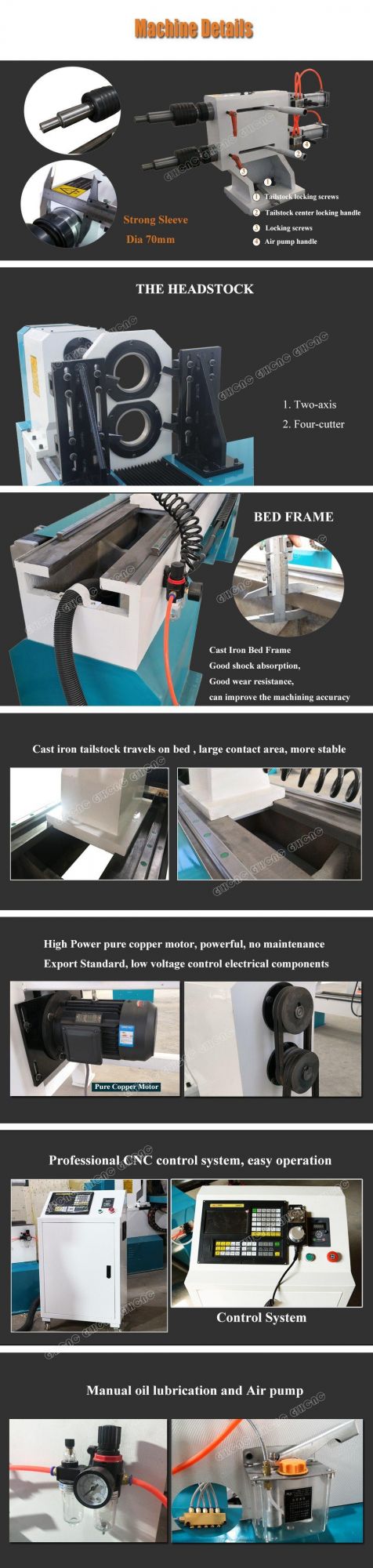

Feature

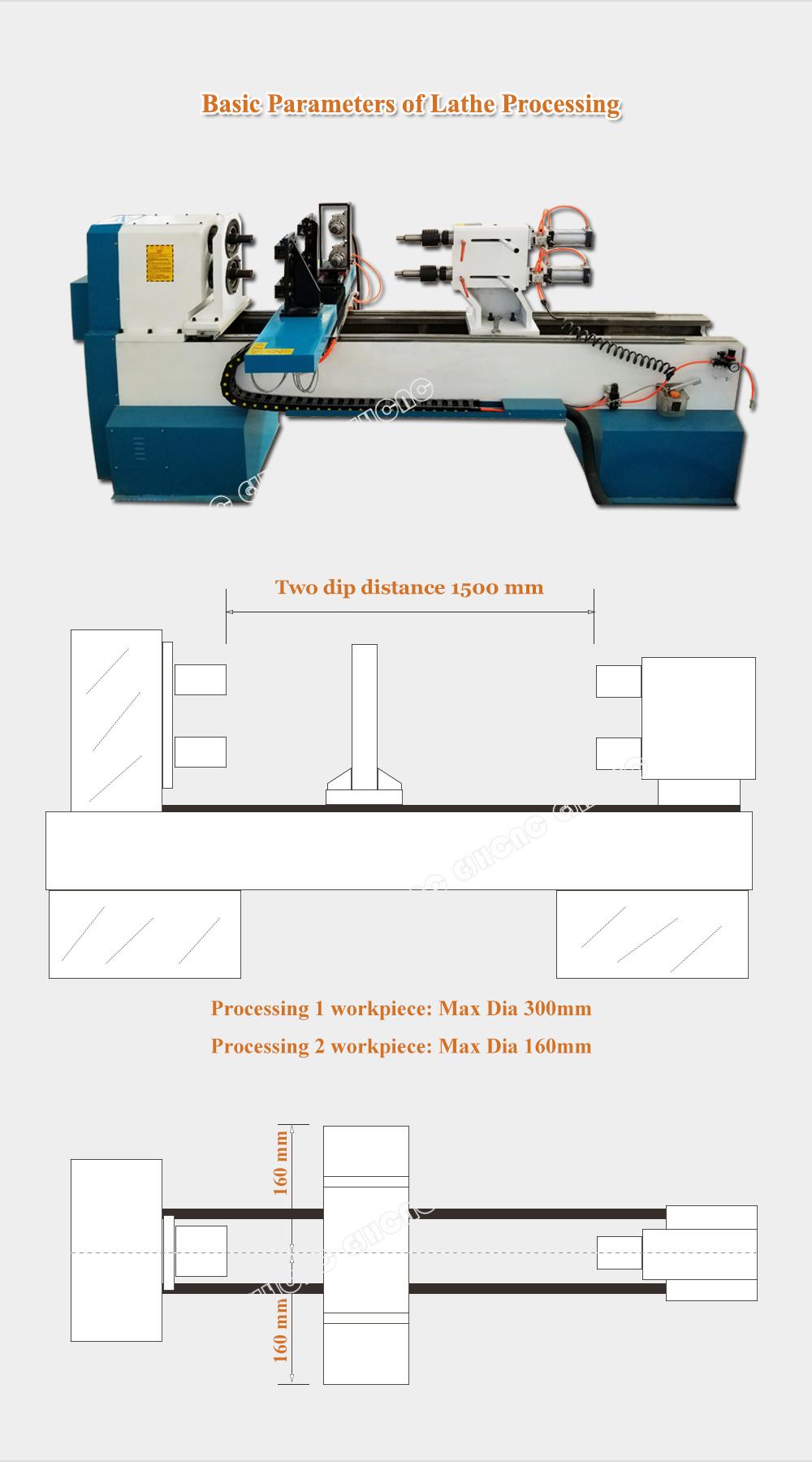

1. Maximum working length is 1500mm, Max turning diameter is 300mm (customization is avaiable)
2. Two cutters at two sides of machine, work together, improve the efficiency greatly3. Linear square rails, ball screws and electronic components.
4. heavy-duty, heavy weight, avoid shaking when the spindle rotates fast.
5. Files can be drew by AUTOCAD or other software, transfer by machine by a USB. 6. Easy operation,

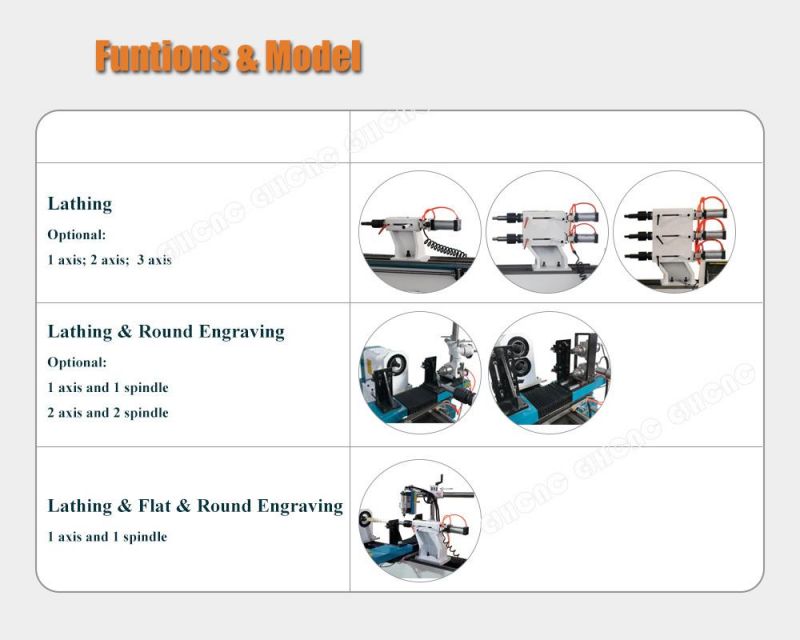

7. If you want to engrave pattern, we will add a spindle on machine to do it.









 Technical Parameter

Model:	GJH 3015RF
Processing Material:	Rotary Wood
Max Working Length:	1500 MM
Max Working Diameter:	300MM
Control System:	Guangxingkai Control System
Frequency Converter:	Middle Drive
Bed structure:	Heavy integral casting
Driving mode:	High precision TBI ball screw
Guideway Drive:	25 Linear Guide rail 25 Flange Slider
Motor	4 Kw pure copper three-phase asynchronous motor
Operating Voltage:	3-phase 380V Voltage
Processing Range:	Stair Column, Table and Chair Back, Bedside Column, Slab Tile, Cylindrical, Conical, Arc, Spherical, Cylindrical Engraving and Flat Carving
N.W.	1400 Kgs
G.W.	1500 Kgs
Packing size:	3200x1500x1400mm

 Our Services: 1. Technical support by phone, email or MSN/ Skype around the clock
2. Friendly English version manual.
3. Engineer available to service machinery overseas. Buyer should pay the fee.
4. Under normal usage, 1 year for the whole machine and 6 months for spindle
5. Normal machine is properly adjusted before dispatch.
6. Free training advice towards our machine in our factory.
7. Free suggestion and consulting, lifetime technical support

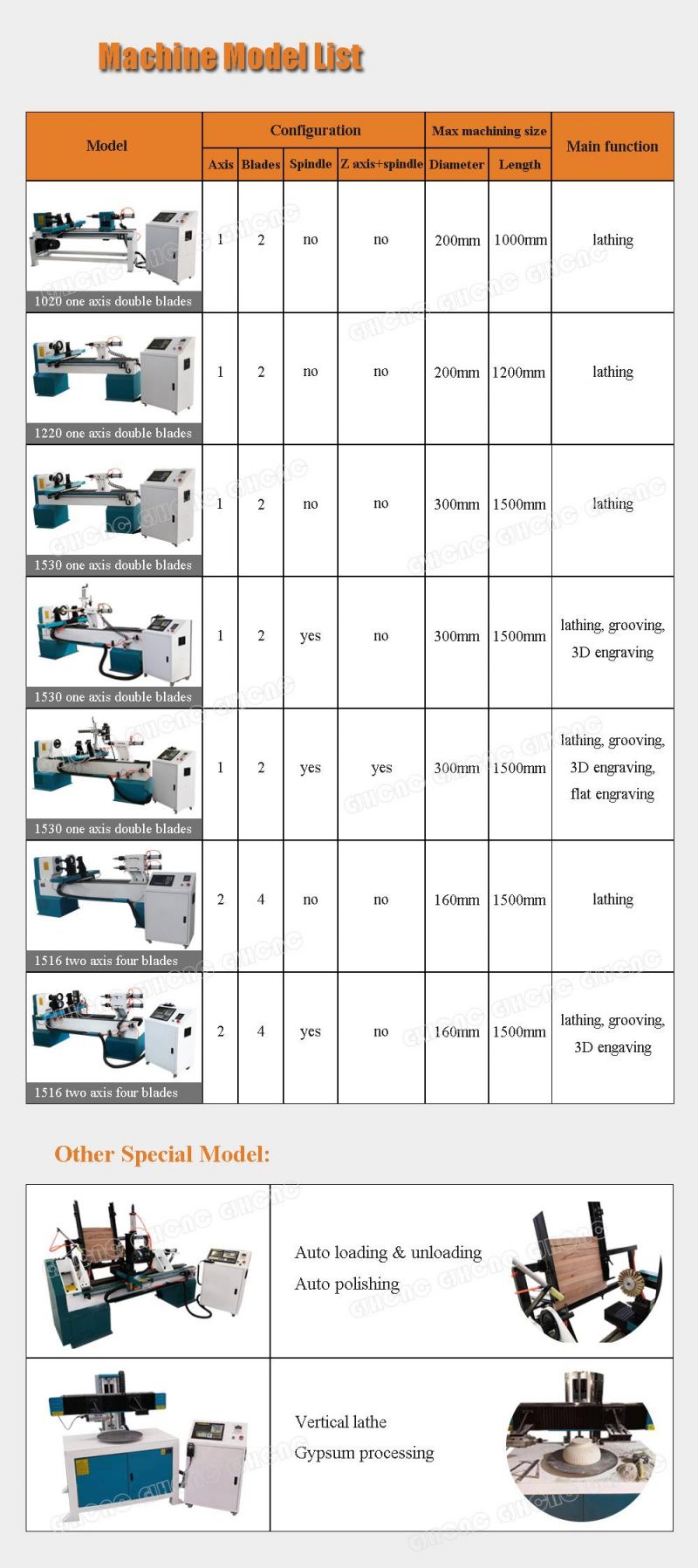

1520/1220/1020  Woodworking machinery,  Automatic CNC wood lathe, Wood turning machine
When you have special request about wood lathe machine, customization is available.
