• Model NO.：MZB63A
• Warranty：1 Year
• Customized：Customized
• Condition：New
• Maximum Diamenter of Holes：35mm
• The Number of Spindles：63
• Rotation of Spindle：2840r,Min
• Suitable Voltage：~380V
• HS Code：84659500, 84659500
• Depth of Drilled Holes：0-60mm
• Center Distance Between Spindles：32mm
• Total Motor Power：4.5kw
• Air Pressure：0.5-0.8MPa
• Packing Size：2700*1350*1650mm
• Transport Package：Plywood Case
• Specification：2600*2600*1600mm
• Trademark：QDZD
• Origin：Qingdao
• Production Capacity：500 Set, Month

Basic Info.

Model NO. MZB63A Warranty 1 Year Customized Customized Condition New Maximum Diamenter of Holes 35mm The Number of Spindles 63 Rotation of Spindle 2840r/Min Suitable Voltage ~380V HS Code 84659500, 84659500 Depth of Drilled Holes 0-60mm Center Distance Between Spindles 32mm Total Motor Power 4.5kw Air Pressure 0.5-0.8MPa Packing Size 2700*1350*1650mm Transport Package Plywood Case Specification 2600*2600*1600mm Trademark QDZD Origin Qingdao Production Capacity 500 Set/ Month

Product Description

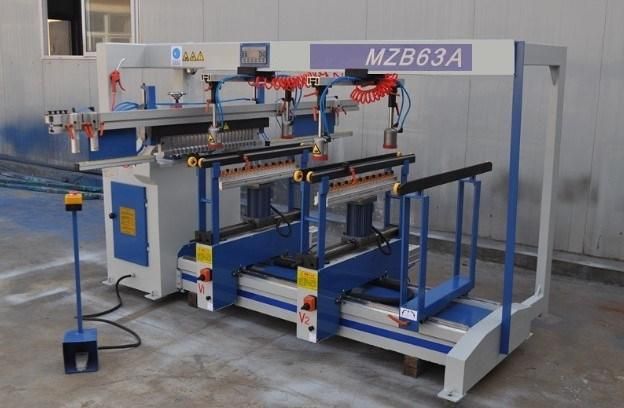

Multiple boring machinery horizontal drilling machine

Product details:




Specification:

Max. diameter of holes	35 mm
Depth of drilled holes	0-60 mm
The number of spindles	63
Center distance between spindles	32 mm
Rotation of spindle	2840 r/min
Total motor size	4.5 kw
Suitable voltage	380 v
Air pressure	0.5-0.8 Mpa
Gas consumption for drilling ten panels per minutes approximately	20L/min Approximately
Max. distance of the two longitudinal heads	1850 mm
Height of working platform off the ground	800 mm
Over size	2600x2600x1600 mm
Packing size	2700x1350x1650 mm
Weight	1260 kg

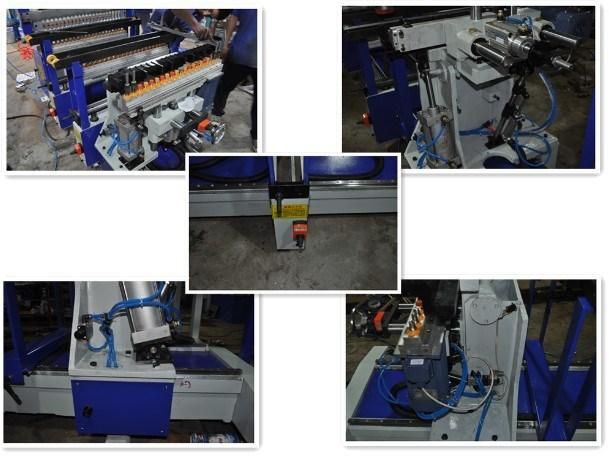

Details:



Order terms:

1) Term of payment: T/T, 30% deposit and the balance is paid before delivery
2) Delivery: 10-15days
3) Machine voltage: optional
4) Warranty: 1 year
5) MOQ: 1 Set
6) OEM service is ok
7) HS code: 84659900
8) Certificate: CE&ISO

FAQ:

Q: Are you a manufacturer or a trading company?

A: We are the manufacturer with 9 years experience.



Q: What kind of products do you have?

A: We produce and sell woodworking machines including panel saw, edge banding machine, press machine, multiple drilling machine, gluing machine, sanding machine and any other woodworking tools and equipments.



Q: Do you have CE or ISO certification?

A: Yes we have both.



Q: What's your warranty?

A: We offer one year warranty.



Q: Do you offer oversea after-sale service?

A: Yes if necessary.



Q: What's your advantage comparing with other suppliers?

A: With 10 years of experience, we have built a complete operating system including ordering process, production, quality control and after-sale service which helps both sides a lot in communicating, saving the cost, ensuring the quality and solving the problems.

Package:


About us:


Qingdao Zhongding Machinery Co.,Ltd is a professional manufacturer in woodworking machine. Our products include:

-Panel saw
-Edge banding machine
-Multiple drilling machine
-Press machine
-Gluing machine
-Sanding machine
-Other woodworking machines

We are looking forward a long term cooperation with our customers and offer high quality products&service with our passion.
