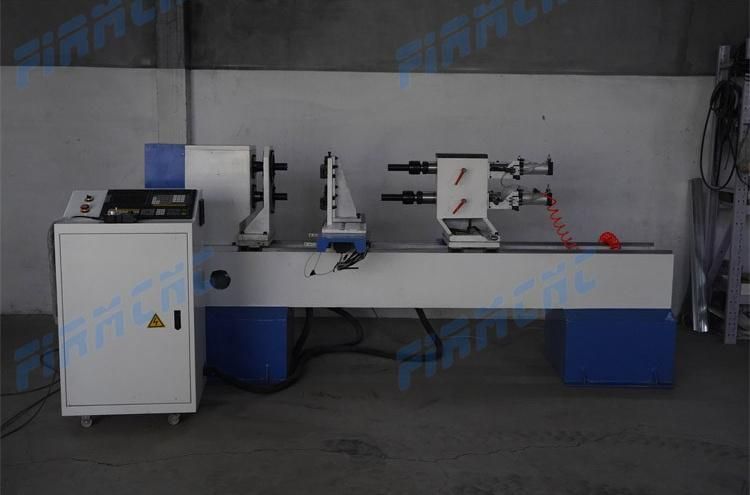

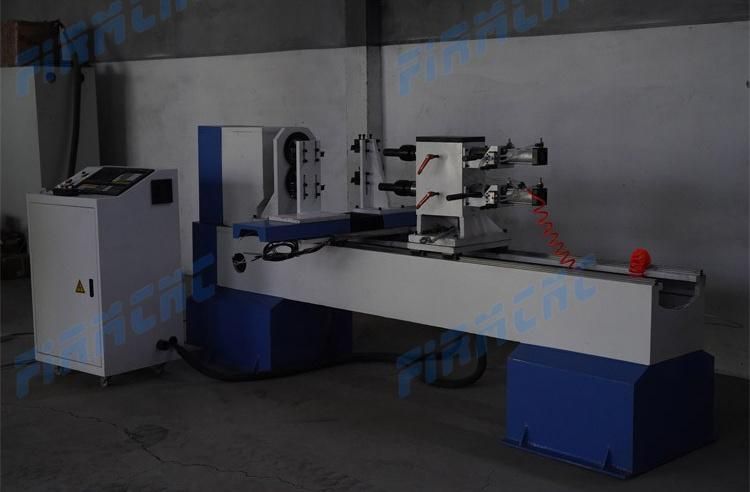

Auto Feeding CNC Wood Lathe with Sanding Spindle for Making Wood Table Legs
Jinan Firm CNC Equipment Co., Ltd.- Type:Horizontal Lathe
- Voltage:380V
- Tool Holder:Single-tool Holder CNC Lathe
- Automatic Grade:Automatic
- Precision:High Precision
- Setting Mode:Floor-type
Base Info
- Model NO.:FM15030
- Controlling Mode:CNC
- Power Source:Electric
- Processing Accessory:Chuck CNC Lathe
- Certification:CE, ISO, FDA
- Key Word:CNC Wood Lathe
- Spindle Power:3.5kw Air Cooled Spindle
- Material Diameter:20mm-300mm
- Motor:Servo Motor
- Driver:Fuling Inverter
- Speed:0-3000 R,Min
- Control System:DSP or Ncstudio Control
- Rail:Taiwan Hiwin Square Rails
- Transmission Way:Rack Gear
- Transport Package:Standard Export Plywood Package
- Specification:CE, SGS, ISO
- Trademark:FIRMCNC
- Origin:Jinan, China
- HS Code:8521909090
- Production Capacity:100 Sets,Month
Description
Item Specification
Max processing length
1500mm(can custom 2000/2500/3000mm)
Max turning diameter
300mm
Air pressure
0.6-0.8Mpa
Powersupply
AC 380V 3 phase 50HZ/60HZ(can custom 220V)
Max feed rate
200cm/min
min setting unit
0.01cm
Transimission type
ball screw for X Z axis,gear for Y axis
Guider
Taiwan Hiwin orbit
Main shaft rotating speed
0-3000r/min
Motor power
4kw
Cutter material
Super hard alloy
Control System
DSP control system
Motor
Stepper motor
Driver
Yako driver
Inverter
Best inverter
Drawing Software
AutoCAD
Hand controller recognise file
*.dxf
CNC Wood Lathe Application :
Staircases,stairway balusters,stairway newel posts;dining table legs;end table Legs;sofa table legs;bar stool legs;chair legs;chair arm posts;chair stretchers;bed rails, lamp posts,baseball bats and so on

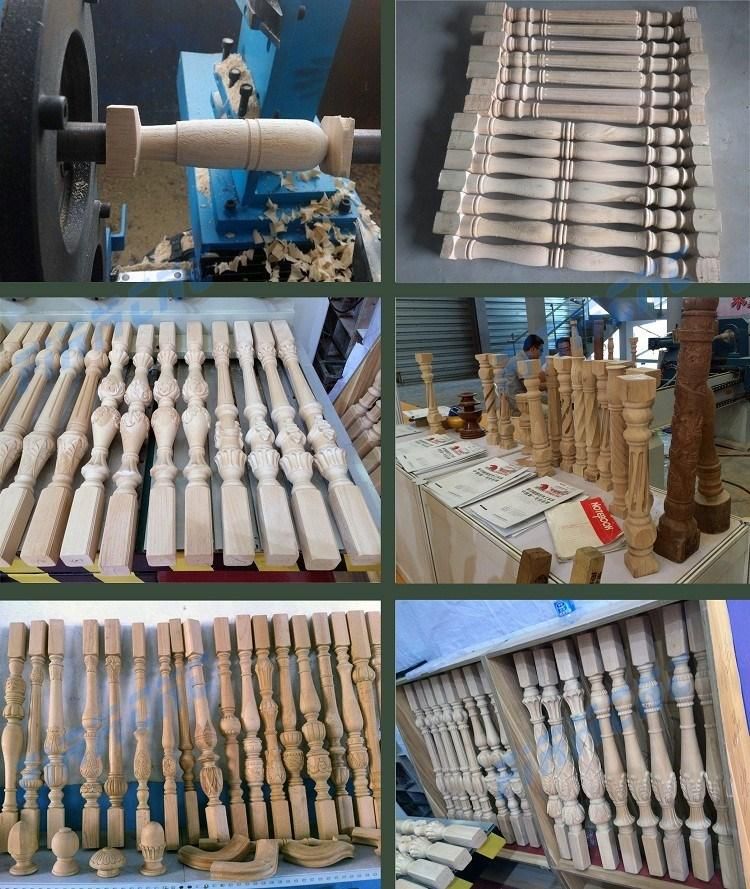

CNC Wood Lathe Samples:
After sales service :
# Two years warranty for the machine
# Replacing all parts for free during warranty
# If nessessary, provide door to door service to your country
# 24 hours on line service
# Replying your email and offer tecnical service within 24 hours
Company information :
Jinan FIRM CNC Equipment Co ., Ltd is located in Jinan, Shandong Province,which specializes in manufacturing CNC and laser machines.
Our main products are CNC Router and Laser Machine. 5-Axis Machine Center, 4-Axis Machining Center, 3-Axis ATC CNC Router , General 3-Axis CNC Router, CNC Plasma Cutting Machine. We have two factories for product. The application covers Woodworking, Advertising,Marble, Metal,Nonmetal,MDF,Plastic,etc.Our products are widely sold in many European, American countries,Africa,Asia, ect.
We are still trying our best to product innovative products to help customers lower their costs and increase their returns. If you are interested in our products, please do not hesitates to contact us for future cooperation. We hope to get mutual benefits with you in the near future.
FAQS :
Question 1:How long about the machine's guarantee ?
Answer :2 years
Question 2:How about your after service ?
Answer :Technical support by phone, e-mail or MSN around the clock.
Question 3: How can we install the machine?
Answer :Friendly English version manual and operation video CD disk.
Question 4: How about the payment terms?
Answer:30% T/T for deposit, 70%T/T paid before shipping.
T/T, West Union, Paypal
Question: Do You Arrange Shipment For The Machines?
Answer: Yes, dear esteemed customers, for FOB or CIF price, we will arrange shipment for you. For EXW price,
clients need to arrange shipment by themselves or their agents.
