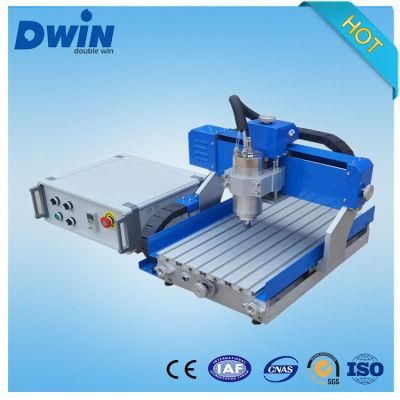

Hobby 3D Mini Desktop 3030 CNC Router for Wood
Jinan Dwin Technology Co., Ltd.- Type：Engraving Router
- Spindle Layout：Vertical
- Spindle Number：Single-Spindle
- Feed Mode：Manual
- Controlling Mode：CNC
- Certification：CE
Base Info
- Model NO.：DW3030
- Customized：Customized
- Condition：New
- Color：Customized
- Model：Dw3030 Mini Advertising CNC Router
- Working Size：30cm X 30cm
- Max.Speed：4200mm,Min
- Working Speed：0 - 3000mm,Min
- Mechanical Precision：0.01mm
- Software：Type 3 Software, Artcut Software, Artcam Software
- Power Supply：AC 220,50Hz
- Driver Type：Stepper Motor
- Spindle：1.2kw Variable Speed, Water Cooled Motor
- Spindle Speed：24000rpm
- Transport Package：Plywood Box, Free of Fumigation
- Specification：CE, FDA, SGS
- Trademark：DWIN
- Origin：Jinan City, Shandong Province
- HS Code：8465990000
- Production Capacity：50 Sets Per Month
Description
Basic Info.
Model NO. DW3030 Customized Customized Condition New Color Customized Model Dw3030 Mini Advertising CNC Router Working Size 30cm X 30cm Max.Speed 4200mm/Min Working Speed 0 - 3000mm/Min Mechanical Precision 0.01mm Software Type 3 Software, Artcut Software, Artcam Software Power Supply AC 220/50Hz Driver Type Stepper Motor Spindle 1.2kw Variable Speed, Water Cooled Motor Spindle Speed 24000rpm Transport Package Plywood Box, Free of Fumigation Specification CE, FDA, SGS Trademark DWIN Origin Jinan City, Shandong Province HS Code 8465990000 Production Capacity 50 Sets Per MonthProduct Description
Hobby 3D Mini Desktop 3030 CNC Router for Wood (DW3030)Features:
1.The machine adopts international advanced accurate guide rail,slide pre-tight installment (guaranteed no space is between the slides) and German original ball screw to realize steady movement ,high precision and small vibration.
2.Mach 3 control system that adopted by the machine has the advantages of break point and break power continue engraving,assisned G code engraving ,etc.(The DSP handle operation system which enables the machine work without the computer can be choosen .)
Applicable materials:
PVC board,ABS, double-color board,acrylic,MDF,stainless steel,copper,alumnium, zinc etc materials.
Technical parameters:
Machine body: | DW3030 Whole cast iron |
| Work dimensions: | 300 x 300 x 60mm |
| Body dimensions: | 600 x 600 x 600mm |
| Z-axis working area: | 60mm |
| Max. Feeding height: | 60mm |
| Cut thickness of material: | <20mm |
| Max.Speed: | 4200mm/min |
| Working speed: | 0 - 3000mm/min |
| Mechanical precision: | 0.01mm |
| Software: | Type 3 software, Artcut software, Artcam software |
| Max. Power consumption: | 900W |
| Power supply : | AC 220/50Hz |
| Driver type: | Stepper motor |
| Memory: | 1MB |
| Spindle: | 1.2KW variable speed, water cooled motor |
| Spindle speed: | 0 - 24000RPM |
| Blade diameter: | 1 - 6m |
| Control system: | Artcut or Wei hong (NCSTUDIO) or DSP (USB interface) |
| Command: | G code, u00, mmg, plt |
| Interface: | RS232 |
Guarantee & After sales service:
1. 18 months quality guarantee for the main parts of the machine, excluding consuming parts, and the main parts shall be changed free of charge during the warranty time
2. Lifelong maintenance for the machine, and lifelong technical support from sophisticated English-speaking engineer team.
3. Free training course at our plant
4. We will provide the machine consuming parts with factory price when you need replacement.
5. 24 hours online service each day, free technical support.
