• Panel Thinkness：10-60mm
• Min.length panel：100mm
• Min.width panel：50mm
• Manufacturing Principles：Glue Tank Overhead
• Customized：Customized
• Heating Power：1.5kw
• Feeding Motor Power：2.2kw
• Glue Spreading Motor Power：0.37kw
• End Trimming Motor Power：0.55kw*2
• Fine Trimming Motor Power：0.75kw*2
• Polishing Motor Power：0.18kw*2
• Air Pressure：0.7MPa
• Overall Dimension：3600*900*1500mm
• Total Power：6.23kw
• N.W：1300kgs
• Transport Package：Wooden Case
• Specification：5.8CBM
• Trademark：QDZD
• Origin：Qingdao
• HS Code：84659400
• Production Capacity：500sets,Year

Basic Info.

Panel Thinkness 10-60mm Min.length panel 100mm Min.width panel 50mm Manufacturing Principles Glue Tank Overhead Customized Customized Heating Power 1.5kw Feeding Motor Power 2.2kw Glue Spreading Motor Power 0.37kw End Trimming Motor Power 0.55kw*2 Fine Trimming Motor Power 0.75kw*2 Polishing Motor Power 0.18kw*2 Air Pressure 0.7MPa Overall Dimension 3600*900*1500mm Total Power 6.23kw N.W 1300kgs Transport Package Wooden Case Specification 5.8CBM Trademark QDZD Origin Qingdao HS Code 84659400 Production Capacity 500sets/Year

Product Description

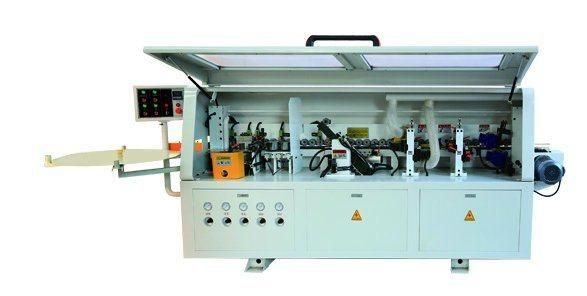

R5A Automatic Edge Banding Machine
Technical Specification:


Type	R5A
Banding tape thickness	0.4-3 mm
Banding tape width	10-60 mm
Work piece thickness	10-60 mm
Work piece length	>=100 mm
Work piece width	>=50 mm
Heating power	1.5 KW
Feeding motor power	2.2 KW
Glue spreading power	0.37 KW
End trimming power	0.55 KW x 2
Fine trimming power	0.75 KW x 2
Polishing motor power	0.18 KW x 2
Feeding speed	13 m/min
Air pressure	0.7 Mpa
Total Power	6.23 KW
Overall dimension	3600x900x1500 mm
Packing size	3670x1000x1600 mm
N.W.	1300 KGS
G.W.	1470 KGS

Feature:

1. The glue mechanism adopts a special structure to gelatinize the plates and costing materials uniformly, ensure a more solid conglutination.
2. End trimming mechanism through a precise guide track movement; adopt automatic tracking and high frequency motor fast cutting structure to ensure the cutting surface smoothly.
3. Fine trimming mechanism is used for repairing the excess edge materials, adopt automatic tracking and high frequency motor fast cutting structure to ensure the trimming plates smoothly.
4. Scraping unit is for a perfect finishing of the applied edge.
5. The buffing device adopts the board processed by cotton polishing wheel, by end polishing to make a smoother surface.

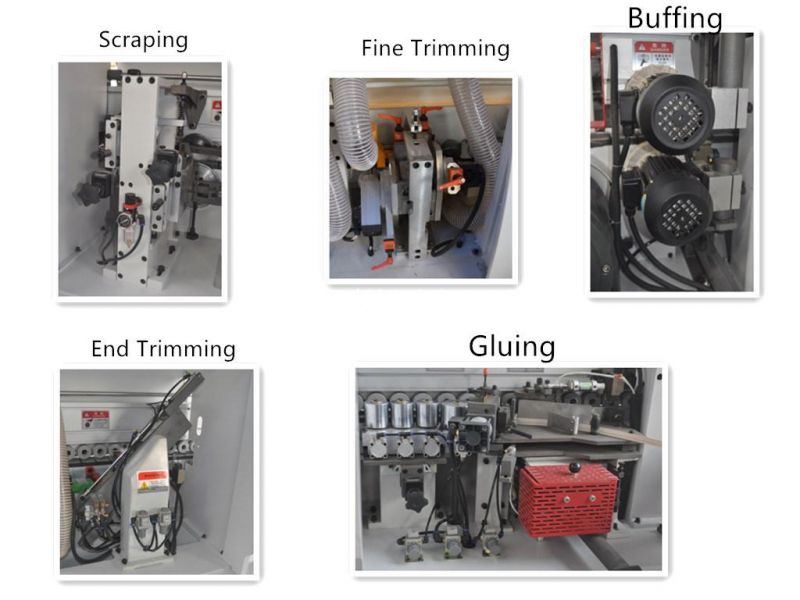

Product Details:







Certificate:





Our company:
Qingdao Zhongding Machinery Co., Ltd is professional at manufacturing woodworking machines. Our main products includes: sliding table saw(panel saw), edge banding machine, hydraulic cold press, hot press, carpenter drilling machine ( boring machine), etc. We are factory, we provide the machine with reasonable price and high quality, and welcome to visit our factory and our products.
