• Model NO.：GD-1325
• CNC or Not：CNC
• Voltage：380V
• Transport Package：Plywood Packing

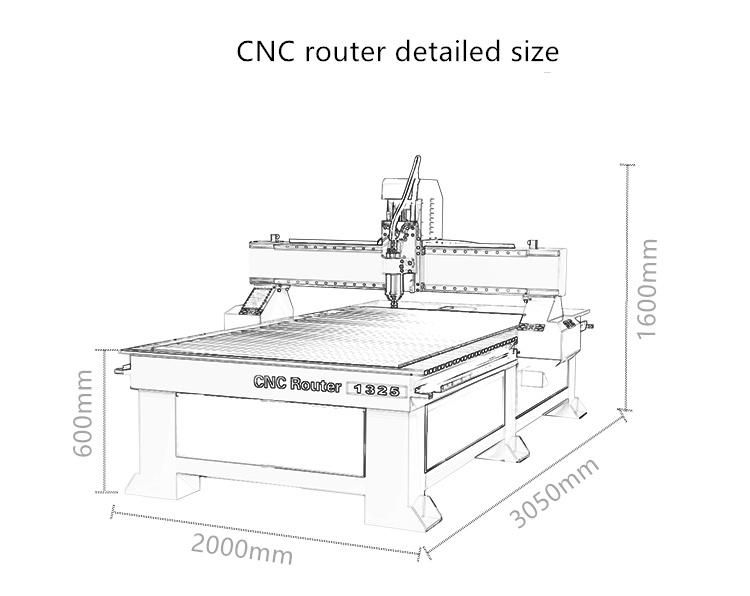

• Specification：3200*2400*1850mm
• Trademark：Guandiao
• Origin：Jinan
• HS Code：8465990000
• Production Capacity：10000
• Package size per unit product：3200.00cm * 2200.00cm * 1850.00cm
• Gross weight per unit product：1000.000kg

Basic Info.

Model NO. GD-1325 CNC or Not CNC Voltage 380V Transport Package Plywood Packing Specification 3200*2400*1850mm Trademark Guandiao Origin Jinan HS Code 8465990000 Production Capacity 10000

Packaging & Delivery

Package size per unit product 3200.00cm * 2200.00cm * 1850.00cm Gross weight per unit product 1000.000kg

Product Description

Mchine

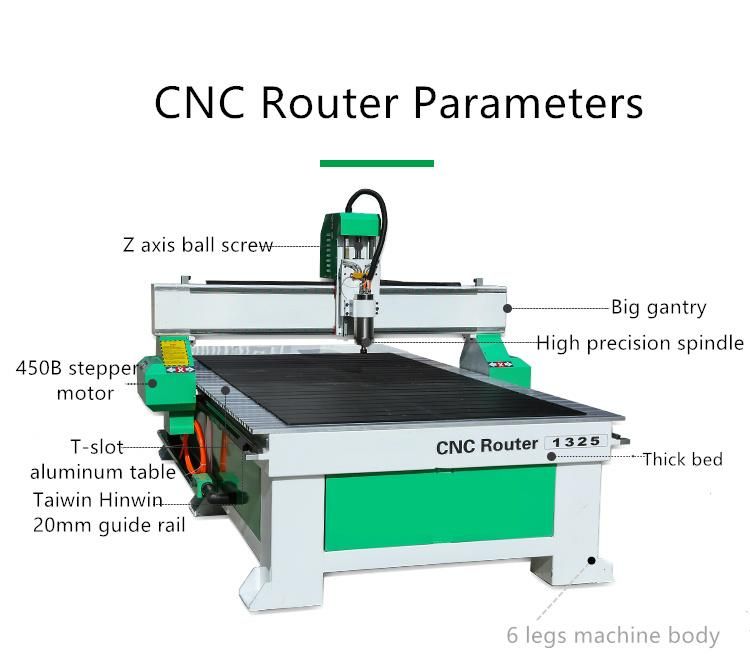

Wood CNC Router technical parameters

Model	GD-1325
Working Area	1300*2500*200 mm
Spindle	3.2 kw,/4.5kw 24000 rpm, Air cooling(Optional)
Table	Vacuum Suction
Transmission	Rack and pinion for x.y, ball screw for z
Guideway	HIWIN square linear guideway
Resolution	0.01 mm
Traveling speed	35m/min
Working Speed	30 m/min
Driver	China stepping motors and leadshin driver
Code	G Code, HPGL Code
Power Supply	AC380V/50Hz
Control System	NC Studio / DSP(optional)
Software	JD/TYPE3/Artcam/Castmate/UG/CAD/CAM,etc
Software Environment	Windows98/2000/XP
Relative humidity	30%-75%
Running Environment Temperature	0-45ºC
Packing	Wooden Box
Weight	Net weight:800 kg        Gross Weight:1000 kg
Packing size	3.2*2*1.7m

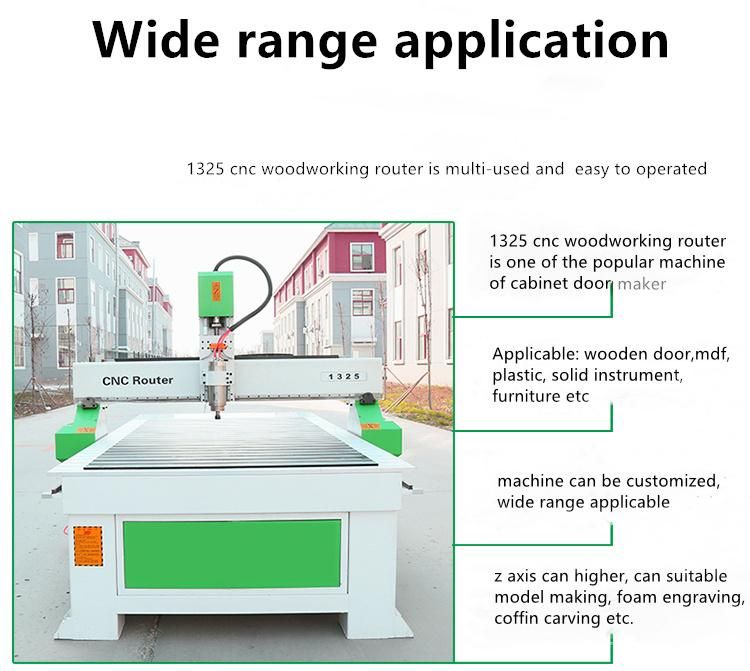

Applicable Materials	wood, PVC, acrylic, MDF, Plexiglass, and aluminum, copper,  aluminum composite panel, etc.
Stand accsssories	5.5Kw air pump, USB line,  Tool box(Spanner,brush, etc). cutting tools.  Dust collector.  Manual

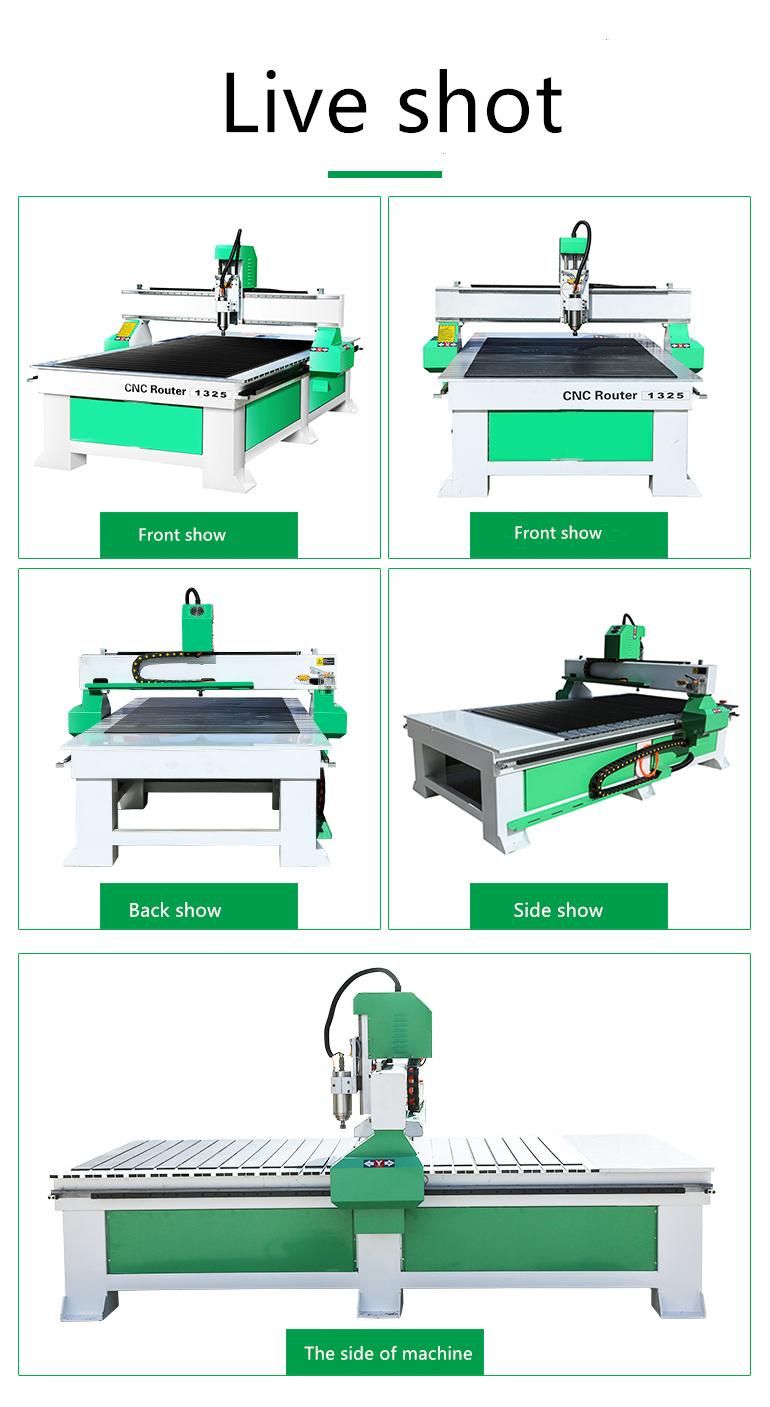

CNC Router Machine details



Our Services

1. Delivery and Lead time
Machine will be proper packed and loaded in container, as multiple loaded to save space or wooden carton sealed for better transportation.
Machine will be tidy and clean , with anti rusty oil brushed on mechanical parts to prevent rusty on sea transportation.
A series pictures and videos will provided as machine finished for help customer understand the performance of the machine.
2.Warranty:
Machine warranty is 12 months.  Machine as normal using and maintenance condition, if get any problem, will provide spare parts for free.  Out of warranty, will collect the accessories cost. Technical support for maintenance or fix on time and all the time.
3. Technical support:
Manual and video illustration of the machine will be provided
24 hours online by Ali Trademanager, Skype, Email, QQ, or telephone
Technical support by email, whatsapp, wechat,imo and skype available on time.4.After sale service:Normally the machine will sent on whole except the machine is over size to load container.  so the machine arrange in production immediately after get electricity (air and water some model needed).
The video for operation will provide.
Training at our workshop or on site is available.After sale-service5.We accept the ODM,OEM
  If you have other needs, please let me know

Packaging & Shipping

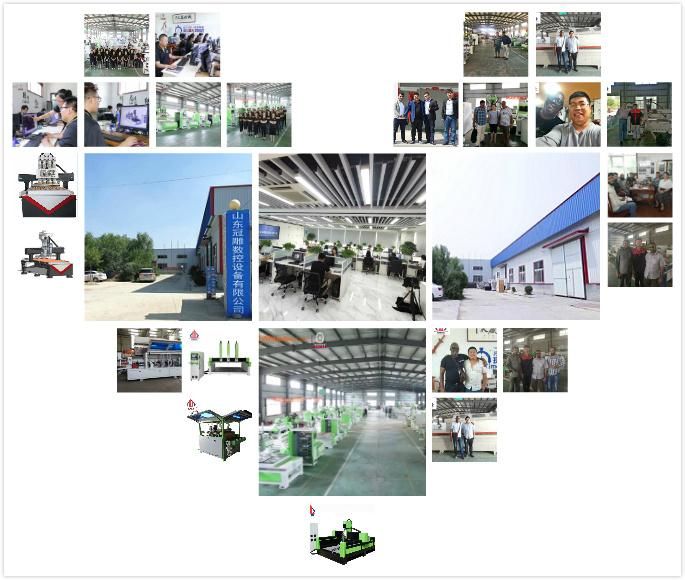

Company Information
