• Model NO.：MF630
• Edging thickness：0.4-3mm
• Automatic Grade：Automatic
• Panel Feeding Speed：10-23m,Min
• Certification：ISO
• Panel Thinkness：10-60mm
• Min.length panel：100mm
• Min.width panel：50mm
• Customized：Customized
• After-sales Service：1 Years
• Name：Edge Banding Machine
• Model：Mf630
• Total Power：11.99kw
• MOQ：1set
• Pressure：0.8MPa
• Feeding Speed：10-23m,Min
• Banding Tape Thickness：0.4-3mm
• Banding Tape Width：12-65mm
• Workpiece Thickness：10-60mm
• Heating Power：1.8kw
• Feeding Motor Power：3.7kw
• Net Weight：2300kg
• Overall Dimensions：5670*850*1520mm
• Package Dimensions：5700*880*1580mm
• Gross Weight：2450kg
• Transport Package：Wooden Case
• Specification：5700*850*1520mm
• Trademark：HiWinstar
• Origin：China
• Production Capacity：100set,Month
• Package size per unit product：570.00cm * 88.00cm * 158.00cm
• Gross weight per unit product：2450.000kg

Basic Info.

Model NO. MF630 Edging thickness 0.4-3mm Automatic Grade Automatic Panel Feeding Speed 10-23m/Min Certification ISO Panel Thinkness 10-60mm Min.length panel 100mm Min.width panel 50mm Customized Customized After-sales Service 1 Years Name Edge Banding Machine Model Mf630 Total Power 11.99kw MOQ 1set Pressure 0.8MPa Feeding Speed 10-23m/Min Banding Tape Thickness 0.4-3mm Banding Tape Width 12-65mm Workpiece Thickness 10-60mm Heating Power 1.8kw Feeding Motor Power 3.7kw Net Weight 2300kg Overall Dimensions 5670*850*1520mm Package Dimensions 5700*880*1580mm Gross Weight 2450kg Transport Package Wooden Case Specification 5700*850*1520mm Trademark HiWinstar Origin China Production Capacity 100set/Month

Packaging & Delivery

Package size per unit product 570.00cm * 88.00cm * 158.00cm Gross weight per unit product 2450.000kg

Product Description

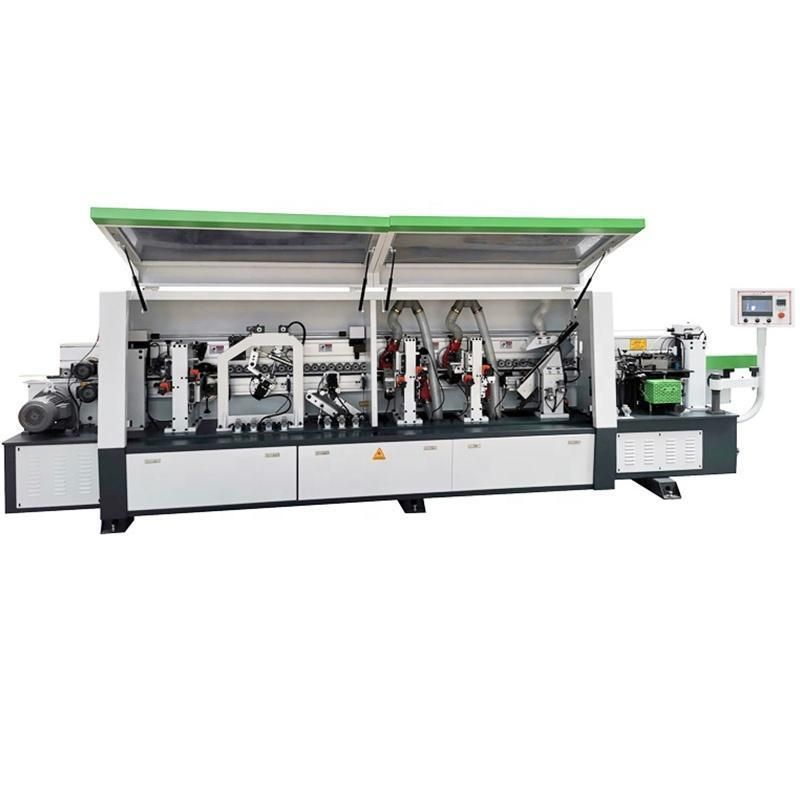

MF630 automatic furniture woodworking edge bander pvc wood edge banding making machine
Product Description

Banding tape thickness	0.4-3mm
Banding tape width	12-65mm
Workpiece thickness	10-60mm
Workpiece length	>=100mm
Workpiece width	>=50mm
Heating power	1.8kw
Feeding motor power	3.7kw
Glue spreading motor power	0.75kw
End trimming motor power	0.5kw×2
Rough trimming motor power	0.75kw×2
Fine trimming motor power	0.75kw×2
Corner rounding motor power	0.5kw×2
Polishing motor power	0.37kw×2
Feeding speed	10-23m/min
pressure	0.8mpa
Overall dimensions	5670×850×1520mm
Net weight	2300kg
Package dimensions	5700×880×1580mm
Gross weight	2450kg

MF630 automatic edge banding machine function
gluing and pressing-end cutting-rough trimming-fine trimming-corner trimming-scraping- buffing
Features

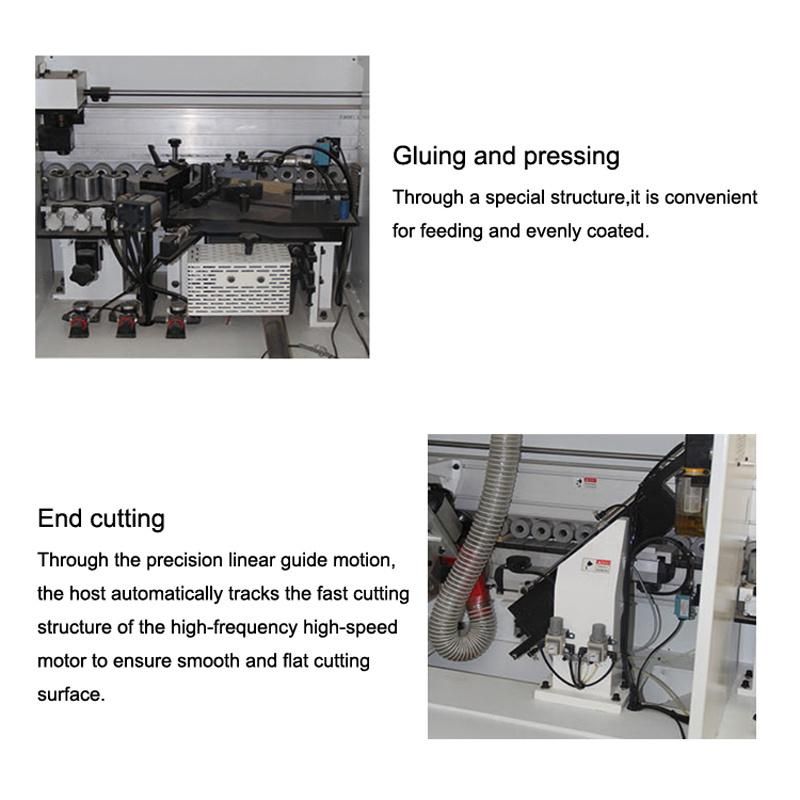

1.Through special structure, the edge-sealing sheet and the edge-sealing material are evenly coated and pressed, so that the edge-sealing strip is more firmly attached.
2.Through the precision linear guide motion, the rapid cutting structure of the high-frequency high-speed motor is automatically tracked by the master to ensure that the cut surface is smooth and smooth.

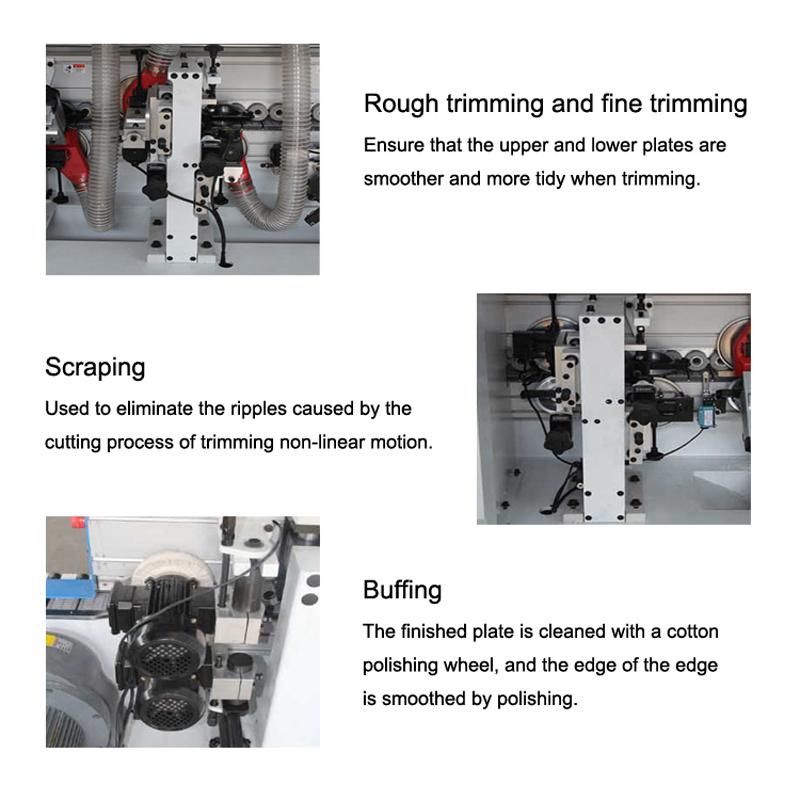

3.Rough trimming and fine trimming,ensure that the upper and lower plates are smoother and more tidy when trimming.

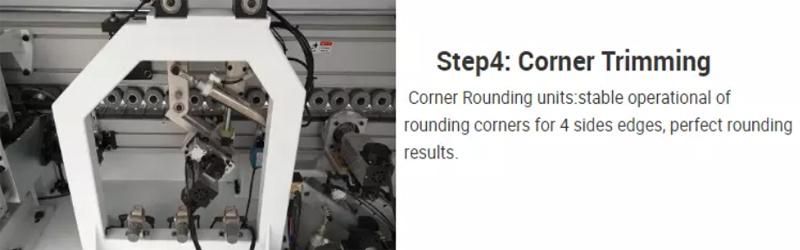

4.Corner rounding units stable operational of rounding corners for 4 sides edges,perfect rounding results.
5.Used to eliminate the ripples caused by the cutting process of trimming non-linear motion.
6.Clean the finished plate with a cotton polishing wheel and smooth the edge of the edge by polishing.
Detailed Description

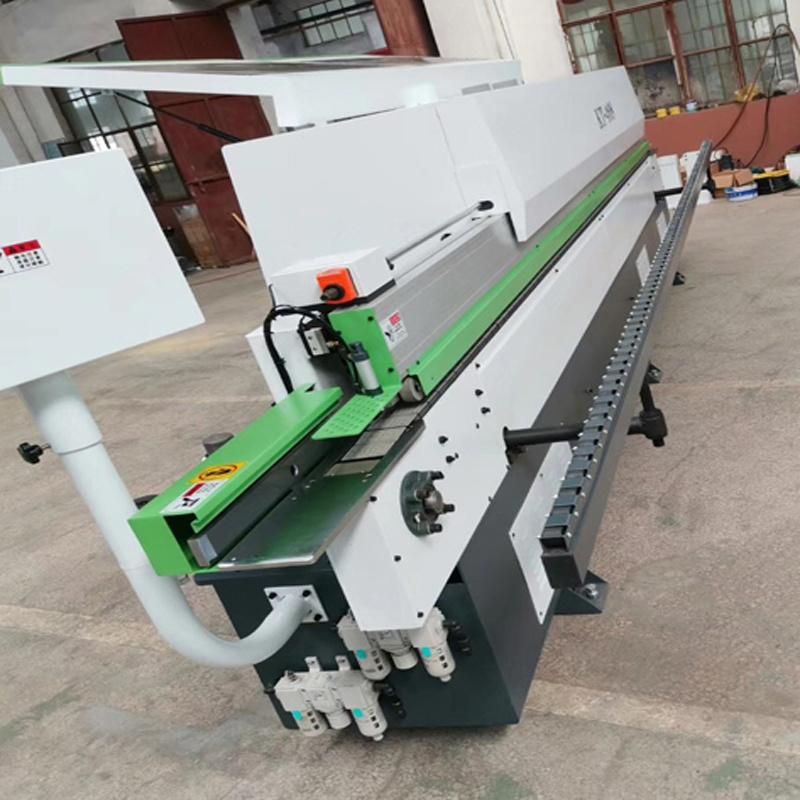

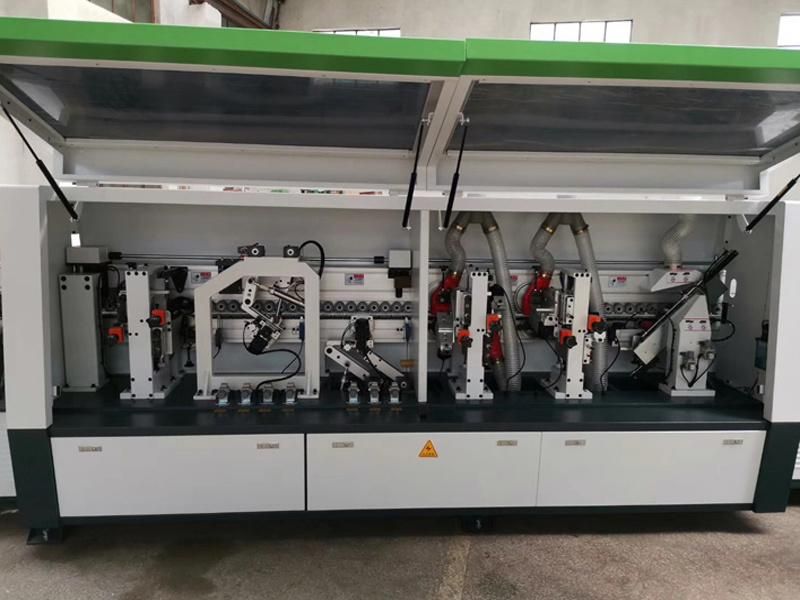

Detailed Pictures

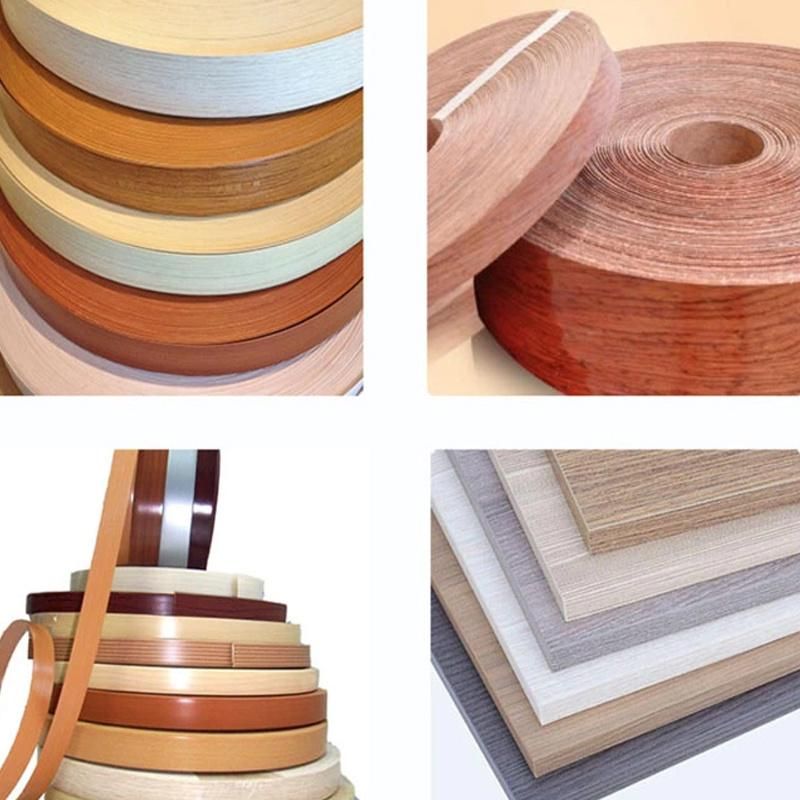

Edge Banding Effect

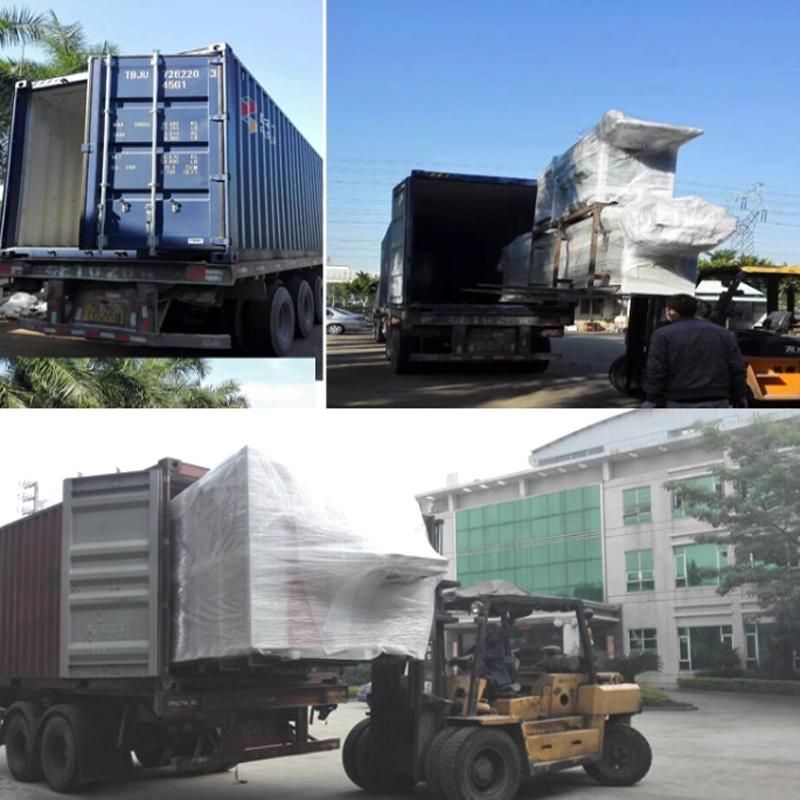

Packaging & Shipping

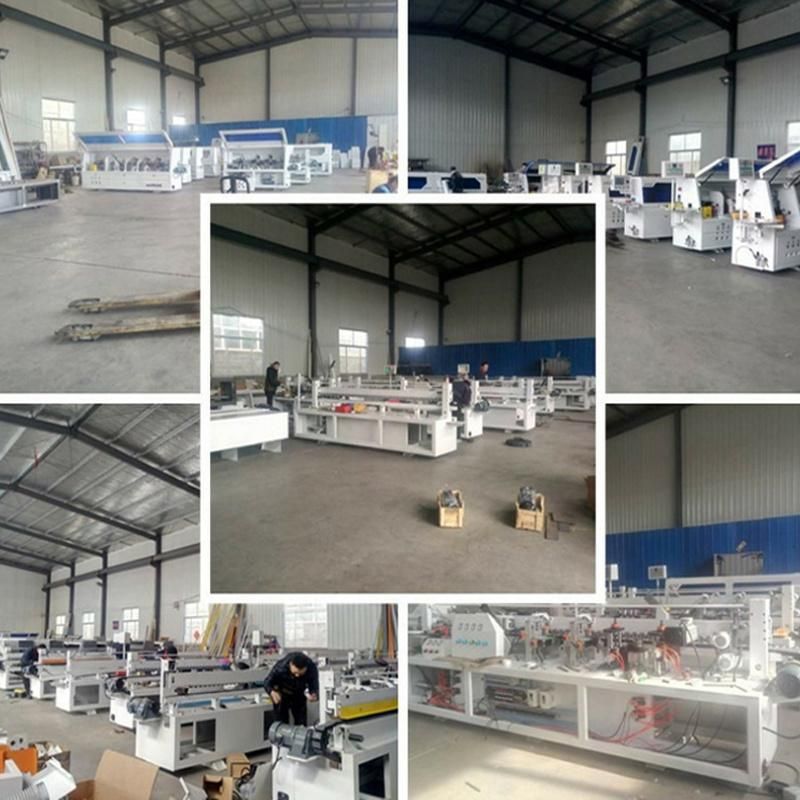

Company Information
FAQ
1,Can you offer good price with fine quality also?

Surely,if without quality,we cannot win long market.we will loose long-terms customers.Quality is our responsibility.we must produce and test machine well.Becasue we are always expecing long term business.Regarding the price.
we are not sure if it is lowest or highest,But we will be offering reasonble.We don't want heavy profits,we want a acceptable price to you,and we are expecting a bigger quantities of sales for different wood machines.

2,We will be protetcted if we are paying for orders?

Surely yes,we have been exported 1000000$ different wood machine every year,We received the payment,we should produce for you and ship to you without delay. It is honesty and reputy.We could understand that you paid,you want to see machines soon and use soon. and these years alibaba trade assurance you could rely on,you will be protected very well.

3,What's your warranty? can you do more service for us? we wish woud be protected after purchasing machine.

We are pleased to give life continious aftersales service. within 12 months, if spareparts broken,we will send you new for change. we would like to help to solve any troubles when you use machine at any time.and don't be worried,we will keep opening 24 hours for all customers problem or difficilaty. we must help to make solutions within 48 hours.

4,What's your production time? we want faster shipping time also.

Mostly machine we have in stock, some machine we produce need about 7-10days. make fast shipment always. shipping time depends on shipping company.
