• Model NO.：RSJ3515A
• Trademark：SAMACH
• Origin：China
• Production Capacity：500 Sets,Month

Basic Info.

Model NO. RSJ3515A Trademark SAMACH Origin China Production Capacity 500 Sets/Month

Product Description

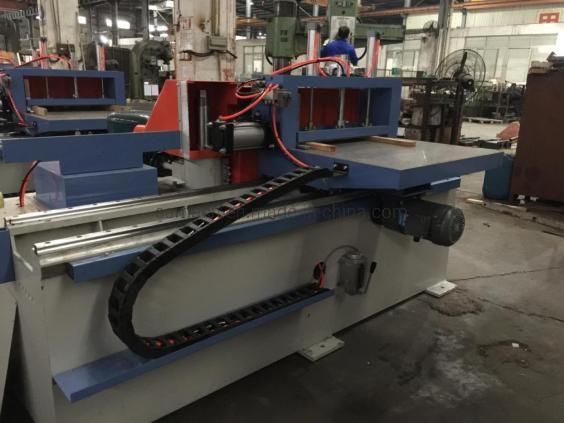

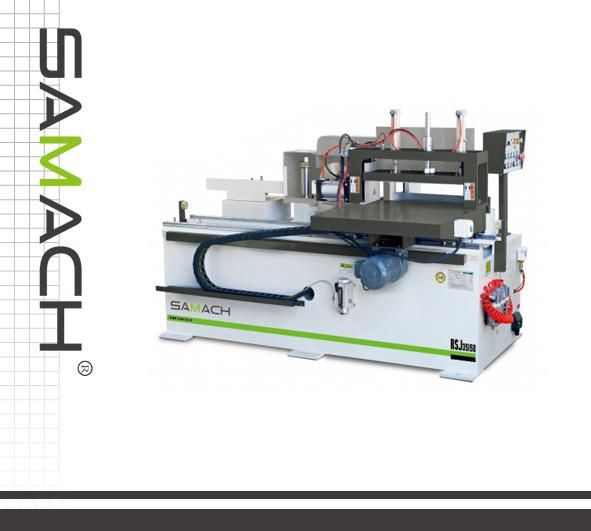

Solid Wood Working Machine Finger Joint Shaper

RSJ3515A



Characteristics

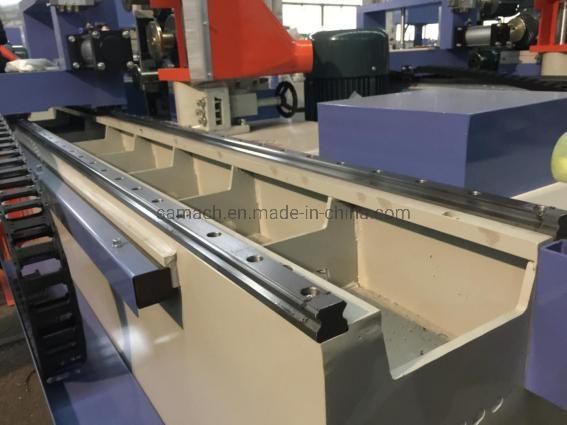

The feeding table guide adopts the precision linear guide imported from Japan, which ensures
the precision of the opening.

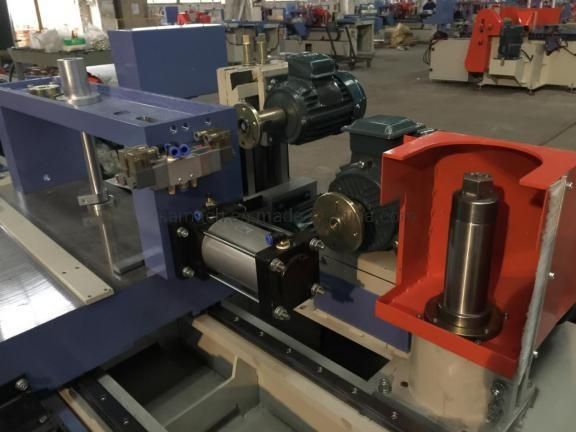

The sawing part adopts a combination of a double saw shaft and a pulverizing knife to improve
the quality of the opening.
The worktable advances and retreats adopts a rack and pinion travel mechanism, which is
stable and fast, easy to maintain, and consumes less power.

Parameters


Model	RSJ3515A
Workbench size(LXW)	760X850MM
Maximum mach	150MM
Max.width	600MM
Diameter of main saw shaft	Φ30MM
Diameter of cutting tenon and mortise shaft	Φ70MM
Rotating speed of main saw shaft	2840RPM
Rotating speed of cutting tenon and mortise	6000RPM
Rated power of motor for cutting tenon and mortise	11KW
Rated power of motor for main saw shaft	4KW
Rated power motor for marking out saw	0.75KW
Total power	15.75KW
Overall dimensions	2400X1730X1550MM
Net weight	1800KG

Introduction







Exhibition

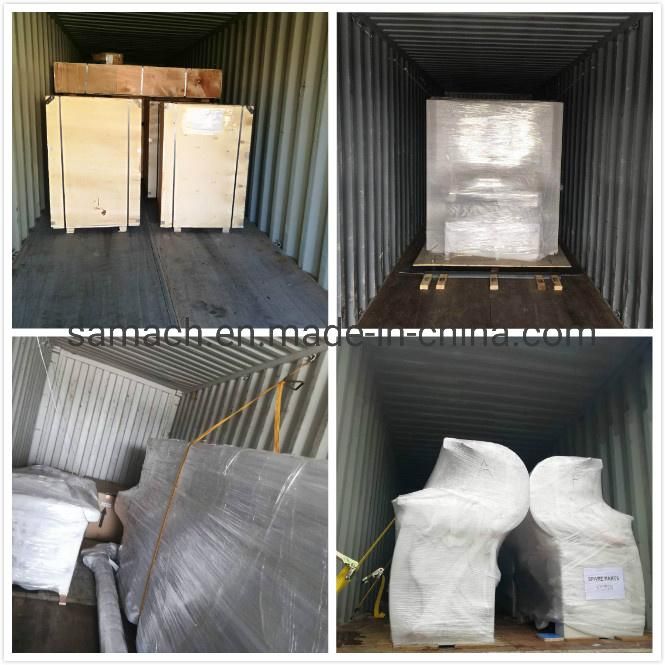

Packing and transportation

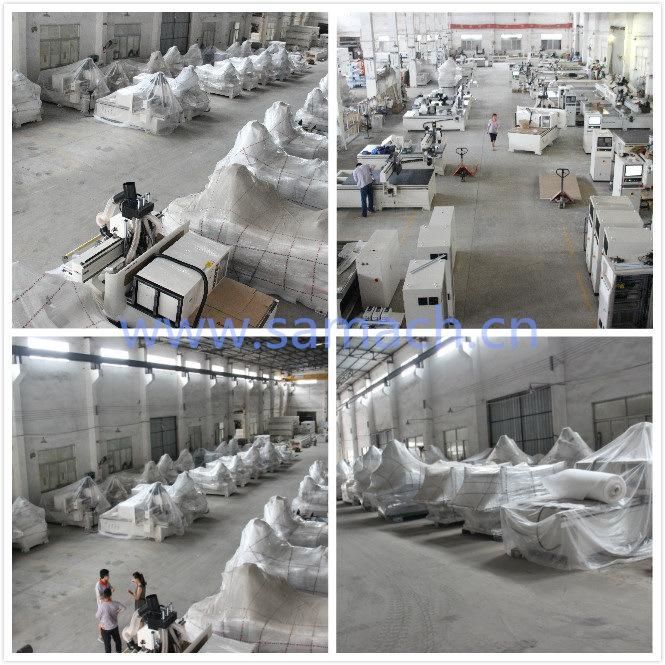

Factory



Samach'S Service and dominants:

1: Professional team of techniques study and research, guarantee the Machine latest
and improving efficiency.

2.Knowing China and world markets well, offer professional soluttions.

3.Fast market reaction,  guarantee our partners always in front edge.

4.Supeiror Guarantees,quality of our machine and sell-after services.

5.OEM/ODM are available.

6.Principle: One cooperation, forever partners.

Contact us and Enjoy our Happy Coopperation Together.  Thank you for your time ^_^ !
