• Certification：CE
• Customized：Customized
• Condition：New
• Color：Customized
• Saw Blades：Circular Saw
• Blades Qty：20PCS
• Max. Cutting Height：160mm
• Max. Cutting Width：280mm
• Min Cutting Thickness：7mm
• Transport Package：Wooden Cases
• Specification：1900*1500*1700mm
• Trademark：INVECH MACHINERY
• Origin：China
• HS Code：8465910000
• Production Capacity：20sets,Month

Basic Info.

Certification CE Customized Customized Condition New Color Customized Saw Blades Circular Saw Blades Qty 20PCS Max. Cutting Height 160mm Max. Cutting Width 280mm Min Cutting Thickness 7mm Transport Package Wooden Cases Specification 1900*1500*1700mm Trademark INVECH MACHINERY Origin China HS Code 8465910000 Production Capacity 20sets/Month

Product Description

Panel Saw for Furnitures

Description:

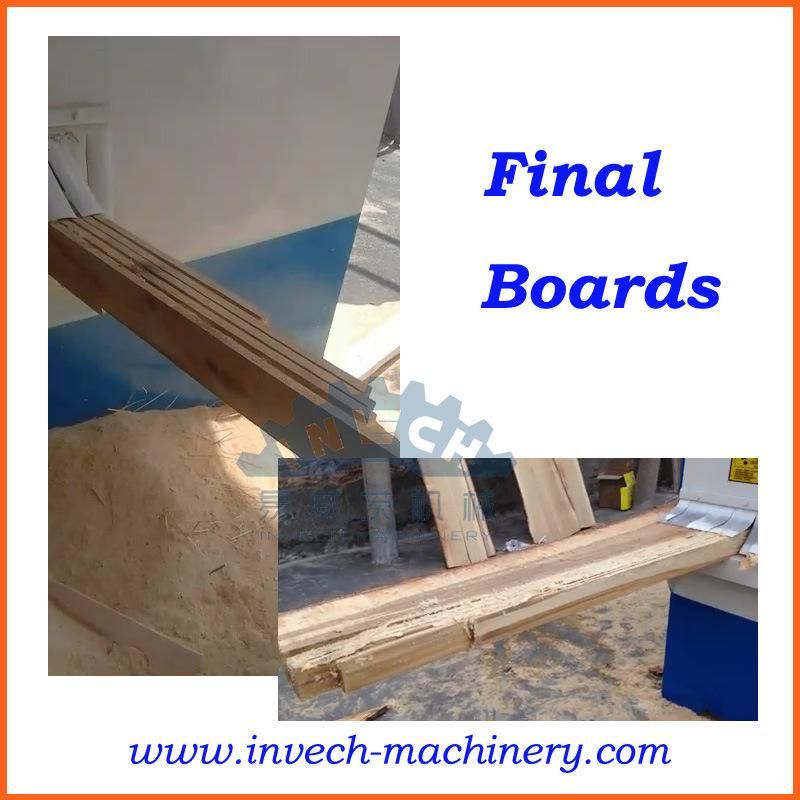

Plank multi rip sawmill (i.e. multi rip sawmill for Beam/Cant/Slab) is a new saw machine for plank that without the deturn plane, which is to make wooden pallet, wall board, floor board and such specification board.

Main Features:

• Double saw spindle, small saw blade dismeter and thin saw kerf;
• flat and smooth sawing surface (replace planer);
• energy-saving and low waste due to the multi-blade design;
• high feeding speed and greatly improve efficiency.
• fast loading, easy operation and high timberutilization.
• Upper pressing rolls automatically increase tensile force to ensure stable feeding.
• Moreover, the spindle cooling, electric degreasing & cooling functions and external high preasure spray head help save energy and improve cooling effects.

Technical Parameters:


Model	MJF20*40(For blocks thickness under 200mm)	MJF32*40(For blocks thickness from 200mm-320mm)
Length of Feeding Material	Greater than 1000mm	Greater than 1200mm
Max.Thickness of Feeding Material	200mm	320mm
Min.Thickness of Feeding Material	60mm	100mm
Effective Sawing Width	400mm	400mm
Main Motor Power	45kw*2	75kw*2
Driving Motor Power	1.5kw	2.2kw
Main Spindle Diameter	90mm	100mm
Cooling Water Pressure	1.5Mpa	1.5Mpa
Speed of Feeding Material	1-10m/min(Adjustable frequency)	1-10m/min(Adjustable frequency)
Sawing Blade Spec.	355mm	455mm
No. of Sawing Blades	20pcs	20pcs
Outside Diameter of Clamps	130mm	140mm
Length of Feeding Table	2000mm	2000mm
Length of Discharging Table	2000mm	2000mm
Overall Size	5000x1900x2300mm	5200x2100x2500mm
Weigth	3500kg	4300kg
