• Model NO.：MJ1325
• Main Spindle：9kw Air-Cooled Hqd,Cc Spindle
• Control System：Taiwan Syntec 60wa
• Table：Vacuum Table with 7.5kw Vacuum Pump
• Tool Maganize：12 Linear or 16 Round Disc
• Reducer：Japan Shimpo Reducer
• Transport Package：Plywood Case
• Specification：4170*2280*2100mm
• Trademark：QDZD
• Origin：Qingdao, China
• HS Code：84659900
• Production Capacity：200 Set, Month

Basic Info.

Model NO. MJ1325 Main Spindle 9kw Air-Cooled Hqd/Cc Spindle Control System Taiwan Syntec 60wa Table Vacuum Table with 7.5kw Vacuum Pump Tool Maganize 12 Linear or 16 Round Disc Reducer Japan Shimpo Reducer Transport Package Plywood Case Specification 4170*2280*2100mm Trademark QDZD Origin Qingdao, China HS Code 84659900 Production Capacity 200 Set/ Month

Product Description

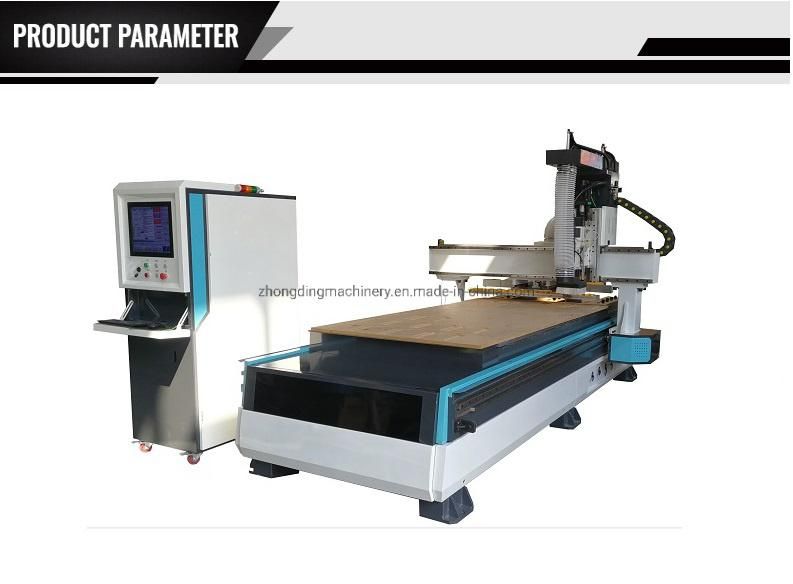

1325 1530 2030 Woodworking ATC Cnc Router Machine with 9kw HQD/HSD Spindle




Technical Specification:


Performance parameter	Cabinet door sculpting, engraving, milling, cutting, cutting machine optimizes material opening, punches vertical holes, and automatically unloads in one step. The process is uninterrupted to maximize efficiency. Cabinet door carving Applicable industries: panel furniture, cabinet doors, cabinet doors, moulded doors, plastic door panels, office furniture, custom furniture automation CNC processing technology
Functions	Door panel molding, slotting, cutting, punching, carving, etc.
XYZ Working dimensions	1300*2500*200mm
Idling engraving speed	80000mm/min
Max. Cutting speed	25000mm/min
Repositioning Accuracy	±0.05mm
Compatible software	Alphacam Door panel software Yunxi Yimu Haixun 1010 etc.
Carving instructions	Standard G code, uoo, mmg, plt
Software operating environment	WIN7 64-bit
X/Y/Z structure	XY axis high precision German rack drive, Z axis imported ball screw Taiwan TBI brand
Machine material	Integral steel structure, thickened bed (welded in the factory), tempered and quenched Body: First, a gantry planer is used for rough machining, and a large-scale gantry CNC machining center is used to mill the guide table and rack surface and NC drilling. Heat treatment annealing, stress relief-surface treatment such as pickling, phosphating, etc.-CNC machining center milling, drilling one-time forming.

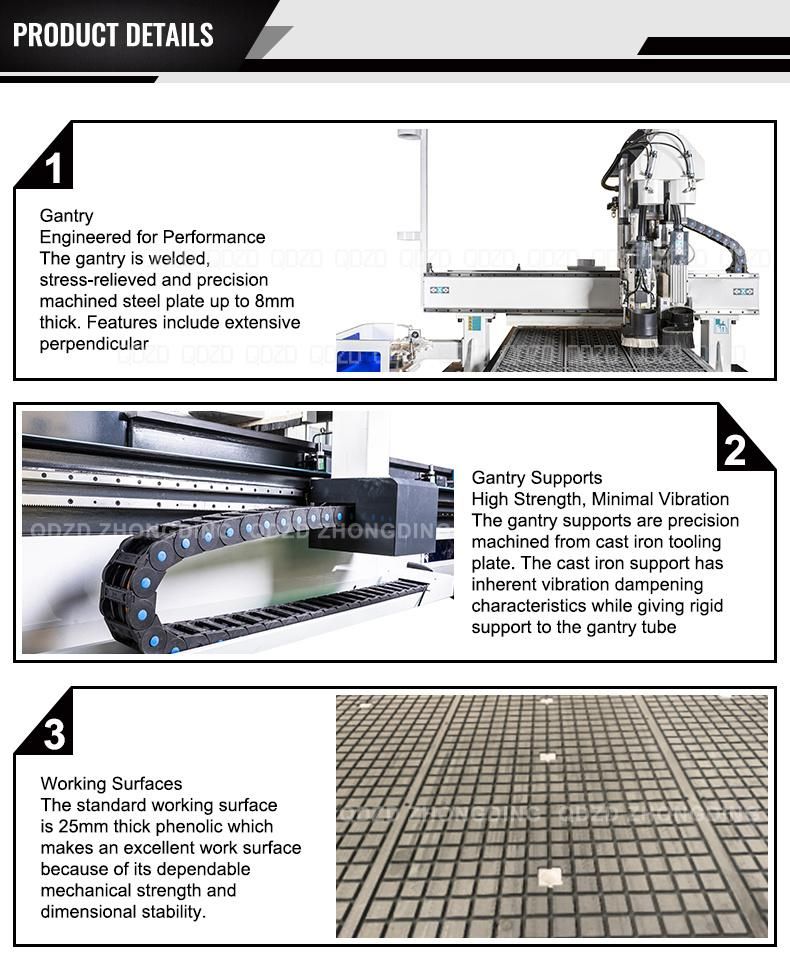

Gantry	Large steel gantry beams: Machining components: All are processed by vertical machining centers. Through the above processing, the basic accuracy of the accessories is strongly guaranteed. The wall thickness is 8 thick.

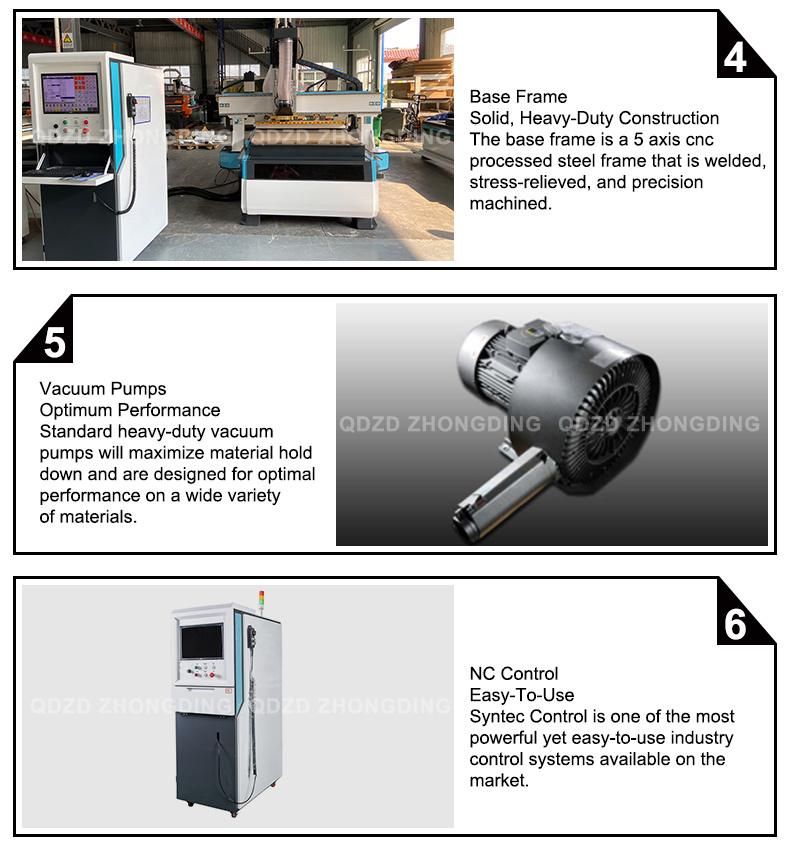

Table	The table of 7.5kw water-cooled vacuum pump is a vacuum adsorption (double-layer) table. Porous can strongly adsorb materials of different areas.
Control system	1. Taiwan SYNTEC 60WA six-axis control system, drive and control all-in-one.
Spindle motor	9kw air-cooled motor Changzhou HQD / CC
Tool maganize	16 tool changer magazines
Voltage	AC 380V/50HZ
Drive motor	XYZ three axis use 1. Taiwan SYNTEC bus absolute value servo motor and supporting driver, Z axis plus brake
Reducer	Japan SHIMPO reducer
Transmission	XY axis high precision helical rack drive German brand, Z axis Taiwan TBI screw drive
Inverter	Shanghai Fuling 11kw Inverter Dual Inverter

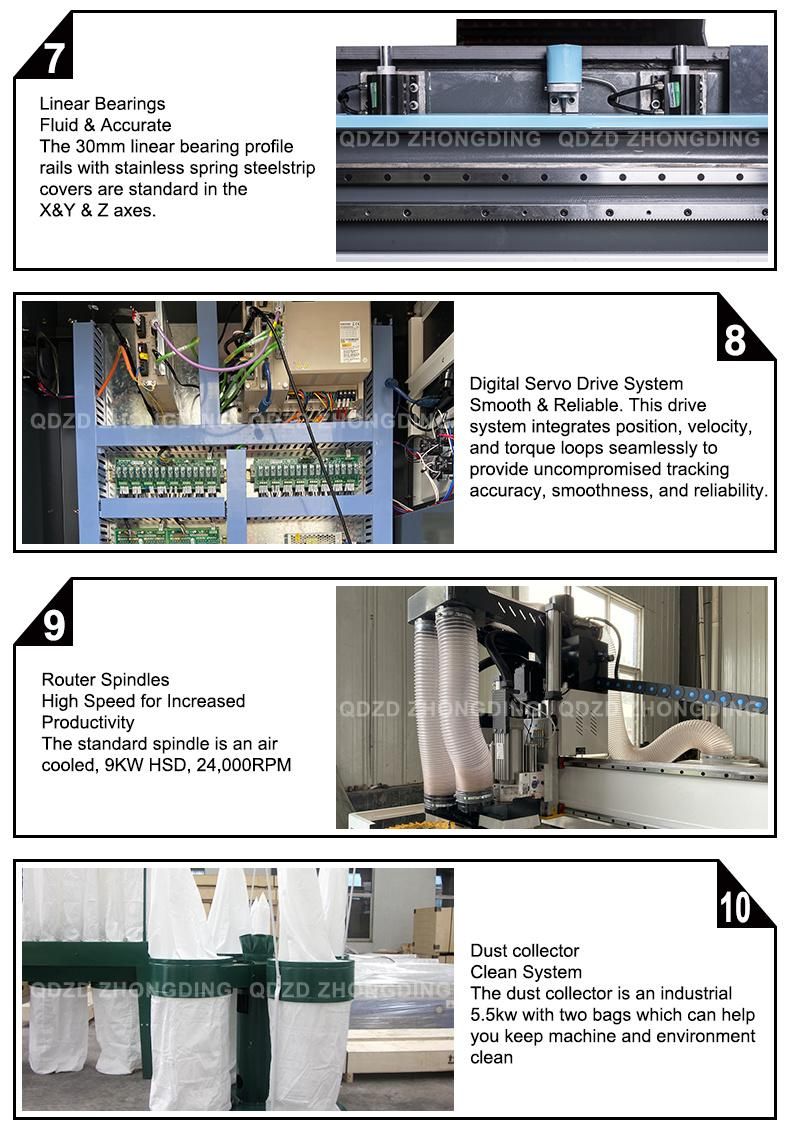

Guide rail	Taiwan imported square rail 30, dustproof and durable
Maintenance	Automatic Oil Filling System
Dust collector	Double bag 5.5kw dust collector
Incidental	Cutting tools, bar code printers, yimu software, etc.
Accessories	High-flex shielded cable Schneider Electric components and other imported components from France, stable performance
