• Model NO.：RSJ3515A
• Cutter Shaft：4
• Spindle Speed：5000r,Min
• Process Type：Medium-Sized Processing
• Certification：CE, ISO
• Transport Package：Standard Packing
• Trademark：SAMACH
• Origin：China
• HS Code：99
• Production Capacity：50000sets,Year

Basic Info.

Model NO. RSJ3515A Cutter Shaft 4 Spindle Speed 5000r/Min Process Type Medium-Sized Processing Certification CE, ISO Transport Package Standard Packing Trademark SAMACH Origin China HS Code 99 Production Capacity 50000sets/Year

Product Description

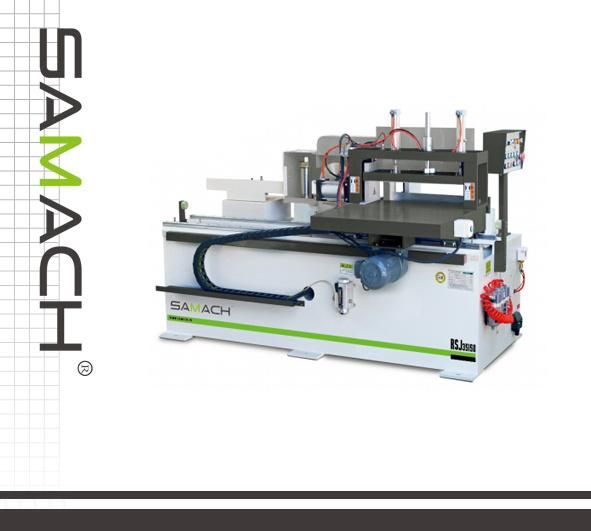

 Finger joint shaper  RSJ3515A

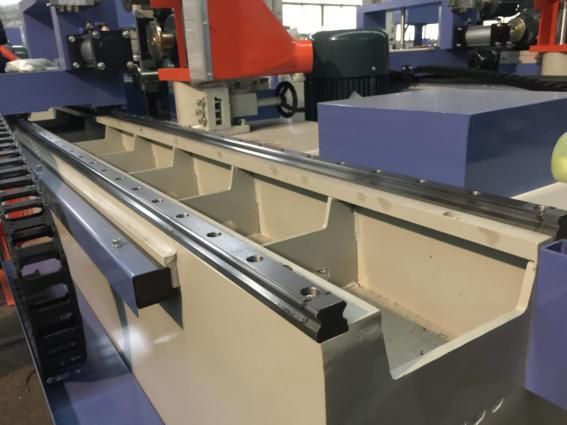

The feeding table guide adopts the precision linear guide imported from Japan, which ensures the precision of the opening.

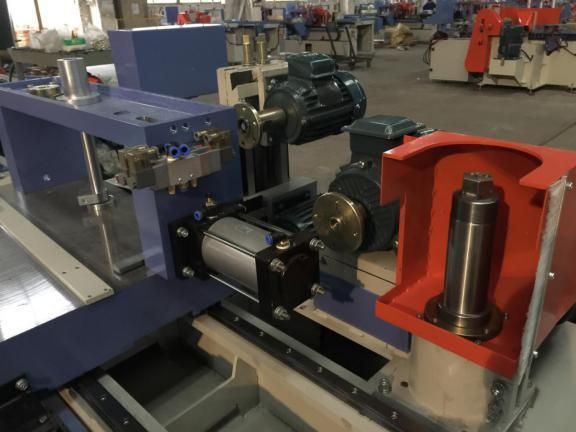

The sawing part adopts a combination of a double saw shaft and a pulverizing knife to improve the quality of the opening.
The worktable advances and retreats adopts a rack and pinion travel mechanism, which is stable and fast, easy to maintain, and consumes less power.

Model	RSJ3515A
Workbench size(LXW)	760X850MM
Maximum mach	150MM
Max.width	600MM
Diameter of main saw shaft	Φ30MM
Diameter of cutting tenon and mortise shaft	Φ70MM
Rotating speed of main saw shaft	2840RPM
Rotating speed of cutting tenon and mortise	6000RPM
Rated power of motor for cutting tenon and mortise	11KW
Rated power of motor for main saw shaft	4KW
Rated power motor for marking out saw	0.75KW
Total power	15.75KW
Overall dimensions	2400X1730X1550MM
Net weight	1800KG

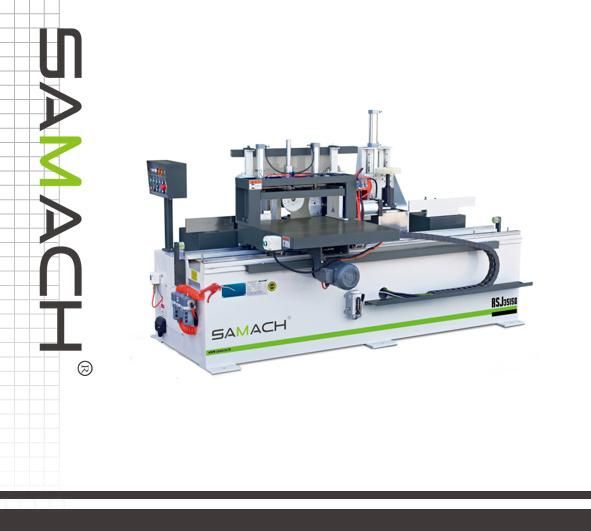

RSJ3515Ta


,.
,.
,,,.
,,
The feeding table guide adopts the precision linear guide imported from Japan, which ensures the precision of the opening.
The sawing part adopts a combination of a double saw shaft and a pulverizing knife to improve the quality of the opening.
The worktable advances and retreats are controlled by the gas-liquid conversion system imported from Germany, which is stable and fast, easy to maintain and consumes less power.
The tooth-shaped anastomosis spray system is used to achieve uniform spray glue, achieving the effect of saving glue.



Model	RSJ3515TA
Workbench size(LXW)	760X850MM
Maximum mach	150MM
Max.width	600MM
Diameter of main saw shaft	Φ30MM
Diameter of cutting tenon and mortise shaft	Φ70MM
Rotating speed of main saw shaft	2840RPM
Rotating speed of cutting tenon and mortise	6000RPM
Rated power of motor for cutting tenon and mortise	11KW
Rated power of motor for main saw shaft	4KW
Rated power motor for marking out saw	2*0.75KW
Total power	16.5KW
Overall dimensions	2700X1730X1550MM
Net weight	2000KG

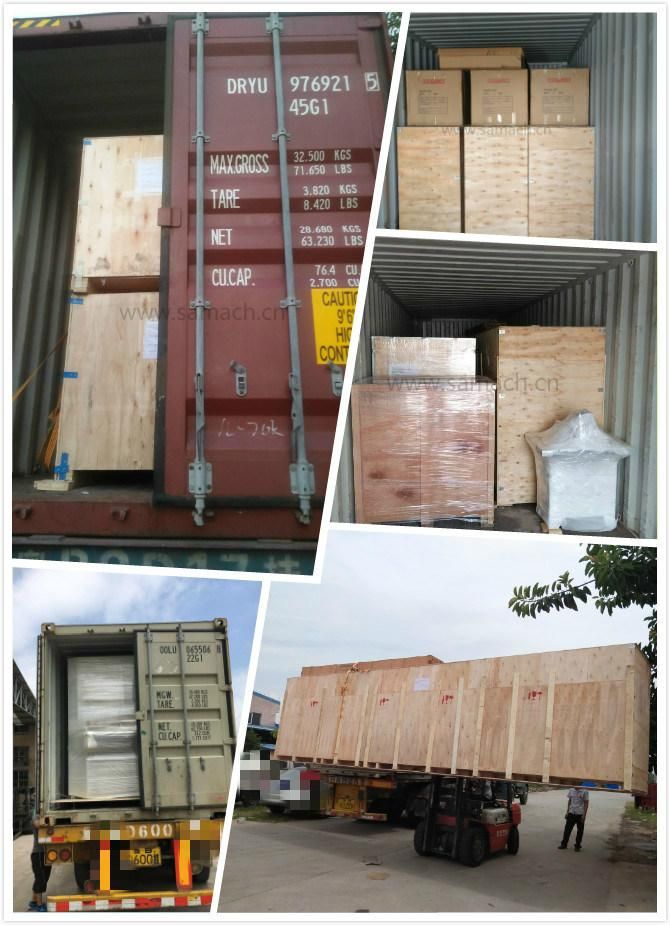

Packing & Delivery of SAMACH woodworking Machines

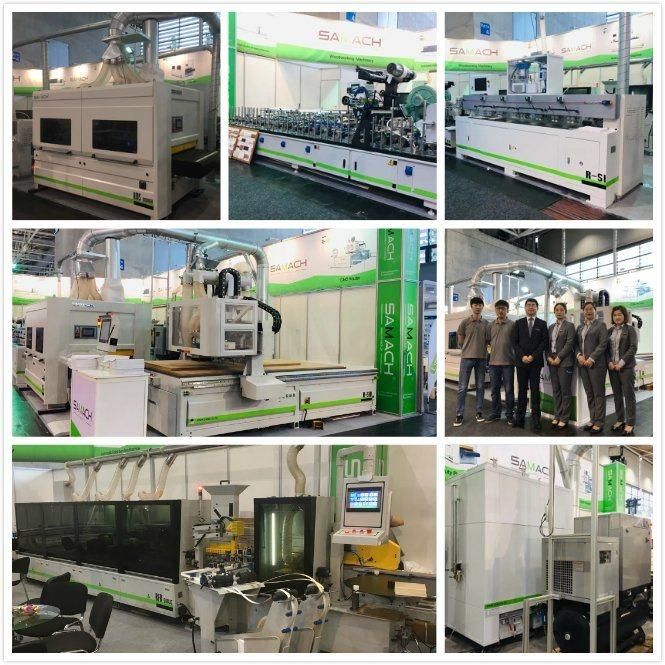

LIGNA GERMAN, World Top Level Exhibition of Woodworking Machinery.







Samach'S Services and dominant:

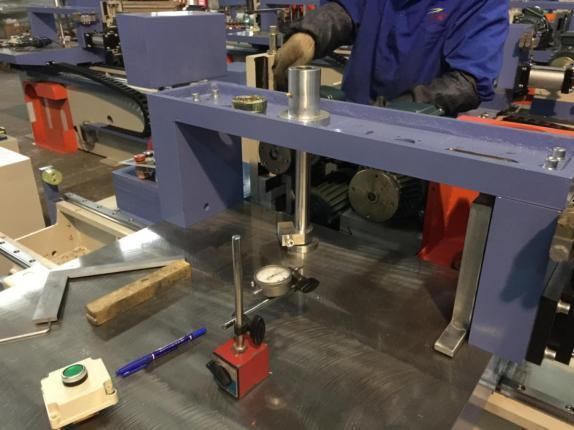

1: Professional team of techniques study and research, guarantee the Machine latest and improving efficiency.
