3200mm 45 Degree MDF and Wood Borad Cutting Panel Saw for Woodworking

Qingdao Zhongding Machinery Co., Ltd.
  • Type：Table Panel Saw
  • Power Type：Electric
  • Layout：Horizontal
  • Controlling Mode：Artificial
  • Automatic Grade：Semiautomatic
  • Precision：High Precision

Base Info

  • Model NO.：ZDV9
  • Certification：CE, ISO
  • Customized：Customized
  • Condition：New
  • Color：Iron Grey
  • Transport Package：Plywood Case
  • Specification：3250*3150*900mm
  • Trademark：ZD
  • Origin：China
  • HS Code：84659100
  • Production Capacity：500 Set,Month

Description

ModelZDV9Dimension of sliding table3200*375mmGross cut capacity3200mmWidth of cut between saw blade and rip fence1250mmTilting saw group0-45°Diameter of main saw blade300mmMax. cutting height (90°)80mmSpeed of main saw spindle4000/6000r.p.mMain saw motor power5.5kwMain spindle diameter30mmDiameter of scoring saw blade120mmSpeed of scoring saw spindle8000 r.p.mScoring saw motor power1.1kwScoring saw spindle diameter20mmWeight750kgOverall dimension3250*3150*900mm

Electrical lifting, digital readout, electrical tilting, magnetic ruler, Big dust hood, pneumatic pressure device, etc are optional.

Components:

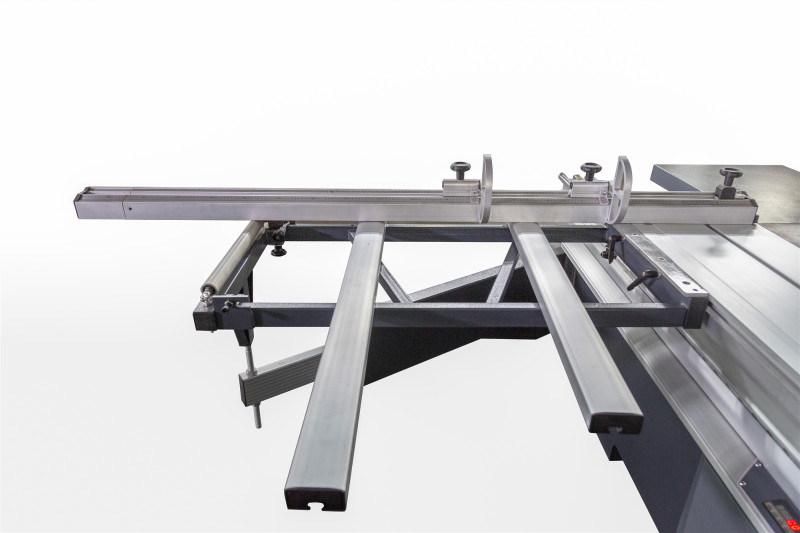

roller guide -- Euro-Seating (at your option)

3200mm 45 Degree MDF and Wood Borad Cutting Panel Saw for Woodworking

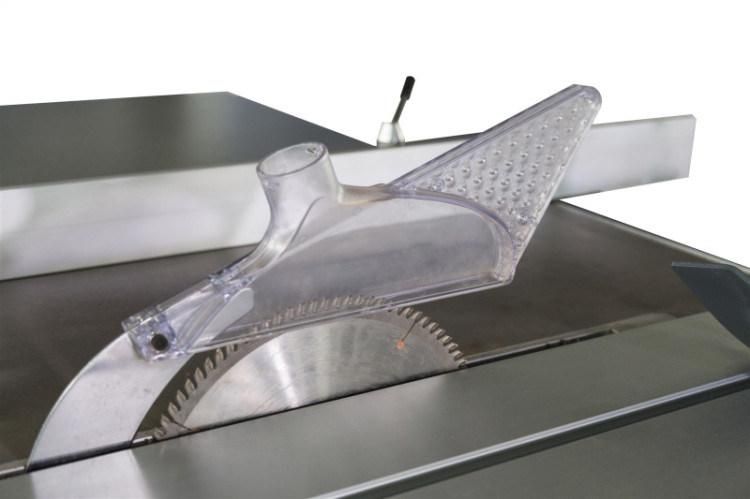

Dust hood with high arresting efficiency, remove dust and protect the environment. Equipped with small one, but big one is Optional.


3200mm 45 Degree MDF and Wood Borad Cutting Panel Saw for Woodworking

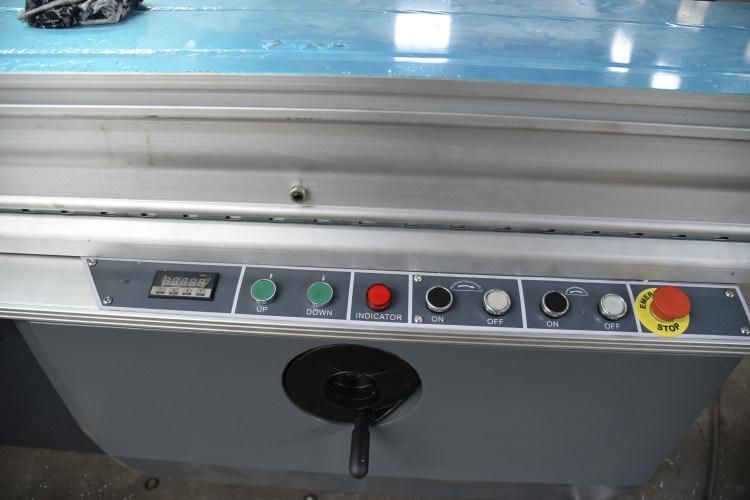

Buttons -- controlling the whole machine
3200mm 45 Degree MDF and Wood Borad Cutting Panel Saw for Woodworking




Main table--made of cast iron, firm, abrasion proof and uneasy deformation
3200mm 45 Degree MDF and Wood Borad Cutting Panel Saw for Woodworking


Auxiliary table --made of cast iron

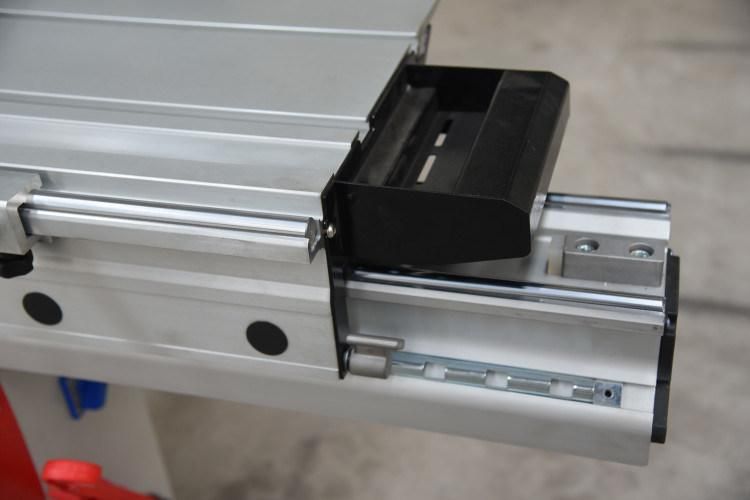

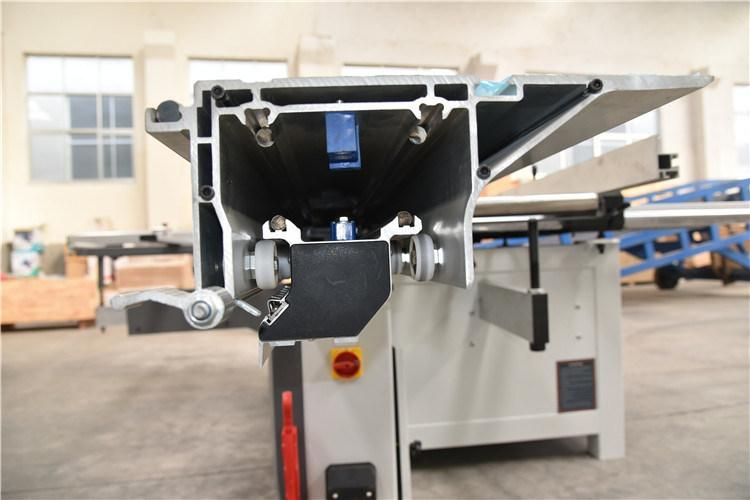

Sliding table-made of high-strength extruded aluminum alloy , light and uneasy distortion. Double layer sliding table.

3200mm 45 Degree MDF and Wood Borad Cutting Panel Saw for Woodworking

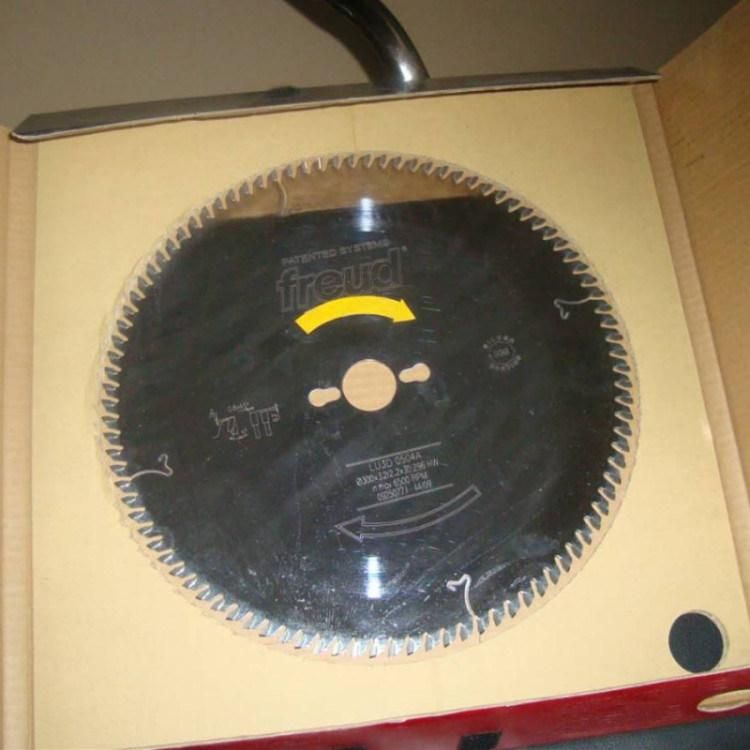

Main saw blade--made of duralumin

3200mm 45 Degree MDF and Wood Borad Cutting Panel Saw for Woodworking








Main ruler--made of aluminum,ensure the cutting precision, strength saving

3200mm 45 Degree MDF and Wood Borad Cutting Panel Saw for Woodworking

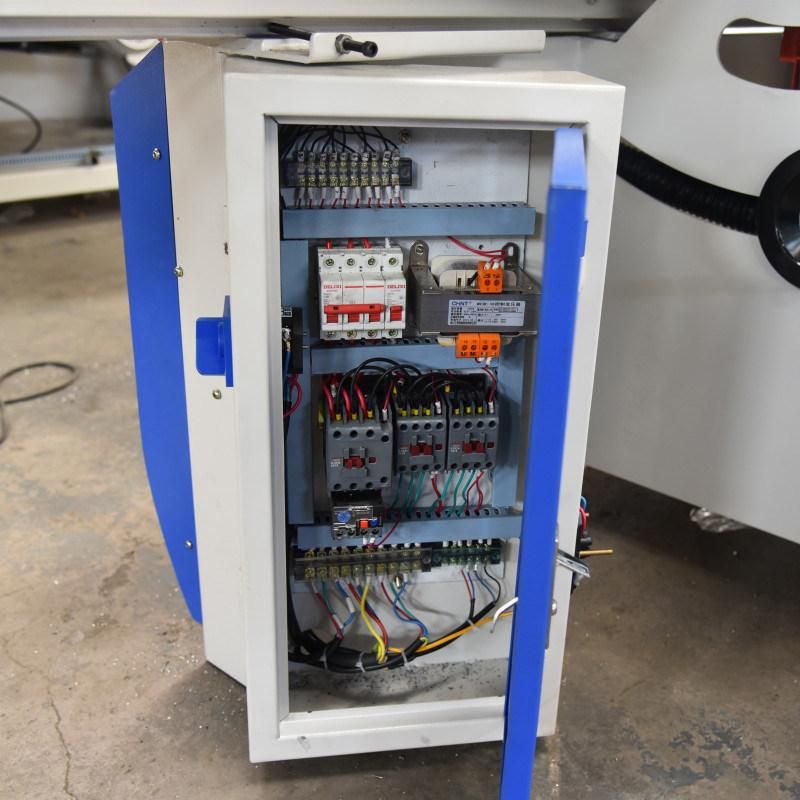

Indepent electric box:


3200mm 45 Degree MDF and Wood Borad Cutting Panel Saw for Woodworking






Packaging:

3200mm 45 Degree MDF and Wood Borad Cutting Panel Saw for Woodworking
About our company
3200mm 45 Degree MDF and Wood Borad Cutting Panel Saw for Woodworking
3200mm 45 Degree MDF and Wood Borad Cutting Panel Saw for Woodworking



For more details, pls feel free to contact us.
