Horizontal Band Saw Machine for Wood Cutting High Quality for Sale

Shandong STX Machinery Trade Co., Ltd.

Type：Band Saw
Power Type：Electric
Layout：Horizontal
Automatic Grade：Automatic
Precision：High Precision
Certification：CE

Base Info

Model NO.：MJ3971A X 400
Customized：Customized
Condition：New
Color：Customized
Max.Working Width：400mm
Application：Wood Timber Resaw
Saw Wheel Motor：18.5kw
Width of Conveyer Belt：385mm
Transport Package：Standard
Trademark：STX
Origin：China
HS Code：846591
Production Capacity：2000 Sets,Year

Description

Max. working size (Saw blade to 150mm)

400×300mm

Distance from saw blade to worktable

3~200mm

Width of conveyer belt

385mm

Diameter of saw wheel

711mm

Feed speed

0~18 m/min

Saw wheel elevation motor

0.18kw

Saw wheel motor

18.5kw

Hydraulic pressure

55kg/sqcm

Dust outlet diameter

102mm×2

Size of saw blade (L×W×H)

4572×27×0.9mm

4572×41×1.27mm

Saw kerf

1.2~2.2mm

Orerall dimensions(L×W×H)

3000×1950×1850mm

Net weight

1800kg

Detailed images

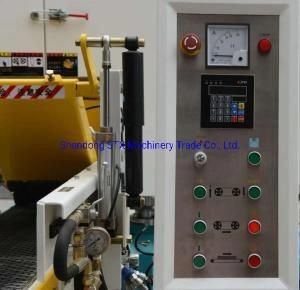

Digital display thickness setting:Use the numeric keyboard keys to set the plate thickness, the operation is fast and convenient,and the positioning is accurate.

Horizontal Band Saw Machine for Wood Cutting High Quality for Sale

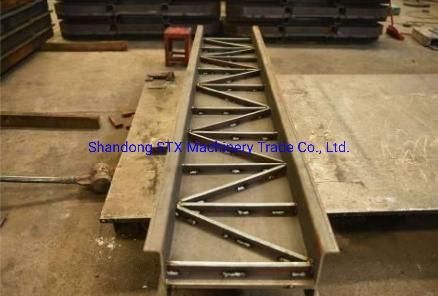

Thick workbench:The workbench uses 8MM thick plate, and the bottom is full of ribs. Prevent deformation due to long-term use,to promise it sawing accuracy.

Water spray device: The saw blade generates heat during sawing. The water spray device sprays water on the saw blade in the form of spray to cool down and lubricate the blade.The saw blade is stable and is not easy to drift or break.

Horizontal Band Saw Machine for Wood Cutting High Quality for Sale

Saw clip guide wheel: Special wear-resistant ceramics are used as clips to prevent the saw blade from vibrating up and down.The 10,000-speed high-speed guide wheel prevents the saw blade from backing up and ensures that the saw teeth are exposed to the saw wheel.Therefore,the saw blade is not easy to break and deviate,and the cutting is accurate.Fully automatic tensioning system: Using the full-automatic tensioning system, one person can quickly change the saw blade. The system has an automatic pressure holding function.When
sawing,when the saw blade is hot, it will automatically increase the pressure. Ensure the saw blade is stable,not easy to break or deviate. Horizontal Band Saw Machine for Wood Cutting High Quality for Sale

Chinese-Italian hydraulic motor:Specially imported technology from Italy, which drives the power of the feeding belt. The oil flow djustment range is large. When the hydraulic motor is switched between high and low speeds,the power and speed are stable.

Horizontal Band Saw Machine for Wood Cutting High Quality for Sale

Gear pump in Taiwan:The hydraulic motor drives the gear pump to output hydraulic oil. Power on for a long time to ensure smooth and stable oil pressure without high temperature heating.

Hydraulic feeding device:the hydraulic motor drives the feeding wheel to drive a single-slot belt feeding. The curved surface feeding wheel prevents the feeding belt from swinging and deviating,the feeding is stable,and the sawing plate is smooth and accurate.

Vibration reduction of the front press: The vibration reduction function can buffer the thick wood from vibration when exiting the front press, reducing work errors and reducing chatter marks.Automatic tensioning and saw wheel configuration:1. Wear-resistant steel wheel:45 # national standardprocesses, it is precisely processed into a 710mm diameter and 32mm thick saw wheel.The design of the outer arc surface is good for the stability of the saw blade, and it is not easy to drift and break.
Therefore,the sawing is accurate and wear-resistant. Horizontal Band Saw Machine for Wood Cutting High Quality for Sale
