• Model NO.：YVPV-8
• Speed：10-40,Min
• Motor Brand：Huali China
• Inverter：Taiwan Delta
• Veneer Thickness：1-10mm
• Peeling Knife：HSS
• Pressure Bar：Electric
• Weight ：23000kg
• Warranty：1year
• Function：Log Rotary Peeling
• Application：Plywood Line
• Total Power：69.6kw
• End Peeling Minin Diameter of Wood：160mm
• Transport Package：Shrinkage Film for Overall of Main Equipment
• Specification：6000*2300*2600mm
• Trademark：YIHE MACHINERY
• Origin：Linyi China
• Production Capacity：20sets,Month

Basic Info.

Model NO. YVPV-8 Speed 10-40/Min Motor Brand Huali China Inverter Taiwan Delta Veneer Thickness 1-10mm Peeling Knife HSS Pressure Bar Electric Weight  23000kg Warranty 1year Function Log Rotary Peeling Application Plywood Line Total Power 69.6kw End Peeling Minin Diameter of Wood 160mm Transport Package Shrinkage Film for Overall of Main Equipment Specification 6000*2300*2600mm Trademark YIHE MACHINERY Origin Linyi China Production Capacity 20sets/Month

Product Description

8ft Spindle Thick Core Veneer Peeling Machine



Spindle Core Veneer Peeling Lathe are mainly used for making 1-10mm core veneer and big diameter logs peeling, like Okume, Birch, Beech, etc. Its min. max. peeling log diameter is 1300mm. Our machine have been exported to Russia, Gabon, India, Europe, etc for more than 30 countries. Its full automatic peeling line and accurate peeling thickness are highly welcomed from our customer. We adopts automatic Taiwan Delta control system, all motors are Huali brand, thickness adjustment is can be controlled by both CNC and gear. It is quality guaranteed machine.





Features:

1) An advanced CNC system ensures the veneers cut uniformly with a thickness tolerance of ± 0.05mm and width tolerance of ± 2.5mm.
2) Ajustable knife settings allow you to easily process logs larger in diameter and still produce smooth and flat finished veneers.
3) A user-friendly interface helps the operators spot any problems.
4) Even during rotary peeling, operators can still adjust for two different veneer thickness without sacrificing the quality of either the peeling or cutting process.
5) A two-in-one structure,wood peeling and cutting together,reduces both the space and operators.costs is greatly lower.


Specifications


structure	vertical
specification of wood (diameter* length)	φ1500×2600mm
end peeling minimum diameter of wood	Ø160mm
maximum stroke of knife	700mm
veneer's thickness	1~10mm
Blade length	2700
main spindle speed	10-40 r/ min
Motors and power Total:	69.96kw
Overall size(L*W*H)	6000*2300*2600mm
Net weight	About23000KGS

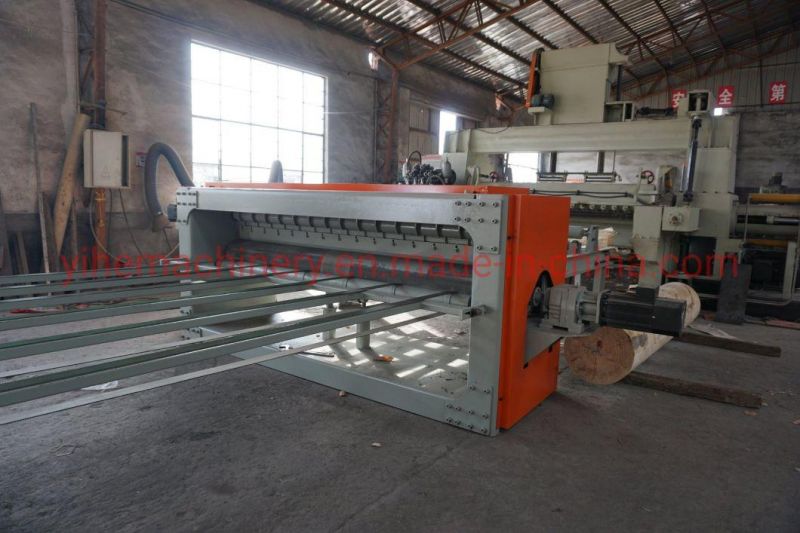

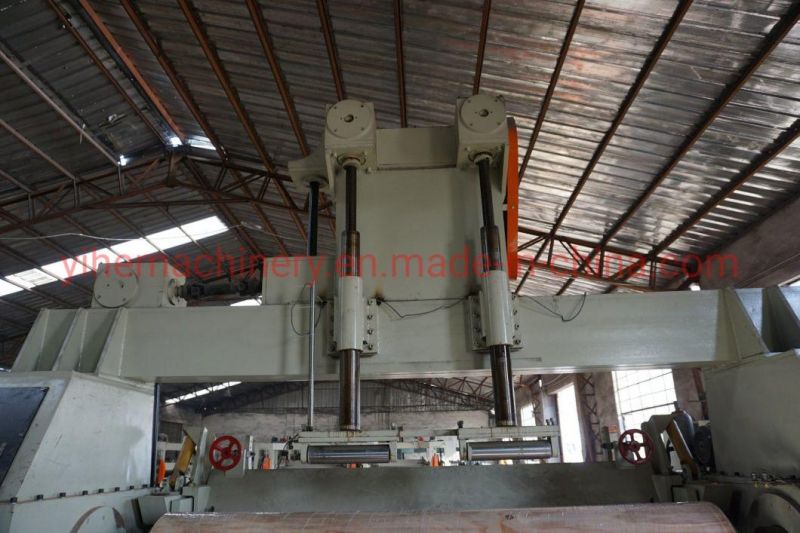

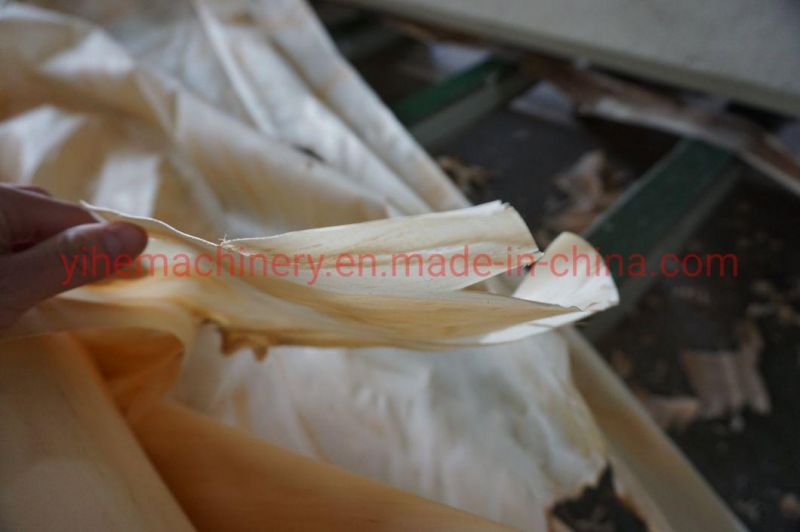

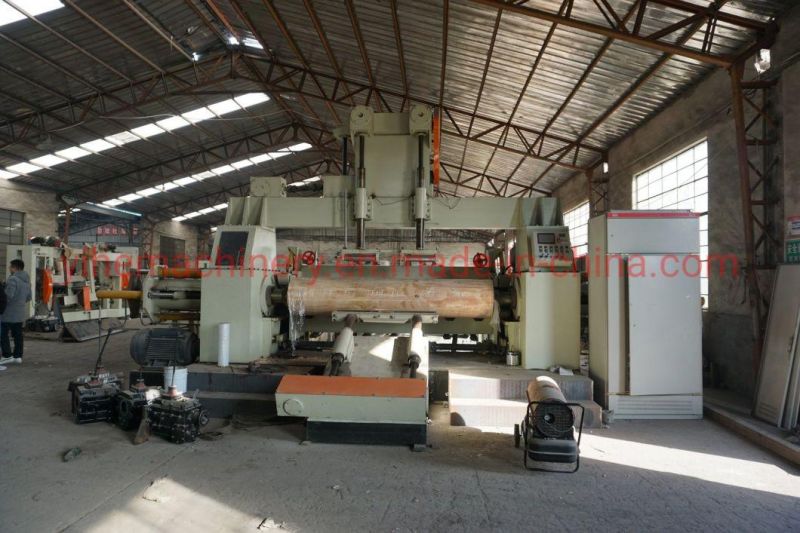

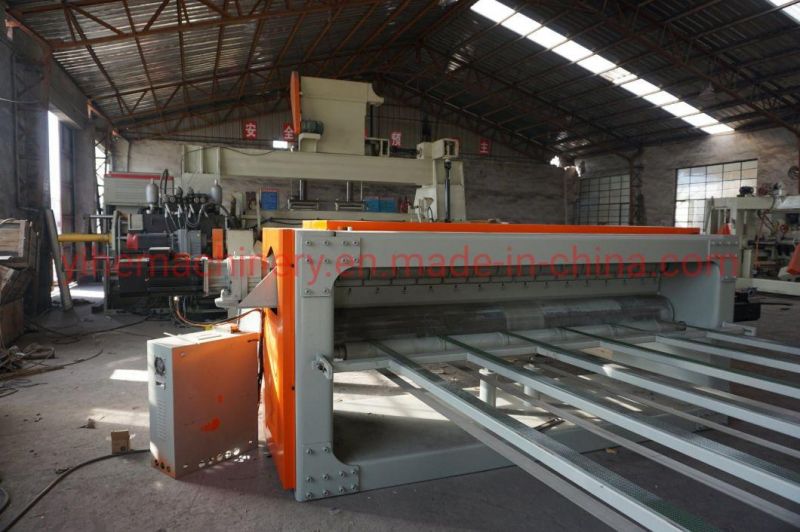

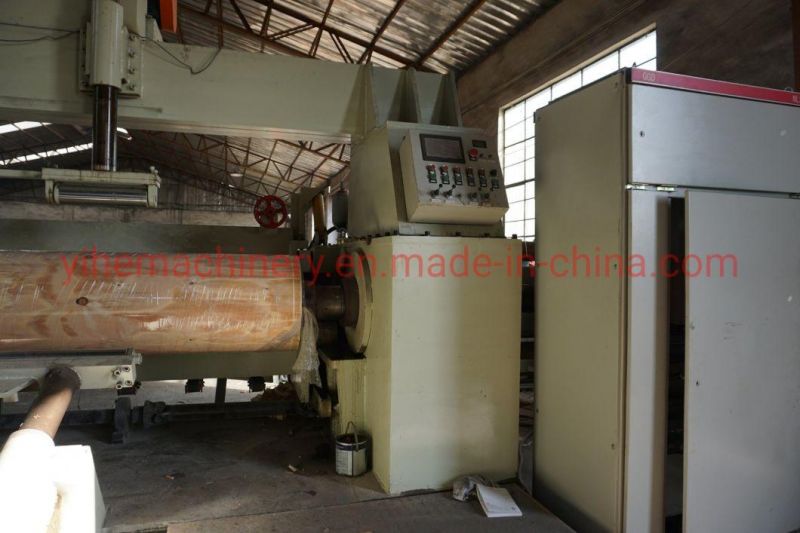

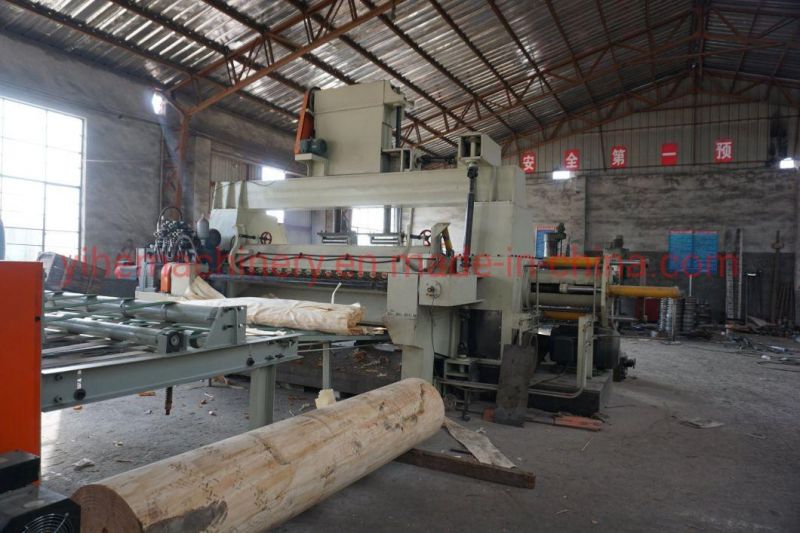

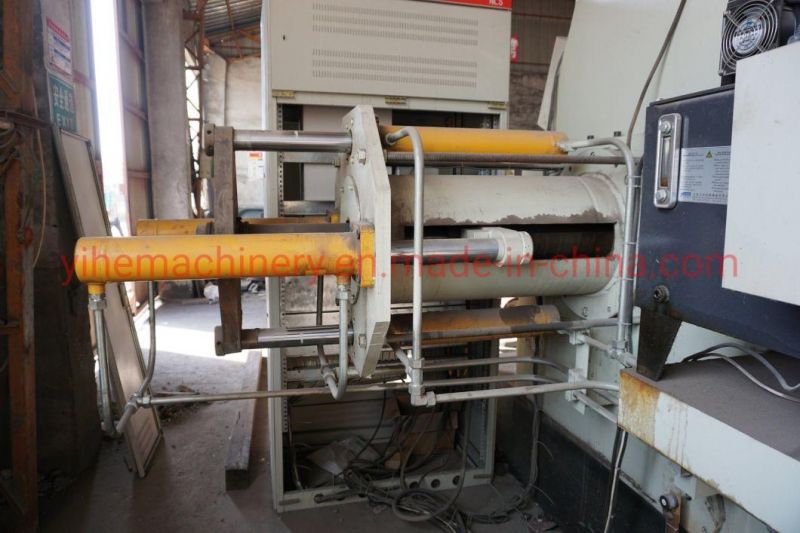

Images in detail















Contact Us

David


Web: yihemachinery.en.made-in-china.com

Company Information

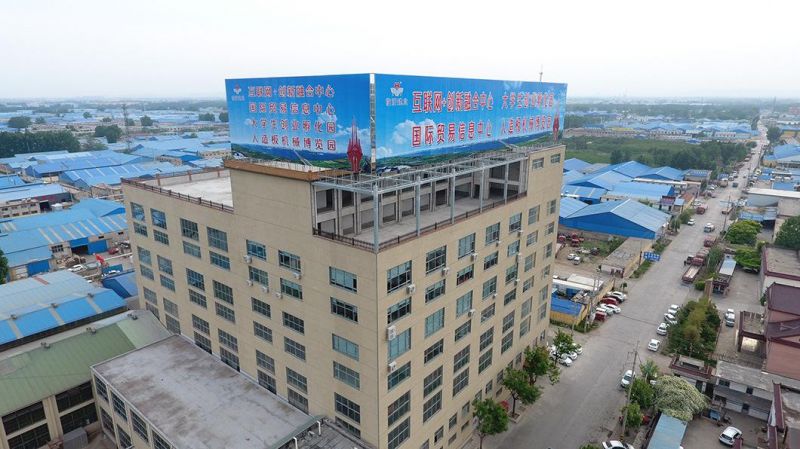

Linyi Jianye Shunda Machinery Manufacture Company Limited.(Linyi Jianye Shunda Imp. & Exp., Ltd.) is a professional machinery company in producing and selling plywood machine, particle board machine, MDF/HDF machine, flooring machine, lamination press, located in beautiful logistics city "LINYI", and also won license for direct import and export by the state government.
