• Model NO.：ZD3232
• Transport Package：Wooden Case
• Specification：15CBM
• Trademark：QDZD
• Origin：Qingdao
• HS Code：84659100
• Production Capacity：500sets,1month

ModelMJ2700MJ3300MJ3800Saw length2700mm3300mm3800mmSawing thickness85/100/120mm85/100/120mm85/100/120mmDia.of main saw blade355/400/460mm355/400/460mm355/400/460mmAxis dia.of main saw blade30/60mm30/60mm30/60mmRotate speed of main saw blade3950/4500mm3950/4500mm3950/4500mmAxis dia. of grooving saw blade25.4/30mm25.4/30mm25.4/30mmDia of grooving saw blade 180mm180mm180mmRotate speed of groovingsaw blade6300rpm6300rpm6300rpmSaw carriage forward speed0-120mm/min0-120mm/min0-120mm/minSaw carrige back speed60-120m/min60-120m/min60-120m/minHead saw motor7.5/11kw7.5/11kw7.5/11kwGrooving saw motor1.5kw1.5kw1.5kwSaw carrige drive motor2.2kw2.2kw2.2kwAutomatic feeding motor1.2kw2kw2kwPushing motor2kw2kw2kwHigh pressure blower motor2.2kw2.2kw2.2kwTotal power17/21kw21/27kw21/27kwAutomatic feeding speed0-120m/min0-120m/min0-120m/minOperation pressure5-7kg/cm5-7kg/cm5-7kg/cmWorkbench height950mm950mm950mmNet weight5000kg6000kg7000kgDimension5500*5600*1700mm6100*6200*1700mm6700*6800*1700


Function:
Automatic loading and unloading, cutting, drilling, grooving, engraving and routing. Consecutive process make a maximize production efficiency.
Advantage:
          1. Automatic loading and Unloading, work table cleaning, lubrication and knife device, which bring a   high efficiency
          2. Module design. Several knife modules are available.
          3. Professional appearance anddesign and high precision CNC processing
          4. Domestic and imported CNC system, which has a stable performance.
          5. Operate easily and only a simple training is needed
          6. Automatic knife changing device is available

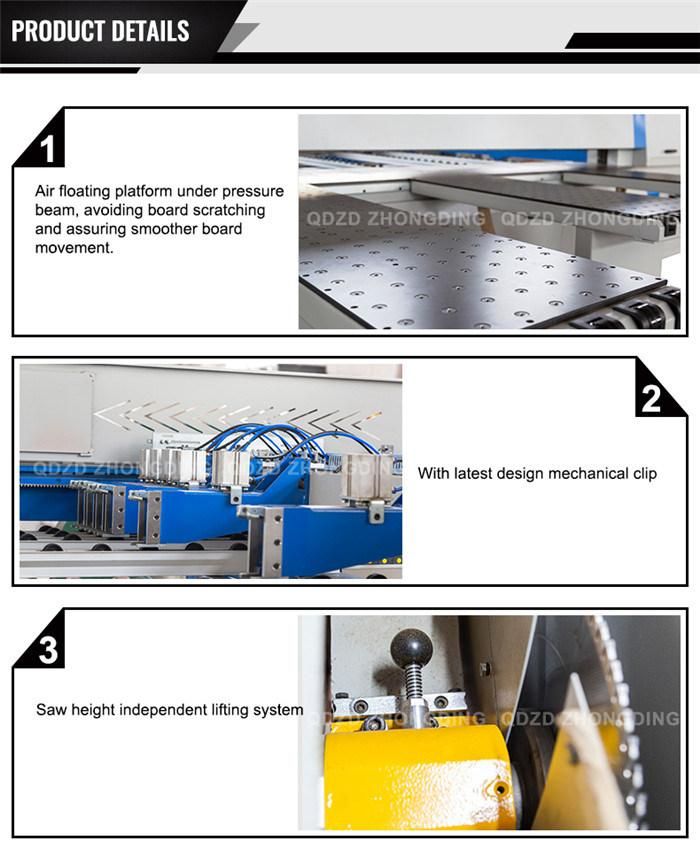

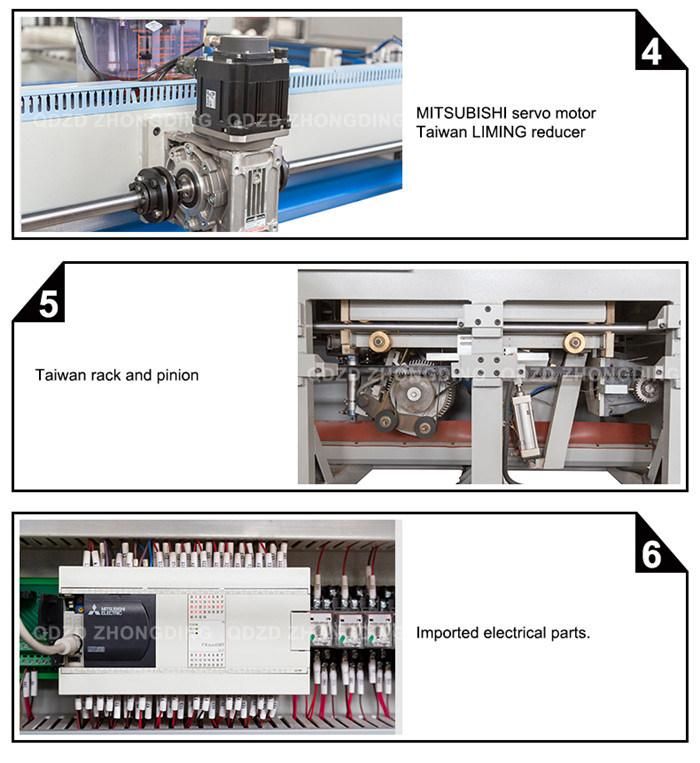

Product details:

Other information:
1) Term of payment: T/T, 30% deposit and the balance is paid before delivery
2) Delivery: 25days
3) Machine voltage: optional
4) Warranty: 1 year
5) MOQ: 1 Set
6) OEM service is ok
7) HS code: 84659900
8) Certificate: CE&ISO 9000 Certificate

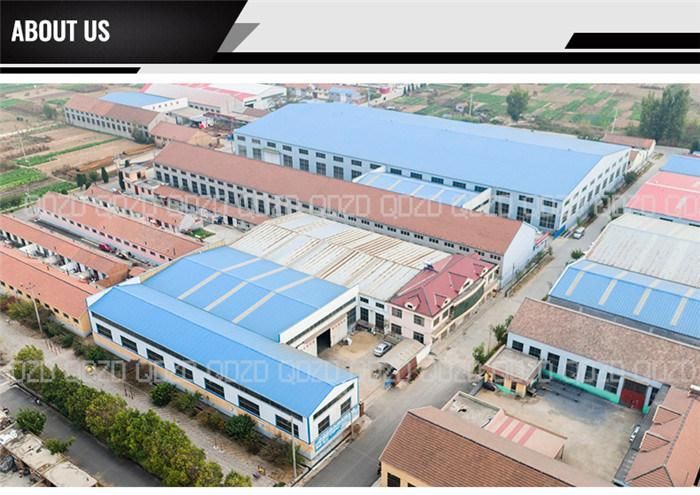

Qingdao Zhongding Machinery Co., Ltd is a leading company of specializing in manufacturing and exporting woodworking machine, and we are able to offer professional woodworking machines to customers. Our company has professional technology, full range of testing lines and pipelining, and four professional production lines of woodworking machine. It is located by the beachside of the Yellow sea, which is a place of strong competitive power, beautiful natural environment, and easy traffic of air, land and sea transportation.
