• Model NO.：ELECNC-3050
• Customized：Customized
• Condition：New
• Color：Customized

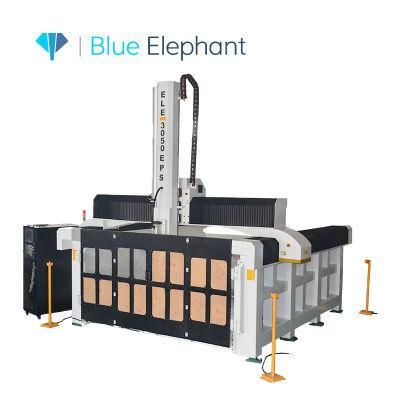

• Product Name：CNC 3D Molding Machine
• Working Size：3000X5000X1500mm
• Transmission：Helical Rack Transmission
• Control System：Taiwan Syntec 4 Axis
• Spindle Speed：24000rpm
• Working Speed：20m,Min
• Spindle Power：4.5kw Italy Hsd Air Cooling Spindle
• Reducer：Japan Shimpo Reducer
• Voltage：AC380V,3pH,50Hz
• Drive Motor：Japan 1.5kw Yaskawa Servo Motor
• Transport Package：Standard Export Wooden Case
• Specification：CE, CIQ, SGS
• Trademark：BLUE ELEPHANT
• Origin：Shandong, China
• Production Capacity：200 Sets Per Month

Number

Description

Parameter

1

X,Y,Z Working Area

2860x3500x1450 mm*±100°

2

Effective working area

2860x3500x1450 mm

3

X,Y,Z Traveling Positioning Accuracy

±0.01/300mm

4

X,Y,Z Repositioning Accuracy:

±0.01mm

5

Table Surface

T-slot Table

6

Frame

Big Steel Tube Structure

7

Y Structure

Helical rack gear , 4pcs HIWIN #35 Linear guide

8

X,Z Structure

HIWIN #45  Linear guide

9

Max. Power Consumption

(Without Spindle) 5Kw

10

Max. Rapid Travel Rate

40000mm/min

11

Max. Working Speed

30000mm/min

12

Spindle Power

HSD spindle 4.5kw

13

Spindle Speed

0-18000RPM

14

Drive Motors

Japan 1.5KW YASKAWA servo

15

Working Voltage

AC380V/50/60Hz,3PH (Option: 220V))

16

Command Language

G Code

17

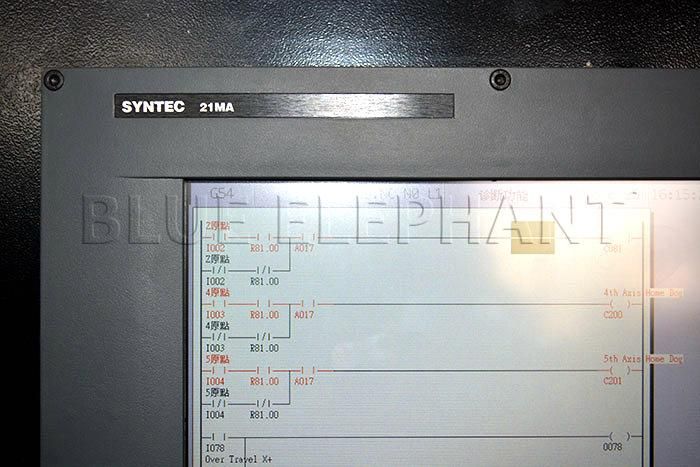

Operating System

SYNTEC Control System 21MA

18

Rotary device

Diameter300mm, length 2000mm

18

Computer Interface

USB

19

Flash Memory

512M

20

Collet

ER32 (20mm)

21

X,Y Resolution

<0.01mm

22

Software Compatibility

UG , Power mill

23

Running Environment  Temperature

0 - 45 Centigrade

24

Relative Humidity

30% - 75%

25

New type dust collection

1.5KW with two bags (equal the old type 4Kw )

Application :

Ideal for automobile mold industry, suitable for EPS foam, casting wood mold, automobile interior decoration, engineering plastic and other non-metal materials .

About our service:


1, Within 7 days since your local customs clearance: if the cnc router's any parts has any problems, we will change it free.
2, Exceed 7 days since your local customs clearance but within warranty period: if the cnc router parts have any problems,

we can change the old machine parts to new ones free, but you should pay all the shipping cost.
3, Exceed warranty period: if the cnc router parts have any problems, we can offer new machine parts with cost price and you also should pay all the shipping cost.
4, We offer 24 hours technical support by call, email
5, Our technician can give you remote guide online(Skype or MSN) if you have any question
6, We can record videos of operating the laser machine
7, Free training course in our factory
8.Machine will be adjusted before it is delivered , operation disk/CD was included.

About Qulity Control:

1. Skilled and strict Quality Inspection Team is available during the material purchasing and production procedure.

2. All finished machine we shipped out are 100% strictly tested by our QC department and engineering department

FAQ:

Question 1: I want to buy this machine,what suggestion can you give?

Answer: Please tell me:what material do you process? What's the size of your material?(Better show me your product picture)

Question 2: What's the delivery cost & time?
Answer: Please tell me your sea port name,i check shipping cost. After production,we'll deliver ASAP.

Question 3: Have you exported to our country?
Answer: We have been in this field for 11 years,we have CE,CO,ISO,FDA certificates,have exported to Europe,South America,Arab,Asia,Russia,Spain,Australia and many more countries.

Question 4:This is the first time I use this kind of machine, is it easy to operate?

There are english manual or guide video that show how to use machine.

If there is still have any question, please contact us by e-mail / skype/ phone /trademanager online service at any time.

Question 5: If machine have any problem after I receive it, how can I do ?

Free parts send to you in machine warranty period if machine have any problem.
If the parts less than 0.5KG, we pay the postage.
If it exceeds 0.5KG, you need to pay the postage.

Question 6:MOQ ?
1 set machine, mixed order is also welcomed.

Our Factory:




• Jinan Blue Elephant CNC Machinery Co., Ltd is located in Jinan City, Shandong Province. We have always been developed to the research and manufacturer of CNC router machine and laser cutting engraving machine.
• Our Philosophy: To Be First Brand -- CNC Manufacturer & wholesaler Platform!

• Just looking forward to service every customer, like you.

Contact:

Contact:  Emma Lee
 Mobile 0086-15064026772
Web: blueelephant-cnc.en.made-in-china.com
