• Model NO.：RJ-1325
• Dust Collecting Power：3.0kw
• Maximum Speed：X Y Axes 60m,Min
• Transport Package：Wooden Case
• Specification：1300x2500mm
• Trademark：Ruijie
• Origin：China
• HS Code：84609090
• Production Capacity：100 Sets,Month

Basic Info.

Model NO. RJ-1325 Dust Collecting Power 3.0kw Maximum Speed X Y Axes 60m/Min Transport Package Wooden Case Specification 1300x2500mm Trademark Ruijie Origin China HS Code 84609090 Production Capacity 100 Sets/Month

Product Description

Wood working Machine RJ-1325

Specifications:
1. The unique calculating system realizes speedy, accurate, curvy operation.
2. USB ensures high speed and efficiency
3. The vacuum cleaning system offers a clean working environment and better quality
4. Y-axis adopts double motors to ensures stable operation
5. Highly accurate Rack Rail travel method with high speed
6. Lathe bed is cast wholly and firmly and will not deform.


Working travel	X axis 1300 mm  Y axis 2500 mm    Z axis 230 mm
Table size	1300 mm*2500 mm
Maximum speed	X Y axes 60m/min
Spindle	Voltage: AC380v  Frequency: 400Hz
Italy HSD	Speed: 24000r/min  Power: 8kw
Pressure	Air-blow pressure 0.4 MPa      Tool hold Pressure 0.7 MPa
Pressure protection	No less than 0.7
Dust collecting power	3.0kw
Vacuum power	5.0kw (phenol aldehyde laminated cloth board)
Total power	23.0kw
Mechanism size	Area: 1.8m*3.3m    Height: 1.5m  Weight: 850kg
Japanese servo motor	Large torque, which ensures stable operation, low noise, accurate position. The idle strake speed can be more than 60m/min.
Tool storage	8 tools
Diameter of cutter head	3.175mm, 6mm, 12.7mm.
Cubage	18.0 CBM

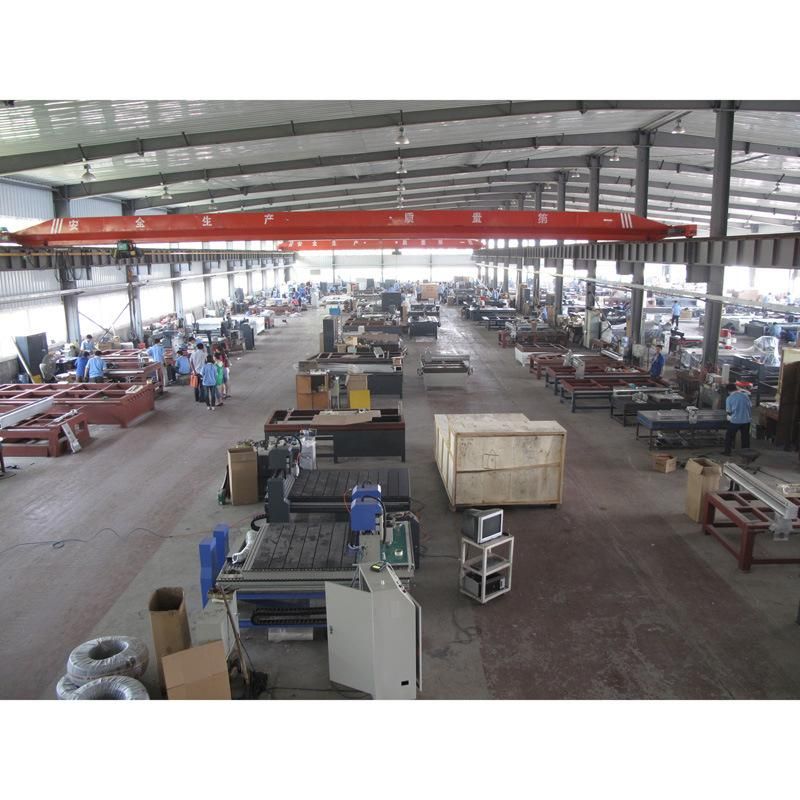

Factory Show
