1325, Multi Spindle, Woodworking Machine, Wood CNC Router, CNC Engraving Machine
Jinan Guanjiahong CNC Machinery Co., Ltd.- After-sales Service:Lifetime
- Warranty:1 Year
- Condition:New
- Certification:CE, SGS
- CNC or Not:CNC
- Voltage:380V
Base Info
- Model NO.:1325-1-5
- Drive Mode:Stepper
- Guild Rail:PMI ,Hiwin Square Rail
- Ball Screw:PMI
- Control System:Nc Studio, Shanghai
- Type:Engraving Router
- Spindle Layout:Spindle Over
- Feed Mode:Mechanical
- Controlling Mode:CNC
- Customized:Customized
- Color:Customized
- Spindle Number:5
- Transport Package:Plywood Case
- Specification:CE
- Trademark:DONGTONG
- Origin:Shandong China
- HS Code:84609090
- Production Capacity:50 Sets Per Month
Description
Basic Info.
Model NO. 1325-1-5 Drive Mode Stepper Guild Rail PMI /Hiwin Square Rail Ball Screw PMI Control System Nc Studio, Shanghai Type Engraving Router Spindle Layout Spindle Over Feed Mode Mechanical Controlling Mode CNC Customized Customized Color Customized Spindle Number 5 Transport Package Plywood Case Specification CE Trademark DONGTONG Origin Shandong China HS Code 84609090 Production Capacity 50 Sets Per MonthProduct Description

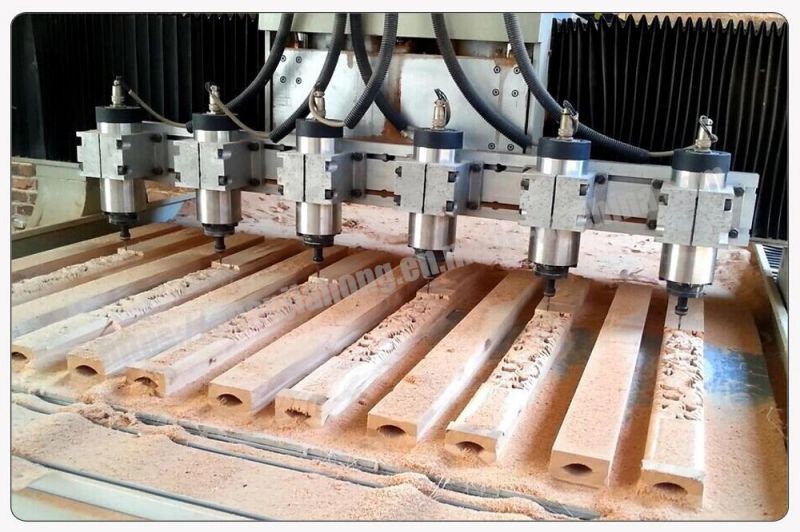

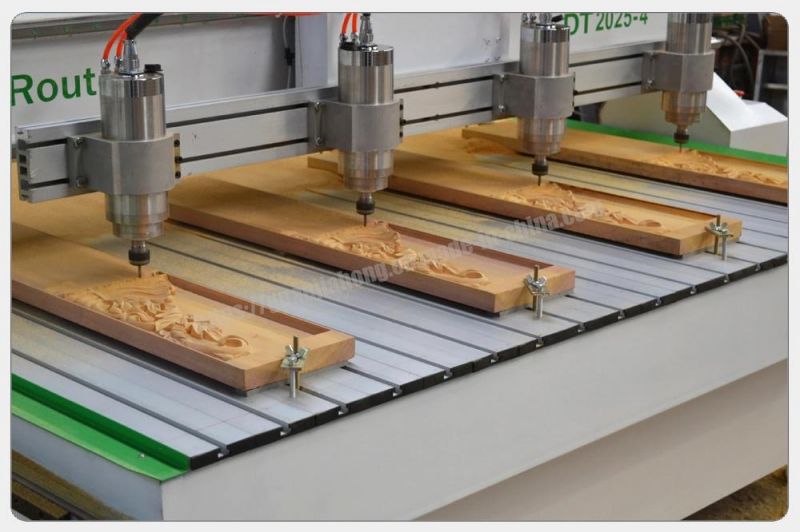

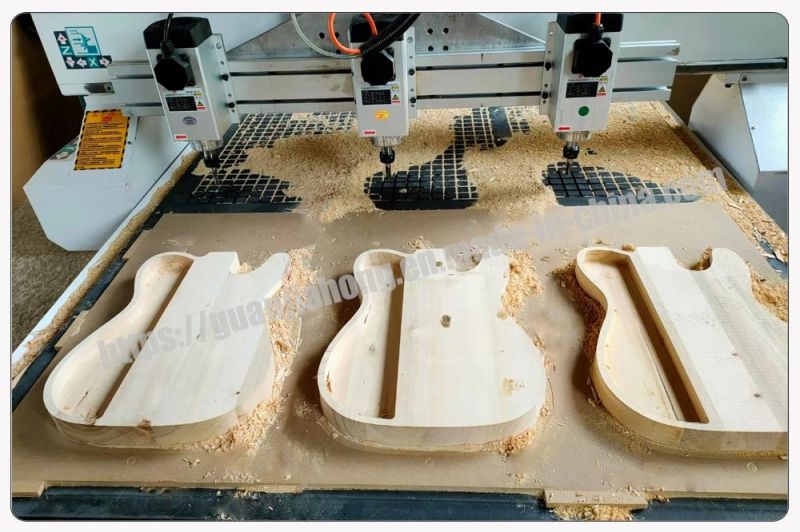

1325-1-5, One head, Five spindles,Woodworking engraving machine, Wood CNC router from professional cnc router manufacturer.
Feature:
1. Multi spindles CNC Router is specially designed for multi-process simutaneously.
2. Spindle works in turn, change tools easily.
3. Advanced control system: Taiwan SYNTEC or NC STUDIO
4. Compatible with software such as: TYPE3/ARTCAM/UG/PRO-E/UCANCAM/AUTOCAD/MASTERCAM
5. Functions of power-off recovery, continuation on break point, time anticipation.
7 .Excellent components: HIWIN guild rail and ball screws, low noise spindle
8. Welding steel structure and 10mm gantry
Application:
1. Woodworking industry: three-dimensional wave board processing, cabinet door, craft wooden door, folding screen, process window
milling shape carved furniture products.
2. Advertising industry: advertising signs, PVC board, chevron board, double color boards, logo making, acrylic cutting, plastic
molding, characters, crystal cutting, plate making, cutting PVC board, acrylic, LED/neon trough, the hole shape
literally cut, blister light boxes mould
3. Arts and crafts industry: in the wood, bamboo, marble, organic board, double color boards, such as material for a variety of exquisite
design and text on the sculpture.
Technical Parameter:
NO | Performance index | Performance index | Parameter | Optional |
1 | Working area | X | 1300mm | |
Y | 2500mm | |||
Z | 200mm | |||
2 | Table size | 1300mm*2500mm | 2200mm*3000mm | |
3 | Accuracy | Working precision | 0.02mm | |
Repositioning precision | 0.02mm | |||
4 | Drive mode | X axis | Helical rack and pinion | |
Y axis | Helical rack and pinion | |||
Z axis | Ball screws | |||
5 | Speed | Max motion speed | 30000mm/min | |
Max engraving speed | 8000mm/min | |||
6 | Spindl | Spindle power | 3KW | 1.5KW_5.5KW |
Spindle speed | 0_24000r/min | |||
7 | Motor | Stepper | Servo motor is optional | |
8 | Operating voltage | AC220V/50HZ | ||
9 | Command code | G code | ||
10 | Operating system | Nc Studio | ||
11 | Net weight | 1400KG |
Our Services:1.Technical support by call, email or whats app
2. Friendly English version manual.
3. Engineer available to service machine overseas. Buyer should pay the fee.4. Warranty period: 1 year for the whole machine and 6 months for spindle
5. Machine will be adjusted before dispatch.
6. Free training course in our factory.
7. Free suggestion and consulting, lifetime technical support .

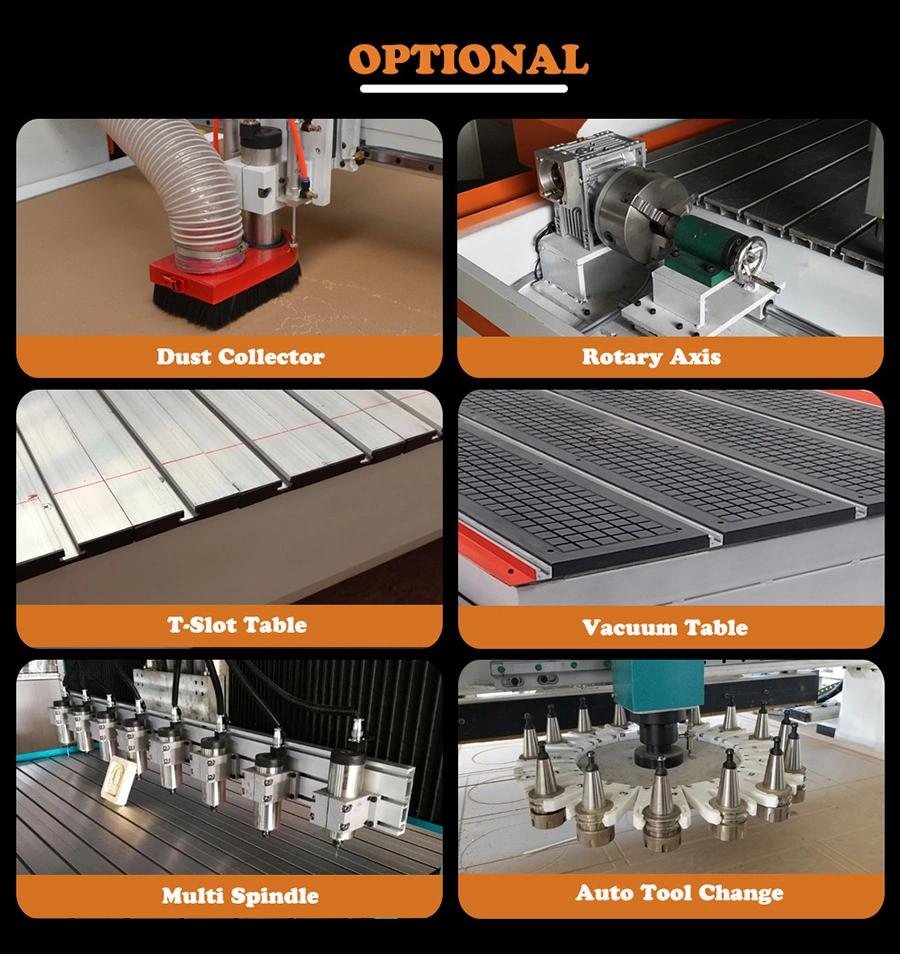

Customization is available.
If you have specific requirement for 1325 wood CNC router engraving machine, please contact with us.
