• Model NO.：DW1530
• Customized：Customized
• Condition：New
• Color：Customized
• Working Size：Customize Accepted
• OEM：Accepted
• Tool Changer Amount：8
• Spindle Power：9kw Hsd
• Transport Package：Plywood Box, Free From Fumigation
• Specification：CE
• Trademark：Dwin Made In China
• Origin：Jinan, Shandong, China
• HS Code：846599
• Production Capacity：50sets Per Months

working area

1500X3000X500mm

Max moving speed

40000mm/min

Max Engraving Speed

25000mm/min

Reposition Accuracy

<0.05/300mm

Spindle

9KW Italy HSD ATC spindle

Inverter

11kw Taiwan Delta inverter

Spindle rotation:

6000-24000rpm

Tool magazine and number of tools

linear  ATC, 8 tools

Tool diameter

2mm-20mm

Transmission

X, Y axis: High precision helical rack; Z axis: imported Taiwan TBI Ball Screw

X, Y, Z Rail

Taiwan HIWIN or PMI 25mm linear guide way

Beam

cast Steel

Frame

Tube structure

Table surface

vacuum & T-slot combined

Control System

Germany Siemens 808D Control System

Typeset software

Type3, Art CAM

Motor/ Driver

1kw Siemens servo(Japan YASKAWA servo for option)

Voltage:

AC380V/50HZ

ATC CNC Router machine Features:

1, Welded structure by thick profiled steel

2, Assembled with precise parts.

3, Automatic lifting device for vacuum suckers allows the easy operation for the job on the   side of working   pieces. Vacuum working table is with double cavities and bakelite material  with high absorption power.

4, Imported Germany Siemens high performance control system, separated keyboard control, color LCD display.

5, With Italian combination drills, the machine can finish various processes one time including drilling, edge cutting, engraving, slotting, and lock hole making and expanding for the wooden door panels with complicated processing requirement.

Applications:

1. WoodFurniture Industry: Wave Plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.

2.Advertising industry: advertising identification, sigh making, Acrylic engraving and cutting, crystal wordmaking, blaster molding, and other advertising materials derivatives making.

3.Die industry: A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand, plastic sheeting, PVC pipe, wooden planks and other non-metallic mold.

4.Relief sculpture and 3D engraving
5.Cylindrical object

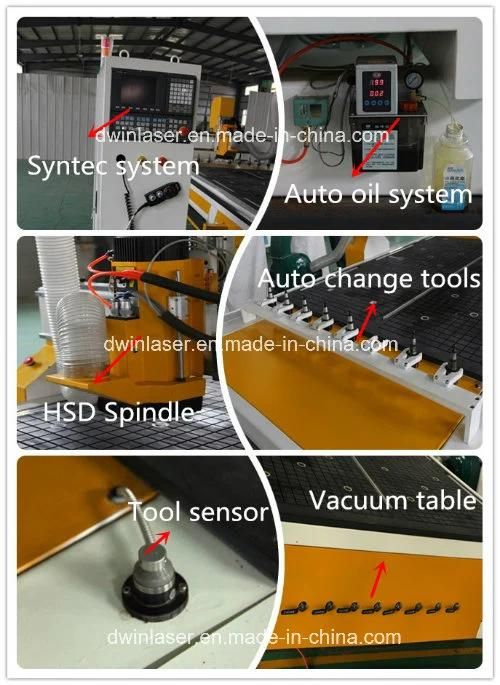

Machine parts

Samples:

After-sale service:
1, Within 7 days since your local customs clearance: if the cnc router's any parts has any problems, we will change it free.
2, Exceed 7 days since your local customs clearance but within warranty period: if the cnc router parts hav
e any problems, we can change the old machine parts to new ones free, but you should pay all the shipping cost.
3, Exceed warranty period: if the cnc router parts have any problems, we can offer new machine parts with cost price and you also should pay all the shipping cost.
4, We offer 24 hours technical support by call, email
5, Our technician can give you remote guide online(Skype or MSN) if you have any question
6, We can record videos of operating the cnc router
7, Free training course in our factory
8.Machine will be adjusted before it is delivered , operation disk/CD was included.

Professional Service:
From producing in our factory to shipping the goods directly to your port or company, we supply all-inone service for our customers.
With the rich experience of dealing with shipping issue and custom clearance, we can make the most economical delivery plan for you and ensure the quick leading time.
No matter your quantity is our MOQ or very big, we take each customer as the only one.
