• Model NO.：XCS-2020
• Precision：High Precision
• Certification：ISO
• Customized：Customized
• Condition：New
• Color：Customized
• After-sales Service：12 Months
• Name：Frame Saw Machine
• Model：Xcs2020
• Total Power：15kw
• Feed Speeding：0.1-1.5m,Min
• Cutting Height(Flexible Adjustable)：30-200mm
• Cutting Width Side Guide：60-150mm
• Cutting Width Center Guide：2*30-70mm
• Weight：2500kg
• Certificate：CE ISO
• Service：Whole Life
• Voltage：220V,380V
• Usage：Wood Cutting
• Package：Wooden Case
• Transport Package：Wooden Case
• Specification：3600*880*2500mm
• Trademark：HiWinstar
• Origin：China
• Production Capacity：100set,Month

Basic Info.

Model NO. XCS-2020 Precision High Precision Certification ISO Customized Customized Condition New Color Customized After-sales Service 12 Months Name Frame Saw Machine Model Xcs2020 Total Power 15kw Feed Speeding 0.1-1.5m/Min Cutting Height(Flexible Adjustable) 30-200mm Cutting Width Side Guide 60-150mm Cutting Width Center Guide 2*30-70mm Weight 2500kg Certificate CE ISO Service Whole Life Voltage 220V/380V Usage Wood Cutting Package Wooden Case Transport Package Wooden Case Specification 3600*880*2500mm Trademark HiWinstar Origin China Production Capacity 100set/Month

Product Description

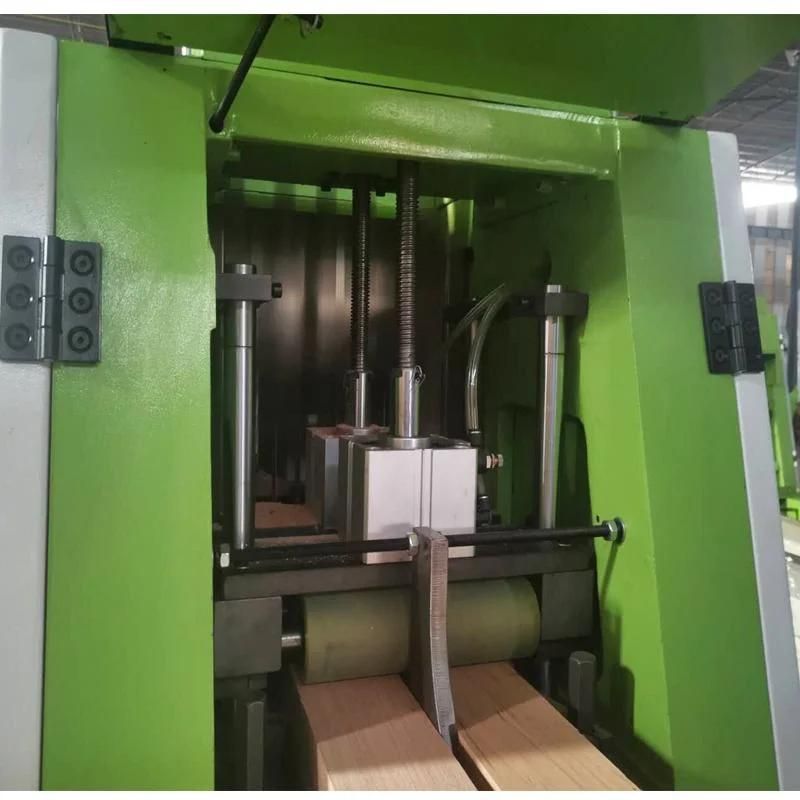

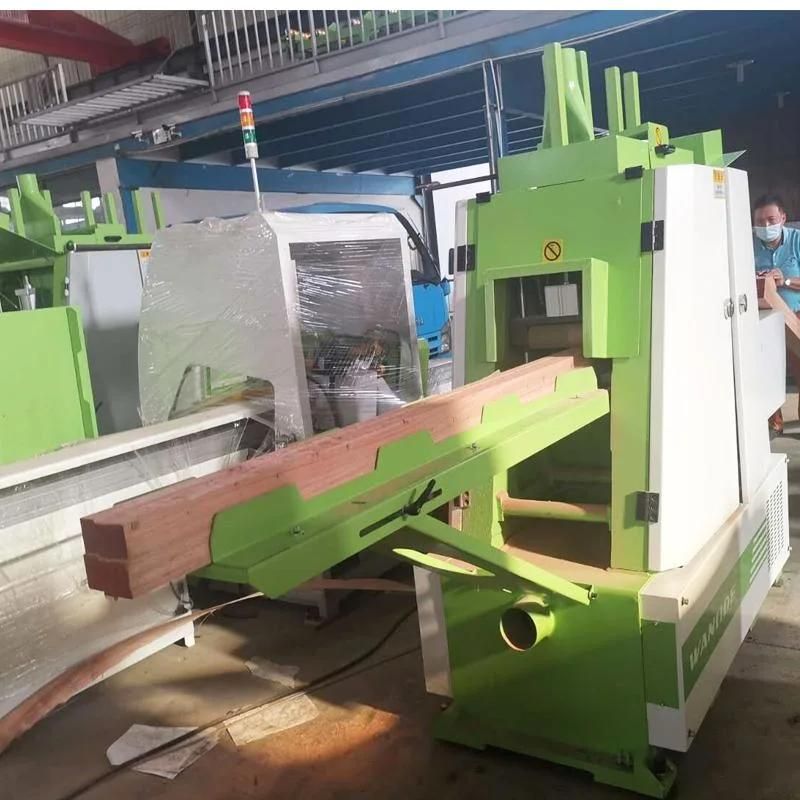

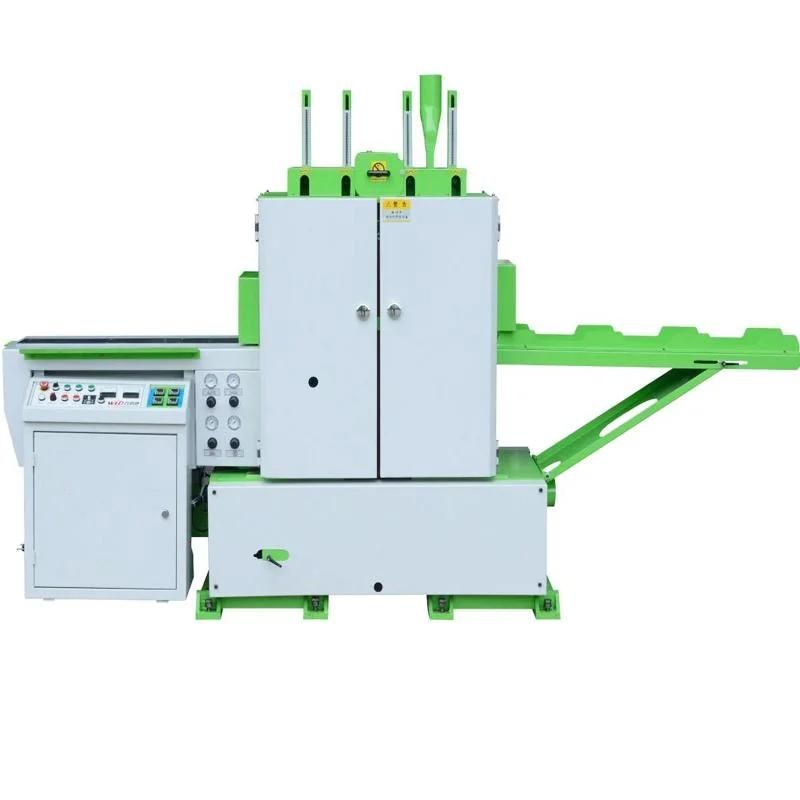

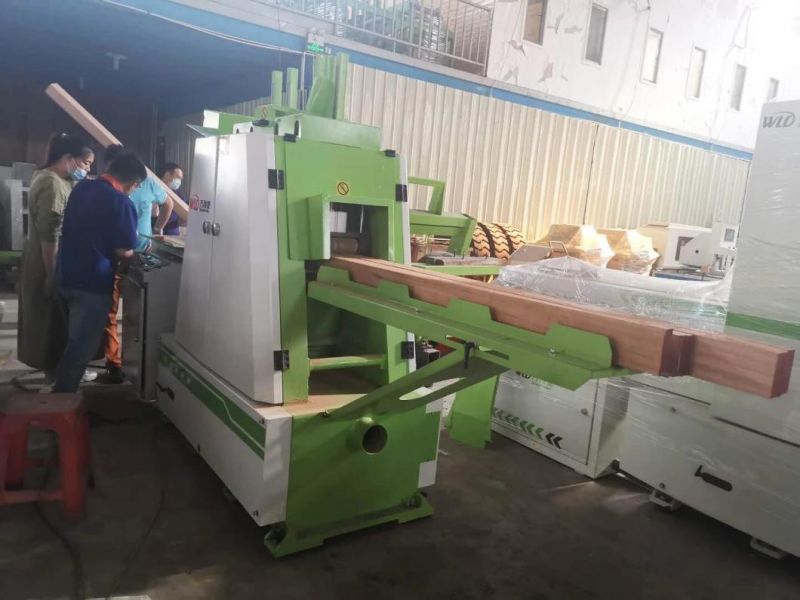

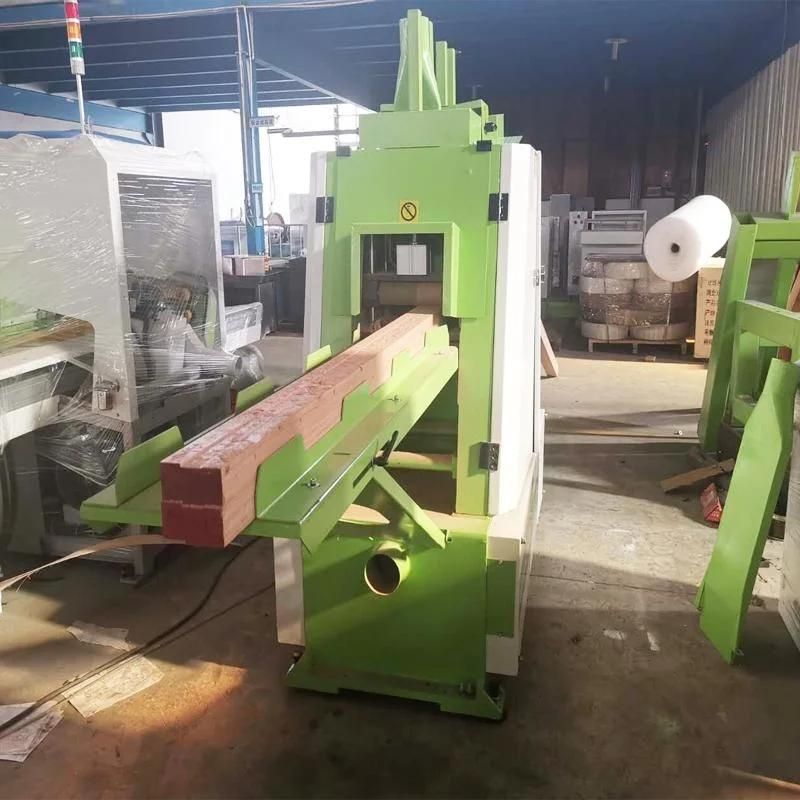

Thin Cutting Frame Saw Series Machine SM-20-20/25 for square wood cutting


Product Description

Model	XCS2020
Main motor power	15KW
Feed speed	0.1-1.5M/MIN
Stroke of frame	210MM
Number of strokes	480Number/min
Cutting height(flexible adjustable)	30-200mm
Cutting width side guide	60-150mm
Cutting width center guide	2*30-70mm
Number of channels with 7.5mm guidance	2 sides max width/70mm 4 sides max width/24mm
Block length	>=300mm
Block height difference/center guide	±0.5mm
Min.product thickness	2mm
Cutting precision up to 120mm cutting height	±0.1mm
Cutting precision over to 120mm cutting height	±0.2mm
Number of saw blades	22
Suction tubes	3*100mm
Suction performance per connection	1300 square/hour
Compressed air	>=6ba
Weight	2500kg
Dimensions(Length*Width*Height)	3600*880*2500mm

Packaging & Shipping

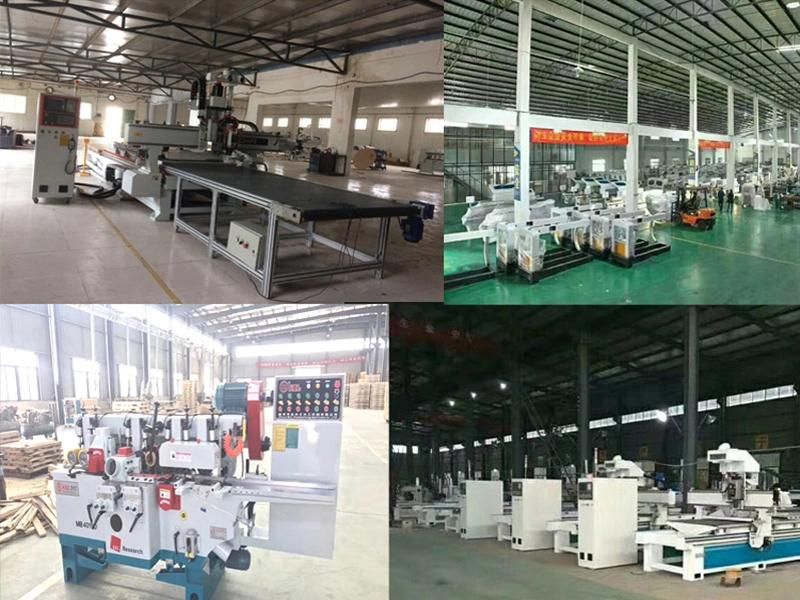

Company Information


FAQ
1,Can you offer good price with fine quality also?

Surely,if without quality,we cannot win long market.we will loose long-terms customers.Quality is our responsibility.we must produce and test machine well.Becasue we are always expecing long term business.Regarding the price.
we are not sure if it is lowest or highest,But we will be offering reasonble.We don't want heavy profits,we want a acceptable price to you,and we are expecting a bigger quantities of sales for different wood machines

2,We will be protetcted if we are paying for orders?

Surely yes,we have been exported 1000000$ different wood machine every year,We received the payment,we should produce for you and ship to you without delay. It is honesty and reputy.We could understand that you paid,you want to see machines soon and use soon. and these years alibaba trade assurance you could rely on,you will be protected very well.


3,What's your warranty? can you do more service for us? we wish woud be protected after purchasing machine.
We are pleased to give life continious aftersales service. within 12 months, if spareparts broken,we will send you new for change. we would like to help to solve any troubles when you use machine at any time.and don't be worried,we will keep opening 24 hours for all customers problem or difficilaty. we must help to make solutions within 48 hours .

4,What's your production time? we want faster shipping time also.

mostly machine we have in stock, some machine we produce need about 7-10days. make fast shipment always. shipping time depends on shipping company.
