Automatic Edge Banding Machine for PVC Edge for MDF Board
Qingdao Zhongding Machinery Co., Ltd.- Function:Gluing, End Trimming, Fine Trimming, Scraping, Buffing
- Type:Linear Edge Banding Machine
- Edging thickness:0.4-3mm
- Automatic Grade:Automatic
- Panel Feeding Speed:13m,min
- Certification:CE, ISO
Base Info
- Model NO.:ZD450D
- Panel Thinkness:10-60mm
- Min.length panel:120mm
- Min.width panel:50mm
- Manufacturing Principles:Glue Tank Overhead
- Customized:Customized
- Transport Package:Wooden Case
- Specification:3CBM
- Trademark:QDZD
- Origin:China
- HS Code:84659400
- Production Capacity:500sets,Year
Description
Basic Info.
Model NO. ZD450D Panel Thinkness 10-60mm Min.length panel 120mm Min.width panel 50mm Manufacturing Principles Glue Tank Overhead Customized Customized Transport Package Wooden Case Specification 3CBM Trademark QDZD Origin China HS Code 84659400 Production Capacity 500sets/YearProduct Description
Automatic edge banding machine liner edge banderSpecification:
Banding tape thickness | 0.4-3mm |
Banding tape width | 12-65mm |
Work piece thickness | 10-60mm |
Work piece length | ≥100mm |
Work piece width | ≥50mm |
Heating power | 1.8kw |
Feeding motor power | 3.7kw |
Pre-milling motor power | 2.2kw*2 |
Glue spreading motor power | 0.75kw |
Rough trimming motor power | 0.75kw*2 |
End trimming motor power | 0.55kw*2 |
Corner rounding motor power | 0.5kw*2 |
Fine trimming motor power | 0.75kw*2 |
Polishing motor power | 0.37kw*2 |
Feeding speed | 10-23m/min |
Air pressure | 0.8 Mpa |
Total power | 16.39kw |
Overall dimension | 6700*850*1520mm |
Packing size | 6730*880*1580mm |
N.W. | 2800kgs |
G.W. | 2950kgs |
Feature:

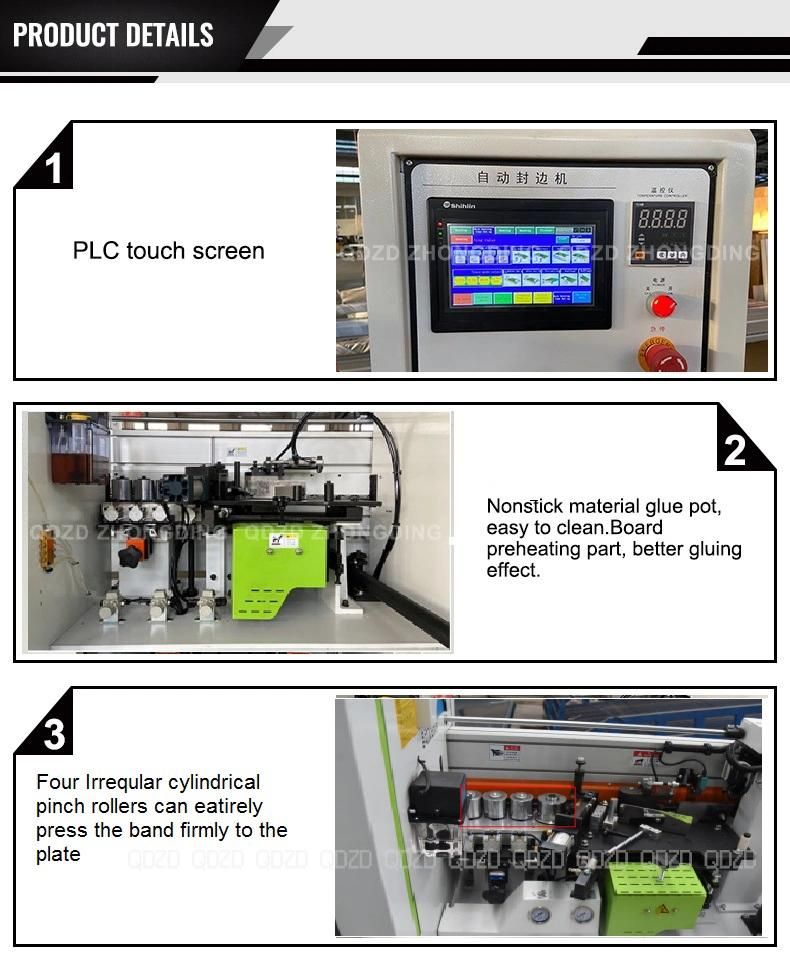

1. The glue mechanism adopts a special structure to gelatinize the plates and coating materials uniformly, ensure a more solid conglutination.

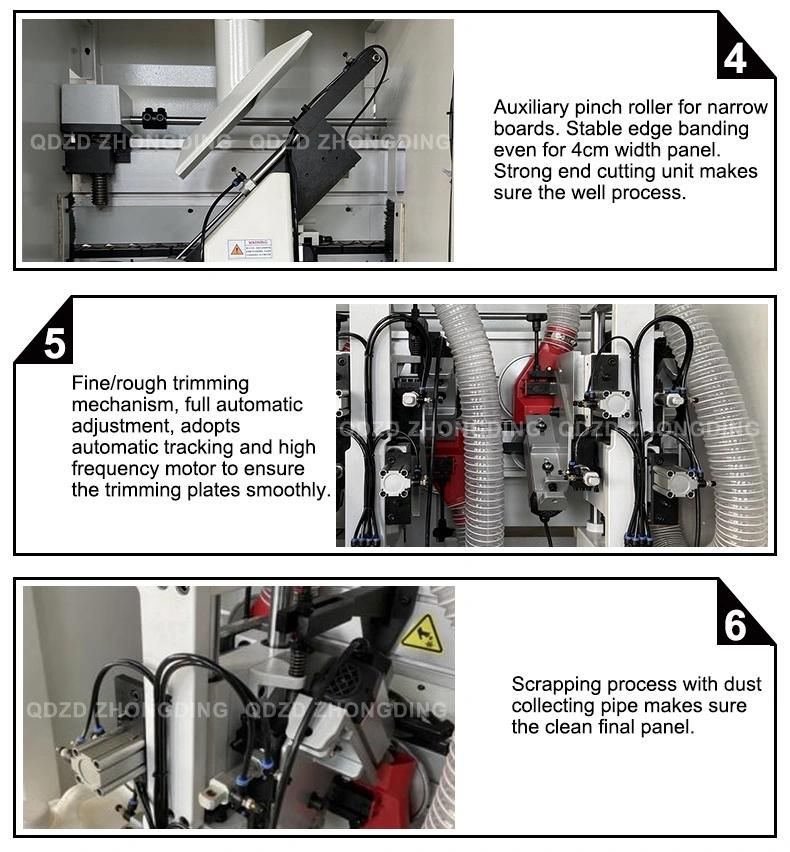

2. End trimming mechanism through a precise guide track movement; adopt automatic tracking and high-frequency motor fast cutting structure to ensure the cutting surface smoothly.
3. Fine trimming mechanism is used for repairing the excess edge materials, adopt automatic tracking and high-frequency motor fast cutting structure to ensure the trimming plates smoothly.
4. Scraping unit is for a perfect finishing of the applied edge.

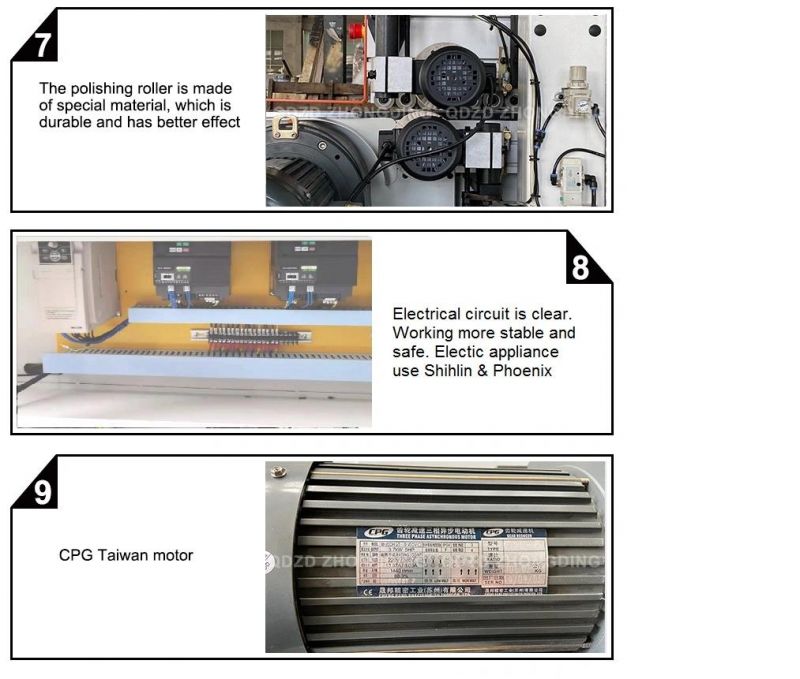

5. The buffing device adopts the board processed by the cotton polishing wheel, by end polishing to make a more smooth surface.
