• Model NO.：MJ6132TS
• Certification：CE, ISO
• Customized：Customized
• Condition：New
• Color：Customized
• Dimension of Sliding Table：3200*375mm
• Gross Cut Capacity：3200mm
• Main Saw Motor Power：5.5kw(7.5HP)
• Speed of Main Saw Spindle：3000,4000,5000r.p.m
• Max Cutting Height：125mm
• Scoring Saw Spindle Diameter：22mm
• Tilting Saw Group：0-45°
• Diameter of Main Saw Blade：400mm
• Main Spindle Diameter：30mm
• Diameter of Scoring Saw Blade：120mm
• Transport Package：Wooden Case
• Specification：2.8CBM
• Trademark：QDZD
• Origin：Qingdao
• HS Code：84569100
• Production Capacity：500sets,Year

Basic Info.

Model NO. MJ6132TS Certification CE, ISO Customized Customized Condition New Color Customized Dimension of Sliding Table 3200*375mm Gross Cut Capacity 3200mm Main Saw Motor Power 5.5kw(7.5HP) Speed of Main Saw Spindle 3000/4000/5000r.p.m Max Cutting Height 125mm Scoring Saw Spindle Diameter 22mm Tilting Saw Group 0-45° Diameter of Main Saw Blade 400mm Main Spindle Diameter 30mm Diameter of Scoring Saw Blade 120mm Transport Package Wooden Case Specification 2.8CBM Trademark QDZD Origin Qingdao HS Code 84569100 Production Capacity 500sets/Year

Product Description

MJ6132TS Precise panel saw

Technical Specification:


Type	MJ6132TS
Dimension of sliding table	3200x375 mm
Gross cut capacity	3200 mm
Width of cut between saw blade and rip fence	1250 mm
Tilting saw group	0-45°
Diameter of main saw blade	300 mm
Max cutting height (90°)	80 mm
Speed of main saw spindle		4000/6000 r.p.m
	Main saw motor power		5.5 kw
	Main spindle diameter		30 mm
	Diameter of scoring saw blade		120 mm
	Speed of scoring saw spindle		8000 r.p.m
	Scoring saw motor power		1.1 kw
	Scoring saw spindle diameter		20 mm
	Lifting of saw blade		Electrical lifting
	Weight		760 KGS
	Overall dimension		3250x3150x900 mm

Feature:

1. Apply to processing all kinds of density boards, shaving boards, artificial board, ABS board, PVC board, organic glass plates and solid wood and others with wood structure and similar hardness.
2. Moveable table guide track is chromium steel bar structure, exact and durable
3. The sliding table is made of high strength extruded aluminum alloy, and it is high in strength and won't bent
4. With oxidation treatment, the sliding table surface is beautiful and durable
5. The body is welded with heavy-duty steel and with special heat treatment, better stability and lower noise
6. The saw blade lifting is electrical controlled with titling digital display to make the operation more precision simple

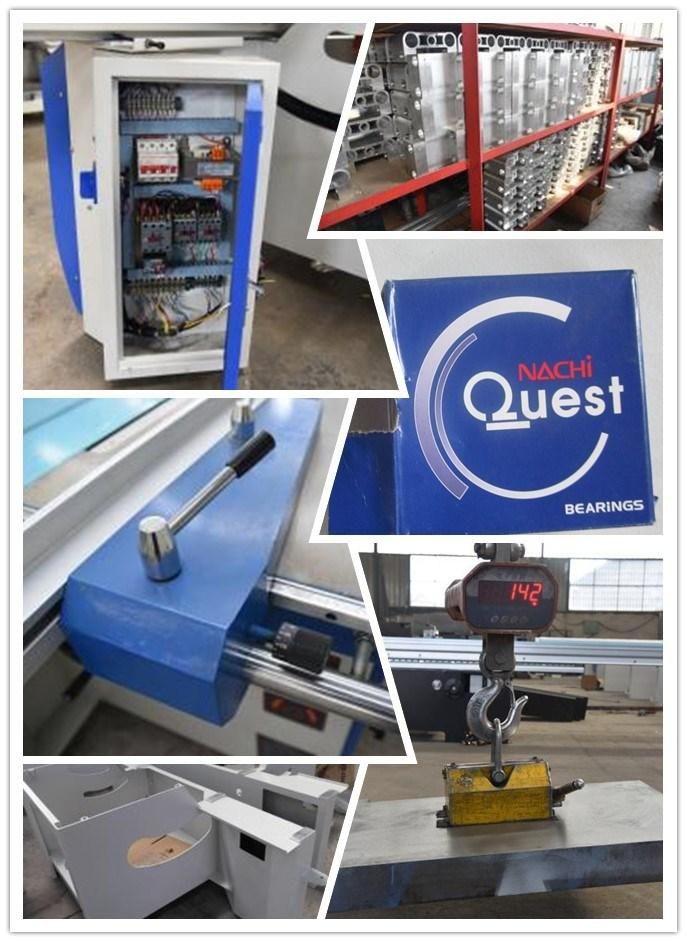

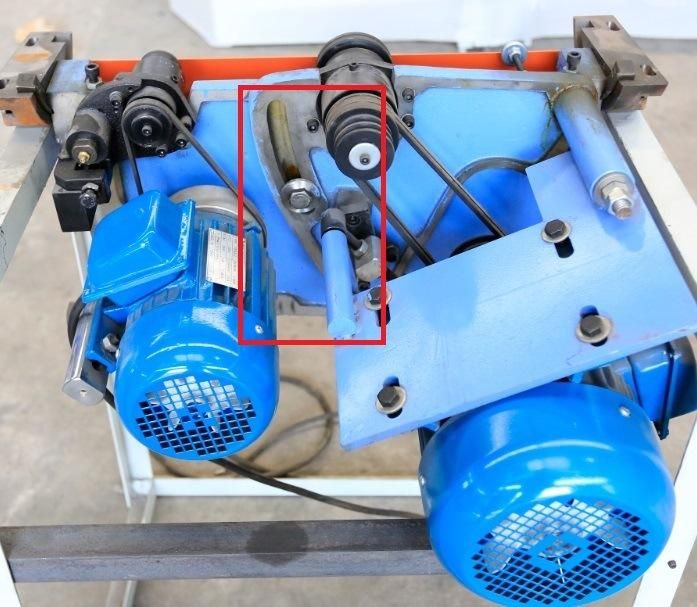

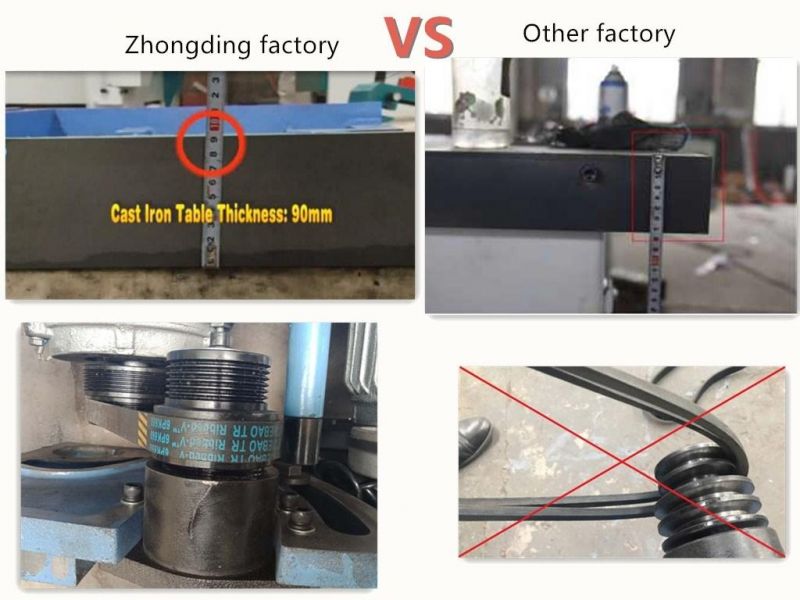

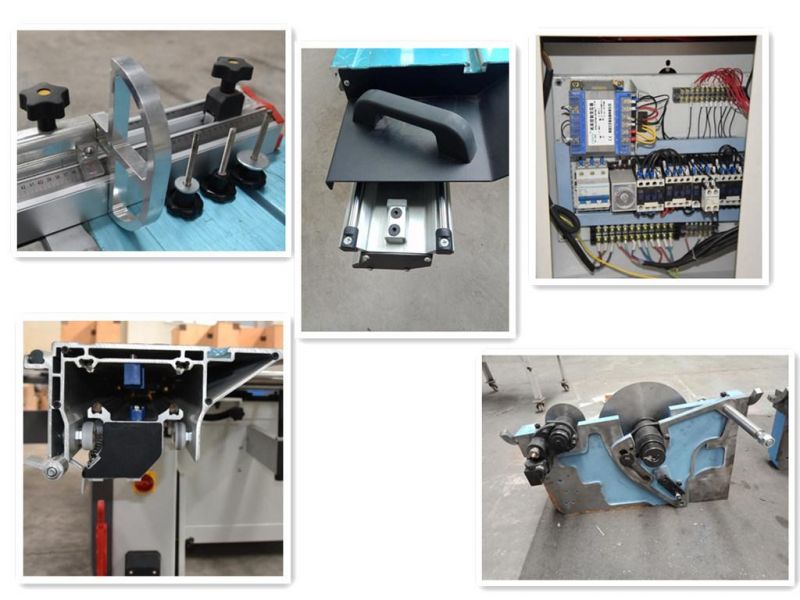

Product Details:

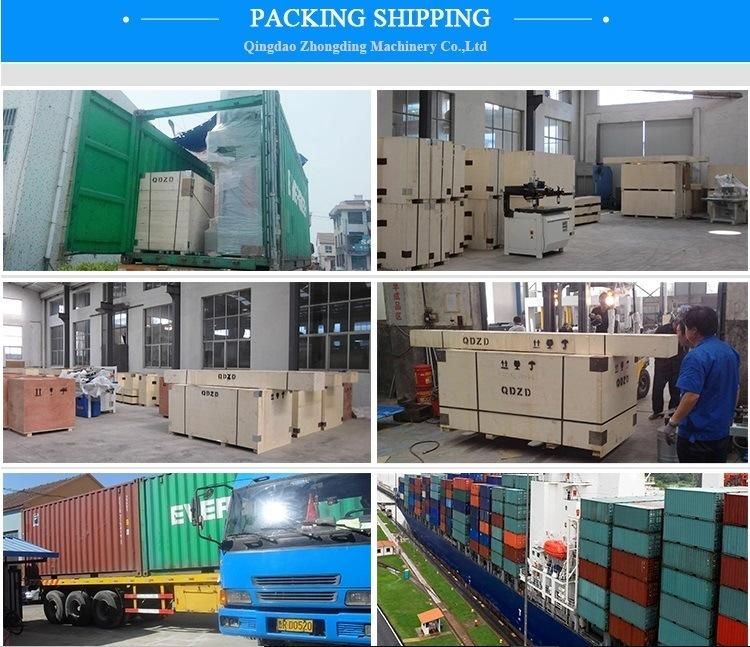

Transporte




Certificate:

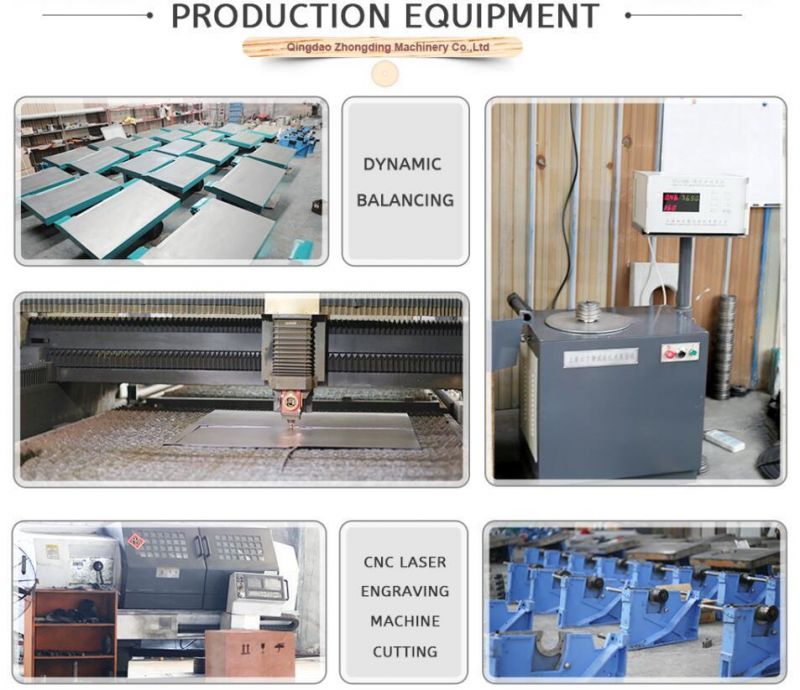

Our company:




Qingdao Zhongding Machinery Co., Ltd is professional at manufacturing woodworking machines. Our main products includes: sliding table saw(panel saw), edge banding machine, hydraulic cold press, hot press, carpenter drilling machine ( boring machine), etc. We are factory, we provide the machine with reasonable price and high quality, and welcome to visit our factory and our products.
