• Model NO.：JZ-C-696
• Brand Name：Jianzhong
• After-Sales Service：Engineers Available to Service Machinery Overseas
• Warranty：1years
• Power：13kw
• Weight：10tons
• Total Pressure：400t
• Dimension(L*W*H)：3550*1400*4100mm
• Work Plate Size：2700*1400mm
• Working Methods：Full Automatic
• Composite Frame：Assembled
• Board Feeding Direcion：Transverse
• Layer Spacing：1800mm
• Transport Package：Container
• Specification：steel
• Trademark：JZ
• Origin：China
• HS Code：8465990000
• Production Capacity：1000 Sets,Year

Basic Info.

Model NO. JZ-C-696 Brand Name Jianzhong After-Sales Service Engineers Available to Service Machinery Overseas Warranty 1years Power 13kw Weight 10tons Total Pressure 400t Dimension(L*W*H) 3550*1400*4100mm Work Plate Size 2700*1400mm Working Methods Full Automatic Composite Frame Assembled Board Feeding Direcion Transverse Layer Spacing 1800mm Transport Package Container Specification steel Trademark JZ Origin China HS Code 8465990000 Production Capacity 1000 Sets/Year

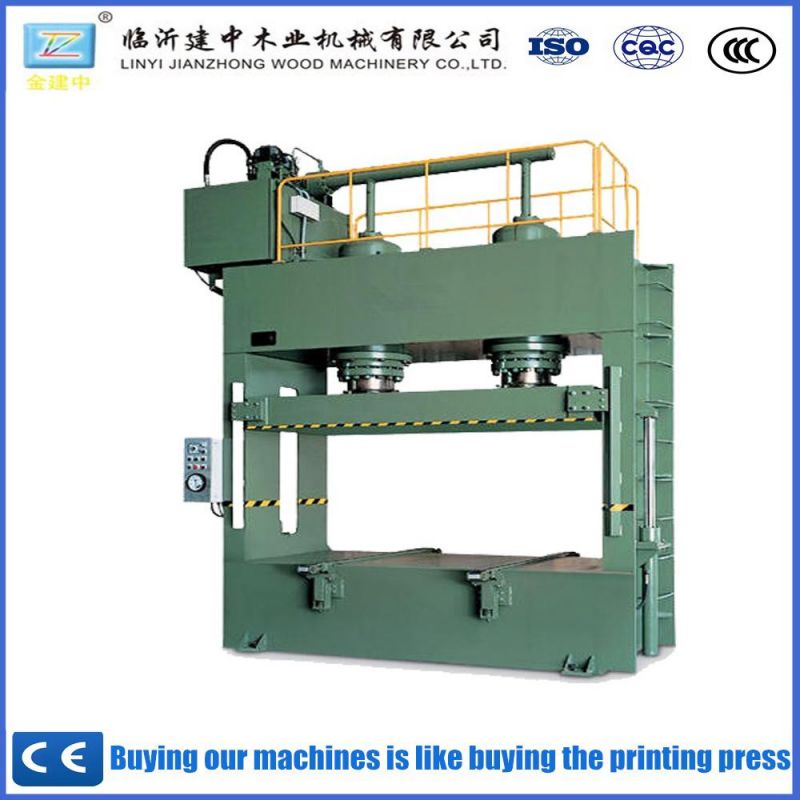

Product Description






Brief Product Description:

1.The application of hydraulic of hydraulic presses.

2.The hydraulic presses for plywood are also known as plywood pre-presses, hydraulic pre-presses and plywood cold presses.

3.Hydraulic presses used in plywood are also called plywood presses, hydraulic presses and plywood cold presses.

4.Hydraulic Press for Plywood Machinery.

5.Hydraulic preloading is used to manufacture plywood products. The main application of hydraulic plywood press is to compress materials by preloading.

6.The application of preloading force in the production of plywood products by hydraulic preloading and particleboard by plywood to produce MDF board and HDF board by particleboard.

7.Another application of a hydraulic preloader is to press a pressure plate onto a plywood, door, board or board.

8.These cold compressors for plywood are widely used in the plywood industry and furniture manufacturing industry, bonding plywood with plywood, doors, boards or boards.

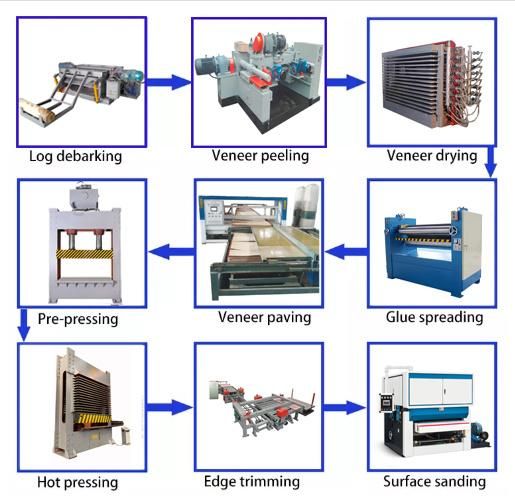

Plywood making line:




Advantage:

1). This machine is a combination of individual components with small volume, it can be carried and assembled easily.

2).shallow foundation, less than 1.5m at the deepest, easy to clean and maintain, good security and lower cost.

3).small installed power, fast closing speed.

4).shallow foundation, less than 1.5m at the deepest, easy to clean and maintain, good security and lower cost.

Product Parameters:


Total pressure	400T
Layer spacing	1800mm
Board feeding direction	tranverse
Work plate size	2700mm*1370mm
Number of layers	1 layer
Cylinder	∅320mm*2pcs
Compression resistance	25mpa
Working methods	full automatic
Power	18.5KW
Overall dimension	3550*1400*4100mm
Weight	10T
Upper and bottom beam	800mm
Thickness of the frame	30mm Q235
Middle beam	400mm

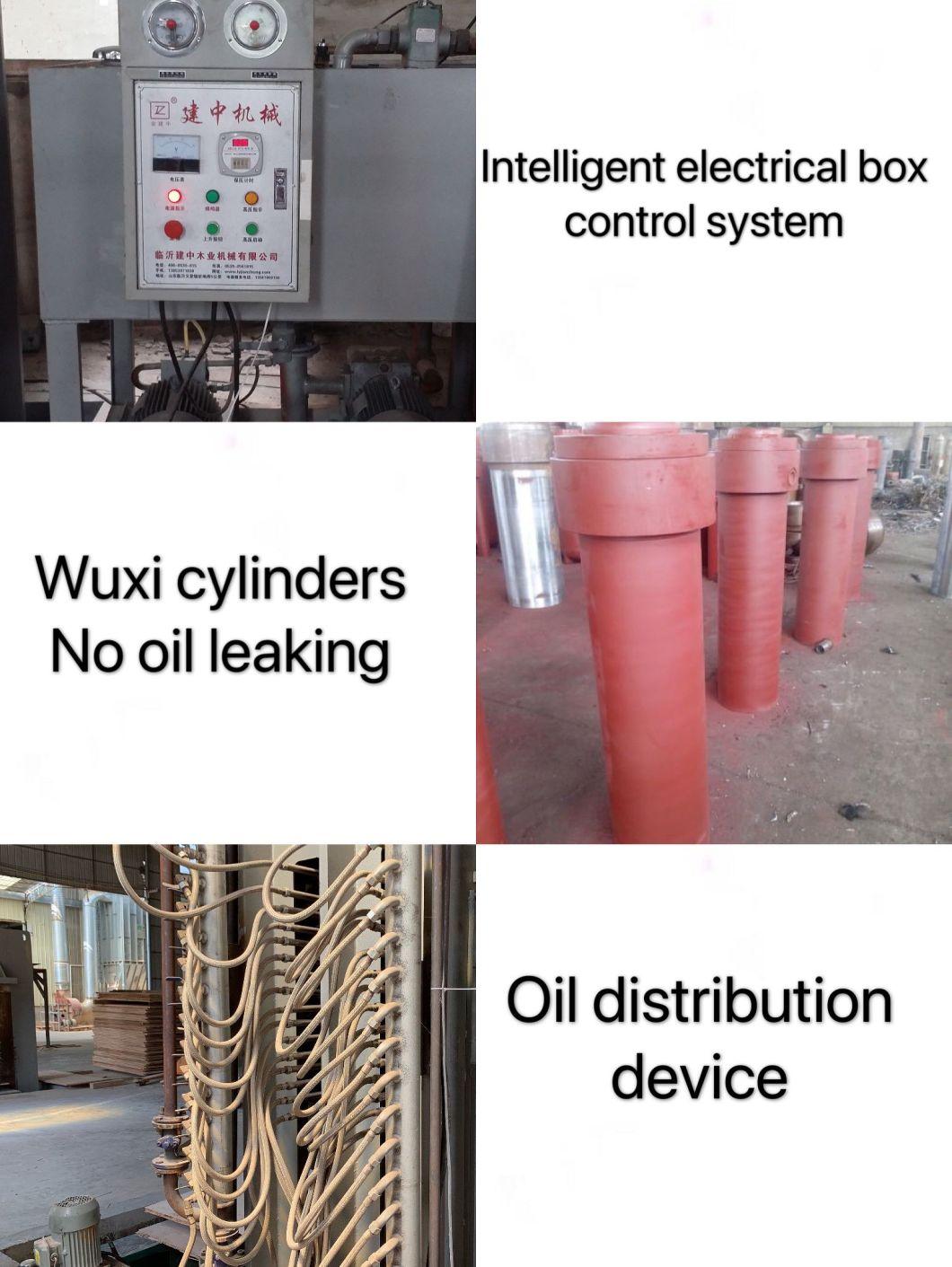

Detail images:



Certification:

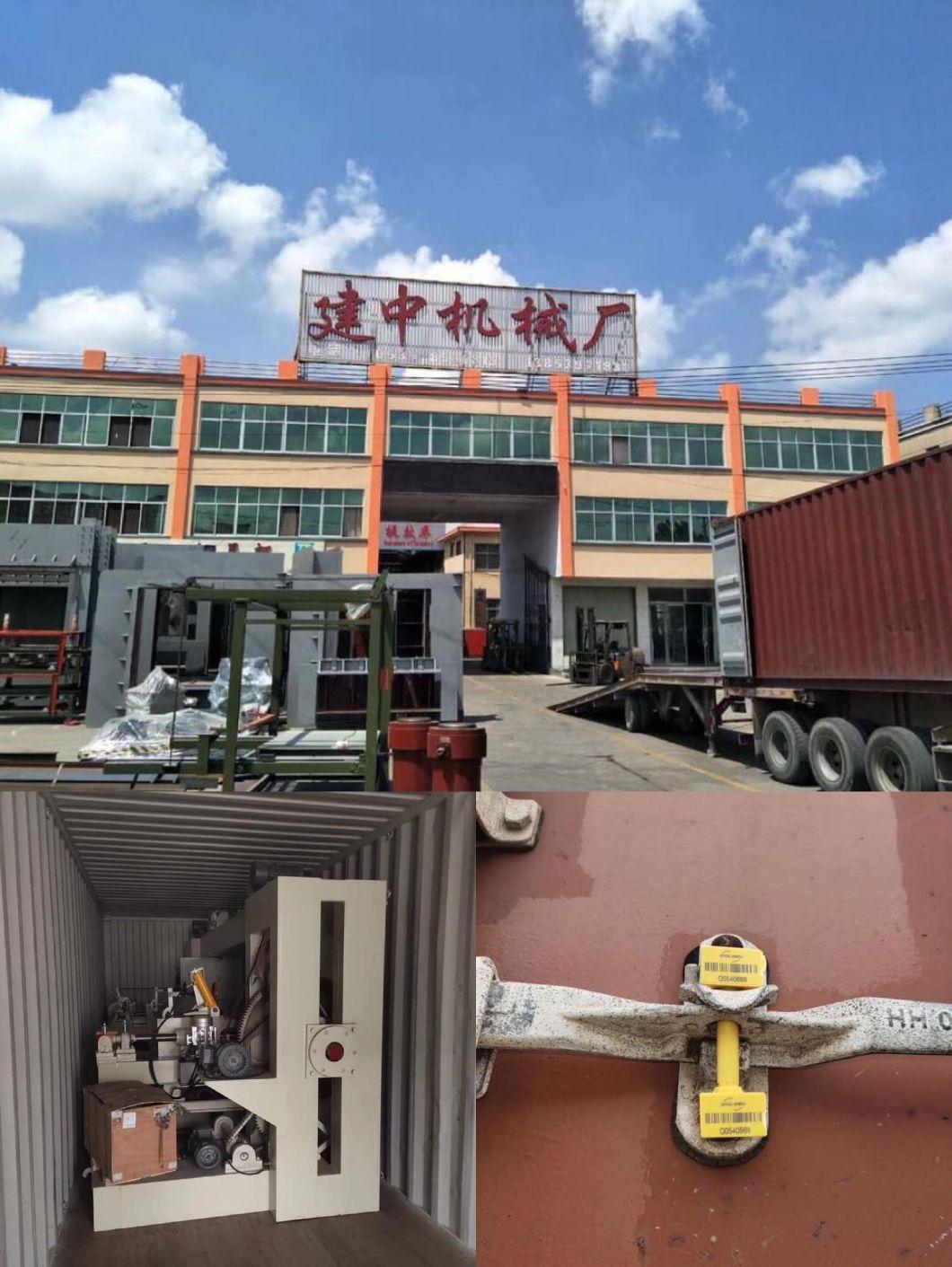

Packing&Shipping:






Serivice:

There are complete Pre-sale services, After-sales service, Technical service and communication, Delivery. Our staff of sales and technical support is available to help you in selecting the right equipment for your application; Also according to the actual requirements provide solutions with clients.

1. All kinds of mold can be made by customer's requirements.

2. All price are based on FOB, QINGDAO, China.

3. Payment: by T/T 30% down payment, 70% upon mchinery completion.

4. Delivery: After finishing all the payment .

5. All the parameters above just for reference, for they are updating all the time.

6. Package: Standard packing.

7. Warranty: All the machine enjoys one year's warranty, in this period.

Any problems of machine, please feel free to contact us. We will try our best to make it.

8.Engineers available to service machinery overseas;

For the installation, seller will send the drawing for fabrication on site. Seller shall send
engineers to guide installation. Buyer shall supply all the necessary help during
installation. Air tickets and accommodation will be borned by buyer, our engineers should be paid 100USD per day.

By the way,our product can be customized according to customer requirements,I am very happy to rechieve your consultation.

About us:

Our factory was founded in 1998, has 20 years of experience in production and research and development, the existing staff of 500 people. Industry and trade integration enterprise, specializing in the production and sales of aluminum-plastic plate, steel structure, plywood, construction template and other building materials. JIANZHONG group sincerely look forward to cooperating with you!

We have a team rich in the spirit of innovation, professionaldesign team, excellent customer service personnel. Currently, commitment to the development of automationcontrol technology research, to supply more efficient andintelligent products to metropolitan areas. And can becustomized products according to your request. Productsare widely used in plywood each working procedure, is themost outstanding in the automation industry.
