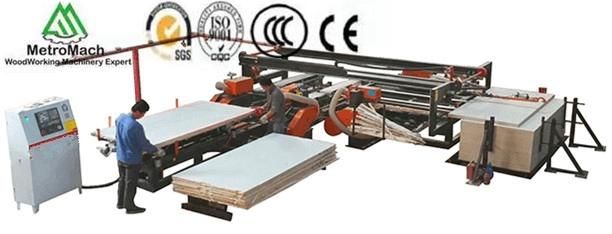

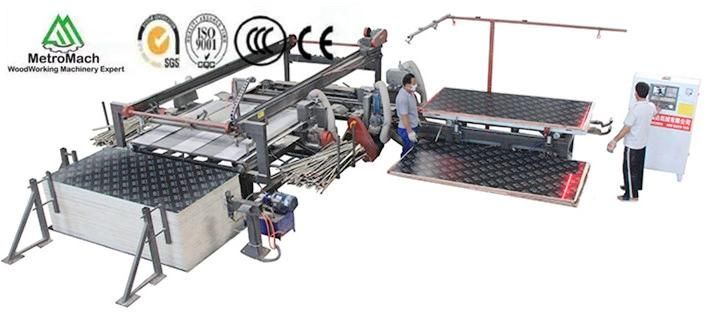

Adjustable Plywood Panel Edge Trimming Cutting Saw

Linyi Sin San Lin Smart Machinery Co., Ltd.

Type：Panel Saw Machine
Automatic：Automatic
Certification：CE, ISO, FDA
Control：PLC Control
Precision：High Precision
Customized：Yes

Base Info

Model NO.：ABC3125-II
Size：4*8 to 3*6
Voltage：380,415V
Table Lifter：Include
Layout：Horizontal
Adjustable：Yes
Transport Package：Standard Export Packing
Specification：8500*5500*1020 mm
Trademark：METROMACH
Origin：Linyi City, China
HS Code：8465910000
Production Capacity：1000 Sets, Year

Description

Basic Info.

Model NO. ABC3125-II Size 4*8 to 3*6 Voltage 380/415V Table Lifter Include Layout Horizontal Adjustable Yes Transport Package Standard Export Packing Specification 8500*5500*1020 mm Trademark METROMACH Origin Linyi City, China HS Code 8465910000 Production Capacity 1000 Sets/ Year

Product Description

Product Description

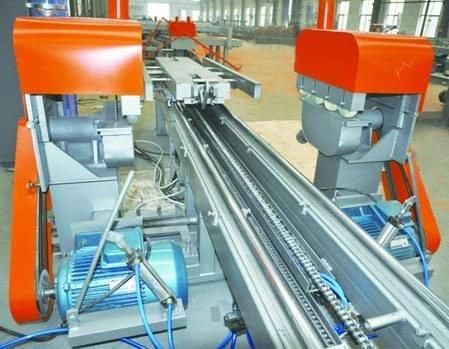

Woodworking Adjustable Plywood Panel Edge Trimming Cutting Saw1. Main Features
1. The main structure is strong with enough rigidity and high stability.
2. High efficiency, one shift working can produce 4000(16mm) sheets.3. High precision anti-wearing guide rail, diagonal error<0.5mm.
4. All working process is controlled by PLC, cutting and stacking is automatic.
5. It has a device to clear the edge waste away automatically.
6. Labor-saving, 2 workers are needed.
7. Good dust collecting system, it collect all dust of the machine, and dust exhaust in strong force.
8. The Infared ray device in the pre-loader section can give a clear size cutting guidance, help the workers adjust panel position easily for the board feeding.

2. Technical Specifications
1. Cutting panel size: 3x6ft,4x8ft, 5x5ft etc, customized production is available.
2. Capacity: Take 18mm thick plywood for example, one working shift process 4000pcs.

Cutting length	1220mm-1240mm
Cutting width	2440mm-2460mm
Cutting thickness	3-60mm
Diameter of saw blade	305*25.4 120Teeth
Longitudinal direction speed	1-30m/min(adjustable)
Lateral direction speed	1-30m/min(adjustable)
Longitudinal motor power	16.5kw
Lateral motor power	19.4kw
Longitudinal conveyor power	1.5kw
Lateral conveyor power	2.2kw
Longitudinal edge sanding	4.4kw
Lateral edge sanding	4.4kw
Automatic pushing device	Cylinder automatic
Square tube thickness	160*6(national standard)
Material of line guide	45# round steel
Diameter of round steel	45#
Material of platen	Pressure platen
Scissor lift motor	3kw
Total motor	39kw(Equipped with edging system total power 48kw)
Scissor lift capacity	2 T

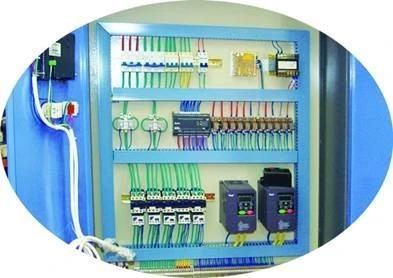

Control system	Weihong PLC
Electric units	380V/415V
Working method	Manual upper plate, automatic lower plate
Weight	6T
