Pallet Leg Block Cutting Machine with Ippc Stamp
Zhengzhou Invech Machinery Co., Limited- Certification：CE
- Capacity：1800PCS,H
- Power：5.5kw
- Control System：PLC Touch Screen
- Stamping：Heating Stamping
- Cutter Diameter：400mm
Base Info
- Cutting Length：5-15cm
- Transport Package：Wooden Case
- Specification：1600*1100*1200mm
- Trademark：INVECH
- Origin：China
- HS Code：8479300000
- Production Capacity：100sets,Month
Description
Basic Info.
Cutting Length 5-15cm Transport Package Wooden Case Specification 1600*1100*1200mm Trademark INVECH Origin China HS Code 8479300000 Production Capacity 100sets/MonthProduct Description
Wooden Pallet Feet Cutting Machine1.Introduction
It is used to cut the pallet block bar into blocks pieces for the pallet feet.
It could cut the blocks length within 1300mm,more than 100mm which it only cut single pcs block,below 100mm,it can cut double pcs.
2.Technical Parameters
| Name | Block Cutter |
| Power | 5.5kw |
| Appearance Dimensions(L*W*H) | 1600*1100*1200mm |
| Weight | 500kg |
| Cutter Diameter | 400mm |
| Cutting Length | 5-15cm |
| Working Capacity | 1800pcs/hr |
| Revolving Speed | 2800r/d |

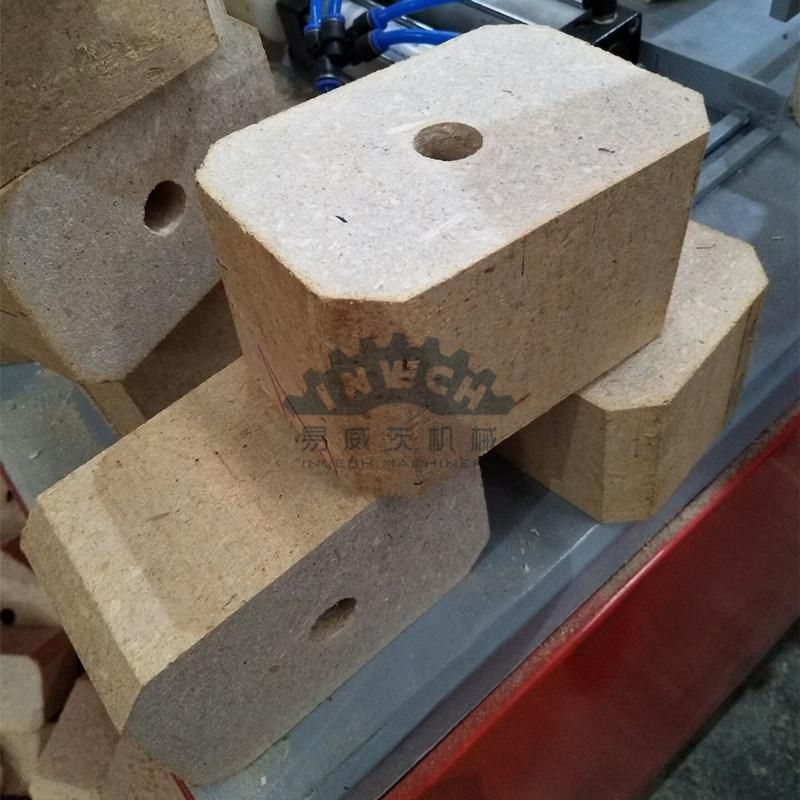

3.Final Products

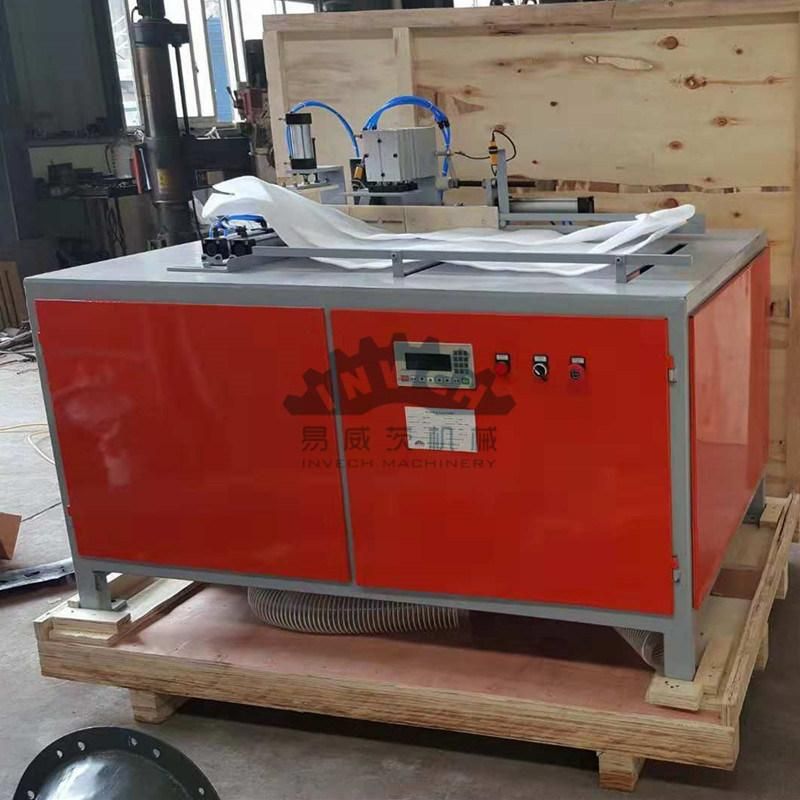

4.Packaging
