• Model NO.：9FH
• Warranty：1 Year
• Customized：Customized
• Condition：New
• Color：Multi Color
• Output：600-800kg,H
• Power：15kw Electric Motor
• Max Feeding Diameter：100 mm
• Opener Size：200*230 mm
• Machine Weight：550kg
• Sieve Size：3mm, 4mm,5mm,6mm,8mm
• Keyword 1：Wood Crushing Machine
• Keyword 2：Wood Crusher Machine
• Keyword 3：Wood Powder Crushing Machine
• Keyword 4：Wood Sawdust Crushing Machine
• Transport Package：Standard Package, Wooden Case
• Specification：1400*650*1100 mm
• Trademark：AGII
• Origin：China
• HS Code：8474209000
• Production Capacity：200 Sets Per Month

Model9FH-600Capacity600-800kg/hMotor15Kw; 380v,50hz,3phaseFan4 Kw; 380v,50hz,3phaseDiameter of Cutter600 mmQuantity of blade4 pcsLength of blade180 mmFeeding-diameter size200*230 mmMax feeding Diameter100 mmSpindle speed2100 r/minDimension1400*650*1100 mmWeight520kg

Features of Wood Crushing machine:

1. Wood crusher can process grind material like wood log, bamboo, twigs, straw, stalk and wood chip, tree branch and forest waste and other biomass materials into sawdust.

2. Final size of crushed material is less than 3-5mm, which is right size for pelletizing and briquette.

3. Small investment, energy saving, high productivity, good economic benefits, convenient maintenance.

4. Our wood crusher grinder can be driven by the electric motor, diesel engine, and tractor.

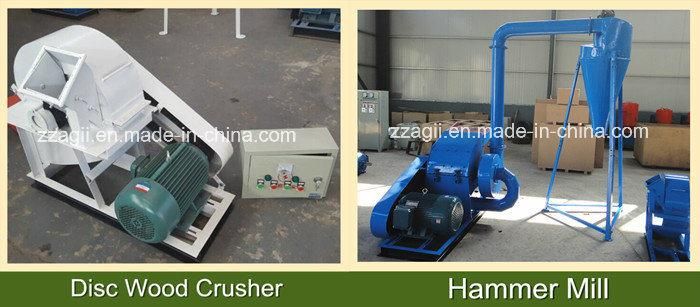

Difference of Wood Crusher and Hammer Mill:

  Wood Crusher

It's necessary to use a wood crusher if your raw material is raw wood. Wood crusher can process raw wood with size less than 200mm (diameter) and moisture below 30%. After crushed, the output size can reach diameter 3-5mm, which is suitable for further briquetting and drying.

  Hammer Mill (Smaller and softer material)

This machine is suitable for milling many kinds of material, such as: Wood Pieces Tree Trimmings, Peanut Shell, Empty Fruit Bunch, Corn Cob, Maize Stralk, sunflower shell meal
