• Model NO.：LT-6090
• Product Keyword：Marble CNC Cutting Machine
• Working Area：600*900*300mm
• Spindle：3kw,4.5kw Water Cooling Spindle
• Guide Rail：Square Linear Guide Rail
• Transmission：X, Y Axis by Helical Gear Rack, Z Axis by Tbi Ball
• Table Surface：Aluminum T-Slot Table with PVC
• Motors and Drivers：Stepper Motor 450b and Leadshine Drivers Ma860h
• Control System：Ncstudio,Mach3 Control System
• Bed Structure：Cast Iron Vertical Shafts and Steel Gantry
• Inverter：Fuling Inverter
• Software：Artcam,Type3
• Transport Package：Plywood Case
• Specification：1700*1400*1830mm
• Trademark：LINTCNC
• Origin：China
• HS Code：8465990000
• Production Capacity：400sets,Year

ModelLT-6090 stone CNC Router

Working area

600(X)*900(Y)*300(Z)mm

Machine structure

cast iron vertical shafts and steel gantry

Table surface

Cast iron table

Spindle

3.0KW/4.5kw water cooling spindle

pindle rotating speed

0-24000 rpm

Collect size

ER20

Guide rail

Taiwan Hiwin linear square guide rail

Transmission

X,Y axis by helical gear rack, Z axis by TBI ball screw

Water tankStainless steel water tank and double direction water cooling sprayer for cooling the cutter

Motors and drivers

Stepper motor 450B and leadshine drivers MA860H

Control system

Ncstudio control system

Invert

Fuling invert

Max. idling speed

25m/min

Max. working speed

12m/minWorking Accuracy<0.05/300mmInstruction formate G code *.u00 *.mmg *.pltWorking voltageAC220V/AC380V,single phase/3 phase,50-60HzStandard softwareArtcam2010Compatible softwareType3/Castmate/Coreldraw/AutoCAD and other CAM/CAD softwareControl CabinetIndependentOtherTool Sensor; Oiling system; Water pump; Tool Box,English manuals etc.Optional parts1,Rotary axis for engraving round wood:price depends on its diameter;
2,Mach3 USB control system.

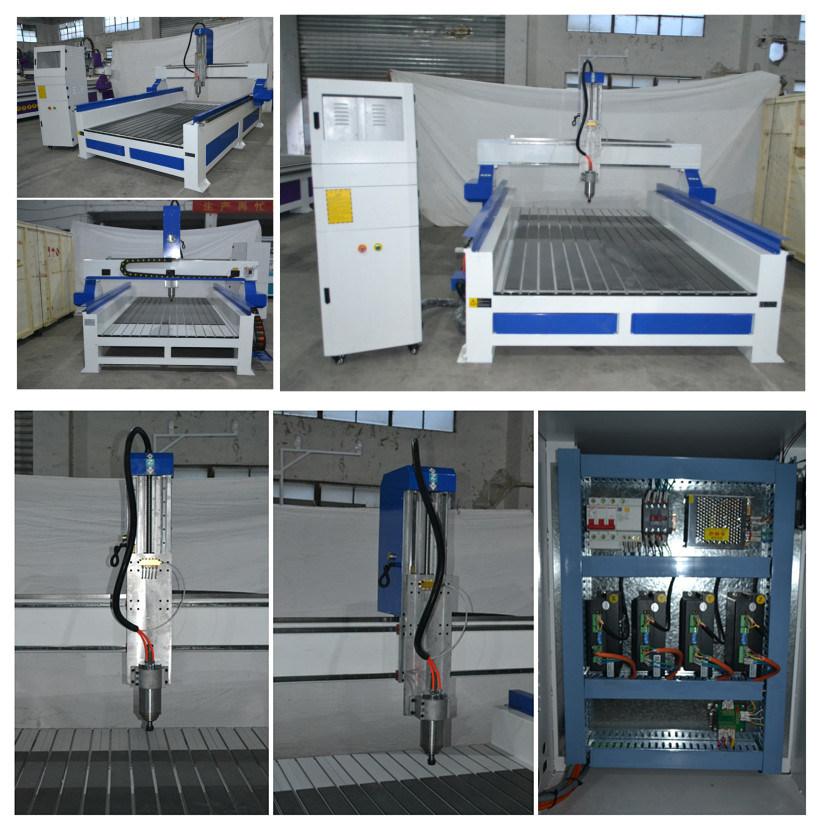

 Main parts of the machine:

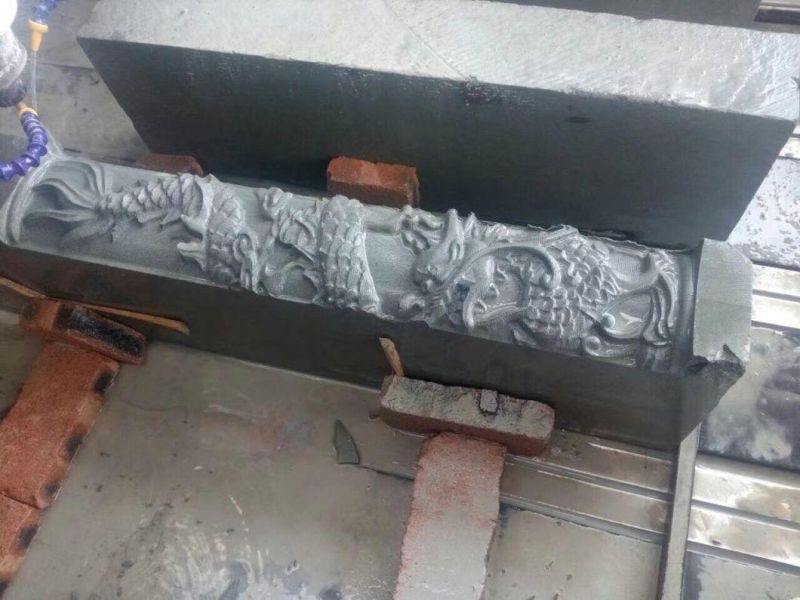

Application:

3D relief ,linear engraving and cutting Of natural marble,bowlder ,granite,artifical stone,tombstone,milestone,
tiles,glass etc.Two-dimensional chamfering and drilling.

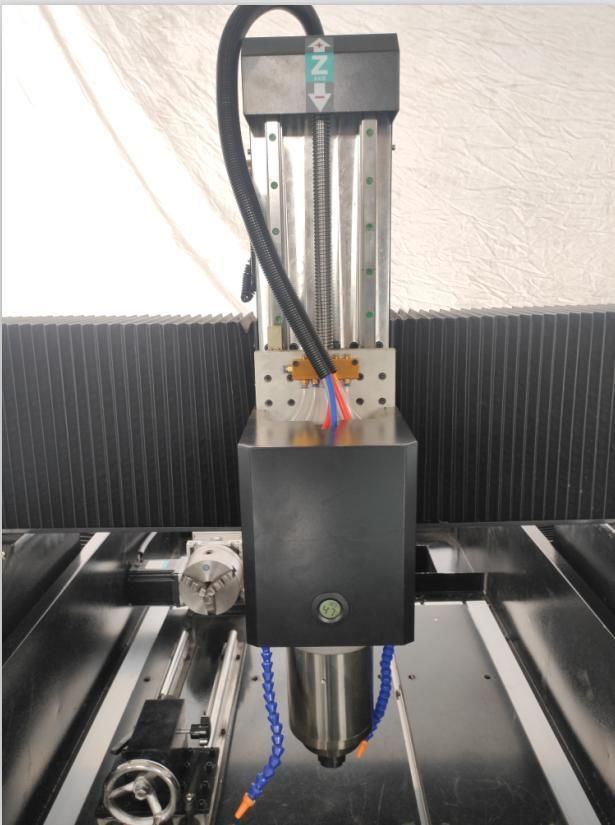

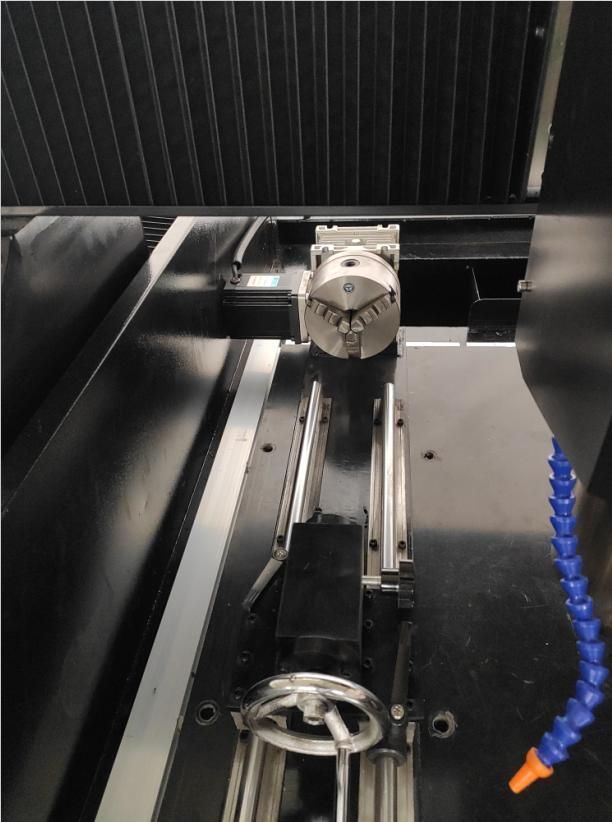

Machine details show:

Packaging & Shipping

Our Services

 After-sale service
1.Two years quality guaranty for the machine and online service everyday day, free technical support.
2.Free training to guarantee you can operate machine correctly.
3.We will provide the consumable parts at an agency price when you need replacement.
4.Our staff can be sent to your company to install or adjust if necessary.
5.The processing demo video and E-catalogue will be mailed as your request.
Technical service
1. Professional technical suggestion before you order a machine.
2. Professional instruction for the operation of machine
3. Compleed machine manual and CD will be provided together with machine.
4. Machine has been adjusted before delivery.
5. 24-hour technical support by email or calling.
6. Machine can e shipped to port within 7 working days after receiving payment.
