• Model NO.：ZD214×8,12(3)H
• Work Mode：Continuous
• Controlling Mode：CNC
• Automatic Grade：Semiautomatic
• Certification：CE, ISO
• Range of Work：1300*2500mm
• Closing Speed：40mm,S
• Total Pressuer(Kn)：1200
• Opening(mm)：80-150
• Working Layer Numbers：3
• Cyliner No.& Diameter(mm)：6*∅100mm
• Platen No & Size(mm)：1300*2500*42
• Total Pressure(Kn)：1200
• Transport Package：Wooden Box
• Specification：1300*2500*42mm
• Trademark：QDZD
• Origin：China
• Production Capacity：200set,Month

Basic Info.

Model NO. ZD214×8/12(3)H Work Mode Continuous Controlling Mode CNC Automatic Grade Semiautomatic Certification CE, ISO Range of Work 1300*2500mm Closing Speed 40mm/S Total Pressuer(Kn) 1200 Opening(mm) 80-150 Working Layer Numbers 3 Cyliner No.& Diameter(mm) 6*∅100mm Platen No & Size(mm) 1300*2500*42 Total Pressure(Kn) 1200 Transport Package Wooden Box Specification 1300*2500*42mm Trademark QDZD Origin China Production Capacity 200set/Month

Product Description

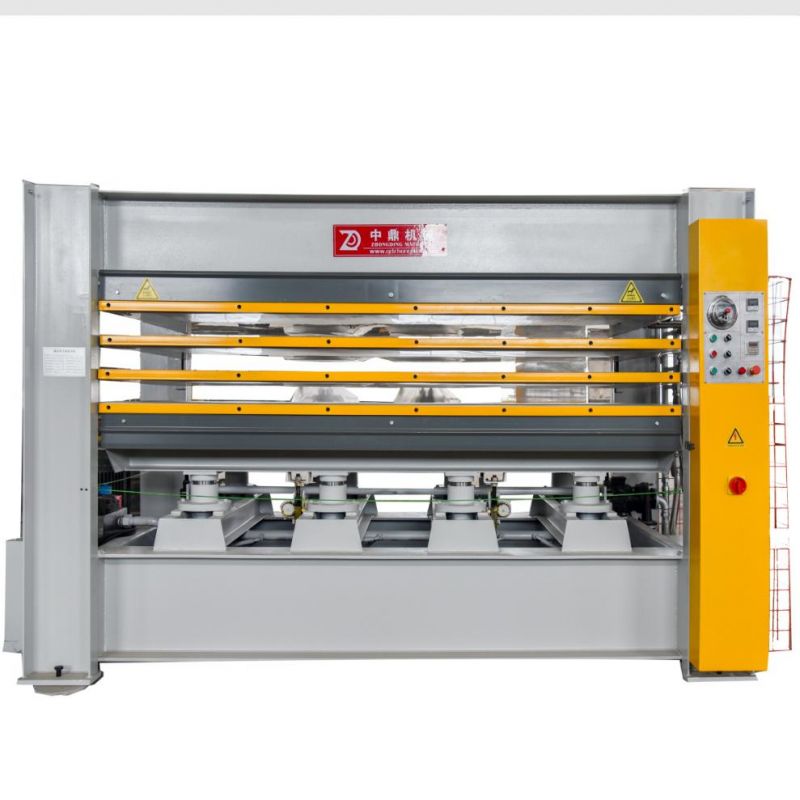

Hot press machine with 3 working layers


Application:

Hot press machine for door is mainly used to manufacture wooden door, also it can laminate veneer onto plywood, MDF and chipboard etc. panels.

Compare to cold press machine, indeed it has much higher working efficiency. Hot press machine takes only around 4 to 5 minutes to finish laminating.


Product Feature

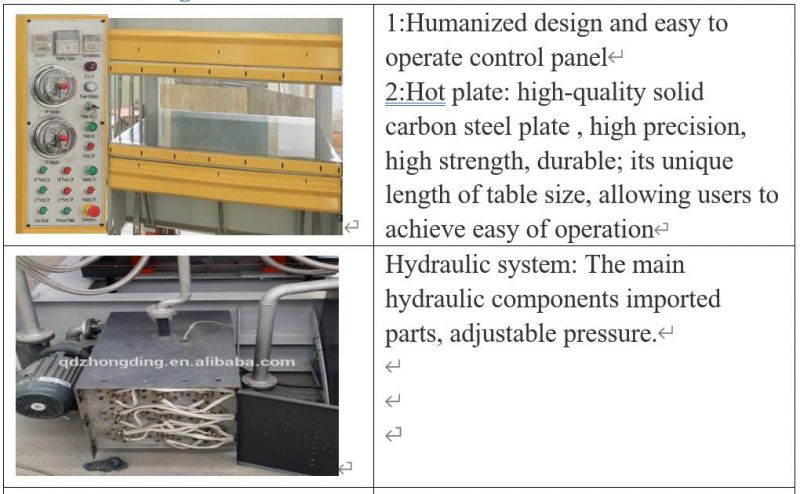

1.  Hot Plate: It is made of high-quality carbon solid steel plate with high
precision, high strength and durability. Its special length of 2500mm work table
allows users to achieve convenient operation.

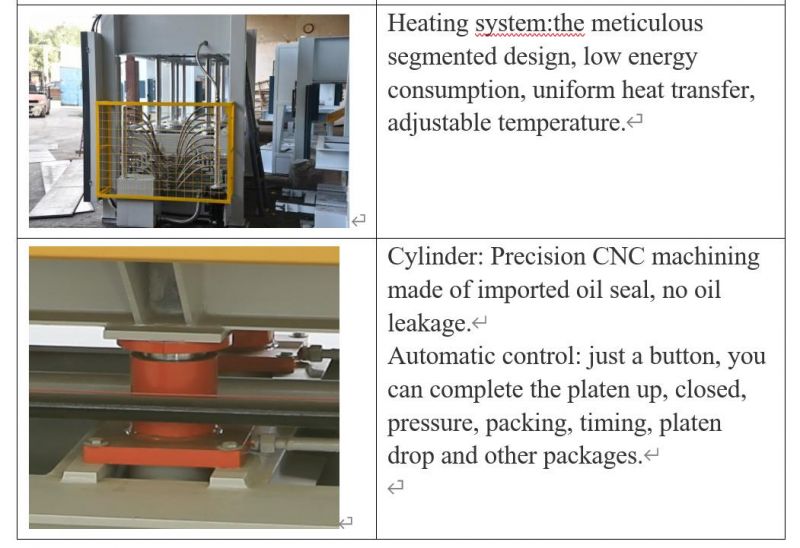

2. Heating System: After careful segmentation design, low energy consumption, uniform heat conduction and adjustable temperature;

3.Hydraulic system: the main hydraulic components are imported, and the pressure is adjustable

4.It fix with Solid drilled holes steel plate, therefore it is more stable and durable.
5.  The control system is used mainly to control the heating and hydraulic system, which is related to the sensitivity and safety.

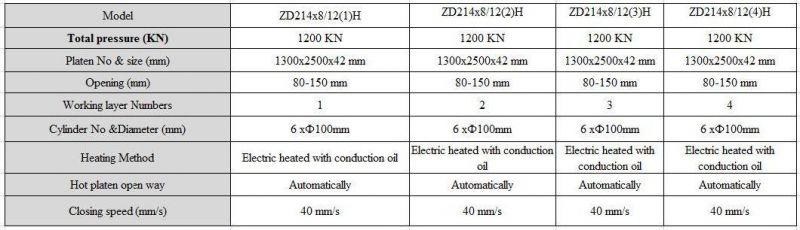

Technical Parameters
