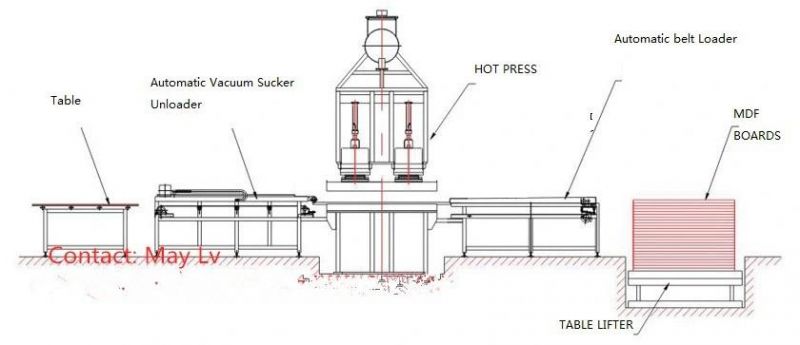

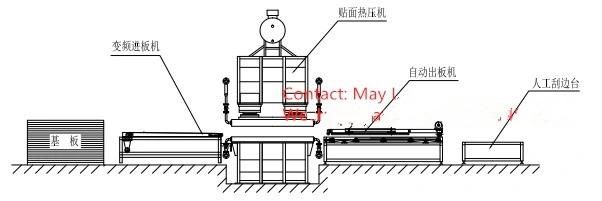

Short Cycle Lamination Hot Press Machine with Automatic Laminating Line

Linyi Sin San Lin Smart Machinery Co., Ltd.
  • Work Forms：Hydraulic Pressure
  • Processing Technics：Hot Press
  • Structure：Frame Type
  • Pressing Shape：Flat Press
  • Platen Surface Pressure：High Pressure
  • Pressing Layer：Single Layer

Base Info

  • Model NO.：TLY114X8,11II
  • Work Mode：Continuous
  • Controlling Mode：CNC
  • Automatic Grade：Automatic
  • Certification：CE, ISO, FDA
  • Customized：Customized
  • Transport Package：Standard Export Packing
  • Specification：1200T- 2400T
  • Trademark：METRO MACH
  • Origin：China
  • HS Code：8465990000
  • Production Capacity：500sets,Year

Description

4x8ft/9ft, 5x8ft,
6x8ft, 6x9ft,
7x9ft etc1400Tonφ340mm6pcs1600Tonφ320mm8pcs1800Tonφ340mm8pcs
TECHNICAL PAREMETERS
ModelTLY114×8/14-II
Nominal gross pressure14000Kn
Direction of feeding plateHORIZONTAL
Layer Counting  1 Layer
Distance between hot platens 200mm
Numbers of hot platens2 pcs
Dimension of  Hot Platens 2600×1400×140mm(up)
2600×1400×100mm(down)
Numbers of Cylinder 6 Pcs
Diameter of Cylinder Φ340mm
Stroke of Cylinder200mm
Pressurization≤25Mpa
The Position of Cylinderup
Empty Closing TimeAbout 2-3 s
Max Temperature<210
Numbers of Lift Cylinder4pcs
Diameter of Cylinder Φ80mm, Φ30
Stroke of Cylinder200mm
High Pressure Pump Flowing About 89L/min
Allowed Pressure≤25Mpa
Power37Kw
Pressure of Unit Plate Blank47Kgf/cm2
Control MethodAutomatic pump station
Frame steel plate thickness60mm
Total weight37000kgs

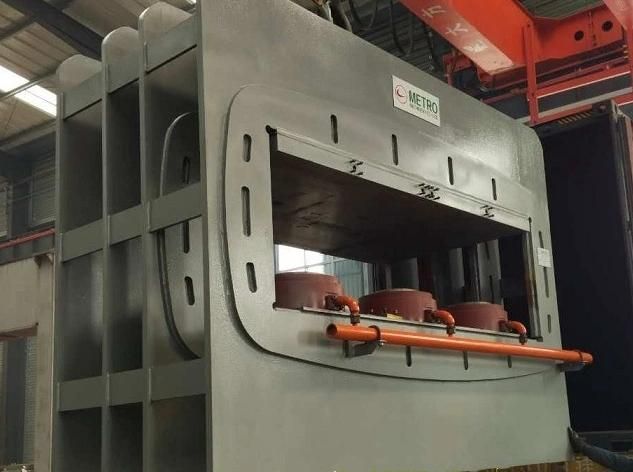

PRODUCT SHOW
