• Model NO.：MJ45A
• Certification：CE, ISO
• Customized：Customized
• Condition：New
• Color：Customized
• Advantage：Electric Main Saw Blade Lifting and Angle Adjustme
• Length of Sliding Table：3200mm
• Cutting Width：1000 or 1300mm
• Motor Power：5.5 Kw
• Main Spindle Speed：3000,4000,5000 r.p.m
• Max Cutting Height：125mm
• Scoring Saw Spindle Diameter：20mm
• Overall Dimension：3250*3150*900mm
• Volume：2.8 Cbm
• HS Code：84659100, 84659100
• Transport Package：Plywood Case
• Specification：3250*3150*900mm
• Trademark：QDZD
• Origin：Qingdao
• Production Capacity：500 Set Per Year

Basic Info.

Model NO. MJ45A Certification CE, ISO Customized Customized Condition New Color Customized Advantage Electric Main Saw Blade Lifting and Angle Adjustme Length of Sliding Table 3200mm Cutting Width 1000 or 1300mm Motor Power 5.5 Kw Main Spindle Speed 3000/4000/5000 r.p.m Max Cutting Height 125mm Scoring Saw Spindle Diameter 20mm Overall Dimension 3250*3150*900mm Volume 2.8 Cbm HS Code 84659100, 84659100 Transport Package Plywood Case Specification 3250*3150*900mm Trademark QDZD Origin Qingdao Production Capacity 500 Set Per Year

Product Description

3200mm Precision Sliding Table Saw with Altendorf structure

Product Description

Product details:

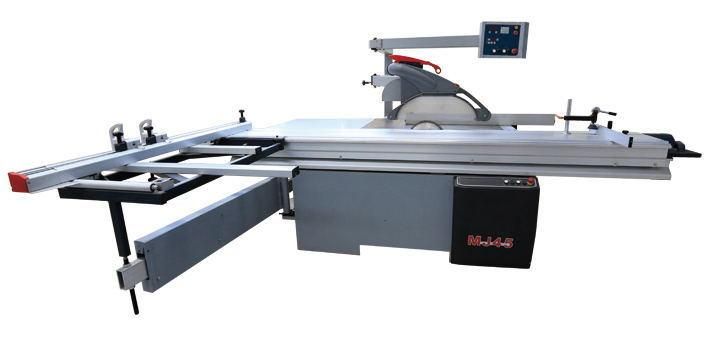

 PANEL SAW MJ45A


Type	MJ45A
Advantage	Electric main saw blade lifting and angle adjustment
	Control panel is equal level with line of sight
	Electric adjustment saddle
Length of sliding table	3200 mm
Cutting width	1000 or 1300 mm
3200mm	Horizontal baffle plate extended to 3200 mm
Motor power	5.5 kw(7.5HP)
(Main spindle speed)	3000/4000/5000 r.p.m
Scoring saw spindle diameter	20 mm
Scoring saw power	1.1 kw
Overall dimesion	3250*3150*900 mm

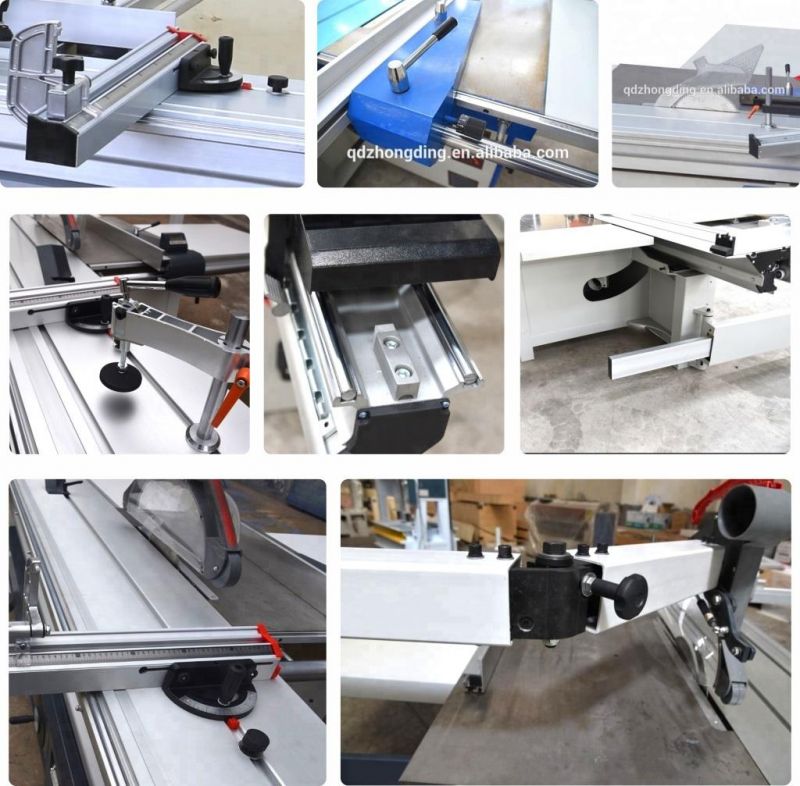

Feature:

1. It is adapted to ergonomic requirements. The special operate is that: the control board of MJ45A sliding table saw can be adjusted to the equal height with line of the sight to make the operation comfortable. The saddle is electrically adjustable.
2. Control panel: The various operation on the control panel is clear at a glance. You just need to press the button gently then it will adjust the height and the angle of saw blade easily. The numerical value of angle is visible on the display.
3. Dust hood: It is convincing to use the big dust hood with fluid mechanics optimization structure. Dust hood apply to Max. Cutting height 125mm (without relationship to scoring saw blade) and can swing to the side totally.
4. The electric saddle:  Five- positioning of high precision drive systems without regular  maintenance is like a built-in motor protected by aluminum profile.  There is emergency power-off function and then excluded squeezed danger.
5. Horizontal baffle plate: Precise vertical angle cutting by firm rung. All of adjustment value is available in the strip of rung. The peach shape baffle plate with close connection with it can be push easily and adjusted freely in the entire cutting area.

FAQ:


Q: Are you a manufacturer or a trading company?

A: We are the manufacturer with 9 years experience.



Q: What kind of products do you have?

A: We produce and sell woodworking machines including panel saw, edge banding machine, press machine, multiple drilling machine, gluing machine, sanding machine and any other woodworking tools and equipments.



Q: Do you have CE or ISO9001 certification?

A: Yes we have both.



Q: What's your warranty?

A: We offer one year warranty.



Q: Do you offer oversea after-sale service?

A: Yes if necessary.



Q: What's your advantage comparing with other suppliers?

A: With 9 years of experience, we have built a complete operating system including ordering process, production, quality control and after-sale service which helps both sides a lot in communicating, saving the cost, ensuring the quality and solving the problems.

Order terms:

1) Term of payment: T/T, 30% deposit and the balance is paid before delivery
2) Delivery: 25days
3) Machine voltage: optional
4) Warranty: 1 year
5) MOQ: 1 Set
6) OEM service is ok
7) HS code: 84659100
8) Certificate: CE&ISO 9000 Certificate

Packaging:



About us:

Qingdao Zhongding Machinery Co.,Ltd is a professional manufacturer in woodworking machine. Our products include:

-Panel saw
-Edge banding machine
-Multiple drilling machine
-Press machine
-Gluing machine
-Sanding machine
-Other woodworking machines

We are looking forward a long term cooperation with our customers and offer high quality products&service with our passion.
