High Speed Core Veneer Peeling Machine for Plywood Producing Factory

Shandong Hummingbird machinery Co., Ltd.
  • Warranty：1 Year
  • Type：Spindle Veneer Peeling Machine
  • Voltage：Customized
  • Tool Holder：Double-tool Holder CNC Lathe
  • Automatic Grade：Automatic
  • Precision：Precision

Base Info

  • Model NO.：HBPE003
  • Setting Mode：Floor-type
  • Controlling Mode：CNC
  • Power Source：Electric
  • Processing Accessory：Chuck CNC Lathe
  • Certification：CE, ISO, FDA
  • After-sales Service：Field Installation, Commissioning and Training
  • Structure：Vertical
  • Wood Length：2000mm-2600mm
  • Max. Wood Diameter：150mm
  • Remaining Wood Min Diameter：120mm
  • Application：Plywood Production Line
  • Wood Loading System：2 Pieces of Rotary Crane
  • Veneer Thickness：0.2-2.6mm
  • Chuck Motor Power：4kw*2PCS
  • Feed Motor：1.5kw*1PCS
  • Knife Adjusting Motor：1.1kw*1PCS
  • Hydraulic Motor Power：0.75kw*1PCS
  • Loading System Motor：3kw*2PCS
  • Total Power：47.35kw
  • Voltage and Hertz：380V,50Hz
  • Weight：6.5ton ~ 8ton
  • Transport Package：1.in Nude 2.as Clients Requirement 3.Spare Parts
  • Specification：6000*2350*2550mm
  • Trademark：Humming Bird
  • Origin：Shandong, China
  • HS Code：8465960000
  • Production Capacity：20 Sets , Month

Description

Overview Product DescriptionDetailed Photos

High Speed Core Veneer Peeling Machine for Plywood Producing FactoryHigh Speed Core Veneer Peeling Machine for Plywood Producing FactoryHigh Speed Core Veneer Peeling Machine for Plywood Producing Factory

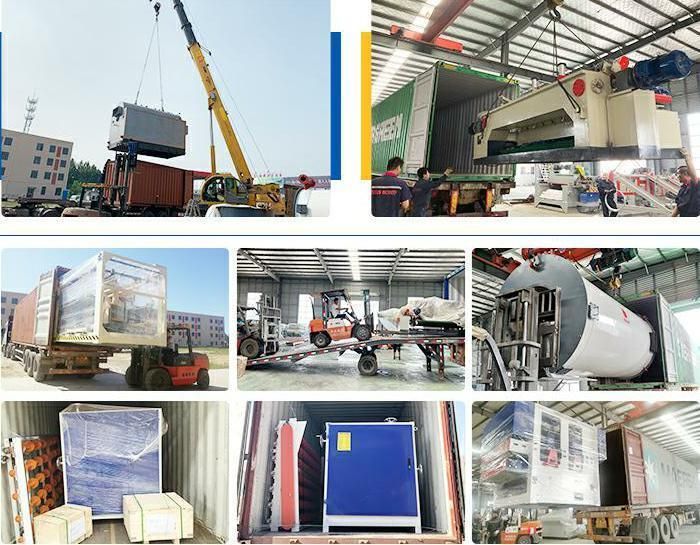

Packaging & Shipping

High Speed Core Veneer Peeling Machine for Plywood Producing Factory

Company Profile

Our Service

Pre-sale service

1.Provide the free consultation of equipment 2.Provide the standard device and the flow chart
3.According to the clients' special requirement ,offering the resonable plan and free design to help to select the equipment .
4.Welcome to visit our factory

Service during the sales

1. Inspect the machine before leaving the factory 2.Oversea install and debug the equipment
3. Train the first-line operator

After sales service

1) 24 hours online service 2) Provide the VIDEO with install and debug the equipment
3) Provide technical exchanging
