Plywood Panel Pressing Cold Press Machinery
Qingdao Zhongding Machinery Co., Ltd.- Work Forms：Hydraulic Pressure
- Processing Technics：Cold Press
- Structure：Frame Type
- Pressing Shape：Flat Press
- Platen Surface Pressure：Low Pressure
- Pressing Layer：Single Layer
Base Info
- Model NO.：MJ50A
- Work Mode：Continuous
- Controlling Mode：Artificial
- Automatic Grade：Semiautomatic
- Certification：CE, ISO
- Transport Package：Plywood Case
- Specification：2860*1300*2350mm
- Trademark：QDZD
- Origin：Qingdao
- HS Code：84659900
- Production Capacity：200 Set
Description
Basic Info.
Model NO. MJ50A Work Mode Continuous Controlling Mode Artificial Automatic Grade Semiautomatic Certification CE, ISO Transport Package Plywood Case Specification 2860*1300*2350mm Trademark QDZD Origin Qingdao HS Code 84659900 Production Capacity 200 SetProduct Description

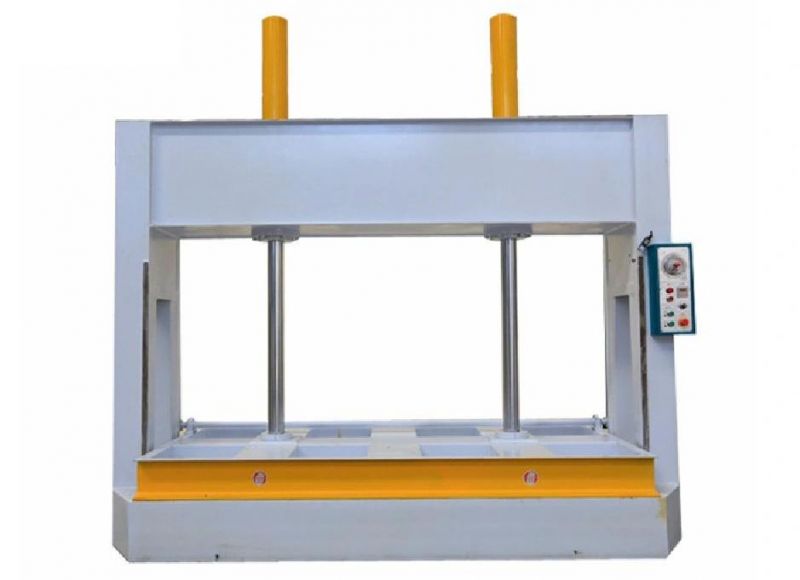

Plywood panel pressing cold press machineryMJ50A Cold Press Machine
Specification:
| Max. pressure | 50 T |
| Dimension of the platen | 1250*2500 mm |
| Working speed | 180 mm/min |
| Total power | 5.5 kw |
| Overall dimension | 2860*1300*2350 mm |
| Net weight | 2650 kg |
| Stroke | 1000 mm |
Production Usage:
The machine is set with a pressure maintaining circuit and short-oil protector, which makes the machine stop working to protect products when it is short of oil and avoid engine burnout caused by over pressing.
It is widely used by manufacturers who produce doors, furniture, sound boxes, woodworking, upholstery, advertising boards, plastics, veneers, plywood, shaving boards, laminated boards and any other woodworking casting dies.

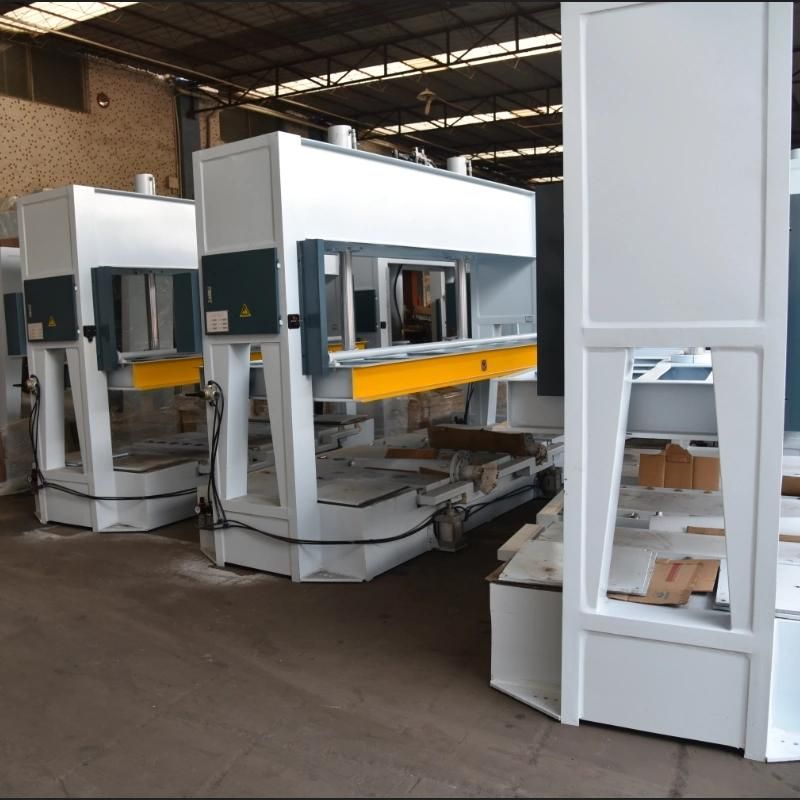

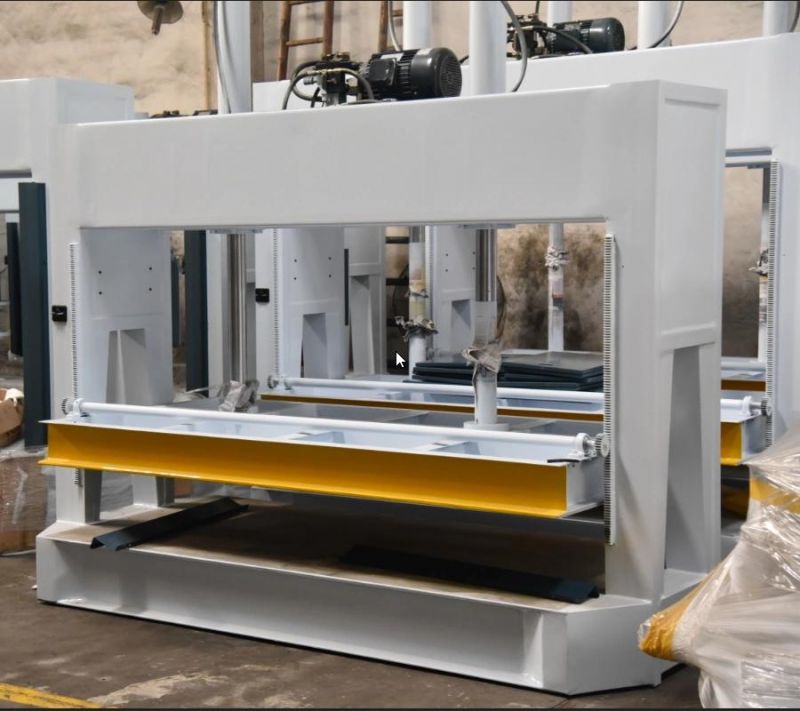

Product details:
Packaging:

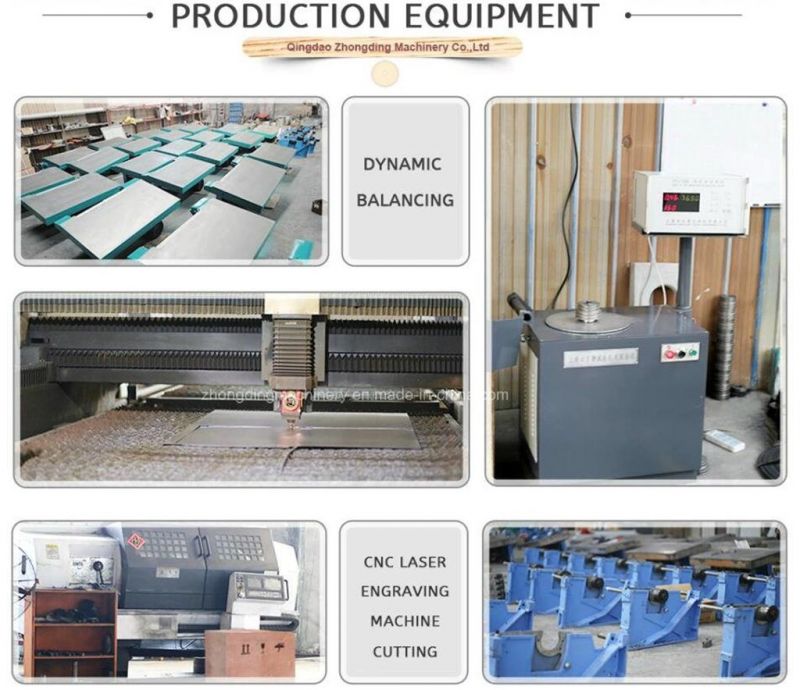

About US:
Certification:
