Double Sided Wood Planer and Thicknessers with Spiral Cutting Head

Qingdao Zhongding Machinery Co., Ltd.
  • Type：Double-sided Pressure Planer
  • Working Depth：＜100mm
  • Working Width：430mm
  • Drivetrain：Feed Drivetrain
  • Enter Method：Mechanical
  • Motor Power：＞10Kw

Base Info

  • Model NO.：MB204H
  • Cutter Shaft：6
  • Spindle Speed：＞5000rpm
  • Process Type：Heavy Processing
  • Certification：CE, ISO
  • Transport Package：Plywood Case
  • Specification：875*800*1100mm
  • Trademark：ZD
  • Origin：China
  • HS Code：84659200
  • Production Capacity：2 Sets,Week

Description

Basic Info.

Model NO. MB204H Cutter Shaft 6 Spindle Speed ＞5000rpm Process Type Heavy Processing Certification CE, ISO Transport Package Plywood Case Specification 875*800*1100mm Trademark ZD Origin China HS Code 84659200 Production Capacity 2 Sets/Week

Product Description

Double sided wood planer and thicknessers with spiral cutting head

Double Sided Wood Planer and Thicknessers with Spiral Cutting Head




Technical Specification:

ModelMB204HMB205HMB206H
Max. Planing workpiece width430mm530mm630mm
Max. Planing workpiece thickness150mm150mm150mm
Min. Planing workpiece length260mm260mm260mm
Max. Planing depth (top spindle)10mm10mm7mm
Max. Planing depth (bottom spindle)8mm8mm5mm
Knife spindle cutting diameterΦ101mmΦ101mmΦ101mm
Spindle rotation rate5000r/min5000r/min5000r/min
Feed speed4-16m/min4-16m/min4-16m/min
Top/bottom spindle motor power7.5/7.5kw7.5/7.5kw11/7.5kw
Feeding motor power2.2kw2.2kw3kw
Weight2100kgs2200kgs2500kgs

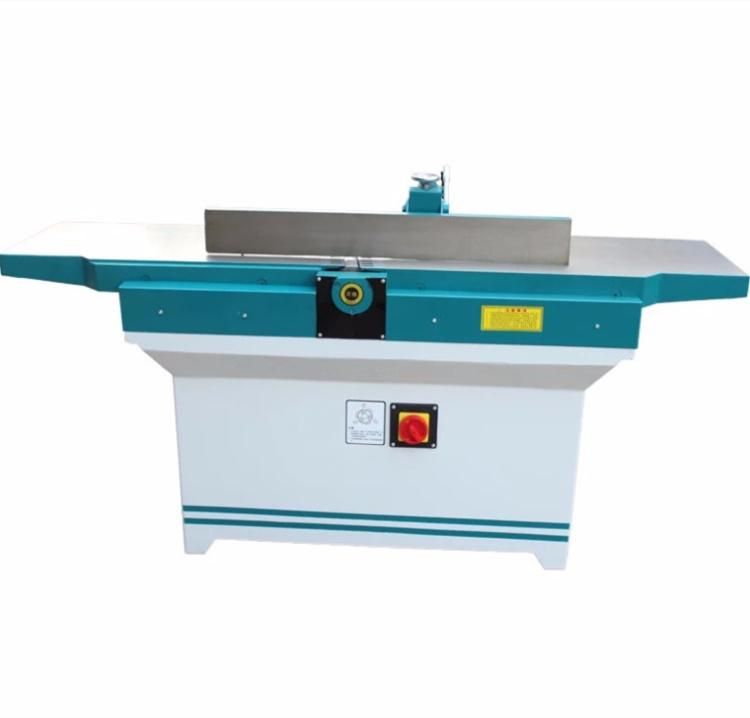

Surface planer:

Double Sided Wood Planer and Thicknessers with Spiral Cutting Head

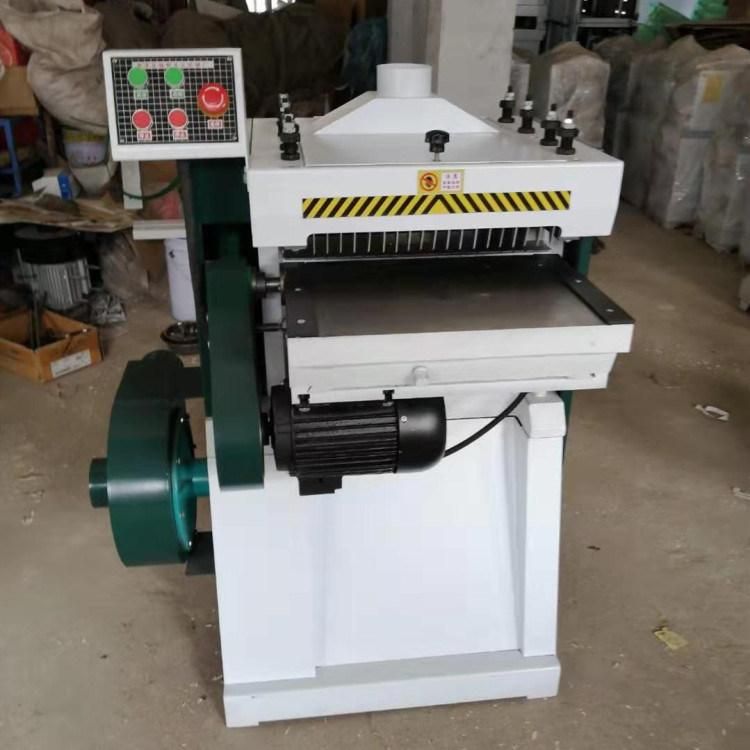

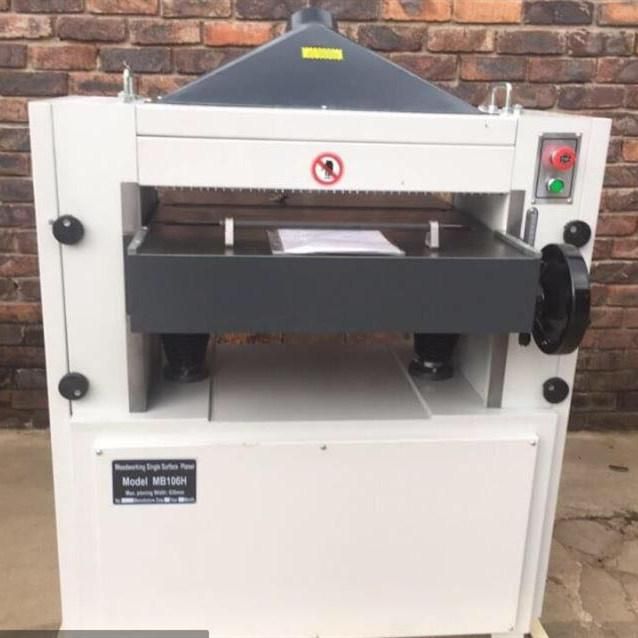

Thickness planer:
Double Sided Wood Planer and Thicknessers with Spiral Cutting Head


Four sided planer:
Double Sided Wood Planer and Thicknessers with Spiral Cutting Head

For more details, pls feel free to contact us.
