• Model NO.：LT-1224
• Working Area：1200*2400mm
• Working Table：Aluminum T-Slot Table
• Control System：Mach3 USB Control System
• Guide Rail：Round Guide Rail
• Motors：Stepper Motors
• Drivers：Leadshine Drivers
• Software：Artcam
• Collet Size：Er20
• Inverter：Fuling Inverter
• Transport Package：2450*1900*1650mm
• Specification：7.68m3
• Trademark：LINTCNC
• Origin：China
• HS Code：8465990000
• Production Capacity：500sets,Year

Standard configuration:

1,1.5kw water-cooling spindle;

2,Aluminum T-slot table with pvc;

3,Ncstudio control system;

4,86BYG-450B stepper motor,MA860H Leadshine drivers

5,Fuling invert

6,Round guide rail

Optional parts:

1,Rotary axis:(80mm,100mm,150mm,etc.)for engraving cylindrical wood;

2,Water tank:for cutting soft metal;

3,Mach3 USB control system;

4,DSP control system(A11 or A18);

5,Taiwan Hiwin square linear guide rail;

6,2.2kw/3.0kw water-cooling spindle;

7,Vaccum table

8,Dust collector

Technical parametersModelLT-1224Working area1200*2400mmMax.feeding heights of Z axis200mmTable styleAluminum T-slot table with PVCWhole structureCast ironGuide railRound guide railDriving methodTaiwan TBI ball screwSpindle power1.5kw water cooling spindleCollect sizeER16Spindle speed0-24000rpmMotors 86BYG-450B stepper motorDriverMA860H Leadshine driverControl systemNcstudio control systemWorking accuracy<0.03/300mmWorking speed<7000mm/minTraveling speed0-7000mm/minInstruction formateG code*u00*mmg*pltWorking voltageAC220V,Single phase,50-60HzStandard softwareArtcam2010Compatible softwareType3/CastmateTool sensorYes

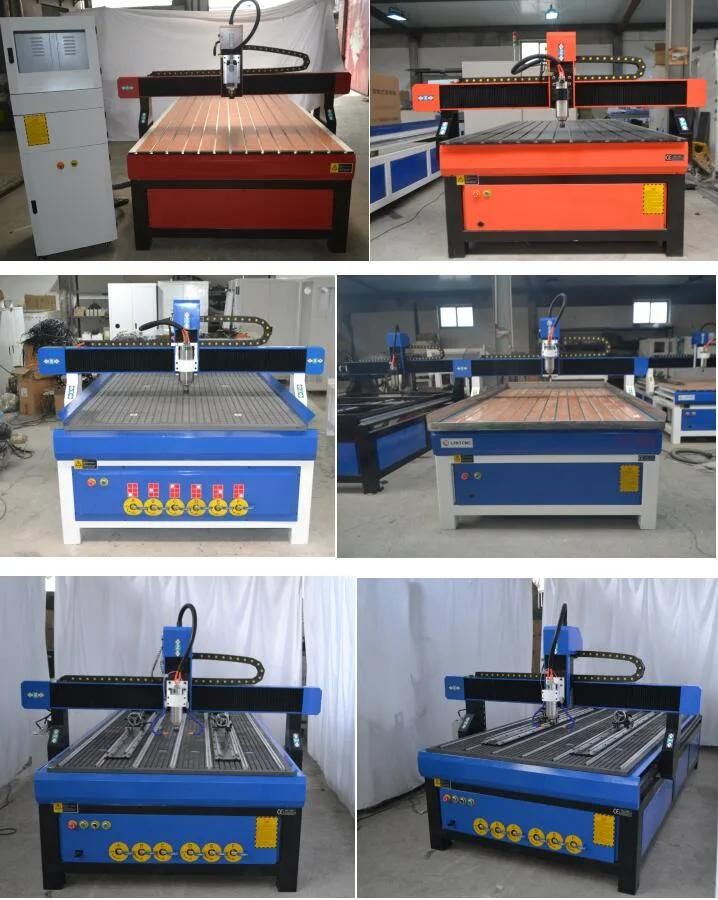

Machine Photos:

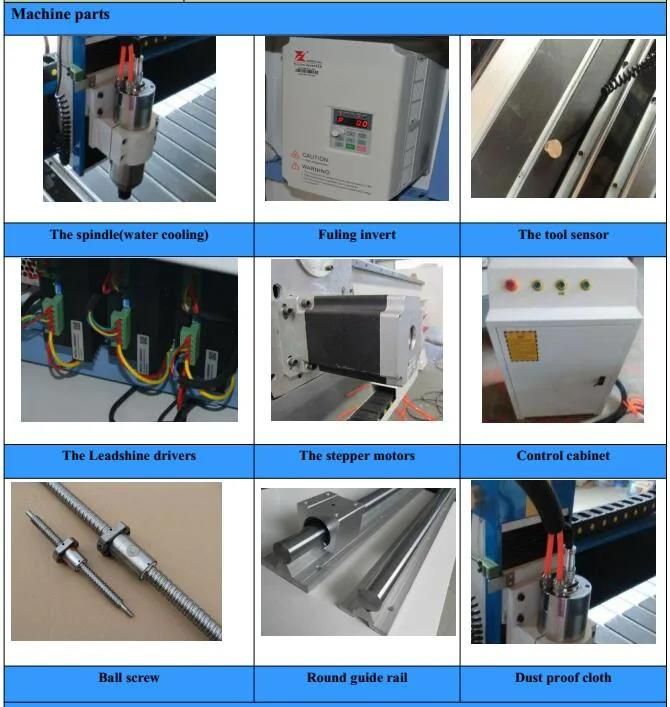

Standard machine parts:

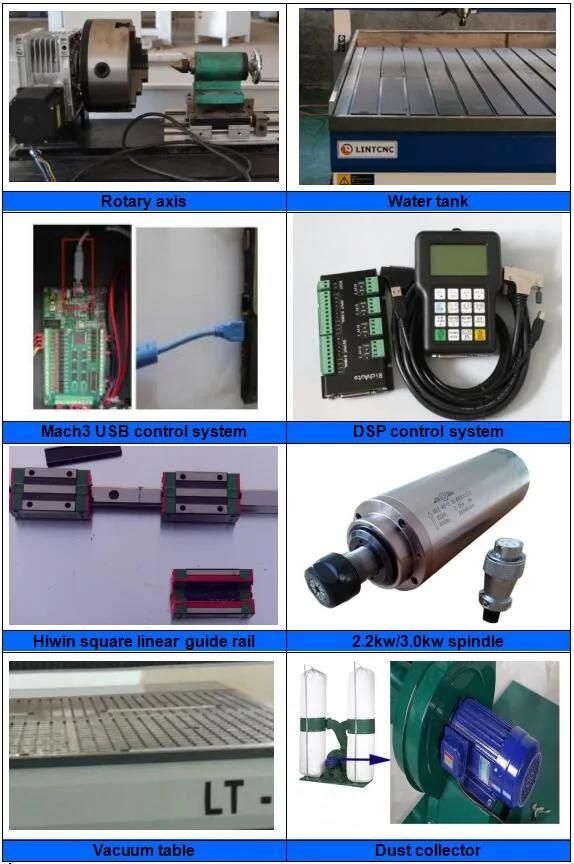

Optional machine parts:

More Machine

Packaging & ShippingMachine size3000*1750*1450mmNet weight650kgPackaging size3150*1900*1650mmGross weight750kgVolume9.87m3Packaing detailsOne plywood case with water-proof materials
Our Services

Technical service

1. We will supply with the machine operation manual in English version for installing and operation.
2.Customer can come to our factory training



Warranty

1. Our warranty is 12 months counting from the date when the Machine arrives at the port of destination.
2. We will supply after service 24 hours,customer can contact us any time.
3.When some problems can't be solved by customers, our engineer can go to door to help.

FAQ

1) This is the first time I use this kind of machine, is it easy operate?

There are English manual or guide video that show how to use machine.

If there is still have any question, we can talk from phone or Skype.

2)Can you recommend a CNC ROUTER MACHINE to me,thanks?

Yes, In order to give you a suitable router machine, please tell me the max working

area, materials for processing and the thickness for materials processing engraving

or cutting.

Then perfect suitable CNC router will be recommended

3) If machine have any problem after I ordered it, how could I do?

Free parts send to you in machine warranty period if machine have any problem.

Free after-sales service life for machine, please feel free contact us if your machine have any problem.

we will give you 24hours service from phone and Skype.

4) MOQ ?

Our MOQ is 1 set machine. We could send machine to your country port directly,

please tell us your port name. There will be best shipping freight and machine price

send to you

5)Payment terms

a. 30% by T/T in advance,70% by T/T before shipping b. L/C is acceptable ,if the amount is big,please issue the draft for our confirmation at first.

6)Delivery terms

We will arrange the delivery as the terms we both agreed with after the confirmation by the buyer.
