PVC MDF Automatic Edge Bander Machinery with Pre-Milling

Qingdao Zhongding Machinery Co., Ltd.
  • Warranty：1 Year
  • Function：Pre Milling, Gluing, Edge Banding, End Trimming, Rough Trimming, Fine Trimming, Contour Tracking, Scraping, Buffing
  • Type：Straight Line
  • Edging thickness：0.4-3mm
  • Automatic Grade：Automatic
  • Panel Feeding Speed：13m,min

Base Info

  • Model NO.：ZD450A
  • Certification：CE, ISO
  • Panel Thinkness：10-60mm
  • Min.length panel：100mm
  • Min.width panel：50mm
  • Manufacturing Principles：Glue Tank Overhead
  • Customized：Customized
  • After-sales Service：1 Year
  • Transport Package：Plywood Case
  • Specification：6700*880*1600mm
  • Trademark：QDZD
  • Origin：Qingdao, China
  • HS Code：84659400
  • Production Capacity：200 Set, Month

Description

ModelZD450ABanding tape thickness0.4-3mmBanding tape width10-65mmWorkpiece thickness10-60mmWorkpiece length>=100mmWorkpiece width>=50mmHeating power1.8kwFeeding motor power3.7kwPre-milling motor power2.2kw*2Glue spreading motor power0.75kwEnd trimming motor power0.5kw*2Rough trimming motor power0.75kw*2Fine trimming motor power0.75kw*2Corner rounding motor power0.5kw*2Polishing motor power0.37kw*2Feeding speed10-23m/minAir pressure0.8MpaOverall dimension6700*850*1600mmWeight2800kg


PVC MDF Automatic Edge Bander Machinery with Pre-Milling

PVC MDF Automatic Edge Bander Machinery with Pre-Milling

PVC MDF Automatic Edge Bander Machinery with Pre-Milling


PVC MDF Automatic Edge Bander Machinery with Pre-Milling



PVC MDF Automatic Edge Bander Machinery with Pre-Milling

PVC MDF Automatic Edge Bander Machinery with Pre-Milling
PVC MDF Automatic Edge Bander Machinery with Pre-Milling



Available accessories:

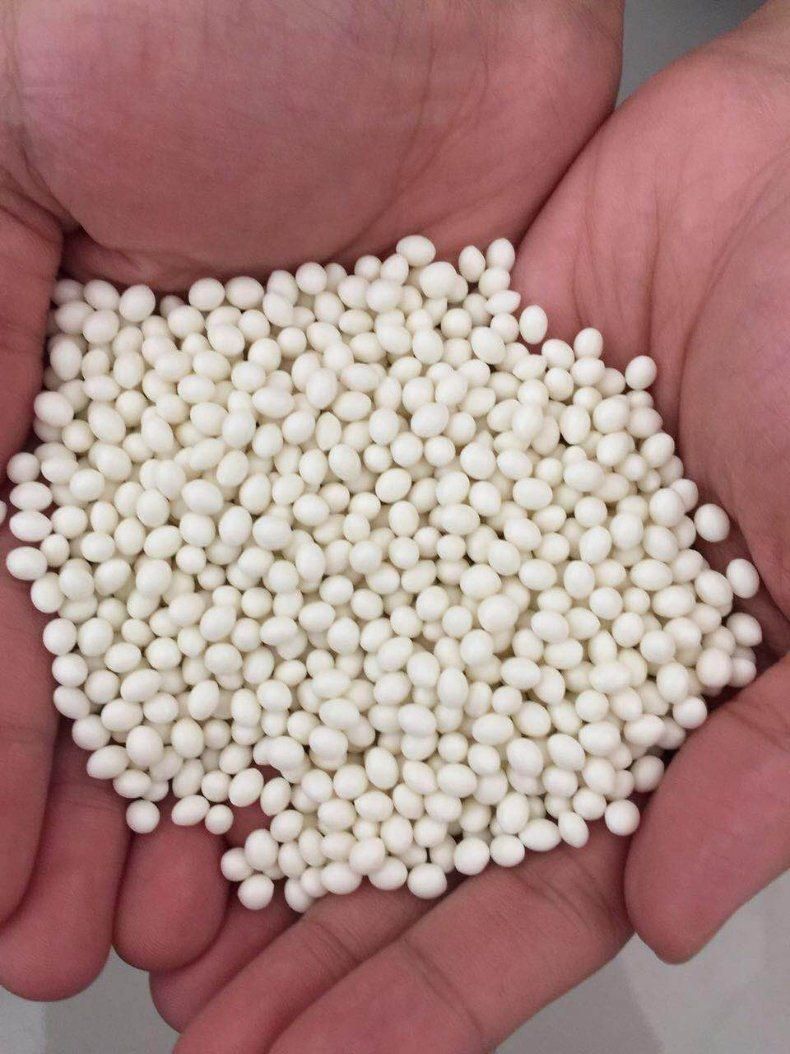

1. Hot melt glue

PVC MDF Automatic Edge Bander Machinery with Pre-Milling

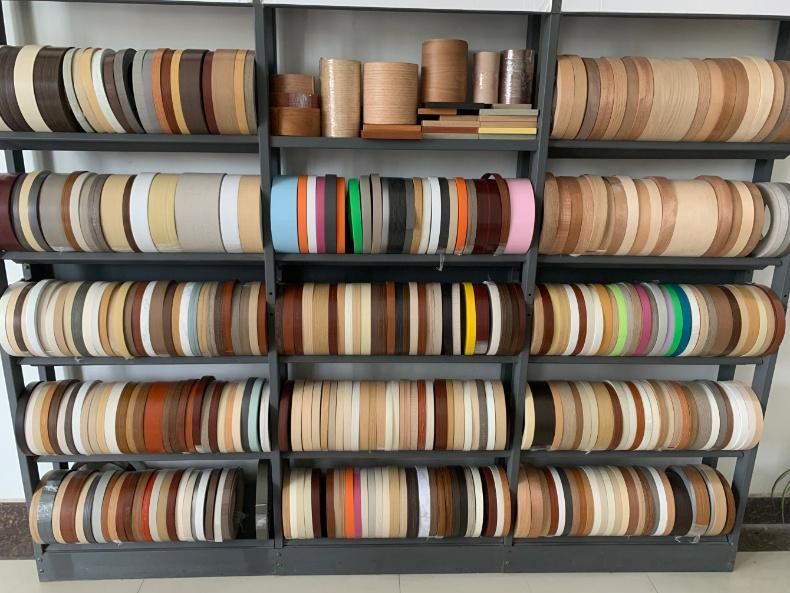

2. Band tapes

PVC MDF Automatic Edge Bander Machinery with Pre-Milling
