• Model NO.：SETM-2
• Origin：China
• HS Code：8421392290
• Production Capacity：1000sets,Month

ModelSETM-2Voltage220V/50~60HzPower0.35KWCutter Speed4m/min

^_Weight

18KG

Size

87x73.5x18cm

Max Width

2400mm

Max Thickness

80mm

Max Length

2400mm

For the operation video,you can visit our youtube link as below:

https://sz-aucox.en.made-in-china.com

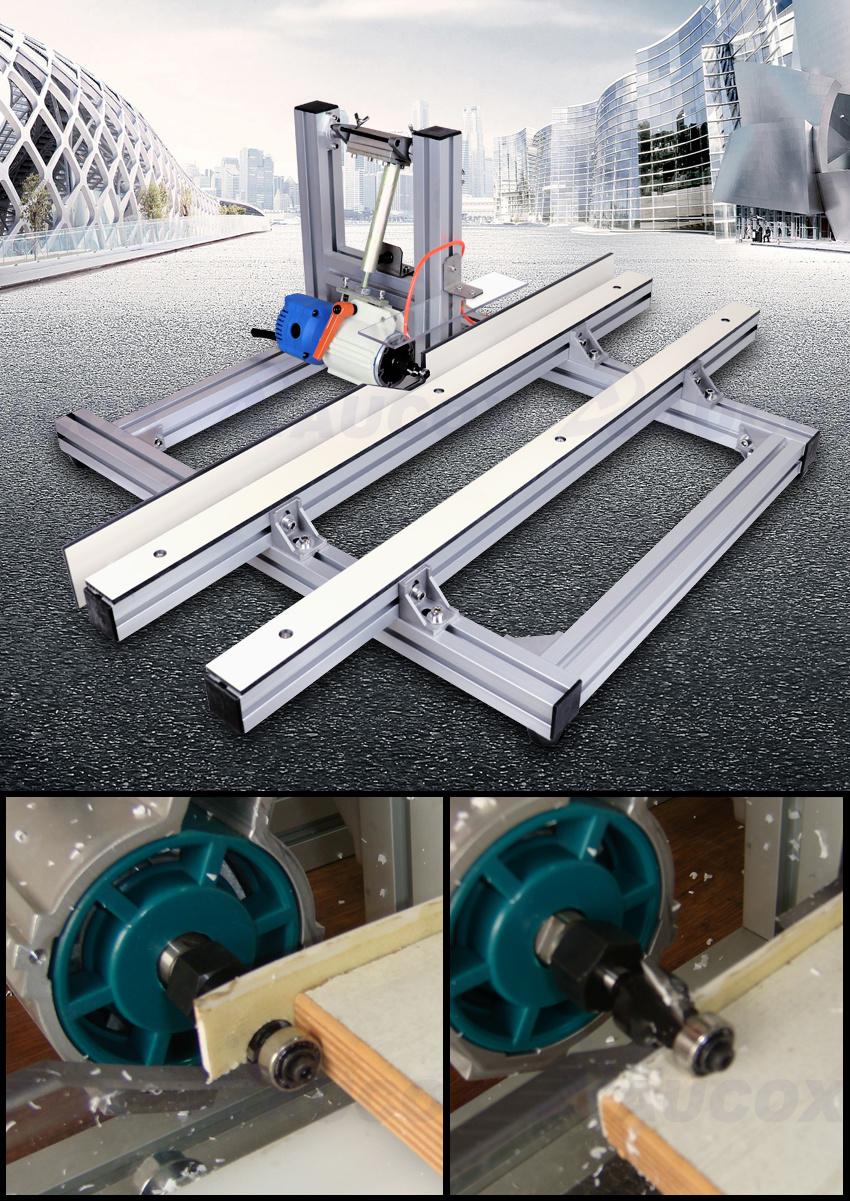

Plywood making machine/full automatic edge trimming saw SETM-2 picture:

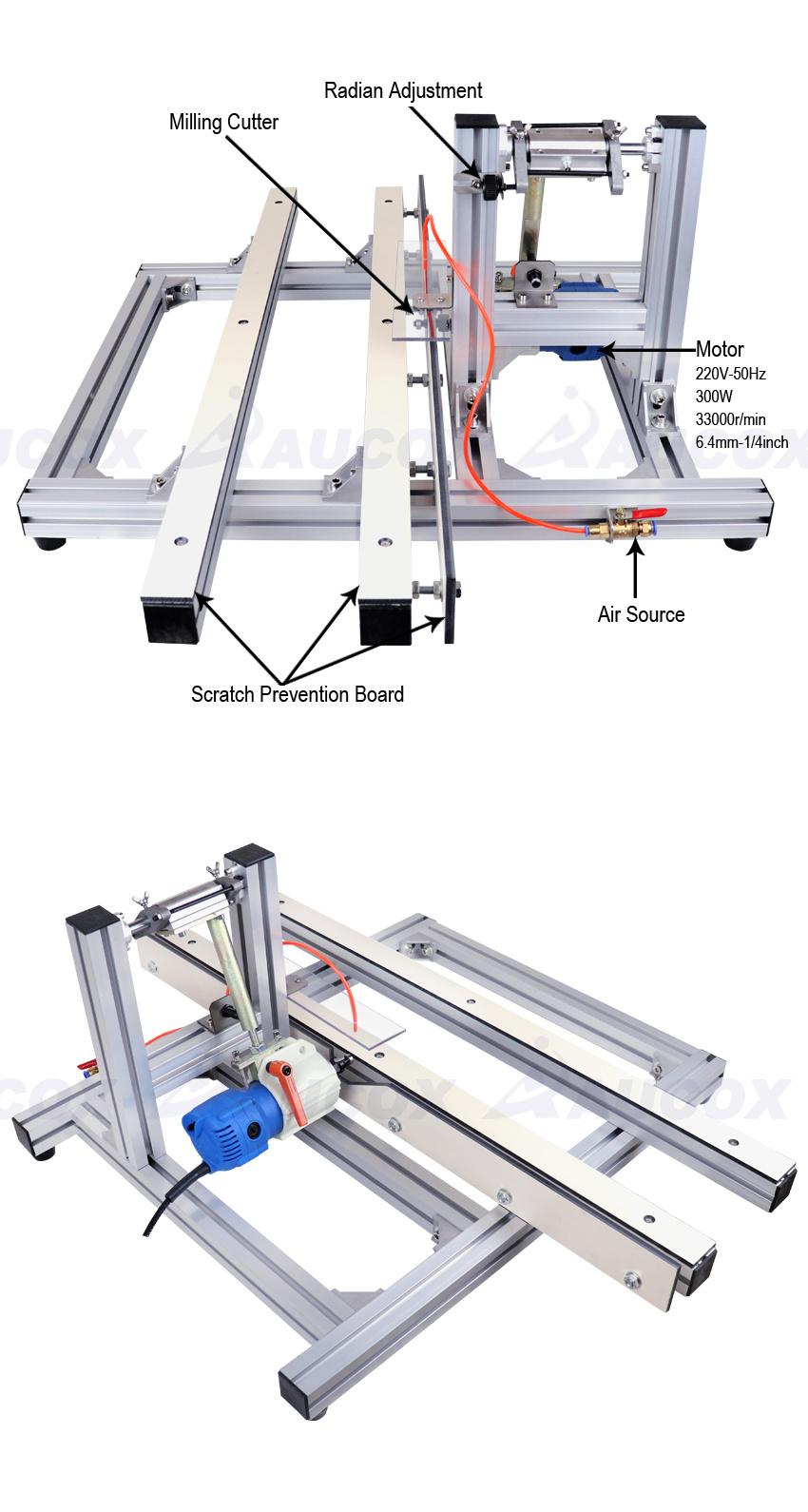

Plywood making machine/full automatic edge trimming saw SETM-2 User guide:

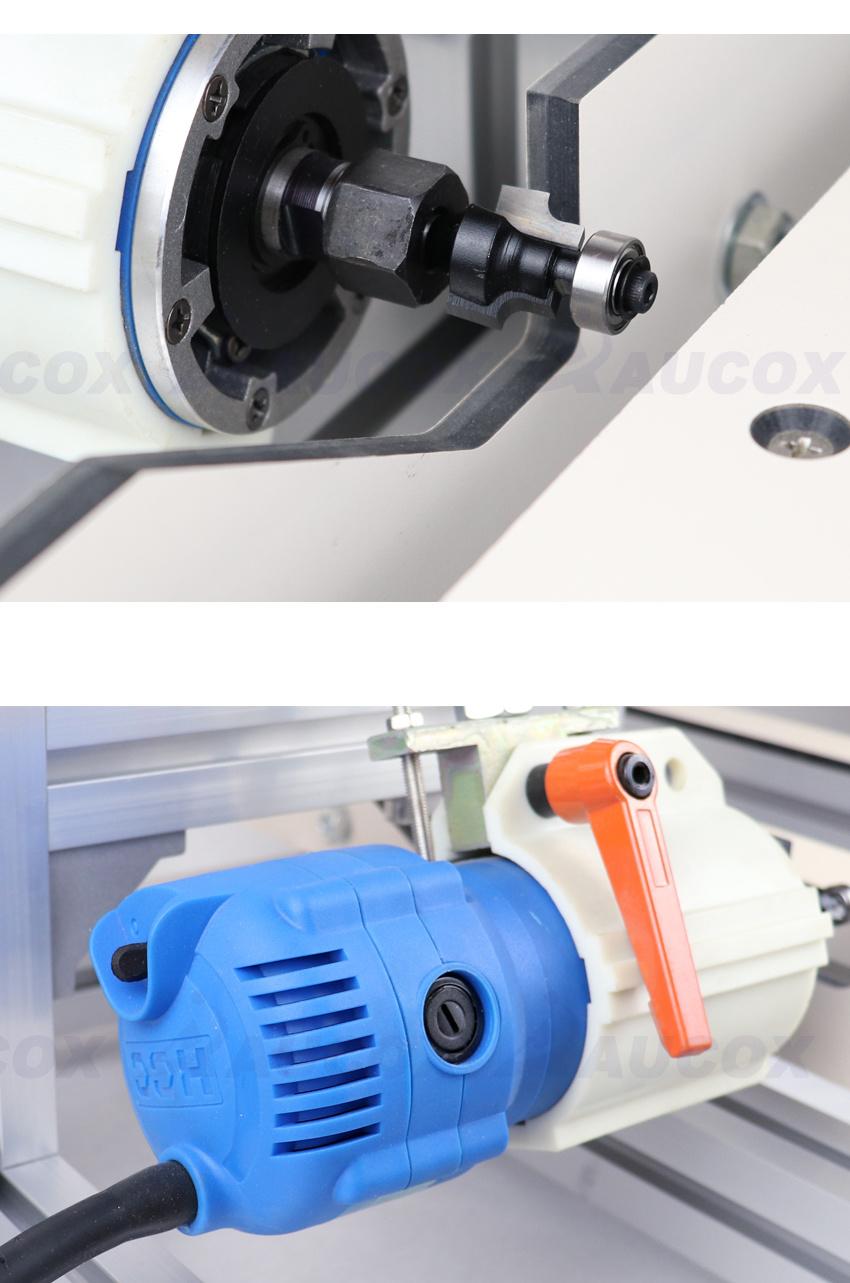

1.Trimmer

2.Aounding bit

3. Air source plug

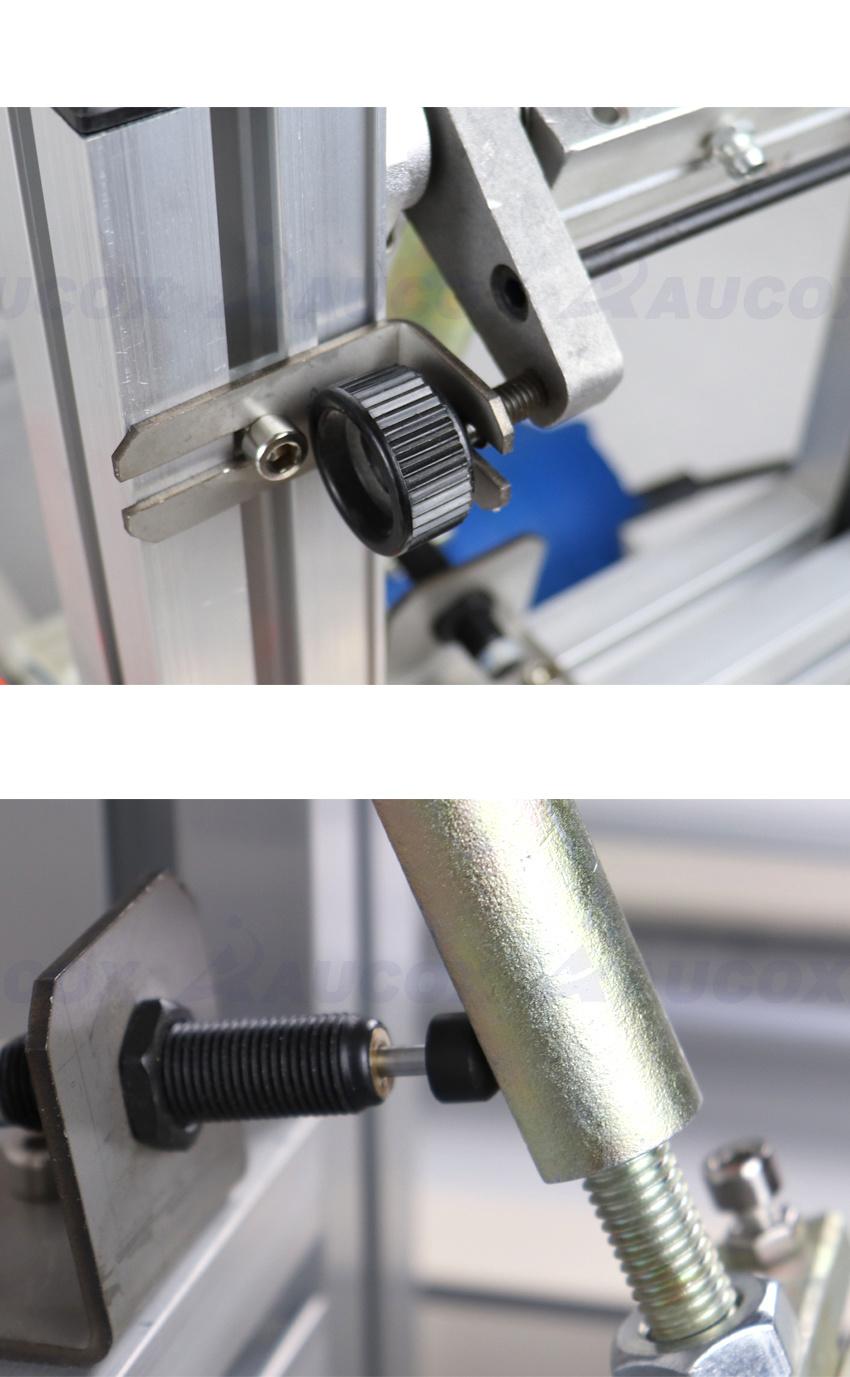

4. Buffer:

For end trimming, corner rounding and edge trimming,please move the big buffer to back and fix the screw on the small buffer. For end trimming and edge trimming, please just adjust the big buffer to the right height according to thickness of the processing panel.

5.Adjustable handle:

Turn off the adjustable handle, the seat that fixing the trimmer can move back and forth. Forth moving and then fixing, the end trimming, corner rounding and edge trimming can be done. Back moving and then fixing, the end trimming and edge trimming can be done with no corner rounding.

6.air dust port

7. Work table

8. Guide Strip: Guide Strip and processing panel is at right angle. The processing panel shoule be pushed from right to left.

9. Swing Arm: Swing Arm move up along with the processing panel when processing panel touch with the Swing Arm.

This macine is used for the following purpose: end trimming, corner rounding and edge trimming.This machine has been configured and ready to be used directly after delivery. If necessary, please only adjust the Rounding Bit back and forth according to the thickness of the edge band.

Plywood making machine/full automatic edge trimming saw SETM-2 Set-up:

1. Remove the packaging from the machine.

2. Dismantle the Swing Arm from the main body by removing the two screws securing the swing arm with the main boday.

3.Hold the Swing Arm perpendicular to the main body and secure in place with the same screws.

Plywood making machine/full automatic edge trimming saw

1. Adjust the bigger buffer on the Swing Arm to the right length according to the thickness of the board being processed.

2. Open the adjustable handle and adjust the trimmer for the required depth and tighten to secure.

3. Turn on the machine and begin work.

Plywood making machine/full automatic edge trimming saw(standard: 2mm)

1. Move the bigger buffer back and fix the screw on the smaller buffer.

2. Open the adjustable handle and adjust the trimmer for the required depth and tighten to secure.

3. Turn on the machine and start work

Plywood making machine/full automatic edge trimming sawTerms:

1)sample 1~10sets will be delivered out within 5days when getting the payment,For large,pls contact.

2)for more large order,pls contact us freely.



Plywood making machine/full automatic edge trimming saw SETM-2 payment:

1)Sample payment by T/T,Paypal,Western Union,MoneyGram,Alipay

2)Large quantity payment by T/T
