• Model NO.：GD-2400
• Energy Saving：Energy Saving
• Warranty：1 Year
• Customized：Customized
• Condition：New
• Model No.：Gd-2400
• Product Name：CNC Side Hole Drilling Machine
• Application：Wood Board
• Machine Size：3120*1580*1550mm
• Max Working Speed：80000mm,Min
• Max Process Speed：60000mm,Min
• Re-Positioning Accuracy：±0.02mm
• Spindle Power&Speed：3.5kw Air Cooling Spindle, 0-18000rpm
• Xyz Transmission：Y-Axis Rack, Z-Axis Ball Screw
• Working Voltage：AC 380V 50Hz or 220V
• PLC：English Panel Controller
• Infrared Ray：America Banner Laser Probe
• Gantry：Manufactured by CNC Machine Center
• Specifications：4500*900*1500mm
• Color：Customized
• Transport Package：Wood Case
• Specification：1.3t
• Trademark：Guandiao
• Origin：China Jinan
• HS Code：8465990000
• Production Capacity：5000pieces,Years

Basic Info.

Model NO. GD-2400 Energy Saving Energy Saving Warranty 1 Year Customized Customized Condition New Model No. Gd-2400 Product Name CNC Side Hole Drilling Machine Application Wood Board Machine Size 3120*1580*1550mm Max Working Speed 80000mm/Min Max Process Speed 60000mm/Min Re-Positioning Accuracy ±0.02mm Spindle Power&Speed 3.5kw Air Cooling Spindle, 0-18000rpm Xyz Transmission Y-Axis Rack, Z-Axis Ball Screw Working Voltage AC 380V 50Hz or 220V PLC English Panel Controller Infrared Ray America Banner Laser Probe Gantry Manufactured by CNC Machine Center Specifications 4500*900*1500mm Color Customized Transport Package Wood Case Specification 1.3t Trademark Guandiao Origin China Jinan HS Code 8465990000 Production Capacity 5000pieces/Years

Product Description

Product Description

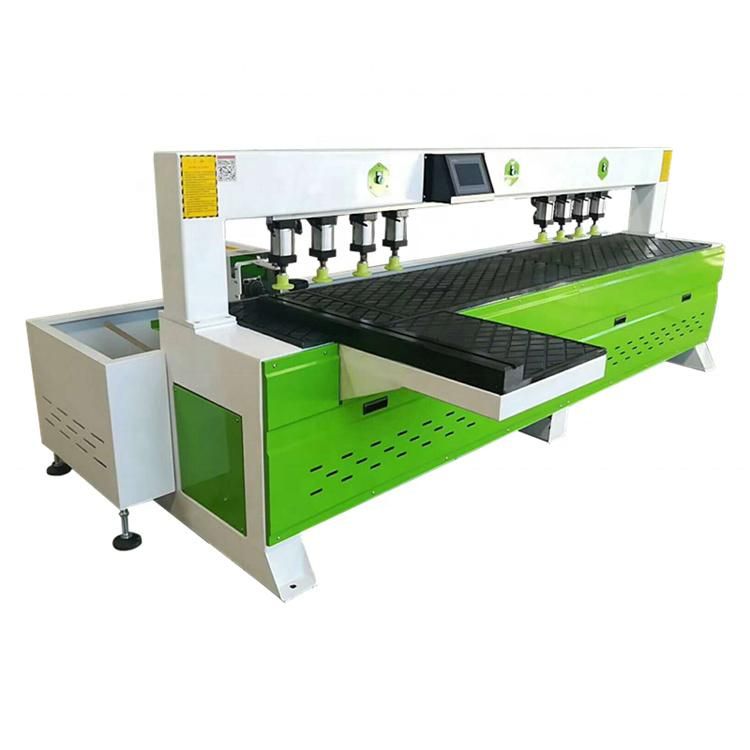

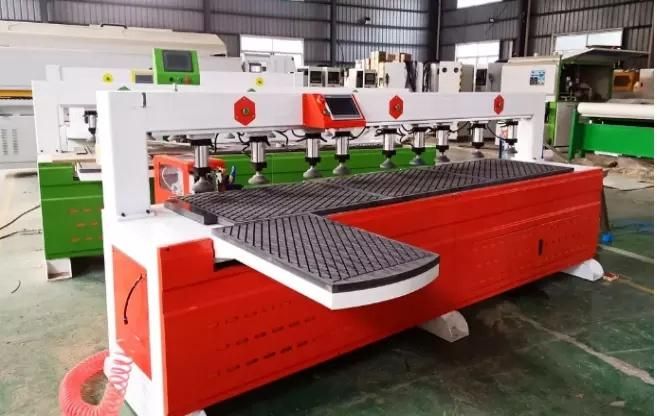

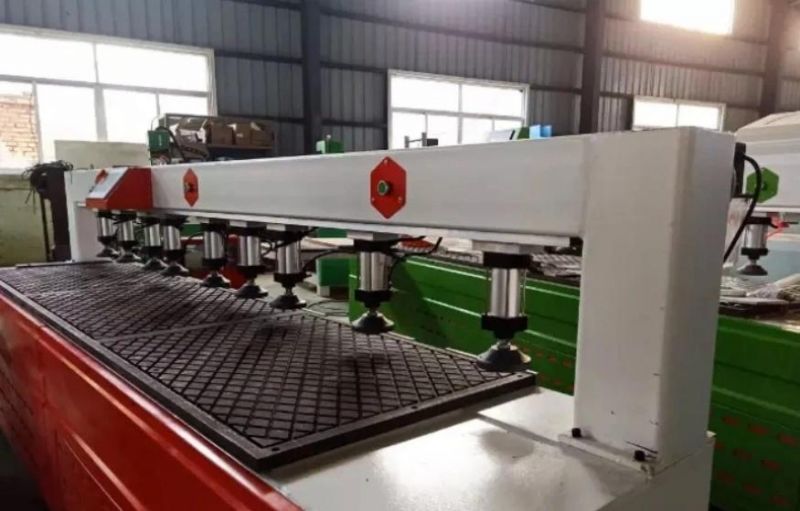

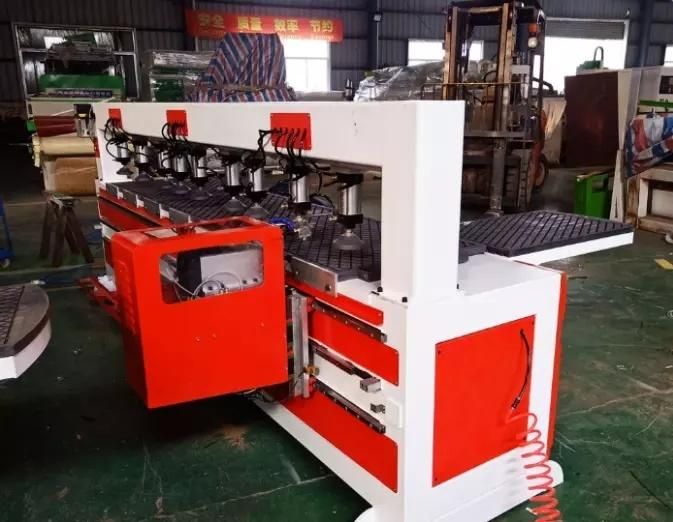

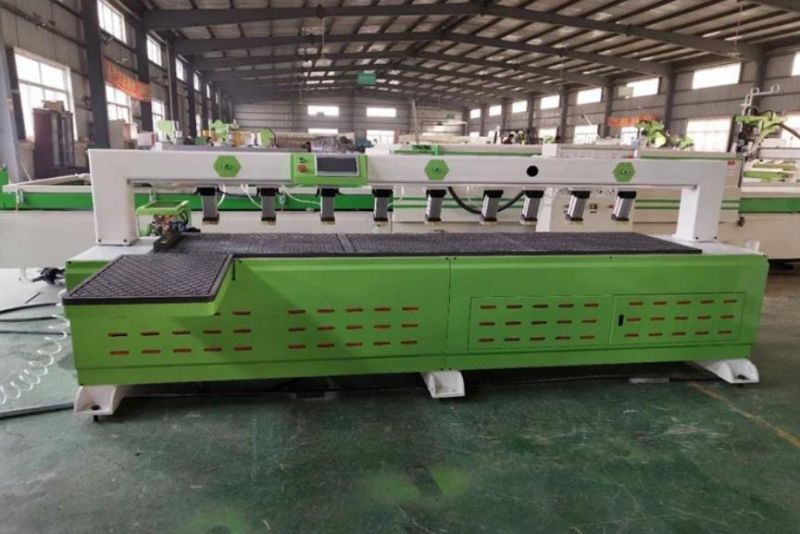

*  Automatic side drilling machine used for horizontal perforated plate custom furniture. It could completely replace        the traditional drilling machine, to get rid of the traditional punching mode and dependence on skilled workers.          scan code processing directly.Through the production with special design software.
*  High quality accessories: heavy structure welded and 5-sides milled, Taiwan Xinyue rack and pinion, Taiwan CSK      rail, Taiwan planetary reducer.

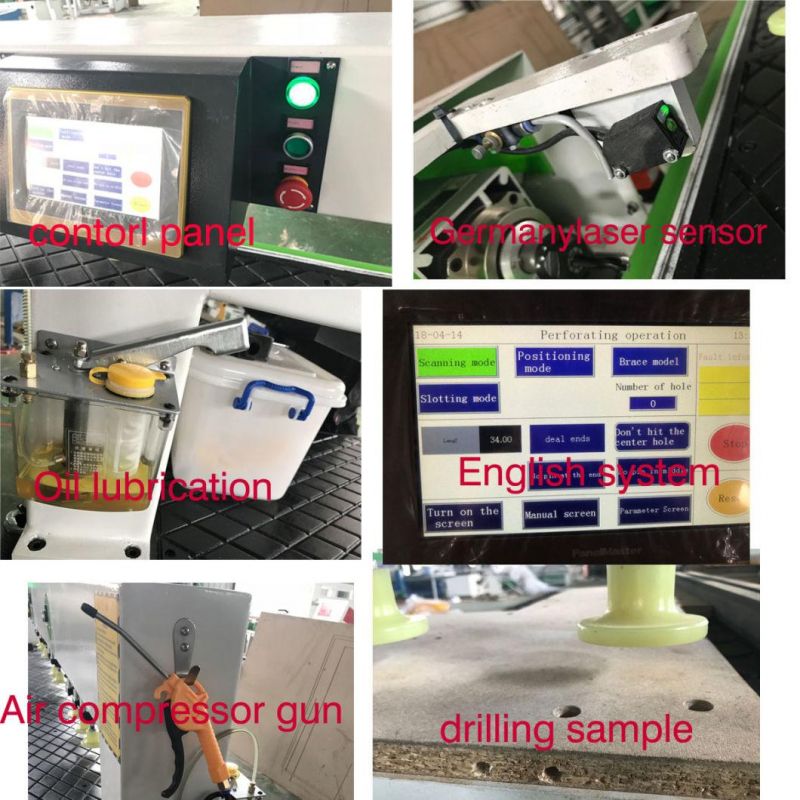

*  Reasonable design: independent computer control, operation and maintenance more convenient.
*  Three working areas: processing three different size plates at the same time with high efficiency
*  Automatic oil lubrication system: prolong the service life of the machine.

Product features

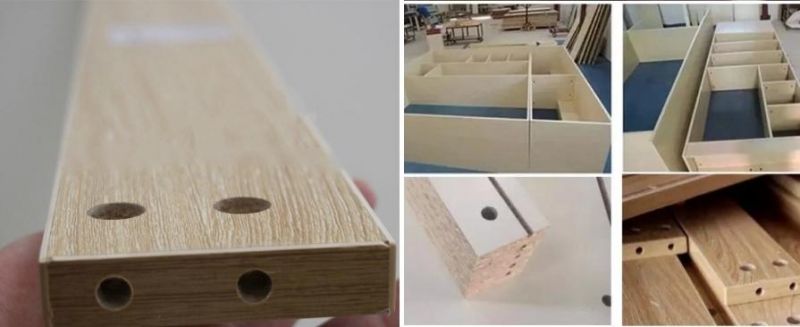

1. This machine is designed and developed for panel furniture side holes drilling, operation simple, scan code then process,worker can operate it after short time trained, reduce labor cost, machines need not be rectified often, greatly improve the efficiency of drilling hole.

2. For those who do not know the driller, they can have the skills of processing side holes in an instant, which greatly improves the production efficiency and reduce the labor cost.

3. Infrared scanning, precise and fast data import, rapid positioning of sheet material, hole position processing on the side ofthe sheet material, wide compatibility, supporting docking all kinds of furniture design production software.









Applicable industries


* This machine is mainly used for wood panel hole drilling , This machine combines all the elements needed for a furniture manufacturer to design and machine custom cabinets, wardrobe, custom furniture and support products. It is specialized in making nested based production of cabinets, closet and customized furniture.

* Application Industry
1)The furniture industry: cabinets, doors, panel, office furniture, doors and windows and chairs Wood products: speakers, game cabinets, computer tables, sewing machines, musical instruments
2)Decoration industry: Acrylic, PVC, MDF, artificial stone, glass, plastic, and copper and aluminum and other soft metal sheet cutting engrave wash.

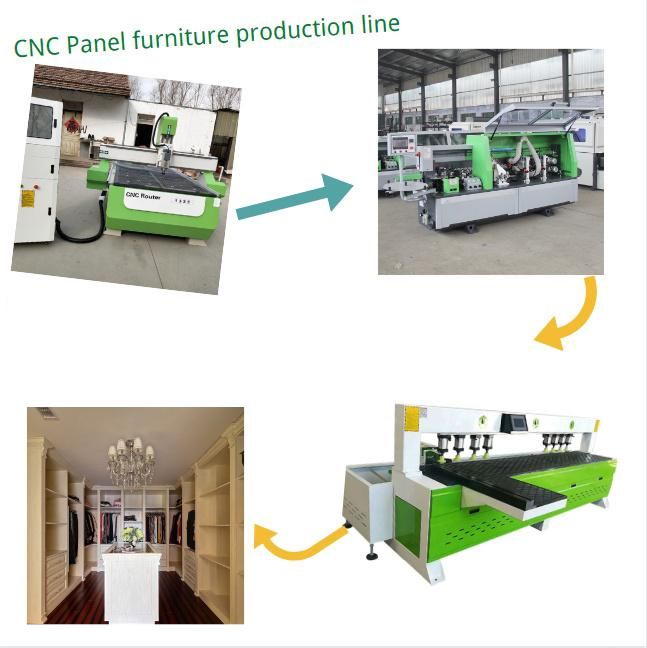

Furniture line


Packing & Delivery



Company Profile
* Shandong Guandiao CNC Equipment Co., Ltd is an innovative enterprise engaged in research and development, production, sales and good after- sales service. The company's main products include Panel furniture CNC cutting machine, Woodworking CNC Machining Center, CNC router, Multi-head cylinder CNC engraving machine, Styrofoam CNC router, 3D scanner, Vacuum membrane press machine,Vacuum forming machine, Laser engraving and cutting machine, etc.
* After nearly 10 years of development, the company has a perfect technical team, clear labor division, ensuring the high quality products sent to the whole country, to the world.
* We offer our customers best solutions, including product design, installation, training, aftersales service, etc.


FAQ
1. This is the first time I buy the machine, is it easy to operate?
A: We provide the operation manual or video for guiding. If it is hard for you learning, we can also help you by "Team
viewer" online, with telephone or Skype explain.
2. Are you a factory or trading company?
A: We are a factory.
3. Can I visit your factory?
A: Yes! We greatly welcome you to visit our factory!
4. What is your MOQ?
A: Our MOQ is 1 set. We could send machine to your country port directly, please tell us your port name.The we can give you a freight for your reference.

Good services1. Delivery and Lead time:
Machine will be proper packed and loaded in container, as multiple loaded to save space or wooden carton sealed for better transportation.
2.Warranty:
Machine warranty is 12 months. Machine as normal using and maintenance condition, if get any problem, will provide spare parts for free. Out of warranty, will collect the accessories cost. Technical support for maintenance or fix on time and all the time.
3. Technical support:
Manual and video illustration of the machine will be provided 24 hours online by Ali Trademanager, Skype, Email, QQ, or telephone Technical support by email, whatsapp, wechat,imo and skype available on time.
4.After sale service:
Normally the machine will sent on whole except the machine is over size to load container. so the machine arrange in production immediately after get electricity (air and water some model needed).
5.We accept the ODM,OEM

If you have other needs, please let me know.
