• Model NO.：FMC1325
• Inverter：Delta Inverter
• Motor：Yaskawa Servo Motors
• Control System：Nc Studio System
• Command：G Code
• Software：Artcam
• Interface：Internet or USB
• Spindle Speed：0-18000rpm,Min
• Type：Engraving Router
• Transport Package：Standard Export Wooden Case
• Specification：CE, SGS, ISO
• Trademark：FIRMCNC
• Origin：Shandong, Jinan
• HS Code：8465990000
• Production Capacity：30 Sets,Month

Basic Info.

Model NO. FMC1325 Inverter Delta Inverter Motor Yaskawa Servo Motors Control System Nc Studio System Command G Code Software Artcam Interface Internet or USB Spindle Speed 0-18000rpm/Min Type Engraving Router Transport Package Standard Export Wooden Case Specification CE, SGS, ISO Trademark FIRMCNC Origin Shandong, Jinan HS Code 8465990000 Production Capacity 30 Sets/Month

Product Description

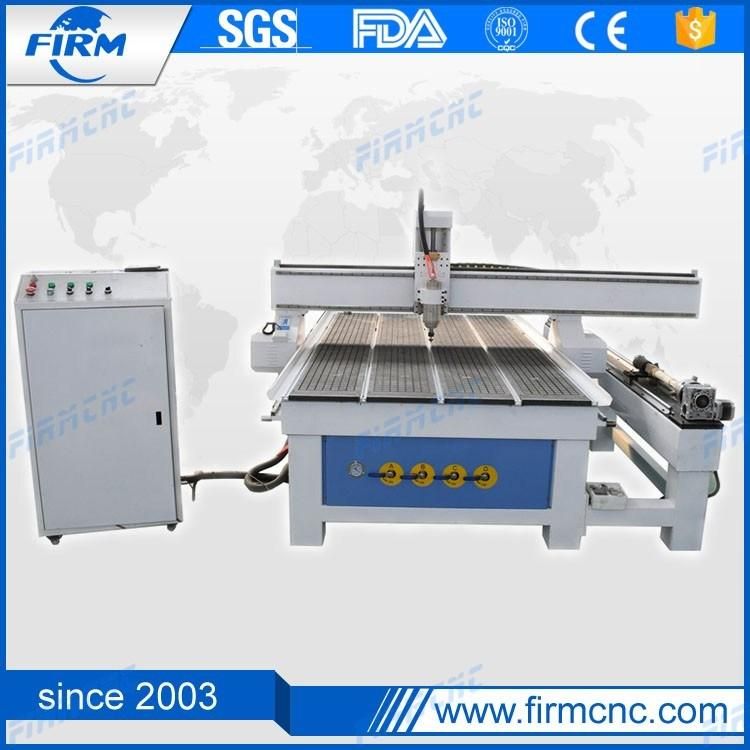

Jinan Automatic 4 Axis 3d wood carving cnc router machine

Main components of the machine:
1 Spindle motor: Domestic 2.2KW air-cooled spindle
2 Motor system: Japan YASKAWA servo motor
3 Operating system: NC studio system
4 Inverter: Delta
5 Rail: Taiwan HIWIN square rails, lubrication-free lifelong
6 Beam: Steel beam stiffeners
7 Cable: Drag chain specific Cable, antijamming, antistatic; With high flexibility, longterm use will not break
8 Limit switch: Japan OMRON
9 Electrical components: Schneider and Siemens
10 Table: Overall welding tempered aging treatment, strong and does not distort

Parameter:

Description	Parameter
rotary axis max diameter	150mm
Machine dimension	2500mm*1300mm
Resolution	0.01mm
Lathe structure	Seamless welded steel structure
X,Y structure	Rack and pinion transmission, Hiwin square guide rail
Z structure	Imported ball screw
Max. idling speed	35m/min
Spindle motor power	2.2 KW
Spindle rotate speed	0-18000r/min
Working voltage	AC380V/50Hz
Working mode	Yaskawa servo motor/stepper motor
the control system	NC Studio control system
Cooling mode	Air-cooling
Weight	1000KG

Packing&shipping:
Water-proof plastic film package with foam protection in each corner.
Solid Seaworthy Wood Box Package with Steel Belt.
Save space as much as possible for container loading.

Trade Items of Machine

MOQ	1 set
Package	Standard Plywood Box
Delivery Terms	FOB, CIF, EXW, Door to Door ect.
Delivery Time	15 working days after receiving payment
Payment Type	T/T, Paypal, Western Union and others
Supply Ability	100 sets/month
Port	Qingdao, China.

Guarantee & Service of Machine
Guarantee:
Two years quality guaranty, the machine with main parts(excluding the consumables) shall be changed free of charge when if any problem during the warranty period.
Service: ( Provide whole life technical support, 24h online )
Before sale:
We would always be here to provide any information you need at the first time,and give
professional suggestions according to your real needs for free;
During sale:
We would deal with all the production and shipping affairs, after everything is ready, we
would tell you everything goes well here;
After sale:
1) We would provide English Version working manual.
2) If you have any questions during using and maintaining, our engineers who could speak
very good English would answer you online or by calls.
3) Machine warranty is one year. So if your machine has any unintentional damages, we would
provide parts for free.
4) If your machine has big problems if by any chance, our engineers would arrive there to debug
and fix.
5) Could be remote control if needed.

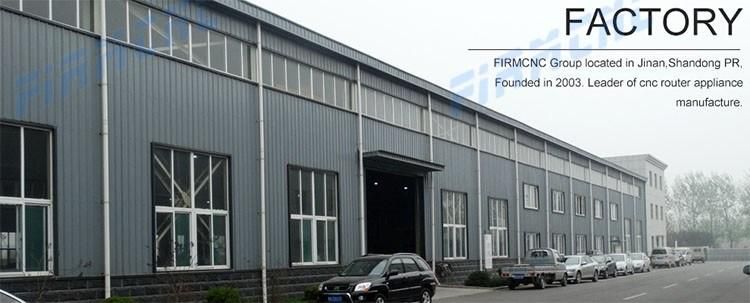

JINAN FIRM CNC EQUIPMENT CO.,LTD
