• Model NO.：MF450A
• Panel Thinkness：10-60mm
• Min.length panel：120mm
• Min.width panel：50mm
• Manufacturing Principles：Glue Tank Overhead
• Customized：Customized
• Transport Package：Wooden Case
• Specification：3CBM
• Trademark：QDZD
• Origin：China
• HS Code：84659400
• Production Capacity：500sets,Year

Basic Info.

Model NO. MF450A Panel Thinkness 10-60mm Min.length panel 120mm Min.width panel 50mm Manufacturing Principles Glue Tank Overhead Customized Customized Transport Package Wooden Case Specification 3CBM Trademark QDZD Origin China HS Code 84659400 Production Capacity 500sets/Year

Product Description

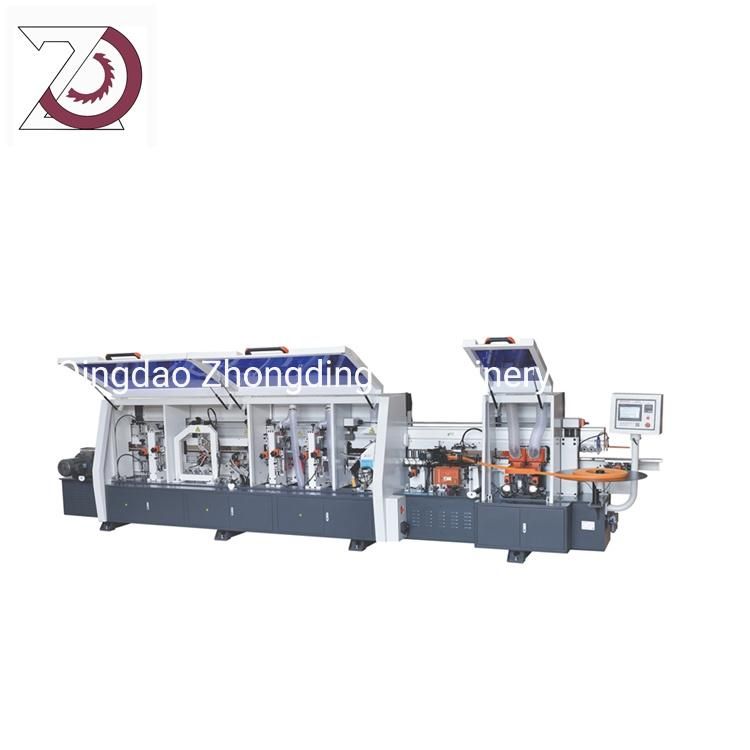

High quality woodowrking edge banding machine with corner rounding
Specification:

Banding tape thickness	0.4-3mm
Banding tape width	12-65mm
Work piece thickness	10-60mm
Work piece length	≥100mm
Work piece width	≥50mm
Heating power	1.8kw
Feeding motor power	3.7kw

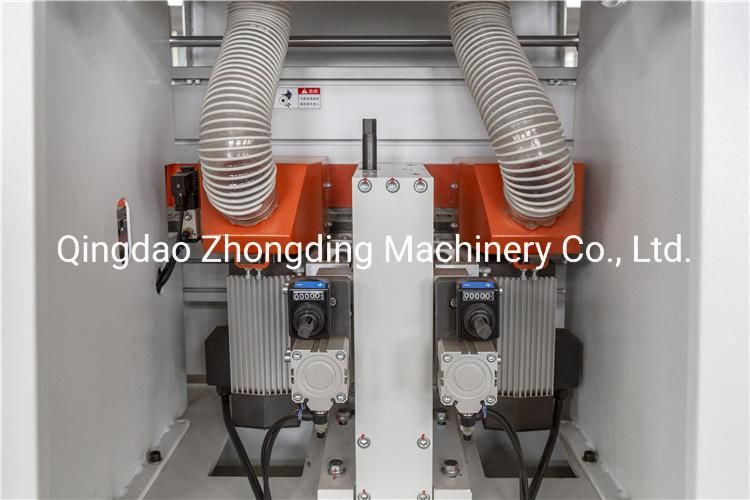

Pre-milling motor power	2.2kw*2
Glue spreading motor power	0.75kw
Rough trimming motor power	0.75kw*2
End trimming motor power	0.55kw*2
Corner rounding motor power	0.5kw*2
Fine trimming motor power	0.75kw*2
Polishing motor power	0.37kw*2
Feeding speed	10-23m/min
Air pressure	0.8 Mpa
Total power	16.39kw
Overall dimension	6700*850*1520mm
Packing size	6730*880*1580mm
N.W.	2800kgs
G.W.	2950kgs

Feature:

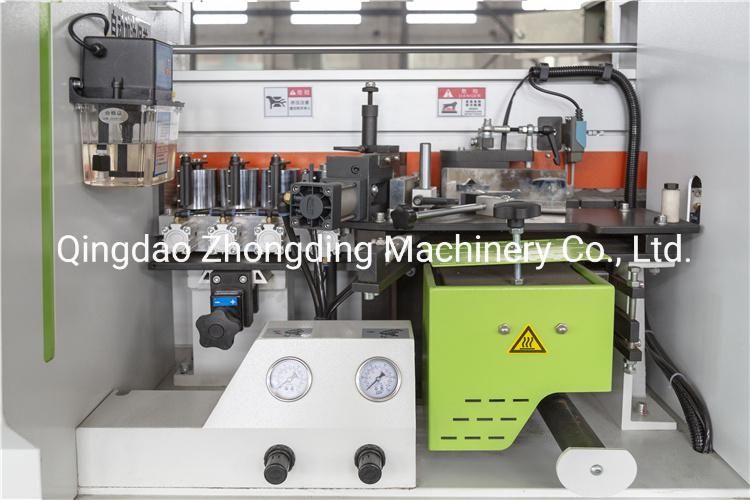

  1.The glue mechanism adopts a special structure to gelatinize the plates and costing materials uniformly, ensure a more solid conglutination.
  2.End trimming mechanism through a precise guide track movement; adopt automatic tracking and high frequency motor fast cutting structure to ensure the cutting surface smoothly.
  3.Fine trimming mechanism is used for repairing the excess edge materials, adopt automatic tracking and high frequency motor fast cutting structure to ensure thetrimming plates smoothly.
  4.Scraping unit is for a perfect finishing of the applied edge.

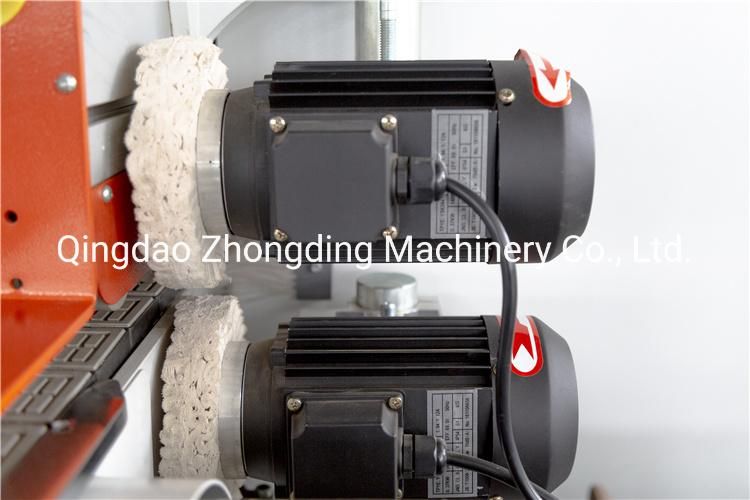

  5.The buffing device adopts the board processed by cotton polishing wheel, by end polishing to make a more smooth surface.

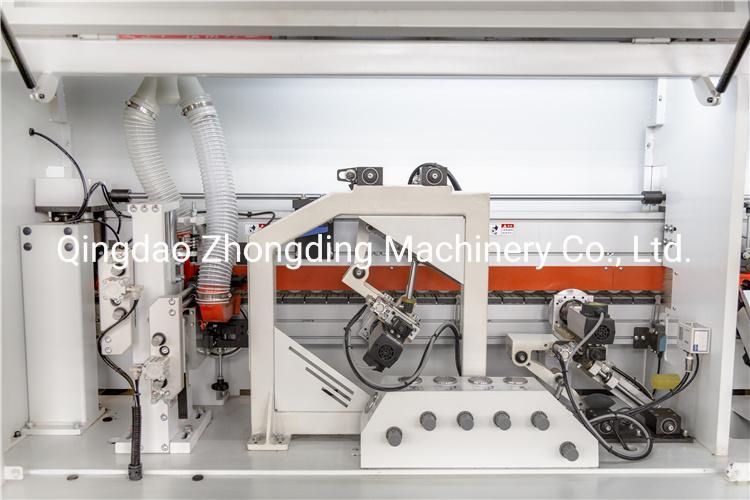

Product details:








Other information:
1) Term of payment: T/T, 30% deposit and the balance is paid before delivery
2) Delivery: 25days
3) Machine voltage: optional
4) Warranty: 1 year
5) MOQ: 1 Set
6) OEM service is ok
7) HS code: 84659400

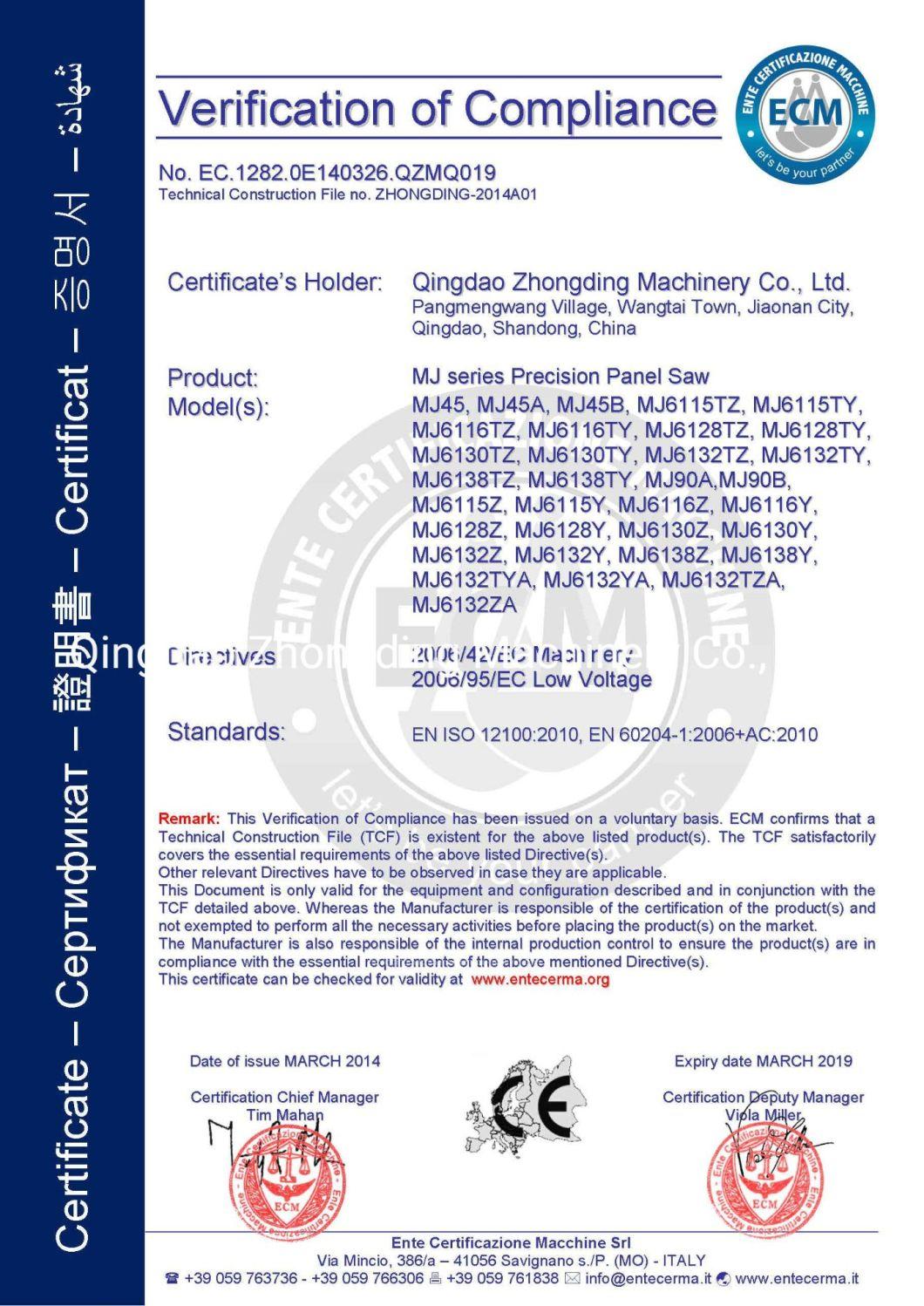

8) Certificate: CE&ISO 9000 Certificate

Qingdao Zhongding Machinery Co., Ltd is a leading company of specializing in manufacturing and exporting woodworking machine, and we are able to offer professional woodworking machines to customers. Our company has professional technology, full range of testing lines and pipelining, and four professional production lines of woodworking machine. It is located by the beachside of the Yellow sea, which is a place of strong competitive power, beautiful natural environment, and easy traffic of air, land and sea transportation.
Our products mainly include Precise Panel Saw, Edge Banding Machine, Multiple Drilling Machine, Press Machine etc., which have been exported to lots of countries and regions, such as Europe, Russia, Southeast Asia, Middle East, North America, and Australia.
We have established complete sales system. Our company takes the principle of quality first and customer foremost and we are strict with quality control. Meanwhile, we develop and manufacture new products positively, and provide perfect pre-sale and after-sale services. At the same time, our company has got ISO9001 international system certificate and CE security certificate.
  Qingdao Zhongding Machinery is looking forward to establish long-term strategic cooperation relationship with you and offer you high quality products and perfect service system.
