Woodworking Machinery

Four/ Two/ One Side Rotatry Hydraulic Composer/ Jointer/ Two Sides Wood Heating Jointer

Qingdao Xinlihui Machinery Co., Ltd.
  • Certification:CE, ISO, FDA
  • Machine Item:Four, Two, One Side Rotatry Hydraulic Composer
  • Machine Painting Color:Be Made According to Your Need
  • Package:Safe Wooden Box or Plastic Film Wrapping
  • Price:More Competitive Price Than Other Competitors
  • Voltage:380V, 220V 50herz, Can Be Customized

Base Info

  • Model NO.:MH5200
  • Delivery Detail:Quick Delivery in 15days
  • Warranty Time:Offer Free Spare Parts and Service Within 12 Month
  • Working Experience:Twenty Years′ Experience
  • Max Working Length:5200mm
  • Max Working Width:1300mm
  • Transport Package:Standard Package, Be Made According Cutomer Need
  • Specification:5600*2200*2220
  • Trademark:XINLIHUI Wood plate , wood board, wood panel mac
  • Origin:Qingdao City
  • HS Code:84659100
  • Production Capacity:100,Week

Description

Basic Info.

Model NO. MH5200 Delivery Detail Quick Delivery in 15days Warranty Time Offer Free Spare Parts and Service Within 12 Month Working Experience Twenty Years′ Experience Max Working Length 5200mm Max Working Width 1300mm Transport Package Standard Package, Be Made According Cutomer Need Specification 5600*2200*2220 Trademark XINLIHUI Wood plate / wood board/ wood panel mac Origin Qingdao City HS Code 84659100 Production Capacity 100/Week

Product Description

1 Introduction:
Double-sided electric heating composer is our company's latest original technology, mainly for large thick plates, solid wood furniture, finger joints. Faster speeds are required, and new products are produced that produce a plate every two or three minutes, resulting in faster and more efficient production.

2 Detail parameters
max working length5200mm
max working width 1300mm
max working thickness150mm
up cylinder boreΦ80mm
up cylinder quantity14 pieces
side cylinder boreΦ40mm
side cylinder quantity14 pieces
side lifts cylinder boreΦ63mm
side lifts cylinder quantity4 pieces
power 380v 50z
hydraulic motor power7.5kw
fixed voltage16Mpa
overall size5600*2200*2220mm
weight 7200kg

Detail machine pictures, all photoes are for 100% real shooting !Four/ Two/ One Side Rotatry Hydraulic Composer/ Jointer/ Two Sides Wood Heating Jointer
Four/ Two/ One Side Rotatry Hydraulic Composer/ Jointer/ Two Sides Wood Heating Jointer

4  Main Feature:

 1 thickness is 30MM plate heating time 3-5 minutes.
  2 hydraulic core system: hydraulic pump, hydraulic cylinder, all imported.
  3 advanced large-scale electrical automatic system, the operation is extremely fast.
  4 hydraulic system has a unique automatic pressure compensation function, which is the ideal equipment for the jigsaw line.
  5Using the international leading automatic core technology heating system, the heating speed is faster, the heat walking is more uniform, the temperature is automatically raised, and the temperature is automatically controlled.
  6 equipment panel plane has CNC gantry milling processing, sanding allowance between 0.5-1MM, which greatly saves wood.
  7 Heating method: The automatic electric appliance control adopts the circulating double-sided heat pipe splint method, and the thermal cycle controlled by the electrical system is evenly spread on the wooden board, and the plate taking speed is faster, the flatness is better, and the maximum temperature can reach more than 200 degrees.
  8 internationally unique hydraulic system and heating system independent partition processing technology.

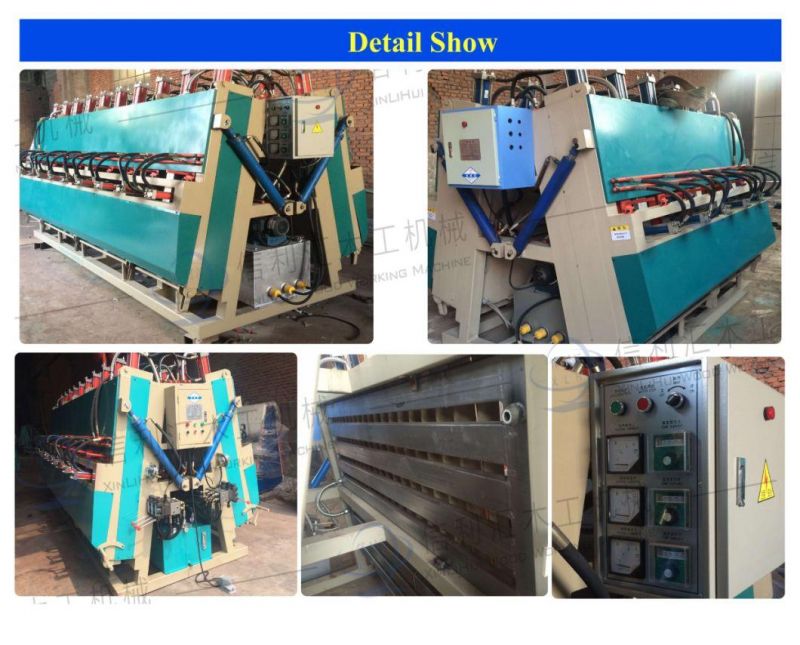

5, Deatil show



Four/ Two/ One Side Rotatry Hydraulic Composer/ Jointer/ Two Sides Wood Heating Jointer


Four/ Two/ One Side Rotatry Hydraulic Composer/ Jointer/ Two Sides Wood Heating Jointer

8, Company Information
Qingdao  Xinlihui Machinery Co., Ltd is one of the large-scale woodworking machinery manufacturer in China. The company is located in Wangtai town.

Our company is a comprehensive enterprise which is specialized in research and development, design, manufacturing, sale and service. With advanced production equipment and professional technical staff of research and development, and management. Which is formed a unique management model and the standardization of production process.

The leading products of woodworking products are CNC router, panel saw series, sanding machine series, woodworking drill machine, Pur wrapping machine, paper sticking machine, vacuum laminating machine, edge banding machine, computer engraving machine and the other series and over sixty standards.  With the scientific management, unique technology, and innovative products to meet customer demands. Our products get a very high reputation from our customers at home and abroad.  Our products are sold across the country and to Russia, Ukraine, Middle-East, South Africa, Southeast Asia, Central Europe and the other countries and areas. We have earned the trust of customers and our product process is in the leading level among the same industry of domestic.  It creates a famous brand called "XINLIHUI" and our products sell well both at home and abroad. It is the most trusted brand to our customers.
We would like to work a new win-win development with the insight colleagues and we welcome all the new and old friends to visit our company and crest a brilliant tomorrow together.
