Hydraulic Hot Press Machine for Plywood Door Veneer Making
Qingdao Zhongding Machinery Co., Ltd.- Warranty：1 Year Since Received Machine
- Work Forms：Hydraulic Pressure
- Processing Technics：Hot Press
- Structure：Frame Type
- Pressing Shape：Moulding Press
- Platen Surface Pressure：High Pressure
Base Info
- Model NO.：MH124
- Pressing Layer：Multi Layer
- Work Mode：Continuous
- Controlling Mode：CNC
- Automatic Grade：Automatic
- Certification：CE, ISO
- After-sales Service：Video Technical Support, Online Support
- Number of Layers：5
- Dimension of Hot Platens：1300*2500mm
- Max Service Opening：80-120mm
- Transport Package：Wooden Box
- Specification：2860mm*1300mm*2350mm
- Trademark：Zhongding
- Origin：China
- HS Code：8465920000
- Production Capacity：50 Set,Month
Description

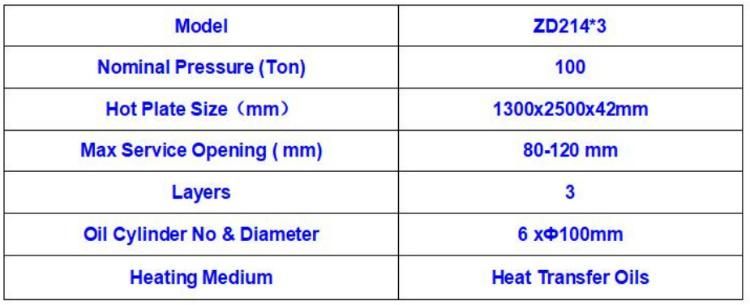

Model
Normal Pressure
Dimension of hot platen
Service opening
Power
Number of cylinders
Heating media
ZD214*8/16(6)H
160T
1300*2500mm
80_120mm
ZD214*8/20(5)H
200T
1500*3000mm
5.5KW
10
Thermal oil or steam
ZD214*8/10(1)H
100T
1400*2600mm
80-120MM
18KW
ZD214*8/12(3)H
120T
1300*2500mm
80-120MM
37.5KW
ZD 214*8/20(6)H
200T
1400*4000mm
80-120MM
49.5KW
(1) Pre-sale services:
* Provide the free consultation of the equipment .
* Provide the standard device and the flow chart.
* According to the clients' special requirement, offering the reasonable plan and free design helping to
select the equipment.
* Welcome to visit our factory.
(2)Services during the sales:
* Inspect the machine before leaving the factory.
* Oversea install and debug the equipment.
* Train the first-line operator.
(3)After sale services:
* 24 hours online service.
* Provide the VIDEO with Install and debug the equipment.
