• Model NO.：JC4015-5AXIS
• Customized：Customized
• Condition：New
• Color：Customized
• Product Name：5 Axis CNC Manufacturer Atc Router Machine
• Structure：Thick Steel Wall Structure
• Spindle Power：10,15kw
• Table：No
• Working Area：4000X15000X1500mm
• Driving System：Servo Motor and Driver
• Inverter：Delta
• Option：3D Scanner
• Transport Package：Wrapped with Protection Film,Fasten by Metal Wires
• Specification：customized
• Trademark：CHAODA
• Origin：China

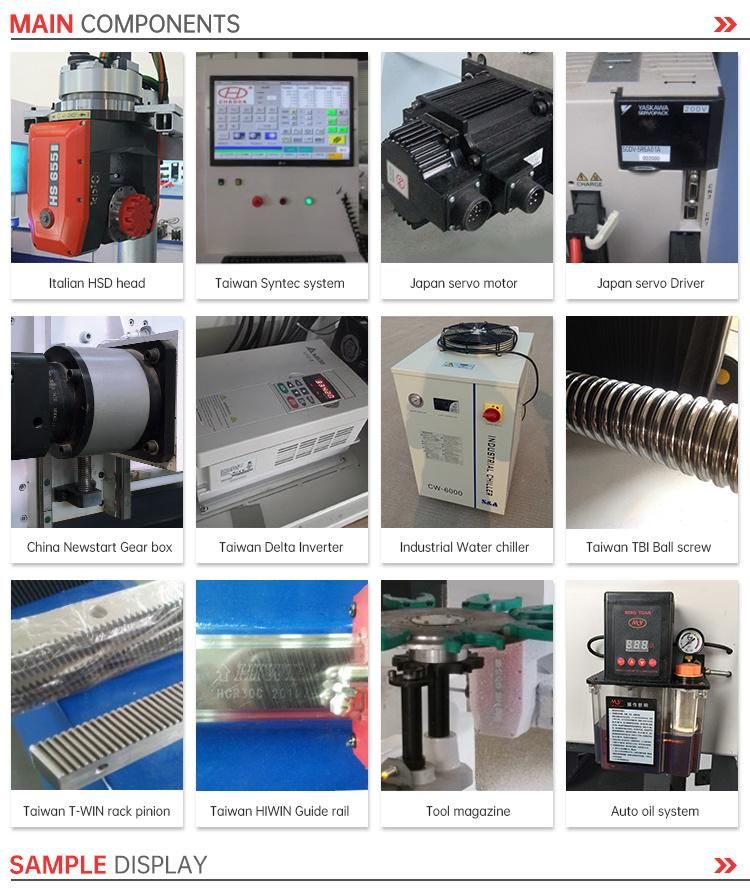

Model No.JC4015-5AXISX,Y,Z,A,C working size4000*15000*1500mm* ±120°* ±245°Whole structureheavy duty steel wall structureTable surfacenoSpindle10KW/15KW ATC spindle, cooled by liquidTool magazine Disk type automatic tool changer, with 8pcs tool magazine Driving systemJapan YASKAWA servo motor and driverInverterDeltaOperating system5 axis Syntec (option:OSAI) Operation languageG codeWorking voltageAC380V, 3-phase, 50HzRunning environmentTemperature: 0ºC-45ºC; Relative humidity:30%-75%

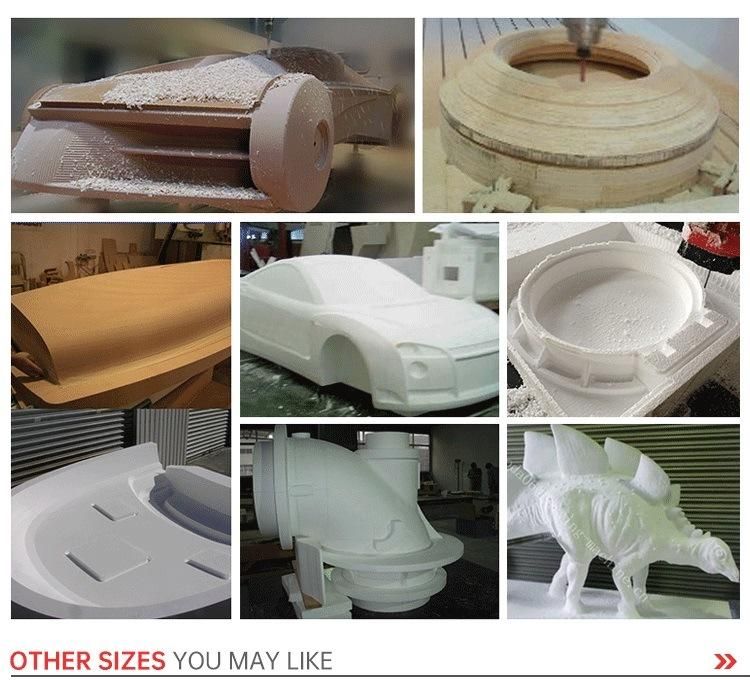

It can process many materials,like eps foam,woods, MDF, Composite boards, Alucobond,PVC, Rigid plastics,polyester,
fiberglass, Acrylic,Organic glass, Aluminum,etc.









1. Sample testing before shipment
2. Provide 2 days free training for each machine
3. 12 months warranty for each machine
4. Friendly English version manual and operation videos for studying
5. Free technical support by phone,email,chatting or remote
6. Engineers available to service machinery overseas
