Woodworking Pneumatic Veneer Clipper Wood Cutter Machine

Qingdao Zhongding Machinery Co., Ltd.

Type：Pneumatic Veneer Clipper
Automatic：Automatic
Certification：CE, ISO
Transport Package：Option
Specification：19cbm
Trademark：QDZD

Base Info

Model NO.：MQJ420
Origin：Qingdao
HS Code：84659600
Production Capacity：500 Sets

Description

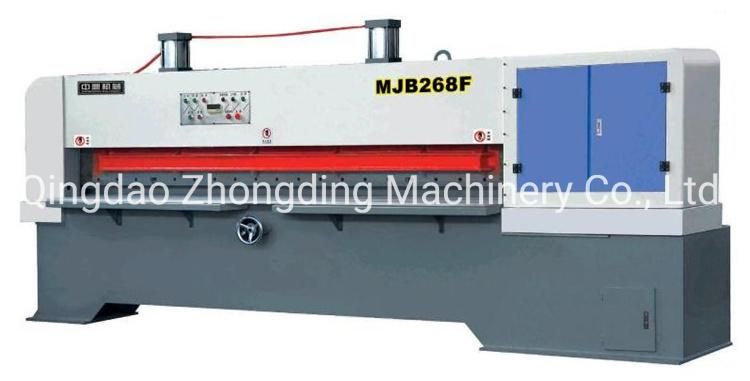

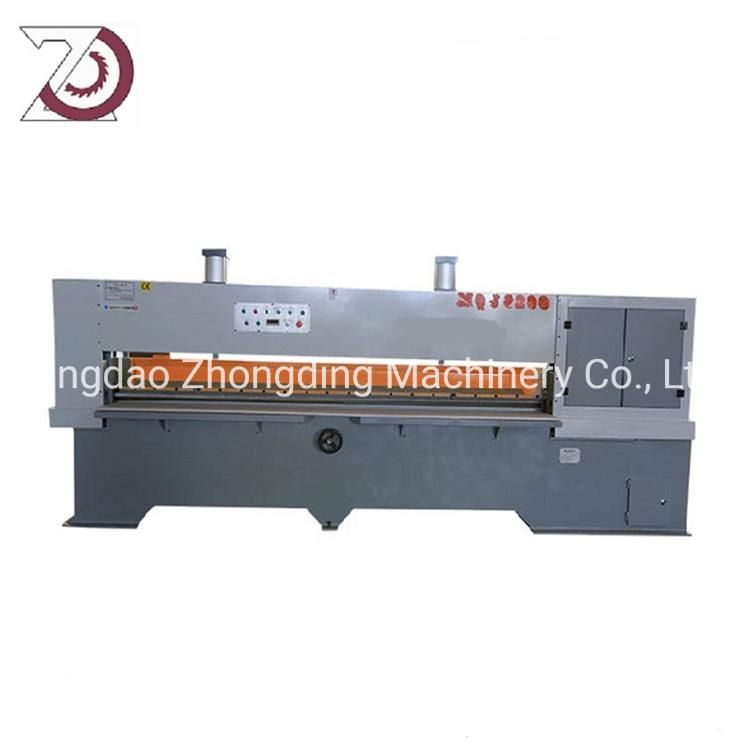

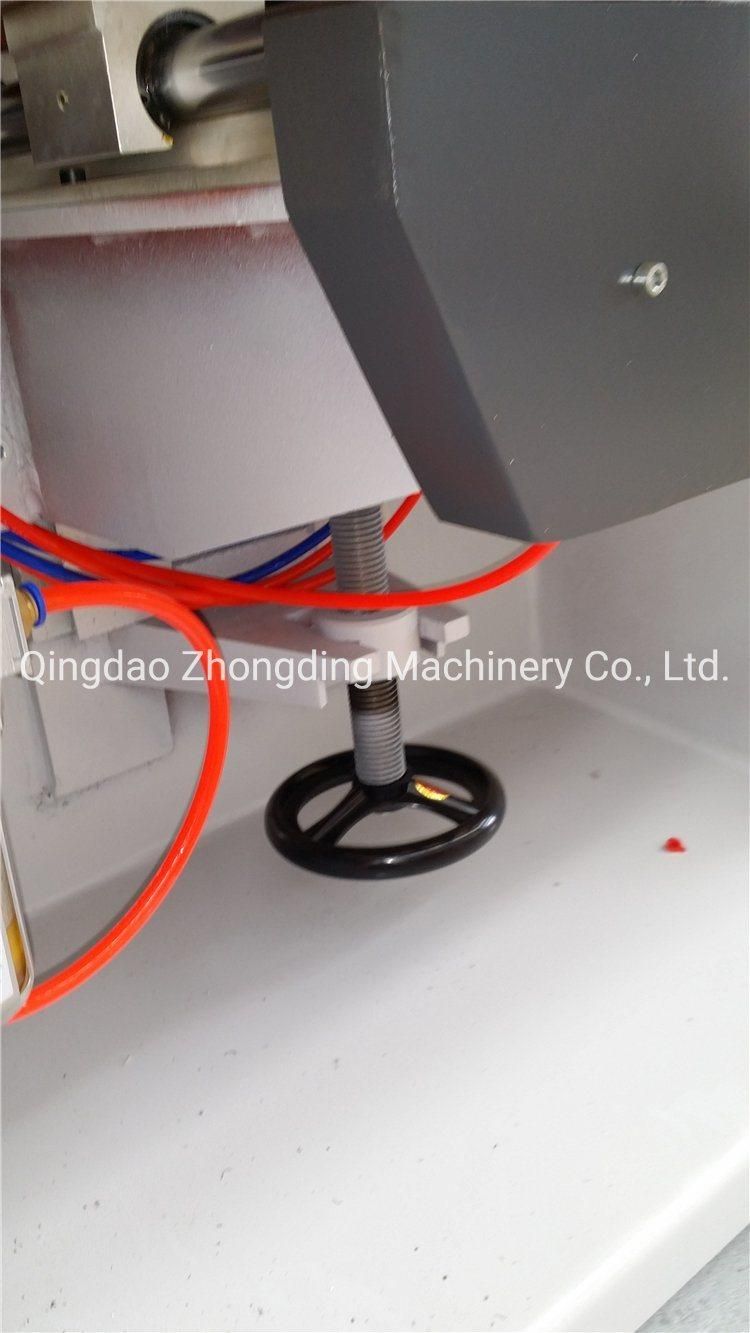

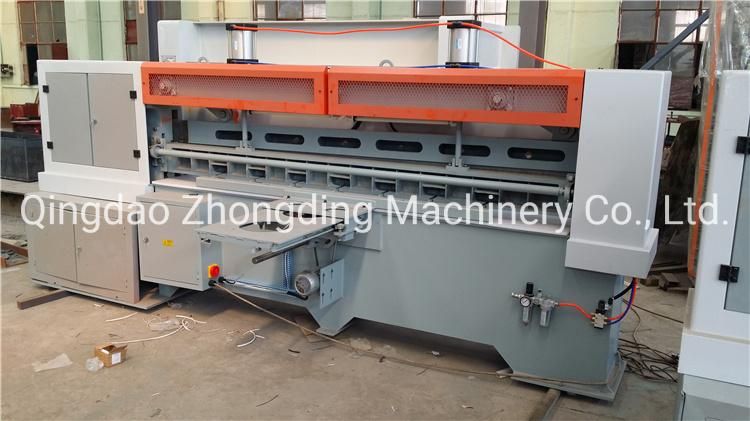

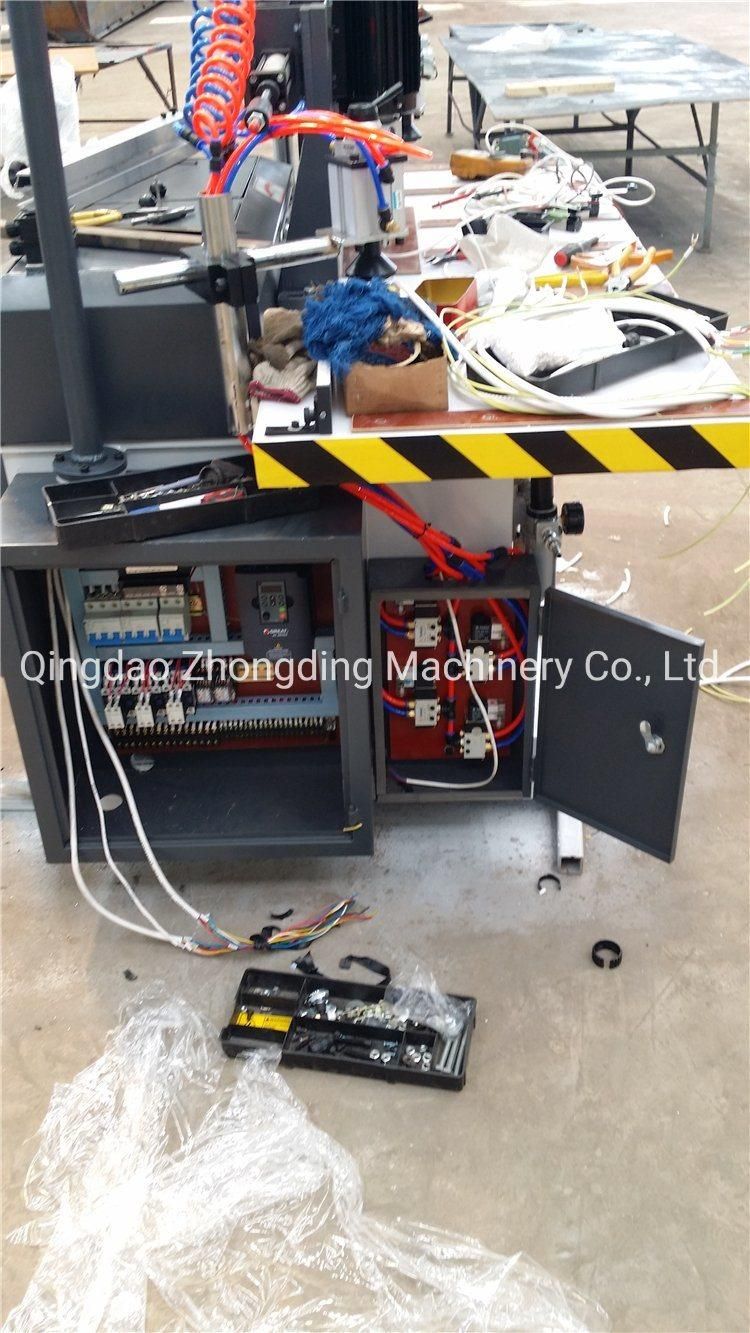

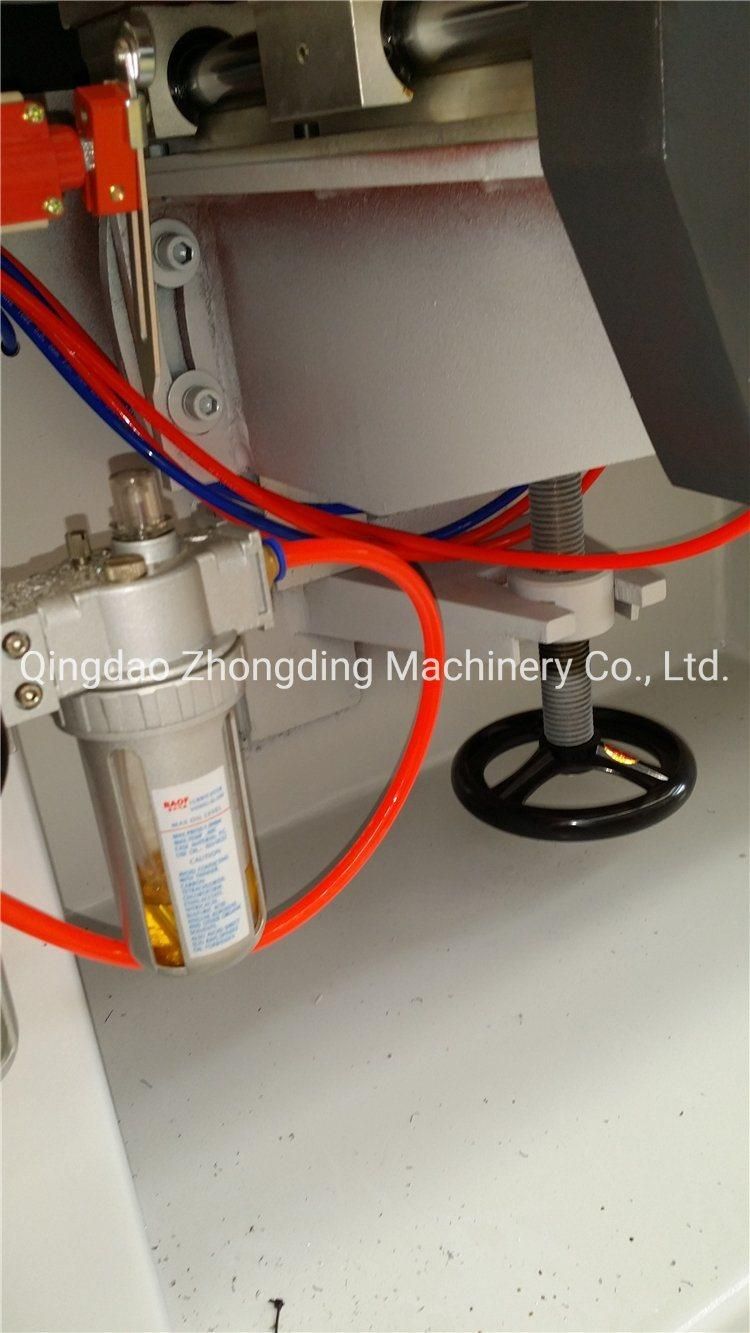

ModelMQJ420MQJ320MQJ268MQJ150Max cutting length(mm)4200310026801500Max cutting thickness(wet veneer)(mm)40404040Max cutting thickness(dry veneer)(mm)20202020Scissors size(mm)4200*145*163200*145*142750*125*141500*105*14Feed motor power(kw)4.373.373.372.57Compressed air pressure (Mpa)0.4-0.70.4-0.70.4-0.70.4-0.7Overall dimension(mm)5700*1600*21004700*1500*20004100*1400*19002900*1400*1900Weight(kg)3500300025002000Picture:

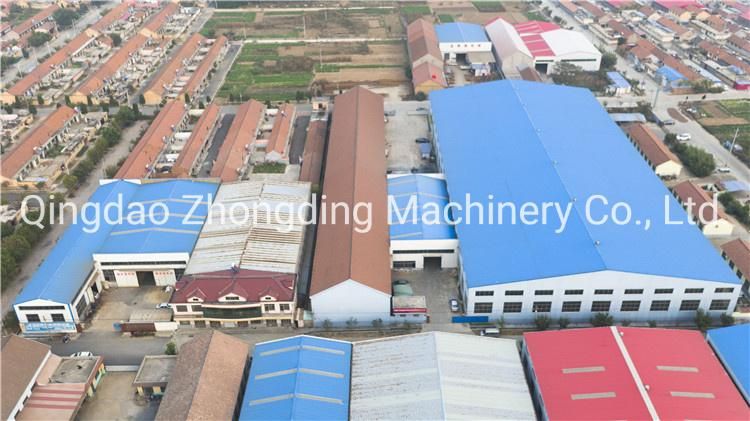

Our company:
