B-R-RP1300 Heavy Duty Woodworking Machinery Wide Belt Planer Sander Machine

Shanghai Win Star Woodworking Machinery Co., Ltd.
  • Type:Planer Sanding Machine
  • Automatic:Automatic
  • Certification:ISO
  • Name:Planer Sanding Machine
  • Model:B-R-RP1300
  • Total Motor Power:79.05kw

Base Info

  • Model NO.:B-R-RP1300
  • Feeding Speed:6-30m,Min
  • Max Working Width:1300mm
  • Max Working Thickness:3-110mm
  • Weight:4500kg
  • Transport Package:Wooden Case
  • Specification:2800*2100*2100mm
  • Trademark:HiWinstar
  • Origin:China
  • Production Capacity:100set,Month

Description

 B-R-RP1000/1300 Planer sanding machine   Working wide 1000/1300mm First motor  15/22kw Min.Working length 500mm Second motor 15/30kw Working thickness 3-110mm Third motor 11/22kw Feeding speed 6-30m/min Feeding motor 1.5/4.5kw Abrasive belt size 1020*2020/1320*2220mm Lifting motor 0.37/0.55kw Overall dimensions 2800*1800/2100*2100mm Working air 0.6Mpa Weight 3600/4500kg Volume of dust 8000, 9600, 14000m³/h

Features
1.The feed speed is controlled by frequency conversion.
2.Large cutter head thickened heavy planer shaft.
3.The front sand frame steel roller is adjusted with the eccentric shaft.
4.The planer roller system is equipped with an anti-overload emergency stop function, and the blade is not easily damaged.
5.Open the front panel of the machine to replace the blade, no space restrictions, more convenient and quick.
6.The rear sanding rubber roller is equipped with high-center adjustment, and the height and sanding thickness can be flexibly adjusted and controlled.

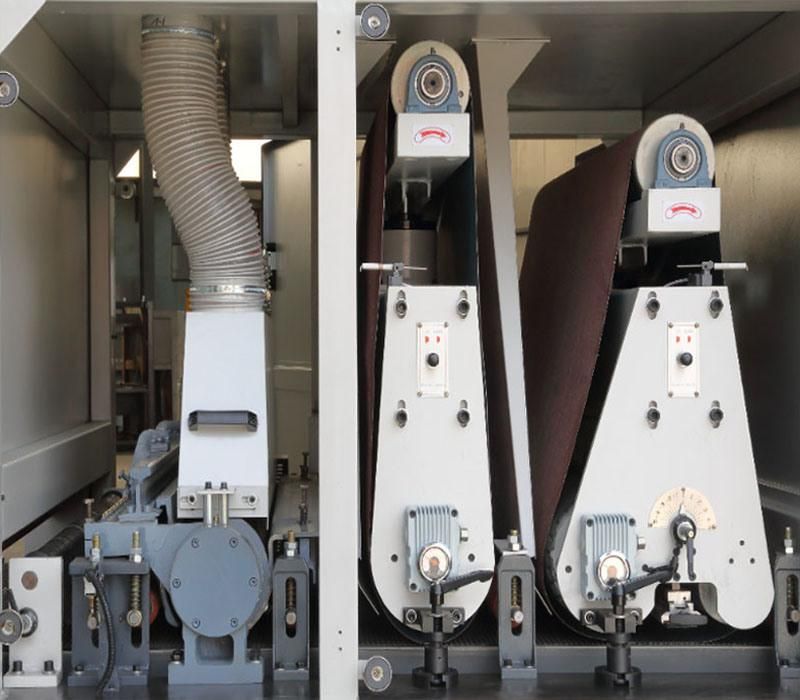

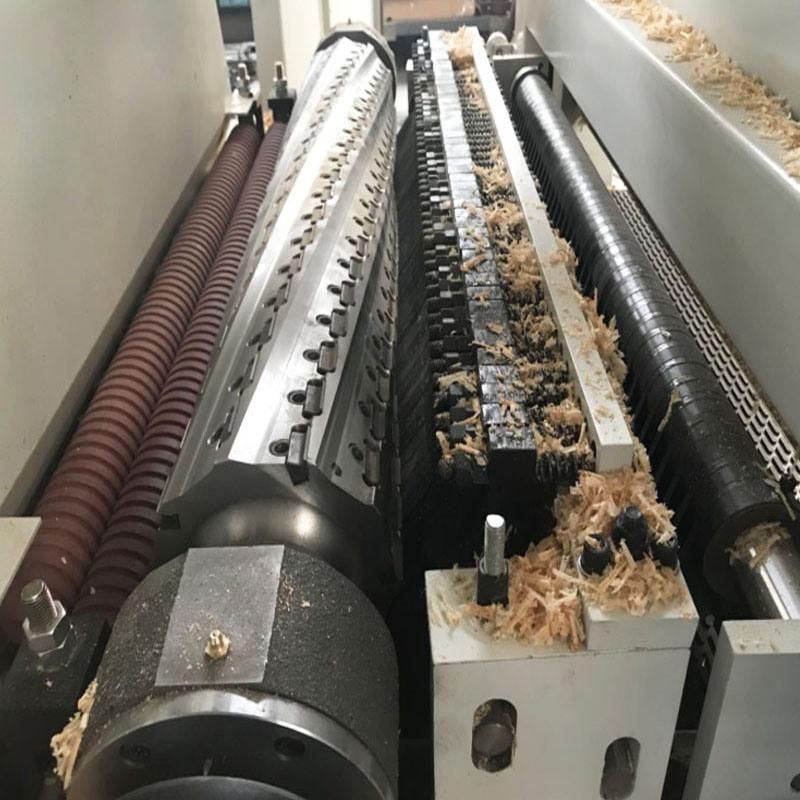

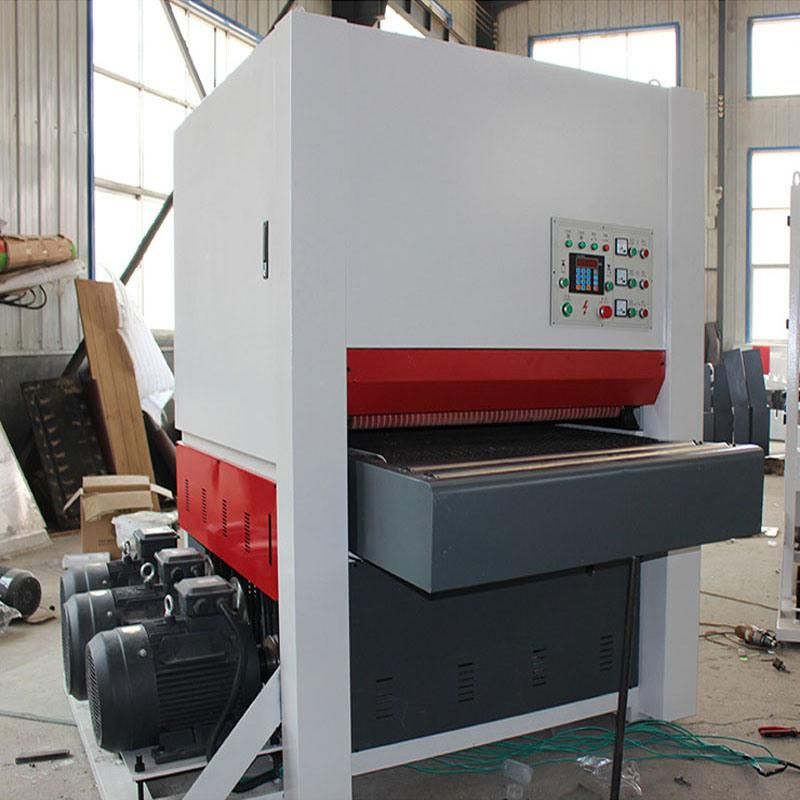

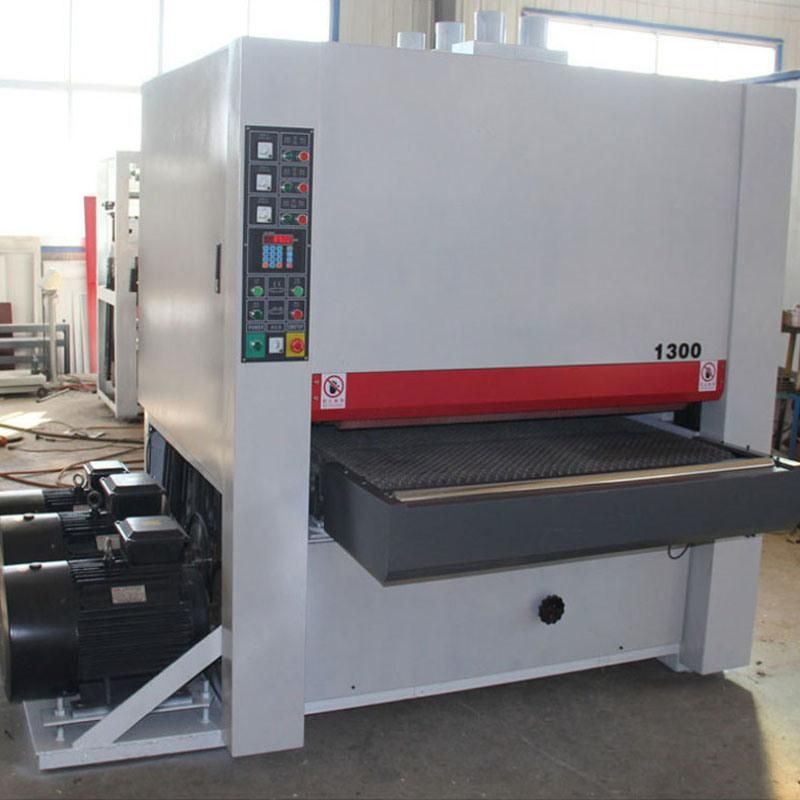

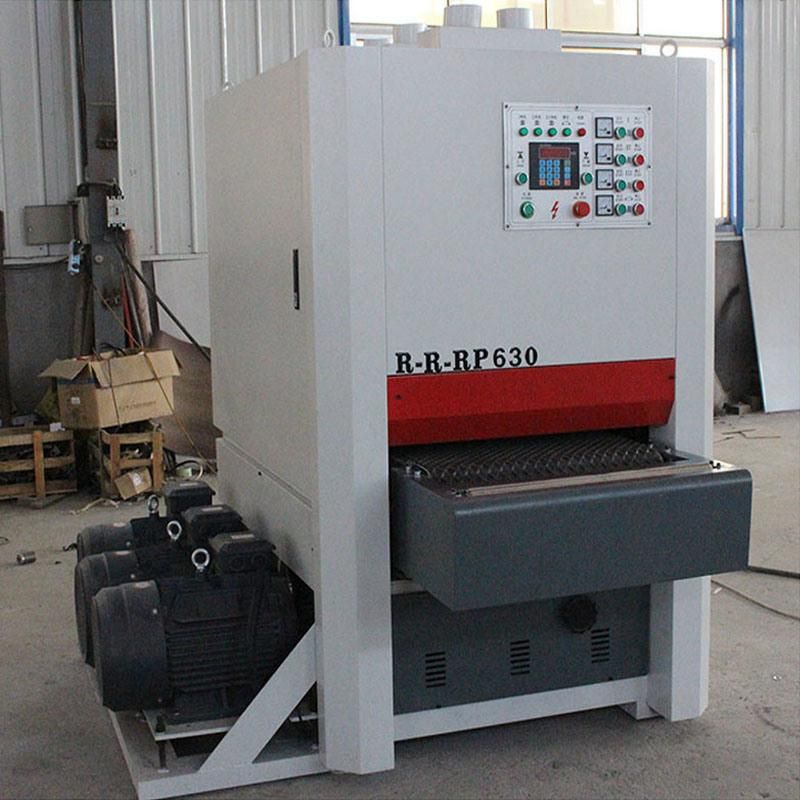

Detailed Pictures
B-R-RP1300 Heavy Duty Woodworking Machinery Wide Belt Planer Sander Machine
B-R-RP1300 Heavy Duty Woodworking Machinery Wide Belt Planer Sander Machine
B-R-RP1300 Heavy Duty Woodworking Machinery Wide Belt Planer Sander Machine
B-R-RP1300 Heavy Duty Woodworking Machinery Wide Belt Planer Sander Machine
B-R-RP1300 Heavy Duty Woodworking Machinery Wide Belt Planer Sander Machine
Application

Suitable for heavy sanding, required processing technology.
B-R-RP1300 Heavy Duty Woodworking Machinery Wide Belt Planer Sander Machine

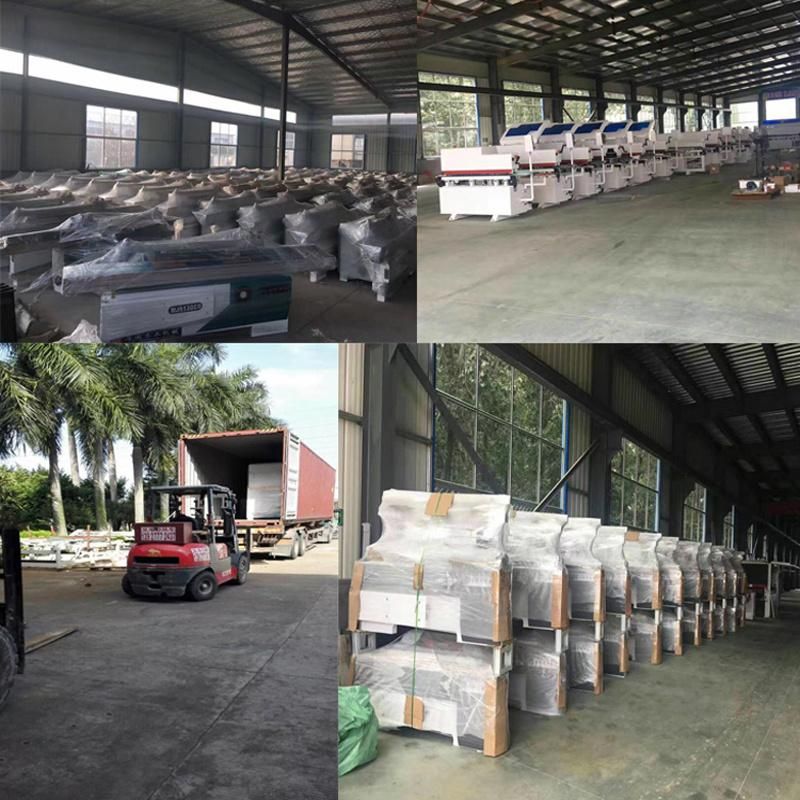

Packaging & Shipping
B-R-RP1300 Heavy Duty Woodworking Machinery Wide Belt Planer Sander Machine
B-R-RP1300 Heavy Duty Woodworking Machinery Wide Belt Planer Sander Machine
Company Information

B-R-RP1300 Heavy Duty Woodworking Machinery Wide Belt Planer Sander Machine
B-R-RP1300 Heavy Duty Woodworking Machinery Wide Belt Planer Sander Machine
FAQ
1,Can you offer good price with fine quality also?

Surely,if without quality,we cannot win long market.we will loose long-terms customers.Quality is our responsibility.we must produce and test machine well.Becasue we are always expecing long term business.Regarding the price.
we are not sure if it is lowest or highest,But we will be offering reasonble.We don't want heavy profits,we want a acceptable price to you,and we are expecting a bigger quantities of sales for different wood machines

2,We will be protetcted if we are paying for orders?

Surely yes,we have been exported 1000000$ different wood machine every year,We received the payment,we should produce for you and ship to you without delay. It is honesty and reputy.We could understand that you paid,you want to see machines soon and use soon. and these years alibaba trade assurance you could rely on,you will be protected very well.


3,What's your warranty? can you do more service for us? we wish woud be protected after purchasing machine.
We are pleased to give life continious aftersales service. within 12 months, if spareparts broken,we will send you new for change. we would like to help to solve any troubles when you use machine at any time.and don't be worried,we will keep opening 24 hours for all customers problem or difficilaty. we must help to make solutions within 48 hours .

4,What's your production time? we want faster shipping time also.

mostly machine we have in stock, some machine we produce need about 7-10days. make fast shipment always. shipping time depends on shipping company.
