• Model NO.：S200
• Lubrication System：Automatic
• Control System：Syntec, Osai
• Transport Package：Plywood Case Package
• Specification：1800KG
• Trademark：Mars
• Origin：China
• HS Code：84659900
• Production Capacity：300 Sets,Month

Basic Info.

Model NO. S200 Lubrication System Automatic Control System Syntec/ Osai Transport Package Plywood Case Package Specification 1800KG Trademark Mars Origin China HS Code 84659900 Production Capacity 300 Sets/Month

Product Description

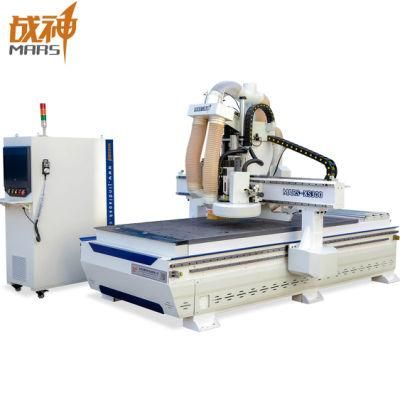

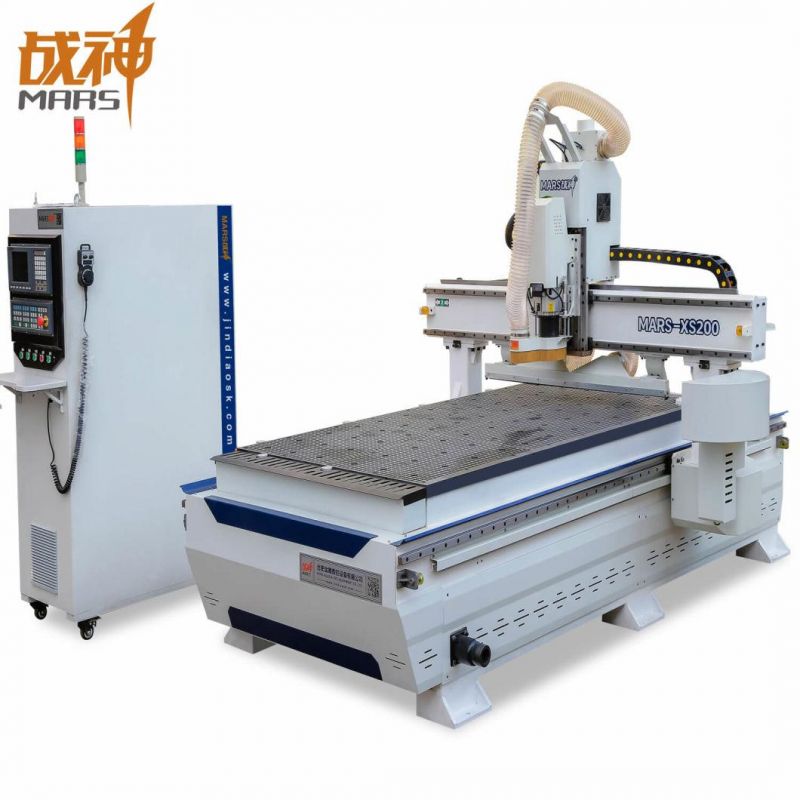

S200 ATC Change Holder with CE Approved Acrylic Board CNC Machine for Wooden Doors
Keywords: 15 years experience of production
                          ISO9001:2008, CE, SGS, AAA Level Enterprise which Honors Contract
                          Three Brand: Mars, Golden Eagle,Borio

Technical Parameters:


Model	Disc Type ATC CNC Machining Center
Working Stoke	1300*2500*100mm
Body Structure	Thick-walled steel tube welded
Spindle Power	HSD 9KW air cooling spindle
Spindle Speed	0 ~ 24000 rpm/min
Tool Magazine	Carrousel, 8pcs
Control System	Syntec/ Osai
Drive System	Yaskawa/ Delta servo motor
Lubrication System	Automatic
Transmission	XY axis rack and pinion, Z axis ball screw
Guide Rail	Taiwan Hiwin rectangular linear rail
Vacuum Pump	5.5KW
Max Travelling Speed	50m/min
Max Processing Speed	30m/min
Dictate Format	G code/ HPGL
Working Accuracy	±0.02mm
Re-positioning Accuracy	±0.05mm
Support Software	Professional cutting optimization software
Working Voltage	AC380/ 3PH/ 50HZ
Net Weight	1800KG
Machine Size	2200*3600*1800mm

Machine Main Parts:

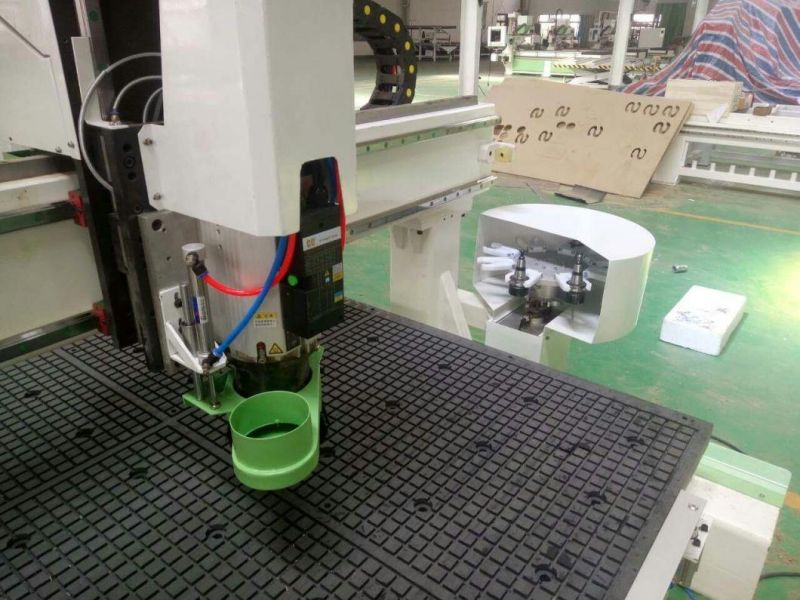

1. Spindle Power: HSD 9KW air-cooling spindle, with 8pcs disc type tools magazine.
2. Drive System: XYZ Japan Yaskawa servo motor drive, Z-axis with brake.
3. Control System: Taiwan Syntec.
4. Converter: Zoncn/ Fuling brand.
5. Cylinder: 5pcs Positioning Cylinders.
6. Transmission: Taiwan 25mm Hiwin square guide rails, lifetime free-lubrication, high precision helical rack gear.
7. Beam: Reinforcing steel structure.
8. Cable: MARS special shielded cables for drag chain, anti-static, anti-interference, with good bending resistance.
9. Limit Switch: Japan Omron.
10. Electrical Components: French Brand;
11. Body Structure: Heavy-duty integral welding steel structure, with tempering aging treatment, which ensure the body durable and never deformation.
12. Table Structure: Overall steel truss structure, good stability, with no distortion. Vacuum table plus automatic positioning.
13. Vacuum Pump: 5.5KW.
14. Software: Be compatible with G-code NC file.







Applicable Scope:

Cabinet doors, wooden doors, solid wood, panels, doors, windows, tables, chairs, folding screens, waved plate, large wall hangings, advertising boards, sign makings

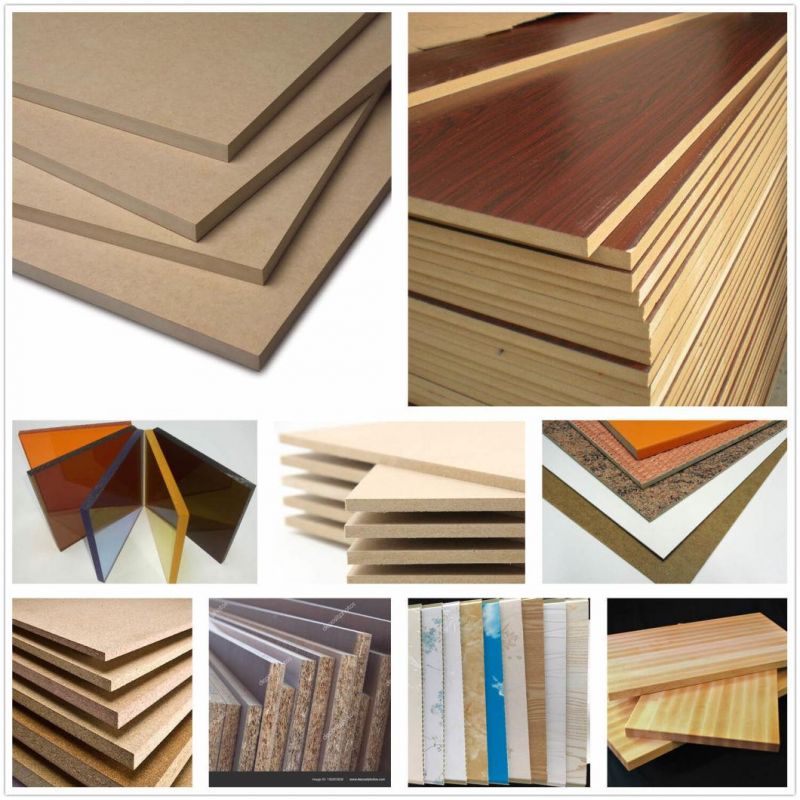

Applicable Materials:
Artificial stone, wood, bamboo, marble, organic board, color plates and other materials.

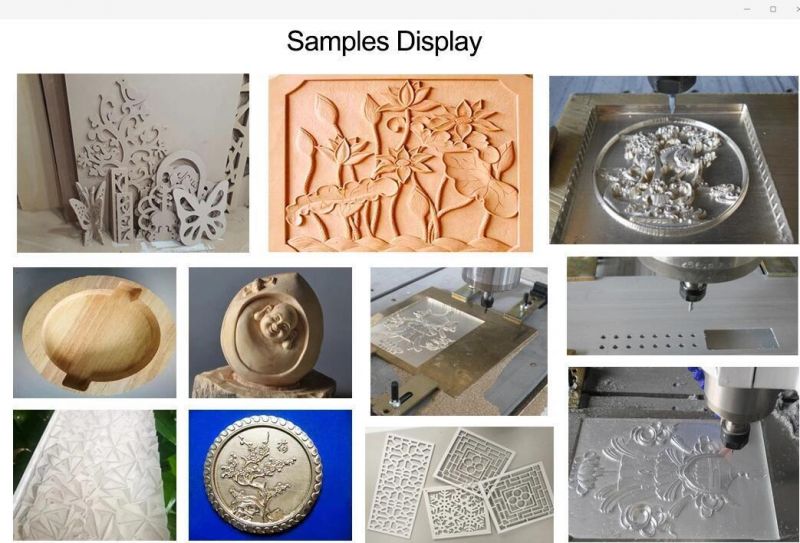

Sample :

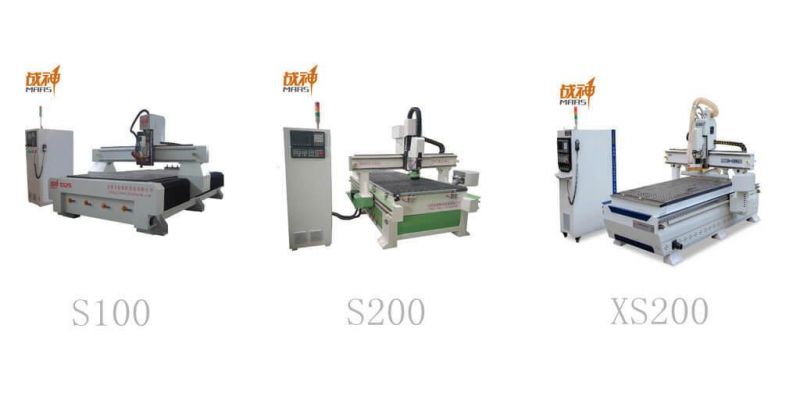

Similar Products :
