• Model NO.：CR4
• Model No.：CR40
• Table size：1380X2750mm
• X working area：1300mm
• Max. Working Speed：25000mm,min
• Spindle Power Motor：2X4.5KW and 2X6kw air cooling spindle motor
• Working voltage：AC220V,380V 50,60Hz
• Y working area：2500mm
• Control System：Taiwan LNC2200 controller system
• Max. Rapid Travel Rate：45000mm,min
• X,Y ,Z Structure：German gear wheel for XY axis, Taiwan TBI ball SCR
• Max power consumption：≤20kw
• Traveling Positioning Accuracy：±0.05mm
• Repositioning Positioning Accuracy：±0.05mm
• Guide rail：Longma 25mm square rail
• Control cabinet：independent cabinet
• Transport Package：Plywood Case or Film Package
• Specification：1300X2500X1500MM
• Trademark：ZICAR
• Origin：China
• HS Code：8465990000
• Production Capacity：300sets,Month

Basic Info.

Model NO. CR4 Model No. CR40 Table size 1380X2750mm X working area 1300mm Max. Working Speed 25000mm/min Spindle Power Motor 2X4.5KW and 2X6kw air cooling spindle motor Working voltage AC220V/380V 50/60Hz Y working area 2500mm Control System Taiwan LNC2200 controller system Max. Rapid Travel Rate 45000mm/min X,Y ,Z Structure German gear wheel for XY axis, Taiwan TBI ball SCR Max power consumption ≤20kw Traveling Positioning Accuracy ±0.05mm Repositioning Positioning Accuracy ±0.05mm Guide rail Longma 25mm square rail Control cabinet independent cabinet Transport Package Plywood Case or Film Package Specification 1300X2500X1500MM Trademark ZICAR Origin China HS Code 8465990000 Production Capacity 300sets/Month

Product Description

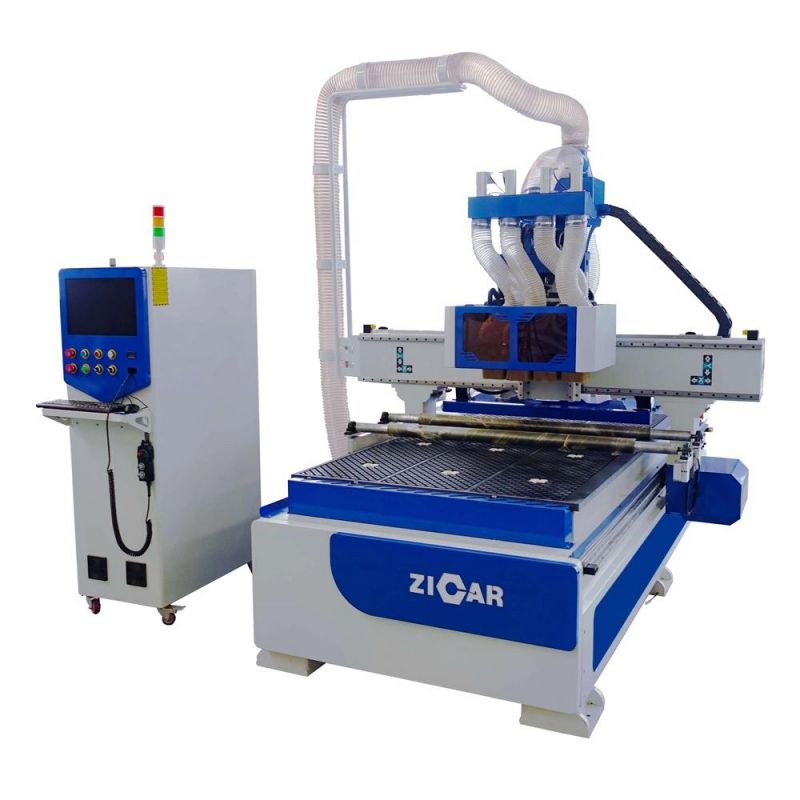

ZICAR Wood CNC Cutting Engraving Machine CR4



Features:

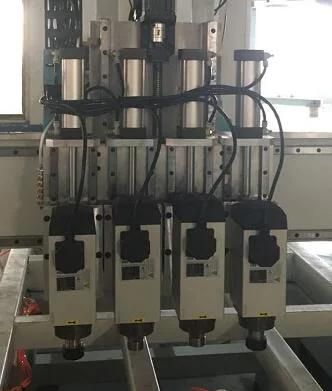

1.Engraving, drilling, cutting, leading edge, milling and so on, the four-step switching head, thetool change process without interruption, to achieve automation.

2.The positioning plate is faster and more accurate, which can effectively prevent unforeseen circumstances that may arise in the sheet feeding process.

3.Electric oil filling, automatic oiling can be set according to the time, to ensure the lubrication of the guide rail of the screw, and extend the service life.

4.Thickened and heavy-duty gantry, the steel plate is processed by precision cutting and planer, plus welding, to ensure that the gantry is durable and does not deform during work With intelligent,humanization and high automatic operation.

5.This machine can make the operator much more easier for handing all. Any people can learn in one of three hours for operation, can save costs of labor.
Product Parameters:


X Working Area	1300mm
Y Working Area	2500mm
Z Working Area	280mm
Table size	1380x2750mm
Traveling Positioning Accuracy	±0.05mm
Repositioning Positioning Accuracy	±0.05mm
Table Type	Vacuum table
Vacuum pump	5.5KW water vacuum pump
X,Y ,Z Structure	XY gear wheel, Z ball screw
Max. Power Consumption	≤20KW
Max. Rapid Travel Rate	45000mm/min
Max. Working Speed	25000mm/min
Spindle	2*4.5kw and 2*6.0kw air cooled spindle
Inverter	7.5kw INVERTER
Spindle Speed	0-18000rpm/min
Driver& Motor	XY axis with 750w and Z aixis with 1.8kw FEILIMEI servo motor,Z axis with Japan shimpo reducer
Command	G-code*.u00*.mmg*.plt
Working voltage	AC220V/380V 50Hz/60Hz

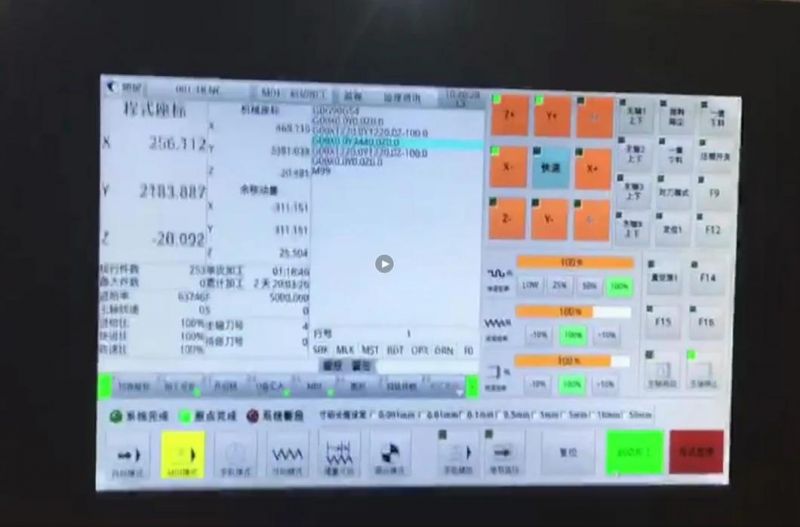

Control System	Taiwan LNC2200 controller system
Guide rail	Longma 25mm  Square rail (TAIWAN BRAND)
Control cabinet	Independent cabinet
N.W./G.W.	2300KGS /2900KGS
Packing Size	3300*2150*1850mm
Dust Collector with 2 bages	3.0kw dust collector with diamater 150mm
Auto Pressing wheel	Yes
Automatic feeding device	Yes

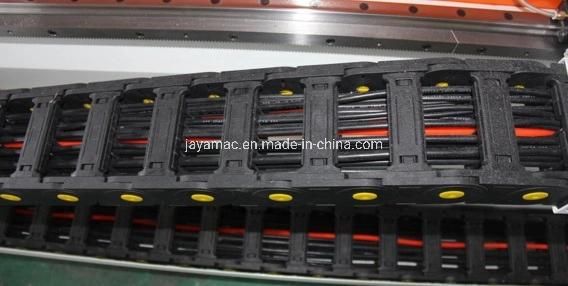

Details:

Packaging:
Application:

The machine is widely used in furniture processing industry, home decoration, wooden doors manufacturing.
Applicable industry: wood furniture, wooden crafts processing industry, suitable for large panel cutting and large relief carcving products.
Applicable material: solid wood panel, artificial board, acrylics, PVC, MDF and so on.

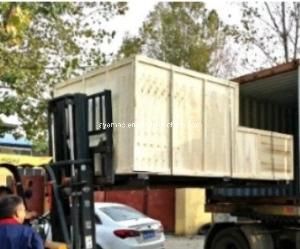

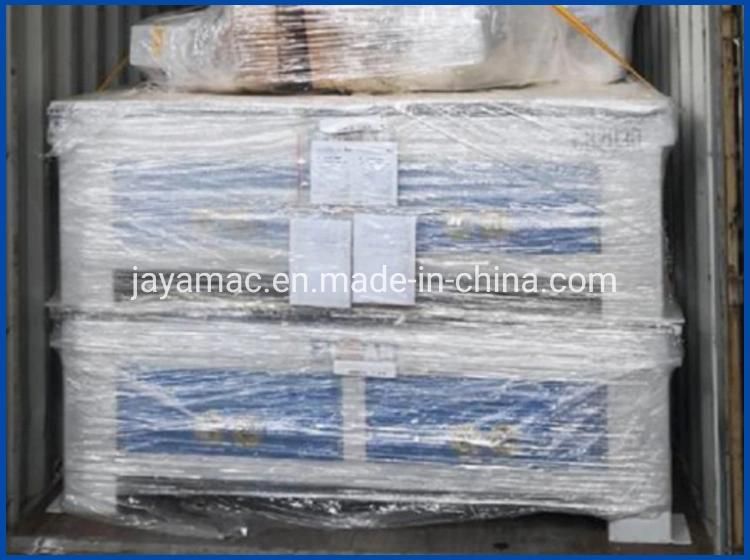

Packing pictures:




Company Information:

JAYA INTERNATIONAL, has been dealing in woodworking machinery for about 30 years, started from Jaya Trading at the beginning of 1992. In 2008, we made great investment and became the holding company of YanTai Lida woodworking machinery Co.,ltd, which has over 60 years' history of manufacturing all kinds of China-made woodworking machinery since 1960, especially for the MQ & ML series combined woodworking machine, it has the extremely important guiding function in the circle.  During the past few years, with the development of the company and the staff, we also expanded our production line to related fields like general machinery, panel furniture making machinery ,CNC router, Laser machinery, Plywood making machine and related hardware, ect. Now our machine has got great reputation as the brand ZICAR for woodworking machinery, MATIC for general machinery , HARRIER for CNC/ laser Machinery, PLYTEC for plywood making machine all over the world with the following advantages:

* More than 300 employees, 56 technicians, covering an area of 35000 square meters.

*ISO9001:2000, CE certified, 15 national patents

* One-stop service, meet needs of the customers from individuals to international companies.

*OEM service accepted.

* Separate trading office: Jaya Trading with 35 experienced sales offering full scale service.

*Inquiries are typically answered within 8 hours.

* After sale Service: experienced and knowledgeable team of technical support

*annual turnover:USD 20 million

We trust that our experience and intimate knowledge of this line will entitle us to your confidence.

FAQ:

The more you know us, the more you trust us!

1.Our Payment Way?
L/C and T/T or other ways.

2.Delivery Time?
30 days after downpayment.We have our own forwarder and we havelong term cooperation with each other and have
closely relationshipwith each other,so there is no problem in shipment.

3.Our Warranty?
(1)One year guarantee from the delivery date of this machine under the normal operation of oneshift per day.
(2)We will be responsible for the maintenance of damaged part which is under normal situationduring warranty period, and all the
round-trip courier transportation cost of damaged/repairedreplacement parts in warranty period should be borne by the buyer.
Wearing parts are notincluded.
(3)24 hour technical support by email or calling
(4)User-friendly English manual for machine using and maintaining

4.Our srvices?
(1)One-stop service, meet needs of the customers from individuals to international companies.
(2)OEM service accepted.
(3)Separate trading office: Jaya Trading with 30 experienced sales offering full scale service.
(4)After sale Service: experienced and knowledgeable team of technical support , provideengineer oversea service.
